Infiniti FX35 / FX45. Manual - part 584





DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION

EC-1097

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

OK or NG

OK

>> GO TO 13.

NG

>> GO TO 14.

13.

CHECK INTERMITTENT INCIDENT

Refer to

EC-717

.

OK or NG

OK

>> GO TO 14.

NG

>> Repair or replace harness or connectors.

14.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace the electric throttle control actuator.

2.

Perform

EC-663, "Throttle Valve Closed Position Learning"

.

3.

Perform

EC-663, "Idle Air Volume Learning"

.

>> INSPECTION END

Component Inspection

INFOID:0000000001326987

THROTTLE CONTROL MOTOR

1.

Disconnect electric throttle control actuator harness connector.

2.

Check resistance between terminals 1 and 2.

3.

If NG, replace electric throttle control actuator and go to next
step.

4.

Perform

EC-663, "Throttle Valve Closed Position Learning"

.

5.

Perform

EC-663, "Idle Air Volume Learning"

.

Removal and Installation

INFOID:0000000001326988

ELECTRIC THROTTLE CONTROL ACTUATOR

Refer to

EM-175

.

Resistance: Approximately 1 - 15

 [at 25

°

C (77

°

F)]

PBIB3251E

EC-1098

< SERVICE INFORMATION >

[VK45DE]

DTC P2118 THROTTLE CONTROL MOTOR

DTC P2118 THROTTLE CONTROL MOTOR

Component Description

INFOID:0000000001326989

The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.

On Board Diagnosis Logic

INFOID:0000000001326990

This self-diagnosis has the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.

DTC Confirmation Procedure

INFOID:0000000001326991

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

1.

Turn ignition switch ON and wait at least 2 seconds.

2.

Start engine and let it idle for 5 seconds.

3.

Check DTC.

4.

If DTC is detected, go to

EC-1100, "Diagnosis Procedure"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2118
2118

Throttle control motor
circuit short

ECM detects short in both circuits between
ECM and throttle control motor.

• Harness or connectors

(Throttle control motor circuit is shorted.)

• Electric throttle control actuator

(Throttle control motor)

Engine operating condition in fail-safe mode

ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.

DTC P2118 THROTTLE CONTROL MOTOR

EC-1099

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

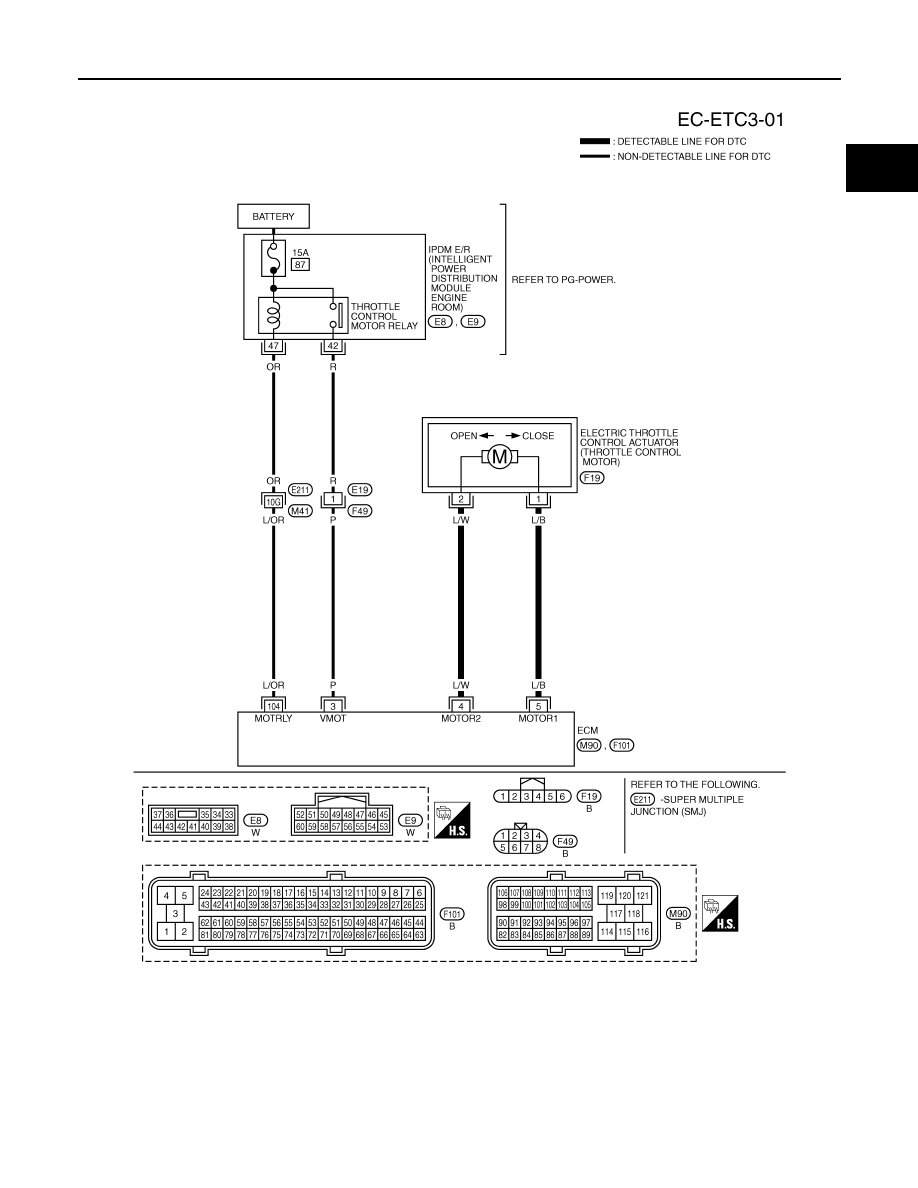

Wiring Diagram

INFOID:0000000001326992

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.

CAUTION:

TBWM1346E

EC-1100

< SERVICE INFORMATION >

[VK45DE]

DTC P2118 THROTTLE CONTROL MOTOR

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

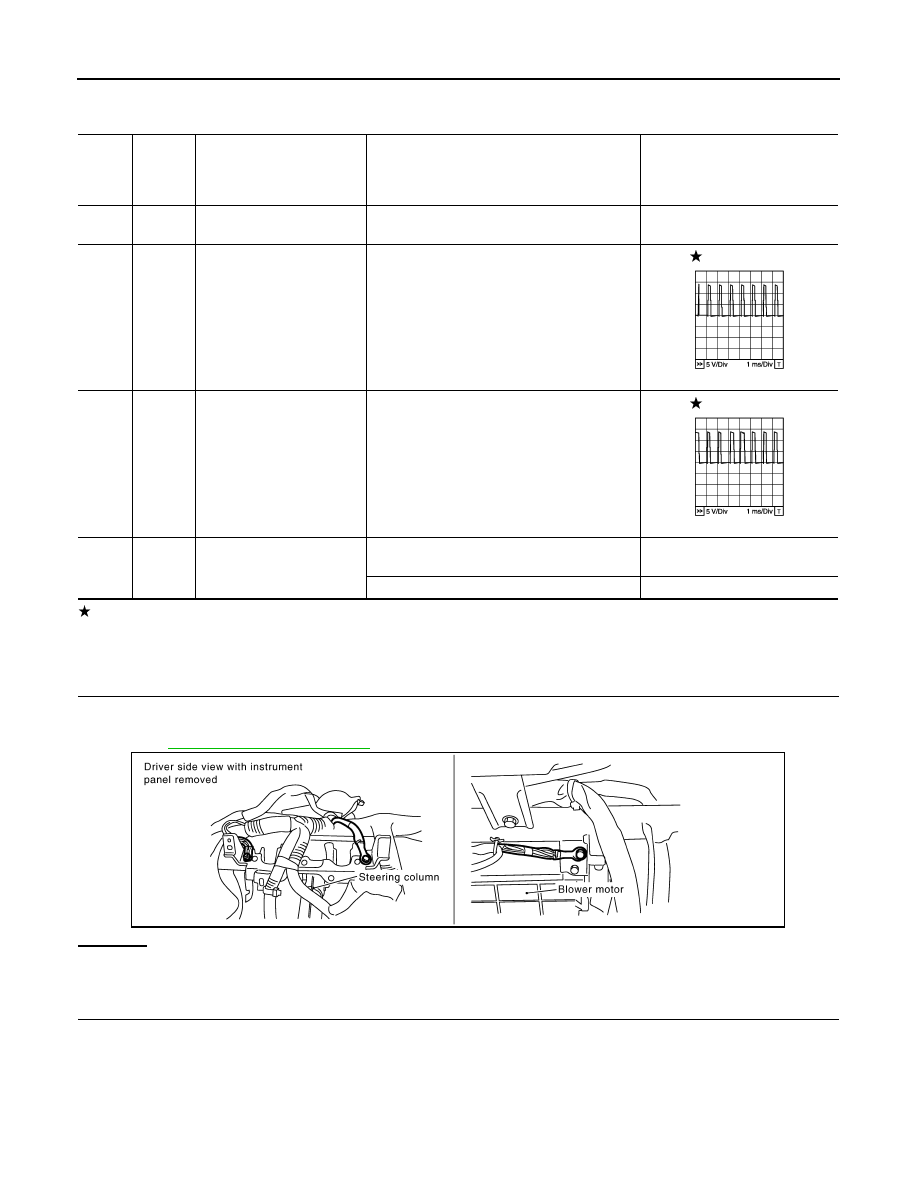

Diagnosis Procedure

INFOID:0000000001326993

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body.
Refer to

EC-723, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

3

P

Throttle control motor relay
power supply

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

4

L/W

Throttle control motor
(Close)

[Ignition switch: ON]
• Engine stopped
• Selector lever: D
• Accelerator pedal: Fully released

0 - 14V

5

L/B

Throttle control motor
(Open)

[Ignition switch: ON]
• Engine stopped
• Selector lever: D
• Accelerator pedal: Fully depressed

0 - 14V

104

L/OR

Throttle control motor relay

[Ignition switch: OFF]

BATTERY VOLTAGE
(11 - 14V)

[Ignition switch: ON]

0 - 1.0V

PBIB1104E

PBIB1105E

PBIB2195E
