DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-933

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID
VALVE

Description

INFOID:0000000001326766

SYSTEM DESCRIPTION

*1: ECM determines the start signal status by the signals of engine speed and battery voltage.

*2: This signal is sent to the ECM through CAN communication line.

This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-
sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP
canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the
ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is
determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor
from the EVAP canister is regulated as the air flow changes.

COMPONENT DESCRIPTION

The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001326767

Specification data are reference values.

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

1

EVAP canister
purge flow control

EVAP canister purge vol-
ume control solenoid valve

Mass air flow sensor

Amount of intake air

Engine coolant temperature sensor

Engine coolant temperature

Battery

Battery voltage*

1

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

A/F sensor 1

Density of oxygen in exhaust gas
(Mixture ratio feedback signal)

Fuel tank temperature sensor

Fuel temperature in fuel tank

Wheel sensor

Vehicle speed*

2

SEF337U

MONITOR ITEM

CONDITION

SPECIFICATION

PURG VOL C/V

• Engine: After warming up
• Selector lever: P or N
• Air conditioner switch: OFF
• No  load

Idle

0%

2,000 rpm

EC-934

< SERVICE INFORMATION >

[VK45DE]

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

On Board Diagnosis Logic

INFOID:0000000001326768

DTC Confirmation Procedure

INFOID:0000000001326769

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5

°

C (41

°

F) or more.

 WITH CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON.

4.

Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode with
CONSULT-III.

5.

Touch “START”.

6.

Start engine and let it idle until “TESTING” on CONSULT-III changes to “COMPLETED”. (It will take
approximately 10 seconds.)
If “TESTING” is not displayed after 5 minutes, retry from step 2.

7.

Make sure that “OK” is displayed after touching “SELF-DIAG RESULTS”. If “NG” is displayed, refer to

EC-

936, "Diagnosis Procedure"

.

 WITH GST

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Start engine and let it idle for at least 20 seconds.

4.

Select “Service $07” with GST.

5.

If 1st trip DTC is detected, go to

EC-936, "Diagnosis Procedure"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0443
0443

EVAP canister purge
volume control solenoid
valve

The canister purge flow is detected during the
specified driving conditions, even when EVAP
canister purge volume control solenoid valve is
completely closed.

• EVAP control system pressure sensor
• EVAP canister purge volume control so-

lenoid valve
(The valve is stuck open.)

• EVAP canister vent control valve
• EVAP canister
• Hoses

(Hoses are connected incorrectly or
clogged.)

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EC-935

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

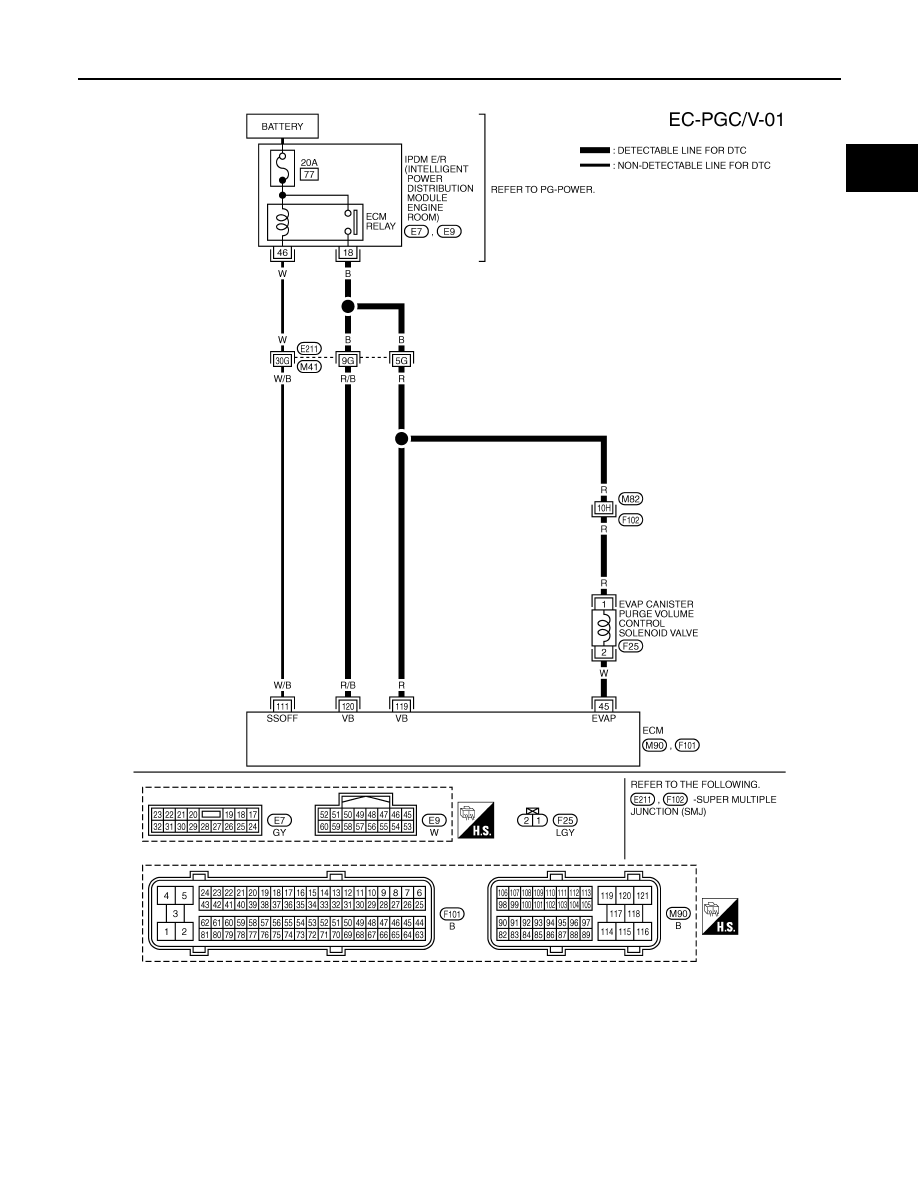

Wiring Diagram

INFOID:0000000001326770

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.

CAUTION:

TBWM1338E

EC-936

< SERVICE INFORMATION >

[VK45DE]

DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnosis Procedure

INFOID:0000000001326771

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister purge volume control solenoid valve
(1) harness connector.

-

EVAP service port (2)

3.

Turn ignition switch ON.

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

45

W

EVAP canister purge volume
control solenoid valve

[Engine is running]
• Idle speed

BATTERY VOLTAGE

(11 - 14V)

[Engine is running]
• Engine speed: About 2,000 rpm (More than

100 seconds after starting engine)

11 - 14V

111

W/B

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]
• For a few seconds after turning ignition

switch OFF

0 - 1.5V

[Ignition switch: OFF]
• More than a few seconds after turning igni-

tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

119

120

R
R/B

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

PBIB0050E

PBIB0051E

PBIB3238E
