DTC P0441 EVAP CONTROL SYSTEM

EC-925

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Refer to

EC-618, "Description"

.

OK or NG

OK

>> GO TO 13.

NG

>> Replace it.

13.

CLEAN EVAP PURGE LINE

Clean EVAP purge line (pipe and rubber tube) using air blower.

>> GO TO 14.

14.

CHECK INTERMITTENT INCIDENT

Refer to

EC-717

.

>> INSPECTION END

EC-926

< SERVICE INFORMATION >

[VK45DE]

DTC P0442 EVAP CONTROL SYSTEM

DTC P0442 EVAP CONTROL SYSTEM

On Board Diagnosis Logic

INFOID:0000000001326763

This diagnosis detects leaks in the EVAP purge line using engine intake manifold vacuum.
If pressure does not increase, the ECM will check for leaks in the line between the fuel tank and EVAP canister
purge volume control solenoid valve, under the following “Vacuum test” conditions.
The EVAP canister vent control valve is closed to shut the EVAP purge line off. The EVAP canister purge vol-
ume control solenoid valve will then be opened to depressurize the EVAP purge line using intake manifold
vacuum. After this occurs, the EVAP canister purge volume control solenoid valve will be closed.

CAUTION:

• Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the

MIL may come on.

• If the fuel filler cap is not tightened properly, the MIL may come on.
• Use only a genuine NISSAN rubber tube as a replacement.

DTC Confirmation Procedure

INFOID:0000000001326764

NOTE:

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0442
0442

EVAP control system
small leak detected
(negative pressure)

EVAP control system has a leak, EVAP
control system does not operate prop-
erly.

• Incorrect fuel tank vacuum relief valve
• Incorrect fuel filler cap used
• Fuel filler cap remains open or fails to close.
• Foreign matter caught in fuel filler cap.
• Leak is in line between intake manifold and EVAP

canister purge volume control solenoid valve.

• Foreign matter caught in EVAP canister vent con-

trol valve.

• EVAP canister or fuel tank leaks
• EVAP purge line (pipe and rubber tube) leaks
• EVAP purge line rubber tube bent
• Loose or disconnected rubber tube
• EVAP canister vent control valve and the circuit
• EVAP canister purge volume control solenoid

valve and the circuit

• Fuel tank temperature sensor
• O-ring of EVAP canister vent control valve is

missing or damaged

• EVAP canister is saturated with water
• EVAP control system pressure sensor
• Fuel level sensor and the circuit
• Refueling EVAP vapor cut valve
• ORVR system leaks

PBIB1026E

DTC P0442 EVAP CONTROL SYSTEM

EC-927

< SERVICE INFORMATION >

[VK45DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

• If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at

least 10 seconds before conducting the next test.

TESTING CONDITION:
• Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is placed

on flat level surface.

• Always perform test at a temperature of 0 to 30

°

C (32 to 86

°

F).

 WITH CONSULT-III

1.

Turn ignition switch ON.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.

4.

Make sure that the following conditions are met.
COOLAN TEMP/S: 0 - 70

°

C (32 - 158

°

F)

INT/A TEMP SE: 0 - 30

°

C (32 - 86

°

F)

5.

Select “EVAP SML LEAK P0442/P1442” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode
with CONSULT-III.
Follow the instruction displayed.
NOTE:
If the engine speed cannot be maintained within the range displayed on the CONSULT-III screen, go to

EC-658, "Basic Inspection"

.

6.

Make sure that “OK” is displayed.
If “NG” is displayed, refer to

EC-927, "Diagnosis Procedure"

.

NOTE:
Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve
properly.

 WITH GST

NOTE:
Be sure to read the explanation of

EC-633, "Emission-related Diagnostic Information"

 before driving vehicle.

1.

Start engine.

2.

Drive vehicle according to

EC-633, "Emission-related Diagnostic Information"

.

3.

Stop vehicle.

4.

Turn ignition switch OFF, wait at least 10 seconds and then turn ON.

5.

Select “Service $07” with GST.
• If P0442 is displayed on the screen, go to

EC-927, "Diagnosis Procedure"

.

• If P0441 is displayed on the screen, go to

EC-922, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001326765

1.

CHECK FUEL FILLER CAP DESIGN

1.

Turn ignition switch OFF.

2.

Check for genuine NISSAN fuel filler cap design.

OK or NG

OK

>> GO TO 2.

NG

>> Replace with genuine NISSAN fuel filler cap.

2.

CHECK FUEL FILLER CAP INSTALLATION

Check that the cap is tightened properly by rotating the cap clockwise.

OK or NG

OK

>> GO TO 3.

SEF915U

EC-928

< SERVICE INFORMATION >

[VK45DE]

DTC P0442 EVAP CONTROL SYSTEM

NG

>> 1.

Open fuel filler cap, then clean cap and fuel filler neck threads using air blower.

2.

Retighten until ratcheting sound is heard.

3.

CHECK FUEL FILLER CAP FUNCTION

Check for air releasing sound while opening the fuel filler cap.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

CHECK FUEL TANK VACUUM RELIEF VALVE

Refer to

EC-620, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace fuel filler cap with a genuine one.

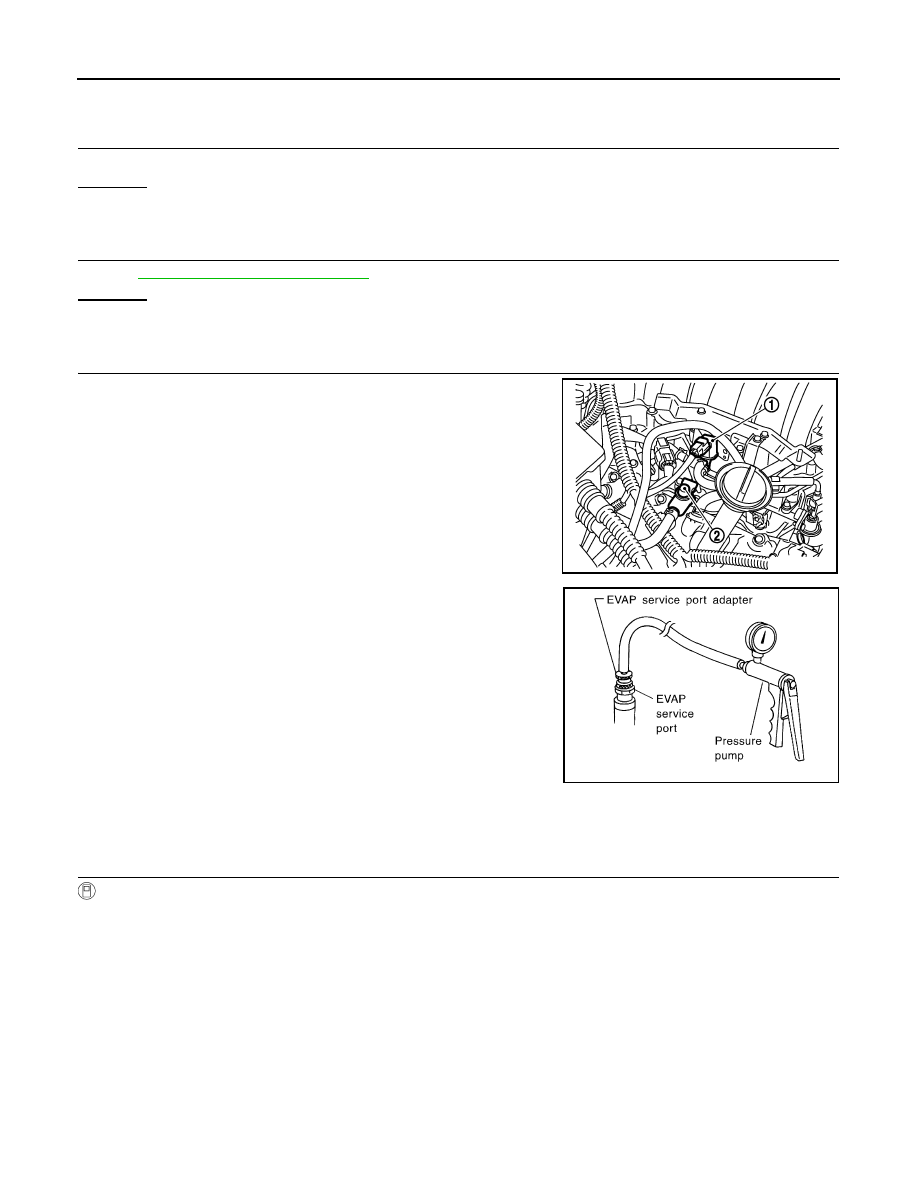

5.

INSTALL THE PRESSURE PUMP

To locate the EVAP leak, install EVAP service port adapter and pres-
sure pump to EVAP service port (2) securely.
• EVAP canister purge volume control solenoid valve (1)
NOTE:
Improper installation of the EVAP service port adapter to the
EVAP service port may cause leaking.

With CONSULT-III>>GO TO 6.
Without CONSULT-III>>GO TO 7.

6.

CHECK FOR EVAP LEAK

 With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “EVAP SYSTEM CLOSE” of “WORK SUPPORT” mode with CONSULT-III.

3.

Touch “START” and apply pressure into the EVAP line until the pressure indicator reaches the middle of
the bar graph.

CAUTION:

• Never use compressed air or a high pressure pump.
• Do not exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in the system.

PBIB3238E

SEF916U
