DTC P0335 CKP SENSOR (POS)

EC-321

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnosis Procedure

INFOID:0000000001326146

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten ground screw on the body. Refer to

EC-144, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK CRANKSHAFT POSITION SENSOR (POS) POWER SUPPLY CIRCUIT

TER-

MI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

13

Y

Crankshaft position sensor
(POS)

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes depending on rpm
at idle

Approximately 1.6V

[Engine is running]
• Engine speed: 2,000 rpm

Approximately 1.4V

111

W/B

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]
• For a few seconds after turning ignition

switch OFF

0 - 1.5V

[Ignition switch: OFF]
• More than a few seconds after turning igni-

tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

119

120

R
R/B

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

PBIB1041E

PBIB1042E

PBIB2625E

EC-322

< SERVICE INFORMATION >

[VQ35DE]

DTC P0335 CKP SENSOR (POS)

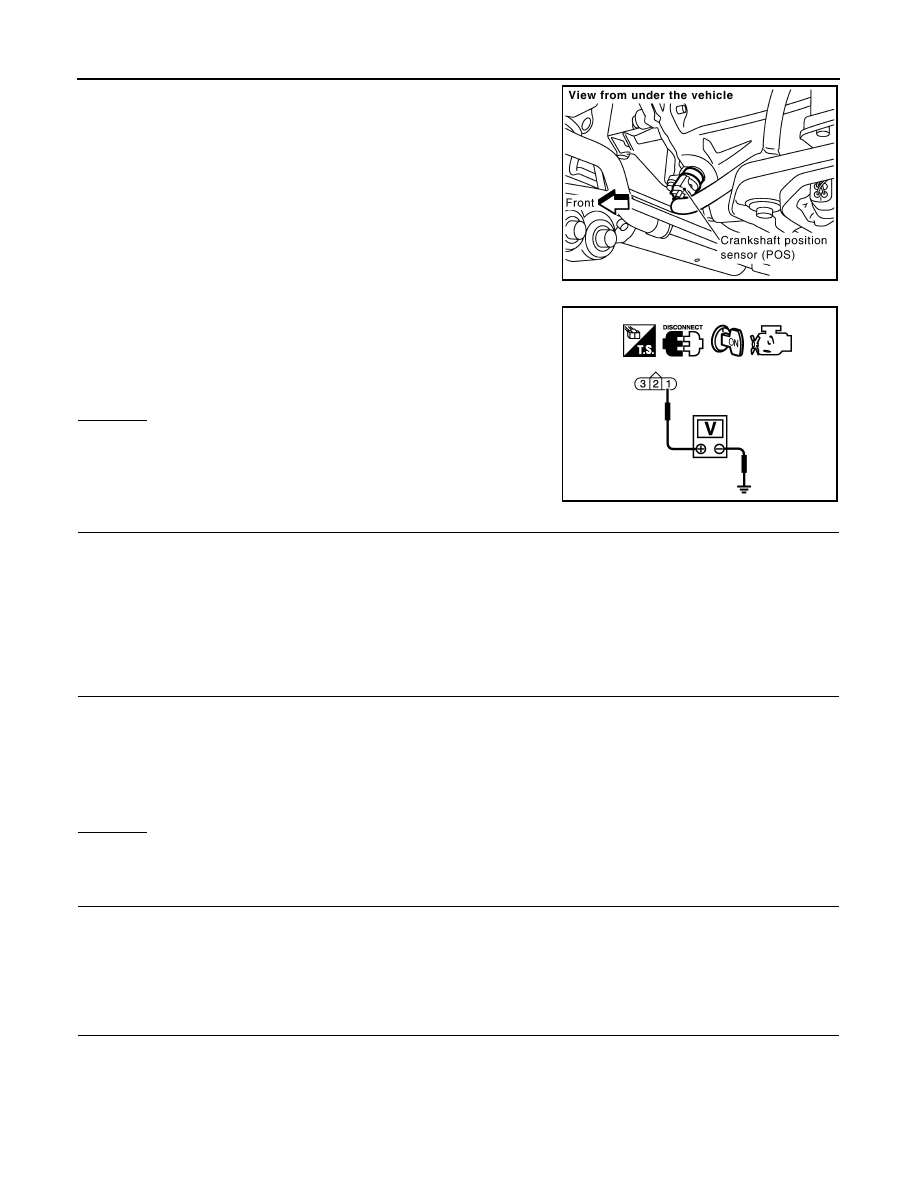

1.

Disconnect crankshaft position (CKP) sensor (POS) harness
connector.

2.

Turn ignition switch ON.

3.

Check voltage between CKP sensor (POS) terminal 1 and
ground with CONSULT-III or tester.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E211, M41
• Harness connectors F102, M82
• Harness for open or short between crankshaft position sensor (POS) and ECM
• Harness for open or short between crankshaft position sensor (POS) and IPDM E/R

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK CRANK SHAFT POSITION SENSOR (POS) GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Check harness continuity between CKP sensor (POS) terminal 3 and ground.
Refer to Wiring Diagram.

3.

Also check harness for short to power.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors F102, M82
• Harness for open or short between CKP sensor (POS) and ground

>> Repair open circuit or short to power in harness or connectors.

6.

CHECK CRANK SHAFT POSITION SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 13 and CKP sensor (POS) terminal 2.
Refer to Wiring Diagram.

PBIB1575E

Voltage: Battery voltage

PBIB0664E

Continuity should exist.

Continuity should exist.

DTC P0335 CKP SENSOR (POS)

EC-323

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 7.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK CRANKSHAFT POSITION SENSOR (POS)

Refer to

EC-323, "Component Inspection"

.

OK or NG

OK

>> GO TO 8.

NG

>> Replace crankshaft position sensor (POS).

8.

CHECK GEAR TOOTH

Visually check for chipping signal plate gear tooth.
OK or NG

OK

>> GO TO 9.

NG

>> Replace the signal plate.

9.

CHECK INTERMITTENT INCIDENT

Refer to

EC-139

.

>> INSPECTION END

Component Inspection

INFOID:0000000001326147

CRANKSHAFT POSITION SENSOR (POS)

1.

Loosen the fixing bolt of the sensor.

2.

Disconnect crankshaft position sensor (POS) harness connector.

3.

Remove the sensor.

4.

Visually check the sensor for chipping.

5.

Check resistance as shown in the figure.

Removal and Installation

INFOID:0000000001326148

CRANKSHAFT POSITION SENSOR (POS)

Refer to

AT-243, "Removal and Installation (AWD Models)"

.

PBIB0563E

Terminal No. (Polarity)

Resistance

Ω

 [at 25

°

C (77

°

F)]

1 (+) - 2 (-)

Except 0 or

∞

1 (+) - 3 (-)

2 (+) - 3 (-)

PBIB0564E

EC-324

< SERVICE INFORMATION >

[VQ35DE]

DTC P0340, P0345 CMP SENSOR (PHASE)

DTC P0340, P0345 CMP SENSOR (PHASE)

Component Description

INFOID:0000000001326149

The camshaft position (CMP) sensor (PHASE) senses the retraction
of camshaft (INT) to identify a particular cylinder. The camshaft posi-
tion sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
ECM receives the signals as shown in the figure.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001326150

Specification data are reference values.

On Board Diagnosis Logic

INFOID:0000000001326151

DTC Confirmation Procedure

INFOID:0000000001326152

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.

1.

Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.

2.

Check 1st trip DTC.

PBIB0562E

PBIB2744E

MONITOR ITEM

CONDITION

SPECIFICATION

ENG SPEED

• Run engine and compare CONSULT-III value with the ta-

chometer indication.

Almost the same speed as the tachometer
indication.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0340
0340
(Bank 1)

Camshaft position sen-
sor (PHASE) circuit

• The cylinder No. signal is not sent to ECM for

the first few seconds during engine cranking.

• The cylinder No. signal is not sent to ECM

during engine running.

• The cylinder No. signal is not in the normal

pattern during engine running.

• Harness or connectors

[Camshaft position sensor (PHASE) cir-
cuit is open or shorted]

• Camshaft position sensor (PHASE)
• Camshaft (INT)
• Starter motor (Refer to

SC-8

.)

• Starting system circuit (Refer to

SC-8

.)

• Dead (Weak) battery

P0345
0345
(Bank 2)
