ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-77

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

All components and systems should be monitored at least once by the OBD system.
• The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
• The B counter will be counted up when driving pattern B is satisfied without any malfunction.
• The MIL will go off when the B counter reaches 3. (*2 in “OBD SYSTEM OPERATION CHART”)

<Driving Pattern C>

Driving pattern C means the vehicle operation as follows:
The following conditions should be satisfied at the same time:
Engine speed: (Engine speed in the freeze frame data)

±

375 rpm

Calculated load value: (Calculated load value in the freeze frame data) x (1

±

0.1) [%]

Engine coolant temperature (T) condition:
• When the freeze frame data shows lower than 70

°

C (158

°

F), T should be lower than 70

°

C (158

°

F).

• When the freeze frame data shows higher than or equal to 70

°

C (158

°

F), T should be higher than or equal to

70

°

C (158

°

F).

Example:
If the stored freeze frame data is as follows:
Engine speed: 850 rpm, Calculated load value: 30%, Engine coolant temperature: 80

°

C (176

°

F)

To be satisfied with driving pattern C, the vehicle should run under the following conditions:
Engine speed: 475 - 1,225 rpm, Calculated load value: 27 - 33%, Engine coolant temperature: more than 70

°

C

(158

°

F)

• The C counter will be cleared when the malfunction is detected regardless of vehicle conditions above.
• The C counter will be counted up when vehicle conditions above is satisfied without the same malfunction.
• The DTC will not be displayed after C counter reaches 80.
• The 1st trip DTC will be cleared when C counter is counted once without the same malfunction after DTC is

stored in ECM.

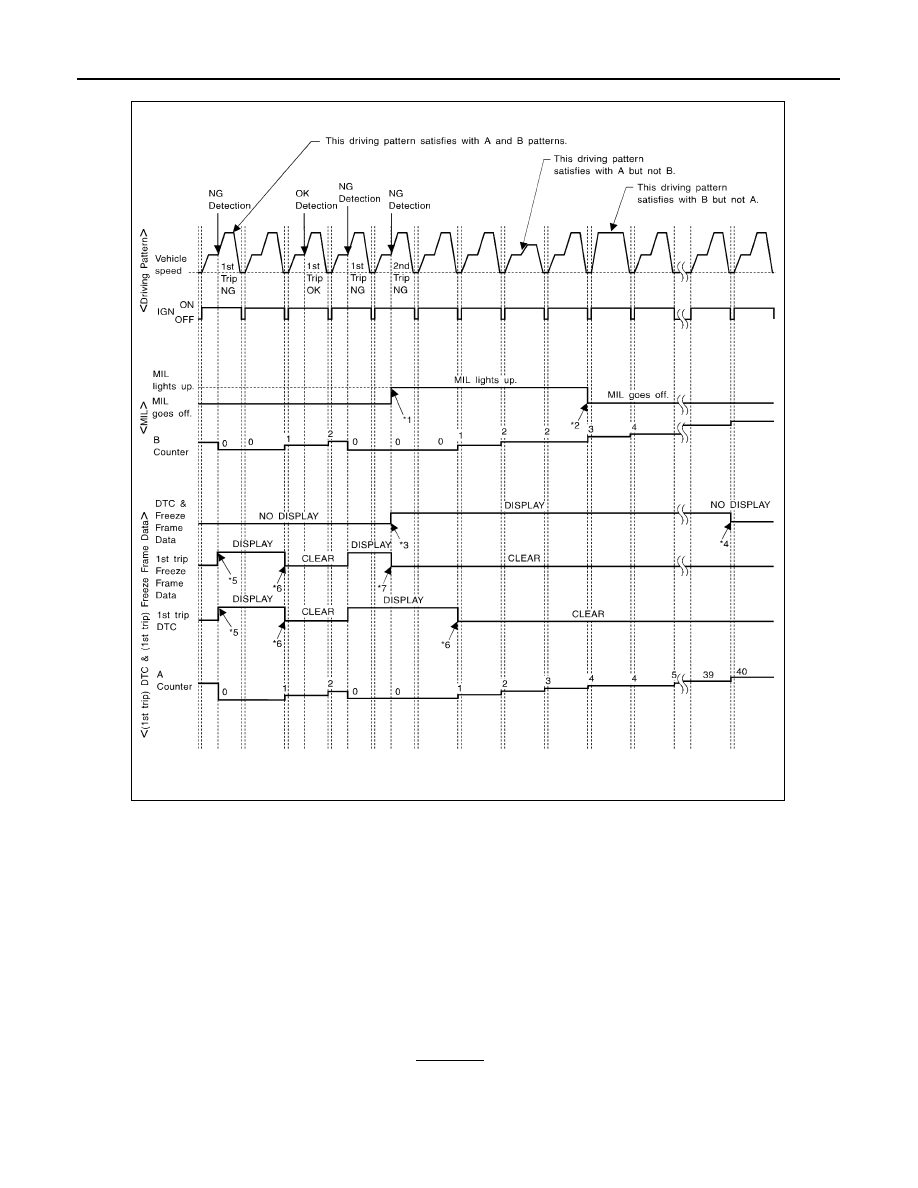

RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS EXCEPT FOR
“MISFIRE <EXHAUST QUALITY DETERIORATION>”, “FUEL INJECTION SYSTEM”

EC-78

< SERVICE INFORMATION >

[VQ35DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR “MISFIRE <EXHAUST QUALITY DETE-
RIORATION>”, “FUEL INJECTION SYSTEM”

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will light up.

*2: MIL will go off after vehicle is driven 3

times (pattern B) without any mal-
functions.

*3: When the same malfunction is de-

tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.

*4: The DTC and the freeze frame data

will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.)

*5: When a malfunction is detected for

the 1st time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.

*6: 1st trip DTC will be cleared after vehi-

cle is driven once (pattern B) without
the same malfunction.

*7: When the same malfunction is de-

tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.

SEF393SD

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-79

< SERVICE INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

<Driving Pattern A>

• The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
• The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
• The DTC will not be displayed after the A counter reaches 40 (*2 in OBD SYSTEM OPERATION CHART).

<Driving Pattern B>

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.
• The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
• The B counter will be counted up when driving pattern B is satisfied without any malfunctions.
• The MIL will go off when the B counter reaches 3 (*2 in OBD SYSTEM OPERATION CHART).

AEC574

EC-80

< SERVICE INFORMATION >

[VQ35DE]

BASIC SERVICE PROCEDURE

BASIC SERVICE PROCEDURE

Basic Inspection

INFOID:0000000001325919

1.

INSPECTION START

1.

Check service records for any recent repairs that may indicate a related malfunction, or a current need for
scheduled maintenance.

2.

Open engine hood and check the following:

-

Harness connectors for improper connections

-

Wiring harness for improper connections, pinches and cut

-

Vacuum hoses for splits, kinks and improper connections

-

Hoses and ducts for leaks

-

Air cleaner clogging

-

Gasket

3.

Confirm that electrical or mechanical loads are not applied.

-

Headlamp switch is OFF.

-

Air conditioner switch is OFF.

-

Rear window defogger switch is OFF.

-

Steering wheel is in the straight-ahead position, etc.

4.

Start engine and warm it up until engine coolant temperature
indicator points the middle of gauge.
Ensure engine stays below 1,000 rpm.

5.

Run engine at about 2,000 rpm for about 2 minutes under no
load.

6.

Make sure that no DTC is displayed with CONSULT-III or GST.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

REPAIR OR REPLACE

Repair or replace components as necessary according to corresponding Diagnostic Procedure.

>> GO TO 3.

3.

CHECK TARGET IDLE SPEED

 With CONSULT-III

1.

Run engine at about 2,000 rpm for about 2 minutes under no-load.

SEF983U

SEF976U

SEF977U
