ATC-12

< SERVICE INFORMATION >

PRECAUTIONS

Vehicles with factory installed fluorescent dye have the identification label on the front side of hood.

PREPARATION

ATC-13

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

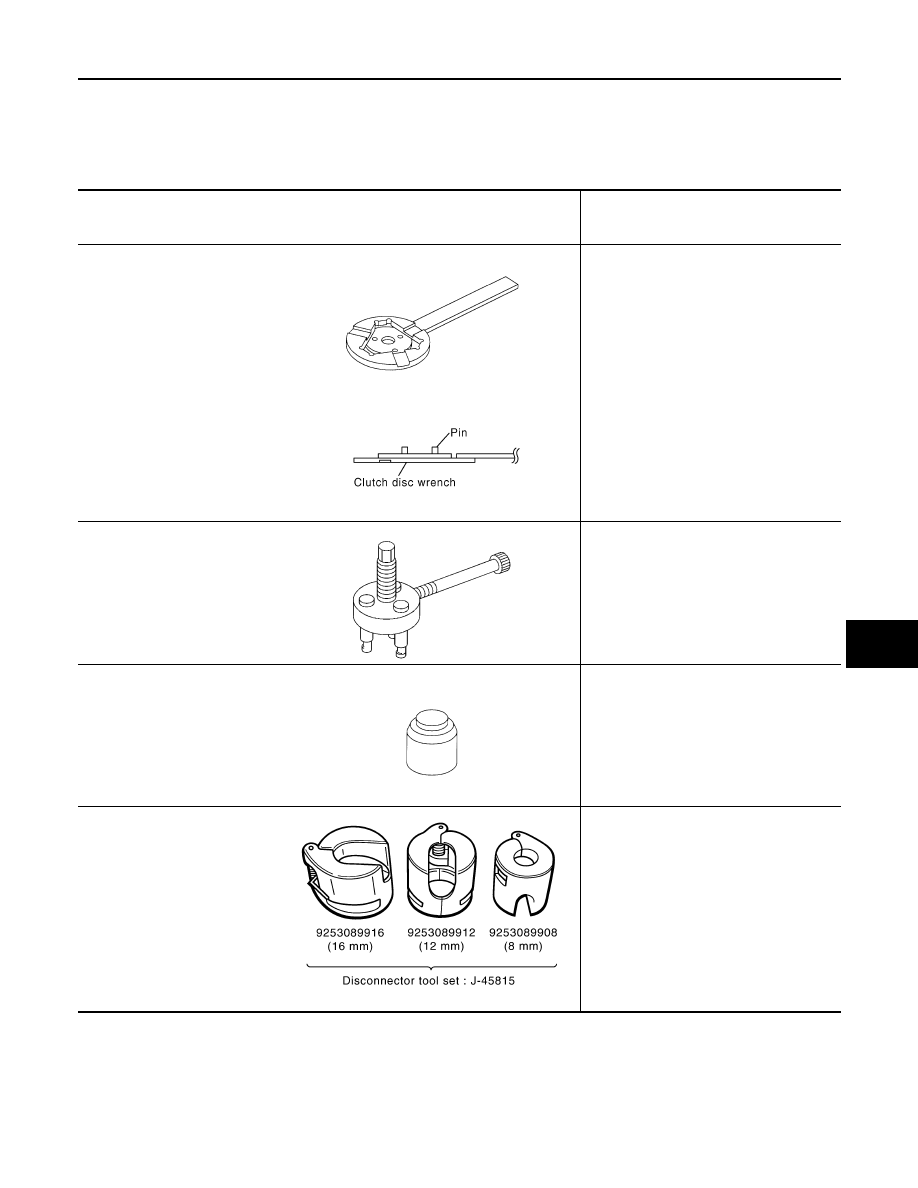

PREPARATION

Special Service Tool

INFOID:0000000001328159

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

HFC-134a (R-134a) Service Tool and Equipment

INFOID:0000000001328160

Never mix HFC-134a (R-134a) refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/or
its lubricant.
Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/lubri-
cant.

Tool number

(Kent-Moore No.)

Tool name

Description

KV99106100
(J-41260)
Clutch disc wrench

Removing shaft nut and clutch disc

KV99232340
(J-38874)
Clutch disc puller

Removing clutch disc

KV99106200
(J-41261)
Pulley installer

Installing pulley

9253089908
(for high-pressure pipe 1)
(-)
9253089912
(for high-pressure flexible hose)
(-)
9253089916
(for low-pressure pipe 1 and
low-pressure flexible hose)
(-)
Disconnector tool set
(J-45815)

Disconnect one-touch joint connection

S-NT232

SJIA1168E

S-NT376

S-NT235

SJIA1274E

ATC-14

< SERVICE INFORMATION >

PREPARATION

Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles
refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.
Never use adapters that convert one size fitting to another: refrigerant/lubricant contamination occurs and
compressor malfunction may result.

Tool number

(Kent-Moore No.)

Tool name

Description

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size

• Large container 1/2

″

-16 ACME

Nissan A/C System Oil Type S
(DH-PS)

Type: Polyalkylene glycol oil (PAG),
type S (DH-PS)
Application:
HFC-134a (R-134a) wobble (swash)
plate compressors (Nissan only)

Capacity: 40 m

 (1.4 US fl oz., 1.4

Imp fl oz.)

(ACR2005-NI)
ACR5 A/C Service Center

Function: Refrigerant recovery, recy-
cling and recharging

(J-41995)
Electrical A/C leak detector

Power supply:
DC 12 V (Battery terminal)

(J-43926)
Refrigerant dye leak detection kit
Kit includes:
(J-42220)
UV lamp and UV safety goggles
(J-41459)
HFC-134a (R-134a) dye injector
Use with J-41447, 1/4 ounce bottle
(J-41447)
HFC-134a (R-134a) fluorescent
leak detection dye
(Box of 24, 1/4 ounce bottles)
(J-43872)
Refrigerant dye cleaner

Power supply:
DC 12 V (Battery terminal)

S-NT196

S-NT197

WJIA0293E

AHA281A

ZHA200H

PREPARATION

ATC-15

< SERVICE INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ATC

N

O

P

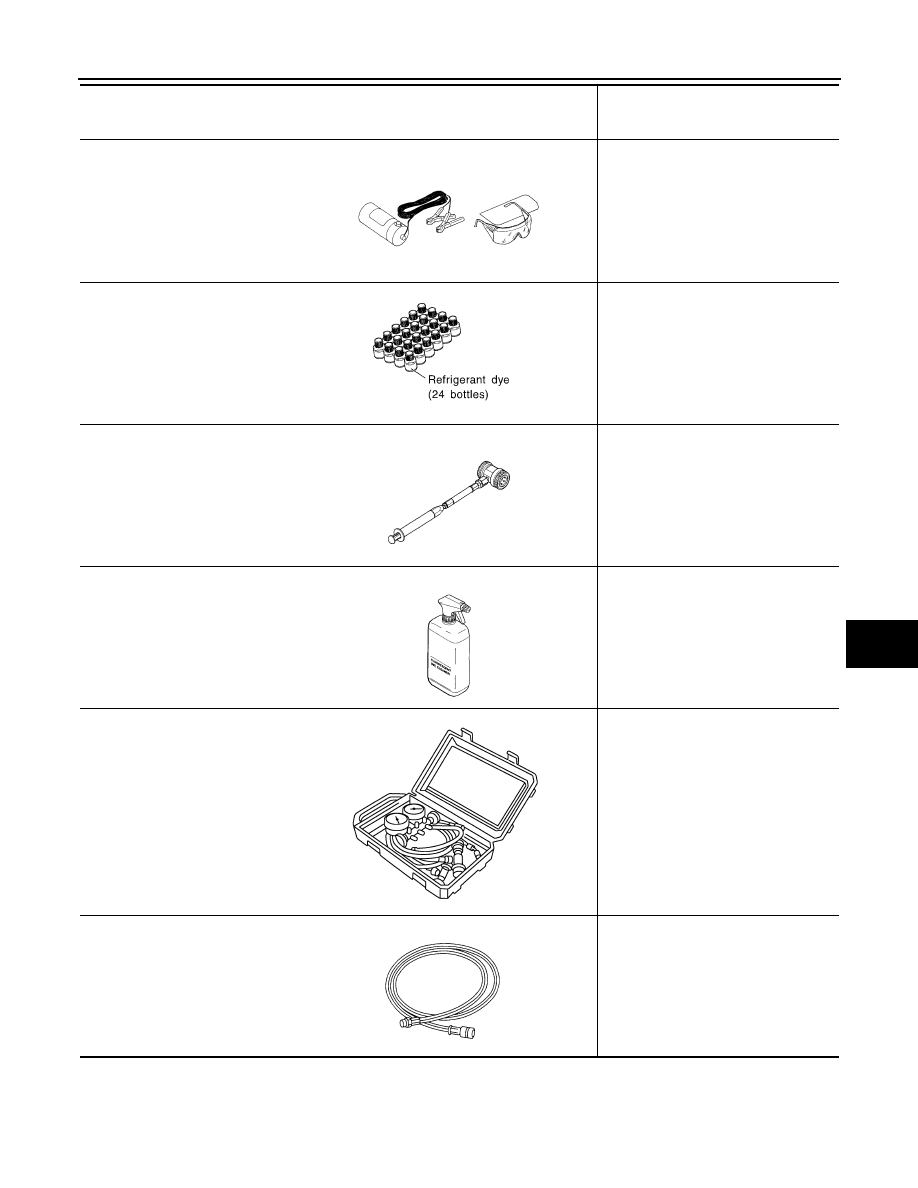

(J-42220)
 UV lamp and UV safety goggles

Power supply:
DC 12 V (Battery terminal)
For checking refrigerant leak when flu-
orescent dye is installed in A/C system
Includes:
UV lamp and UV safety goggles

(J-41447)
HFC-134a (R-134a) fluorescent
leak detection dye
(Box of 24, 1/4 ounce bottles)

Application:
For HFC-134a (R-134a) PAG oil
Container:
1/4 ounce (7.4 cc) bottle
(Includes self-adhesive dye identifica-
tion labels for affixing to vehicle after
charging system with dye.)

(J-41459)
HFC-134a (R-134a) dye injector
Use with J-41447, 1/4 ounce bottle

For injecting 1/4 ounce of fluorescent
leak detection dye into A/C system

(J-43872)
Refrigerant dye cleaner

For cleaning dye spills

(J-39183)
Manifold gauge set (with hoses
and couplers)

Identification:
• The gauge face indicates HFC-134a

(R-134a).

Fitting size: Thread size

• 1/2

″

-16 ACME

Service hoses
• High-pressure side hose

(J-39501-72)

• Low-pressure side hose

(J-39502-72)

• Utility hose

(J-39476-72)

Hose color:
• Low hose: Blue with black stripe
• High hose: Red with black stripe
• Utility hose: Yellow with black stripe

or green with black stripe

Hose fitting to gauge:

• 1/2

″

-16 ACME

Tool number

(Kent-Moore No.)

Tool name

Description

SHA438F

SHA439F

SHA440F

SHA441F

RJIA0196E

S-NT201
