ATC-8

< SERVICE INFORMATION >

PRECAUTIONS

VK45DE

CAUTION:

The new and former refrigerant connections use different O-ring configurations. Never confuse O-
rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant may leak at the con-
nection.

O-Ring Part Numbers and Specifications

WARNING:

Make sure all refrigerant is discharged into the recycling equipment and the pressure in the system is
less than atmospheric pressure. Then gradually loosen the discharge side hose fitting and remove it.

SJIA1774E

Connection type

Piping connection point

Part number

QTY

O-ring size

New

Low-pressure pipe 1 to low-pressure pipe 2 (One-touch joint)

92473 N8221

Low-pressure pipe 2 to expansion valve

92473 N8210

High-pressure pipe 1 to high-pressure pipe 2 (One-touch joint)

92471 N8221

High-pressure pipe 3 to expansion valve

92471 N8210

High-pressure pipe 2 to high-pressure pipe 3 (One-touch joint)

92471 N8221

Condenser to high-pressure flexible hose (One-touch joint)

92472 N8221

Condenser to high-pressure pipe 1 (One-touch joint)

92471 N8221

Low-pressure flexible hose to low-pressure pipe 1 (One-touch joint)

92473 N8221

Low-pressure pipe to low-pressure flexible hose (VK45DE)

92474 N8210

Compressor to low-pressure flexible hose (VQ35DE)

92474 N8210

Compressor to low-pressure pipe (VK45DE)

92474 N8210

Compressor to high-pressure flexible hose

92472 N8210

Liquid tank to condenser pipe

Inlet

92471 N8210

Outlet

Former

Refrigerant pressure sensor to condenser

J2476 89956

Expansion valve to evaporator

Inlet

92475 71L00

Outlet

92475 72L00

PRECAUTIONS

ATC-9

< SERVICE INFORMATION >

ATC

CAUTION:

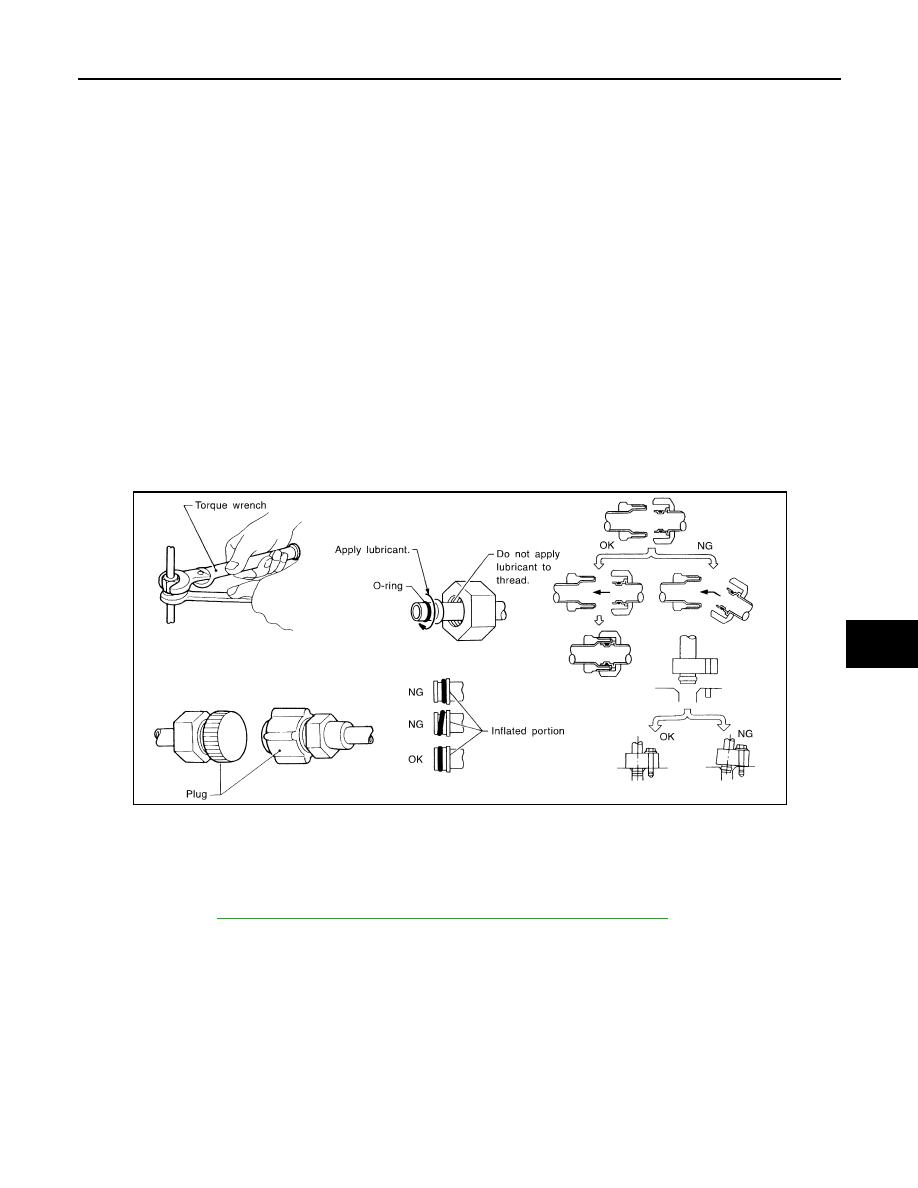

When replacing or cleaning refrigerant cycle components, observe the following.
• When the compressor is removed, store it in the same way at it is when mounted on the car. Failure

to do so will cause lubricant to enter the low-pressure chamber.

• When connecting tubes, always use a torque wrench and a back-up wrench.
• After disconnecting tubes, immediately plug all openings to prevent entry of dust and moisture.
• When installing an air conditioner in the vehicle, connect the pipes at the final stage of the operation.

Never remove the seal caps of pipes and other components until just before required for connection.

• Allow components stored in cool areas to warm to working area temperature before removing seal

caps. This prevents condensation from forming inside A/C components.

• Thoroughly remove moisture from the refrigeration system before charging the refrigerant.
• Always replace used O-rings.
• When connecting tubes, apply lubricant to circle of the O-rings shown in illustration. Be careful not

to apply lubricant to threaded portion.

• O-ring must be closely attached to the groove of tube.
• When replacing the O-ring, be careful not to damage O-ring and tube.
• Connect tube until a click can be heard, then tighten the nut or bolt by hand. Make sure that the O-

ring is installed to tube correctly.

• After connecting line, perform leak test and make sure that there is no leakage from connections.

When the refrigerant leaking point is found, disconnect that line and replace the O-ring. Then tighten
connections of seal seat to the specified torque.

Precaution for Service of Compressor

INFOID:0000000001328156

• Plug all openings to prevent moisture and foreign matter from entering.
• When the compressor is removed, store it in the same way at it is when mounted on the car.
• When replacing or repairing compressor, follow “Maintenance of Lubricant Quantity in Compressor”

exactly. Refer to

ATC-22, "Maintenance of Lubricant Quantity in Compressor"

• Keep friction surfaces between clutch and pulley clean. If the surface is contaminated with lubricant,

wipe it off by using a clean waste cloth moistened with thinner.

• After compressor service operation, turn the compressor shaft by hand more than five turns in both

directions. This will equally distribute lubricant inside the compressor. After the compressor is
installed, let the engine idle and operate the compressor for one hour.

• After replacing the compressor magnet clutch, apply voltage to the new one and check for normal

operation.

Precaution for Service Equipment

INFOID:0000000001328157

RECOVERY/RECYCLING EQUIPMENT

Name

: Nissan A/C System Oil Type S

RHA861F

ATC-10

< SERVICE INFORMATION >

PRECAUTIONS

Be certain to follow the manufacturer’s instructions for machine operation and machine maintenance. Never
introduce any refrigerant other than that specified into the machine.

ELECTRICAL LEAK DETECTOR

Be certain to follow the manufacturer’s instructions for tester operation and tester maintenance.

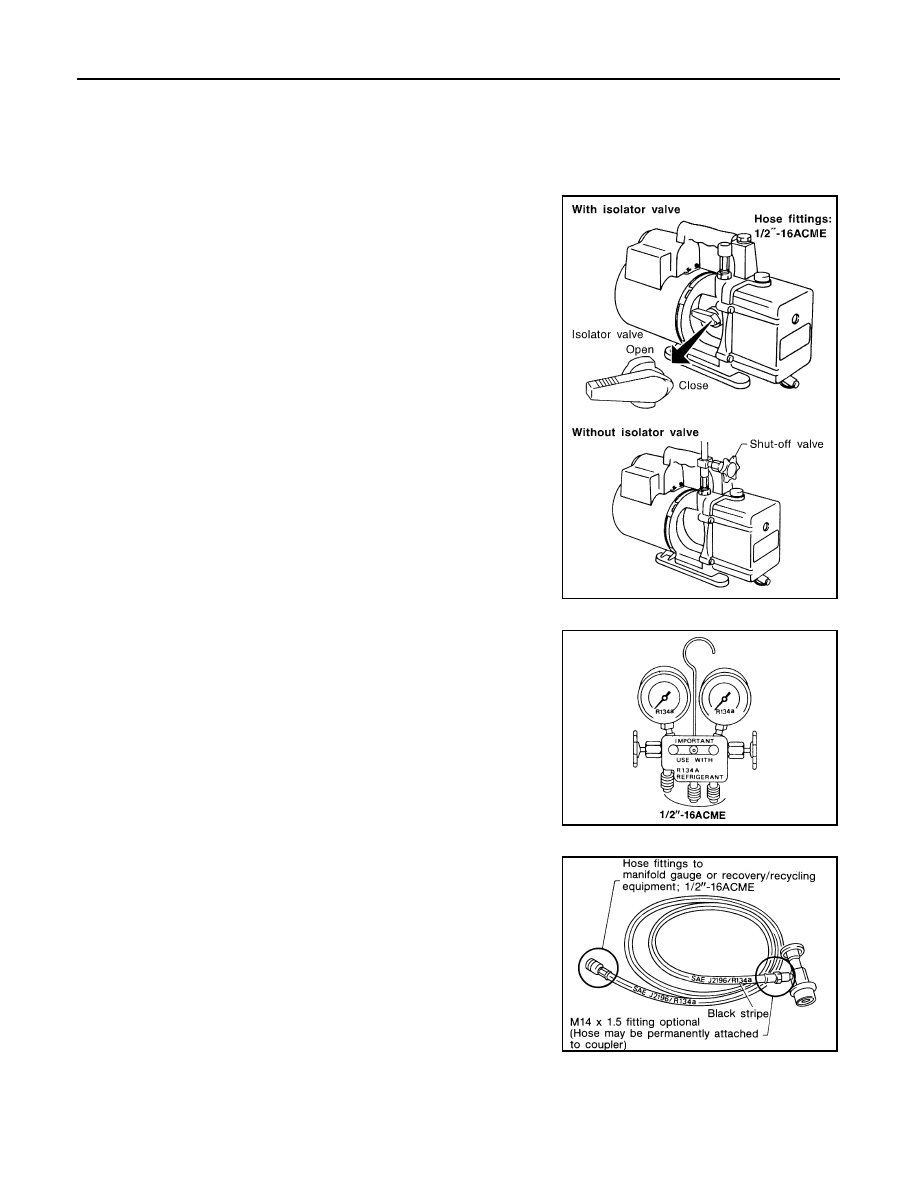

VACUUM PUMP

The lubricant contained inside the vacuum pump is not compatible
with the specified lubricant for HFC-134a (R-134a) A/C systems.
The vent side of the vacuum pump is exposed to atmospheric pres-
sure. So the vacuum pump lubricant may migrate out of the pump
into the service hose. This is possible when the pump is switched off
after evacuation (vacuuming) and hose is connected to it.
To prevent this migration, use a manual valve placed near the hose-
to-pump connection, as follows.
• Usually vacuum pumps have a manual isolator valve as part of the

pump. Close this valve to isolate the service hose from the pump.

• For pumps without an isolator, use a hose equipped with a manual

shut-off valve near the pump end. Close the valve to isolate the
hose from the pump.

• If the hose has an automatic shut-off valve, disconnect the hose

from the pump. As long as the hose is connected, the valve is open
and lubricating oil may migrate.

Some one-way valves open when vacuum is applied and close
under no vacuum condition. Such valves may restrict the pump’s
ability to pull a deep vacuum and are not recommended.

MANIFOLD GAUGE SET

Be certain that the gauge face indicates HFC-134a or R-134a. Be
sure the gauge set has 1/2

″

-16 ACME threaded connections for ser-

vice hoses. Confirm the set has been used only with refrigerant
HFC-134a (R-134a) and specified lubricants.

SERVICE HOSES

Be certain that the service hoses display the markings described
(colored hose with black stripe). All hoses must include positive shut-
off devices (either manual or automatic) near the end of the hoses
opposite to the manifold gauge.

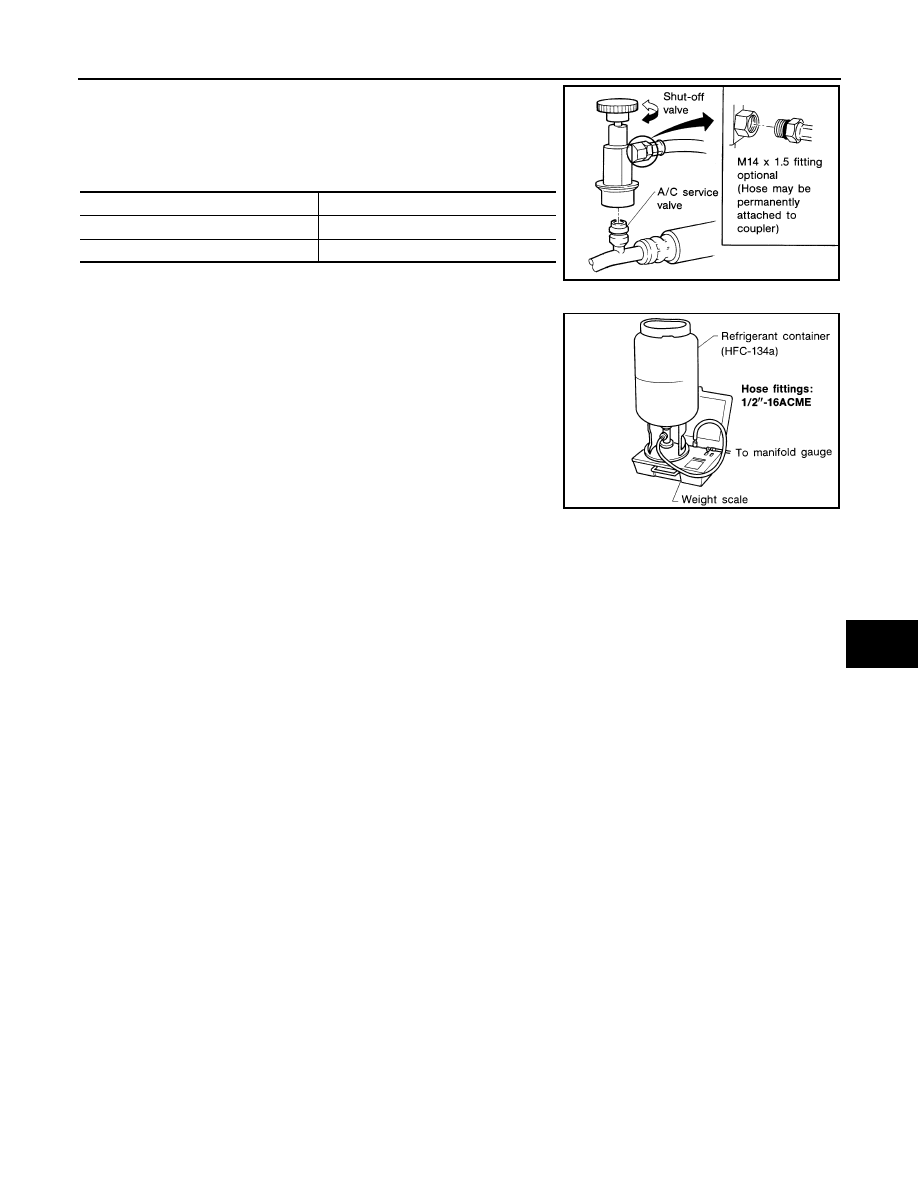

SERVICE COUPLERS

RHA270DA

SHA533D

RHA272D

PRECAUTIONS

ATC-11

< SERVICE INFORMATION >

ATC

Never attempt to connect HFC-134a (R-134a) service couplers to a
CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will
not properly connect to the CFC-12 (R-12) system. However, if an
improper connection is attempted, discharging and contamination
may occur.

REFRIGERANT WEIGHT SCALE

Verify that no refrigerant other than HFC-134a (R-134a) and speci-
fied lubricants have been used with the scale. If the scale controls
refrigerant flow electronically, the hose fitting must be 1/2

″

-16 ACME.

CHARGING CYLINDER

Using a charging cylinder is not recommended. Refrigerant may be vented into air from cylinder’s top valve
when filling the cylinder with refrigerant. Also, the accuracy of the cylinder is generally less than that of an
electrical scale or of quality recycle/recharge equipment.

Precaution for Leak Detection Dye

INFOID:0000000001328158

• The A/C system contains a fluorescent leak detection dye used for locating refrigerant leaks. An ultraviolet

(UV) lamp is required to illuminate the dye when inspecting for leaks.

• Always wear fluorescence enhancing UV safety goggles to protect your eyes and enhance the visibility of

the fluorescent dye.

• The fluorescent dye leak detector is not a replacement for an electrical leak detector (SST: J-41995). The flu-

orescent dye leak detector should be used in conjunction with an electrical leak detector (SST: J-41995) to
pin-point refrigerant leaks.

• For the purpose of safety and customer’s satisfaction, read and follow all manufacture’s operating instruc-

tions and precautions prior to performing the work.

• A compressor shaft seal should not necessarily be repaired because of dye seepage. The compressor shaft

seal should only be repaired after confirming the leak with an electrical leak detector (SST: J-41995).

• Always remove any remaining dye from the leak area after repairs are completed to avoid a misdiagnosis

during a future service.

• Never allow dye to come into contact with painted body panels or interior components. If dye is spilled, clean

immediately with the approved dye cleaner. Fluorescent dye left on a surface for an extended period of time
cannot be removed.

• Never spray the fluorescent dye cleaning agent on hot surfaces (engine exhaust manifold, etc.).
• Never use more than one refrigerant dye bottle (1/4 ounce /7.4 cc) per A/C system.
• Leak detection dyes for HFC-134a (R-134a) and CFC-12 (R-12) A/C systems are different. Never use HFC-

134a (R-134a) leak detection dye in CFC-12 (R-12) A/C system, or CFC-12 (R-12) leak detection dye in
HFC-134a (R-134a) A/C system, or A/C system damage may result.

• The fluorescent properties of the dye will remain for three years or a little over unless a compressor malfunc-

tion occurs.

IDENTIFICATION

NOTE:
Vehicles with factory installed fluorescent dye have a green label.
Vehicles without factory installed fluorescent dye have a blue label.

IDENTIFICATION LABEL FOR VEHICLE

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

RHA273D

RHA274D
