AT-264

< SERVICE INFORMATION >

OVERHAUL

Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings

INFOID:0000000001327402

2WD models

SCIA6535E

OVERHAUL

AT-265

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

VQ35DE models for AWD

SCIA6488E

AT-266

< SERVICE INFORMATION >

OVERHAUL

VK45DE models for AWD

SCIA7223E

DISASSEMBLY

AT-267

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

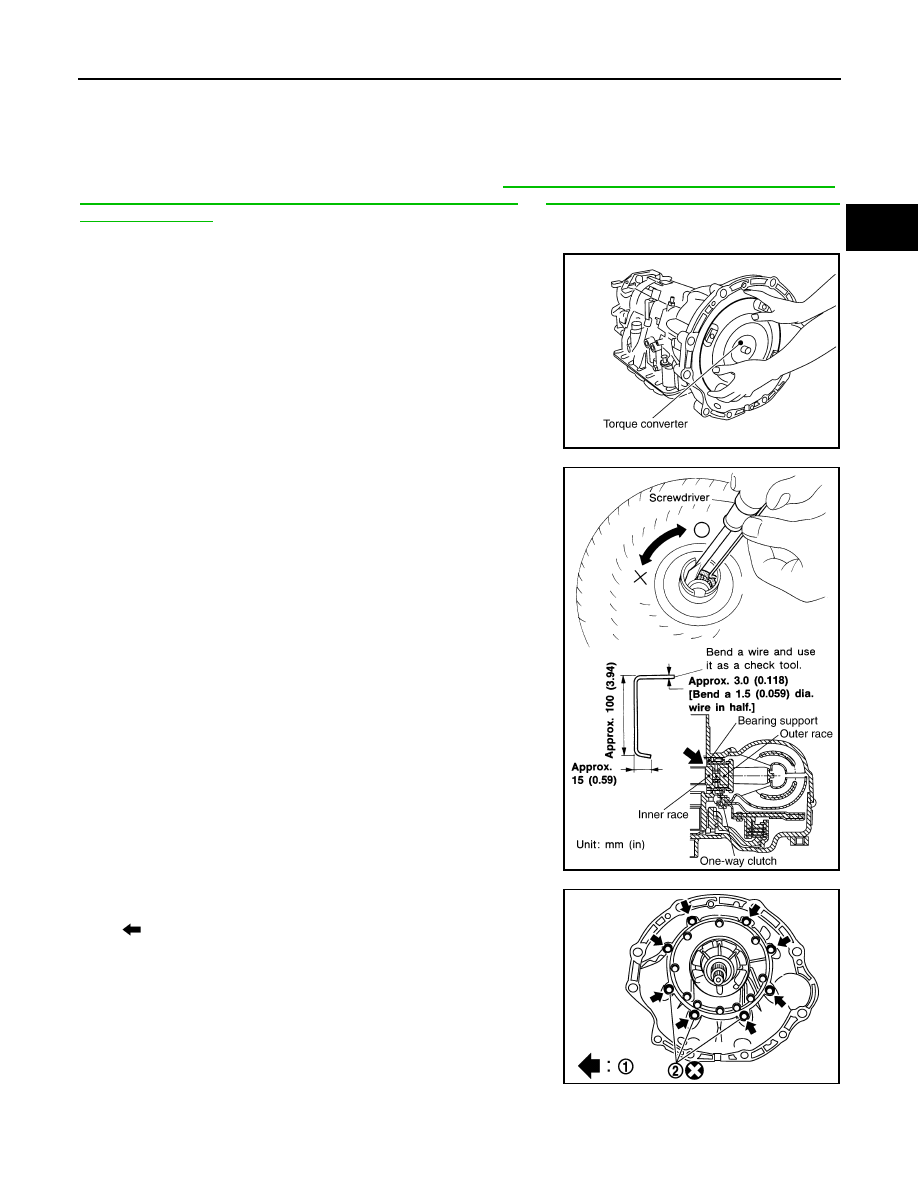

DISASSEMBLY

Disassembly

INFOID:0000000001327403

CAUTION:

Do not disassemble parts behind drum support. Refer to

AT-16, "Cross-Sectional View (2WD Models)"

,

AT-17, "Cross-Sectional View (VQ35DE Models for AWD)"

 or

AT-18, "Cross-Sectional View (VK45DE

Models for AWD)"

.

1.

Drain ATF through drain plug.

2.

Remove torque converter by holding it firmly and turning while
pulling straight out.

3.

Check torque converter one-way clutch using check tool as
shown in the figure.

a.

Insert check tool into the groove of bearing support built into
one-way clutch outer race.

b.

When fixing bearing support with check tool, rotate one-way
clutch spline using screwdriver.

c.

Make sure that inner race rotates clockwise only. If not, replace
torque converter assembly.

4.

Remove tightening bolts (1) for converter housing and transmis-
sion case.
•



:  Bolt  (8)

• Self-sealing bolts (2)

5.

Remove converter housing from transmission case.

CAUTION:

Be careful not to scratch converter housing.

SCIA5010E

SCIA3171E

SCIA7985E
