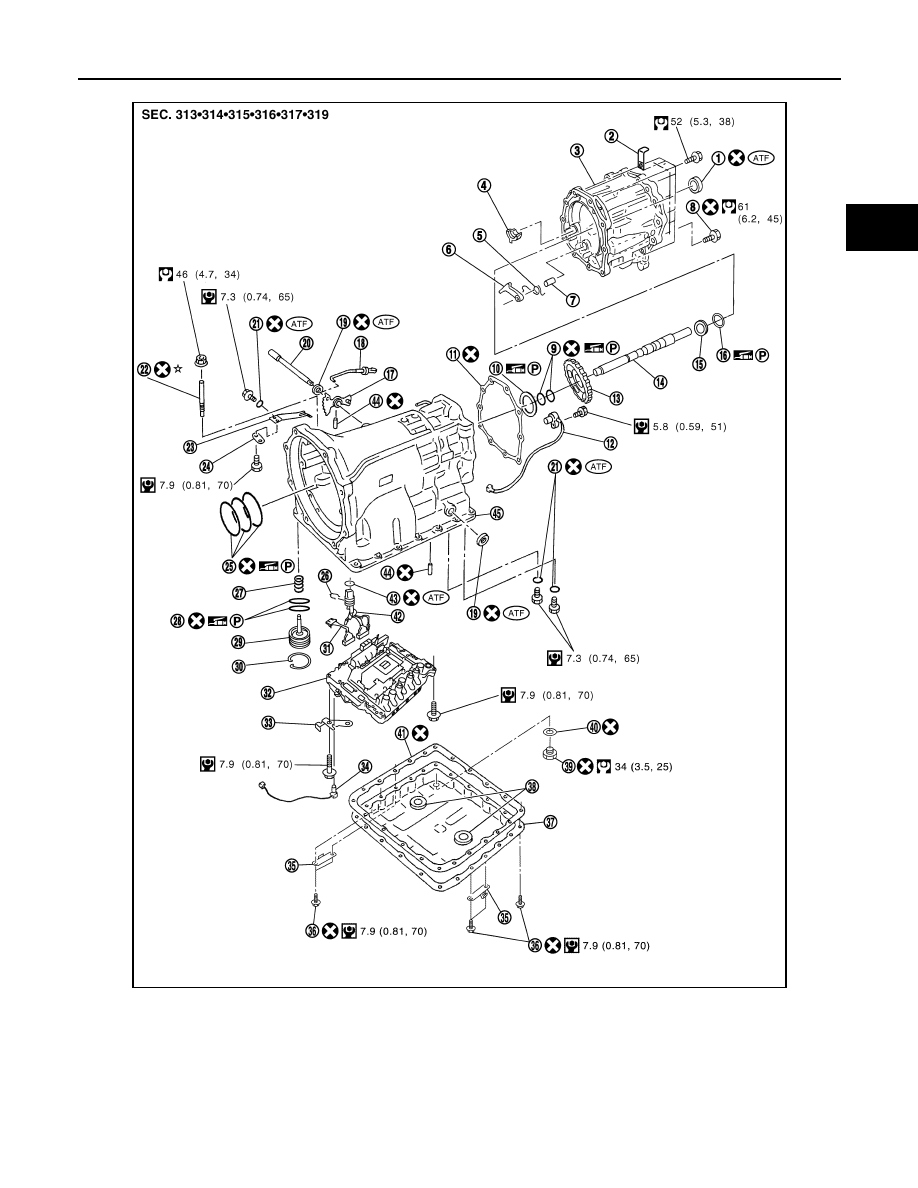

AT-256
< SERVICE INFORMATION >
OVERHAUL
22.
Spacer
23. Seal ring
24. Snap ring
25.
Return spring
26. O-ring
27. Servo assembly
28.
Snap ring
29. Sub-harness
30. Control valve with TCM
31.
Bracket
32. A/T fluid temperature sensor 2
33. Clip
34.
Oil pan mounting bolt
35. Oil pan
36. Magnet
37.
Drain plug
38. Drain plug gasket
39. Oil pan gasket
40.
Terminal cord assembly
41. O-ring
42. Retaining pin
43.
Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to
GI-8, "Component"
.
However, refer to the following symbol for others.
*
: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to
GI-44, "Recommended Chemical Product and Sealant"
.
