AT-252

< SERVICE INFORMATION >

OVERHAUL

22.

Needle bearing

23. Rear internal gear

24. Brake band

25.

Mid carrier assembly

26. Needle bearing

27. Bearing race

28.

Rear carrier assembly

29. Needle bearing

30. Mid sun gear

31.

Seal ring

32. Rear sun gear

33. 1st one-way clutch

34.

Snap ring

35. Needle bearing

36. High and low reverse clutch hub

37.

Snap ring

38. Bearing race

39. Needle bearing

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-8, "Component"

.

However, refer to the following symbols for others.

: Apply Genuine RTV silicone sealant or equivalent. Refer to

GI-44, "Recommended Chemical Product and Sealant"

.

OVERHAUL

AT-253

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

VQ35DE models

SCIA7389E

1.

Bearing race

2.

High and low reverse clutch assem-
bly

3.

Needle bearing

4.

Direct clutch assembly

5.

Needle bearing

6.

Reverse brake dish plate

7.

Reverse brake driven plate

8.

N-sprig

9.

Snap ring

10. Reverse brake retaining plate

11.

Reverse brake drive plate

12. Snap ring

13. Spring retainer

14. Return spring

15. Reverse brake piston

16. D-ring

17. D-ring

AT-254

< SERVICE INFORMATION >

OVERHAUL

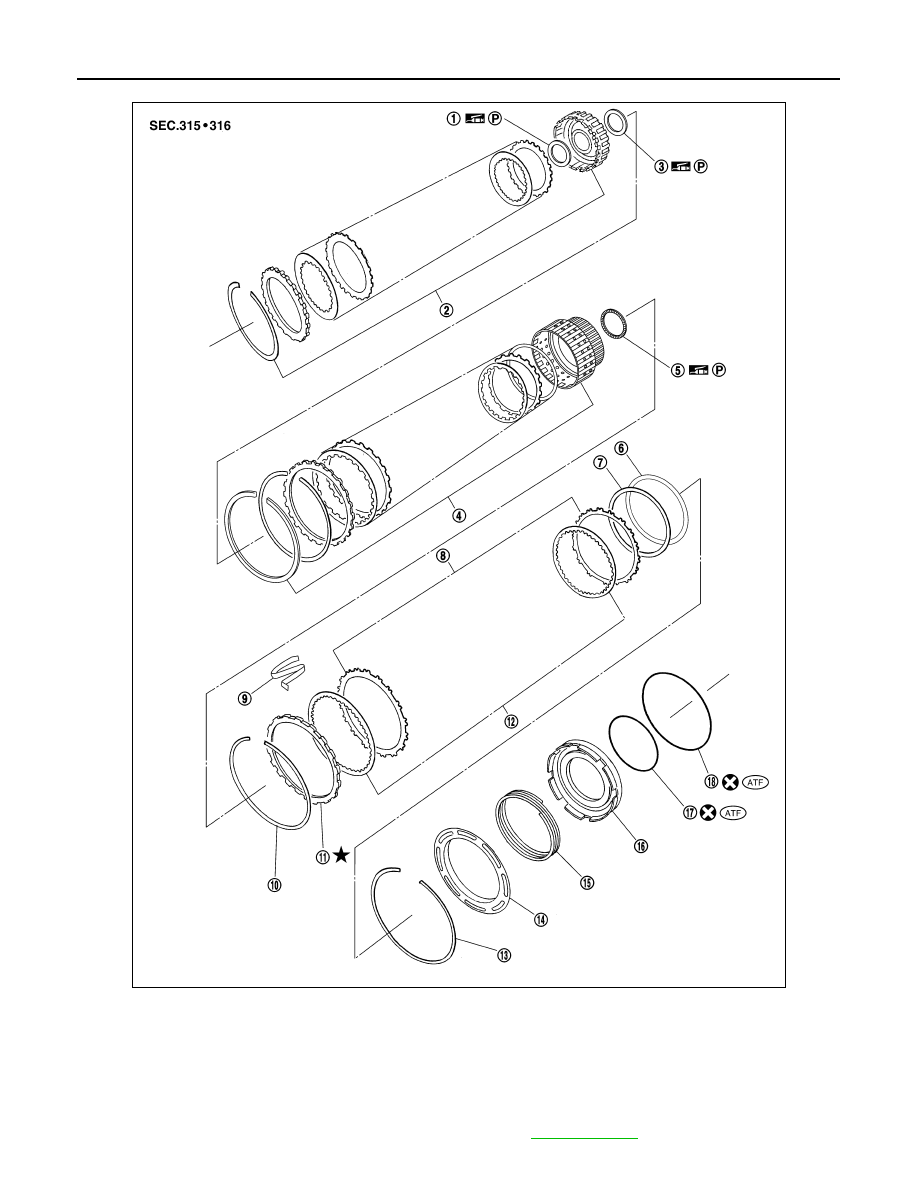

VK45DE models

SCIA6982E

1.

Bearing race

2.

High and low reverse clutch assembly

3.

Needle bearing

4.

Direct clutch assembly

5.

Needle bearing

6.

Reverse brake dish plate

7.

Reverse brake dish plate

8.

Reverse brake driven plate

9.

N-spring

10. Snap ring

11.

Reverse brake retaining plate

12.

Reverse brake drive plate

13. Snap ring

14. Spring retainer

15.

Return spring

16. Reverse brake piston

17. D-ring

18.

D-ring

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-8, "Component"

.

OVERHAUL

AT-255

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

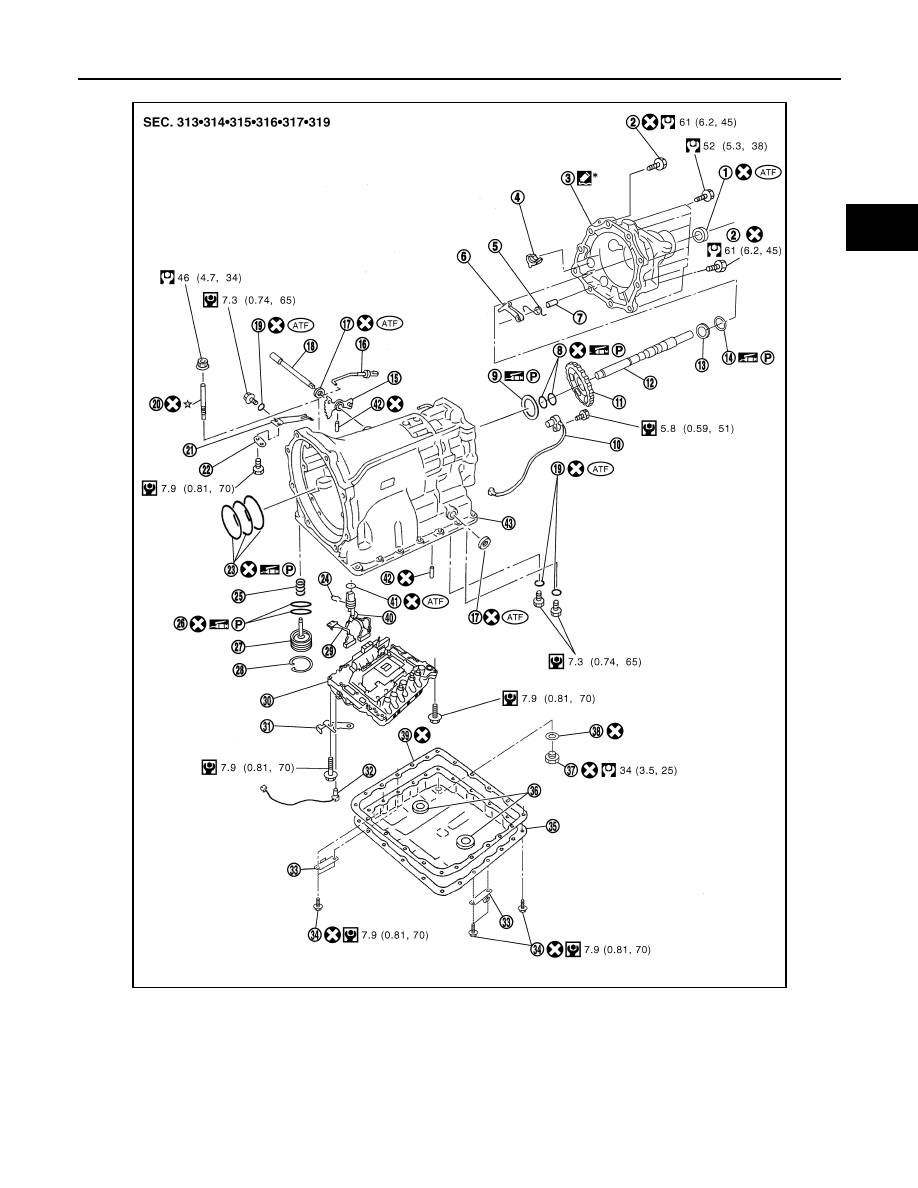

2WD models

SCIA8099E

1.

Rear oil seal

2.

Self-sealing bolt

3.

Rear extension

4.

Parking actuator support

5.

Return spring

6.

Parking pawl

7.

Pawl shaft

8.

Seal ring

9.

Needle bearing

10.

Revolution sensor

11.

Parking gear

12. Output shaft

13.

Bearing race

14. Needle bearing

15. Manual plate

16.

Parking rod

17. Manual shaft oil seal

18. Manual shaft

19.

O-ring

20. Band servo anchor end pin

21. Detent spring
