INSTRUMENT PANEL ASSEMBLY

IP-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

[ ]: Number indicates step in removal procedures.

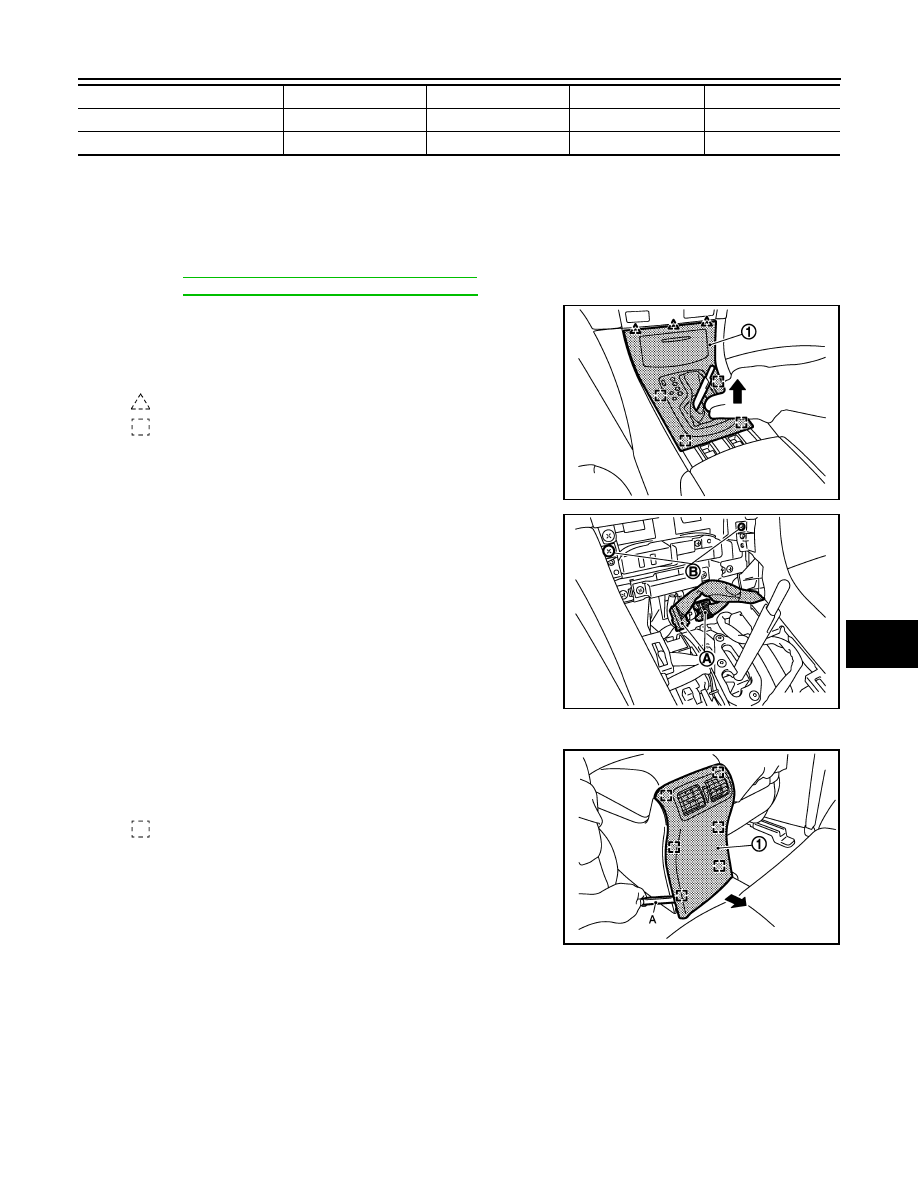

REMOVAL

1.

Put selector lever in drive position.

2.

Remove selector lever knob.
• Refer to

TM-156, "2WD : Removal and Installation"

.(2WD models)

• Refer to

TM-159, "AWD : Removal and Installation"

.(AWD models)

3.

Remove console finisher assembly.
• Pull console finisher (1), upward to disengage from center

console.

• Disconnect harness connectors.

4.

Disconnect console sub harness connectors (A).

5.

Remove center console fixing screws (B).

6.

Put front seat to front must position.

7.

Remove console rear finisher.
• Pull back the console rear finisher (1) with remover tool (A).
• Disconnect inside key antenna connector.

Front pillar garnish RH

[33]

Speaker grille RH

[34]

Instrument panel assembly

[35]

: Pawl

: Metal clip

JMJIA1612ZZ

JMJIA1613ZZ

: Metal clip

JMJIA1614ZZ

IP-14

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

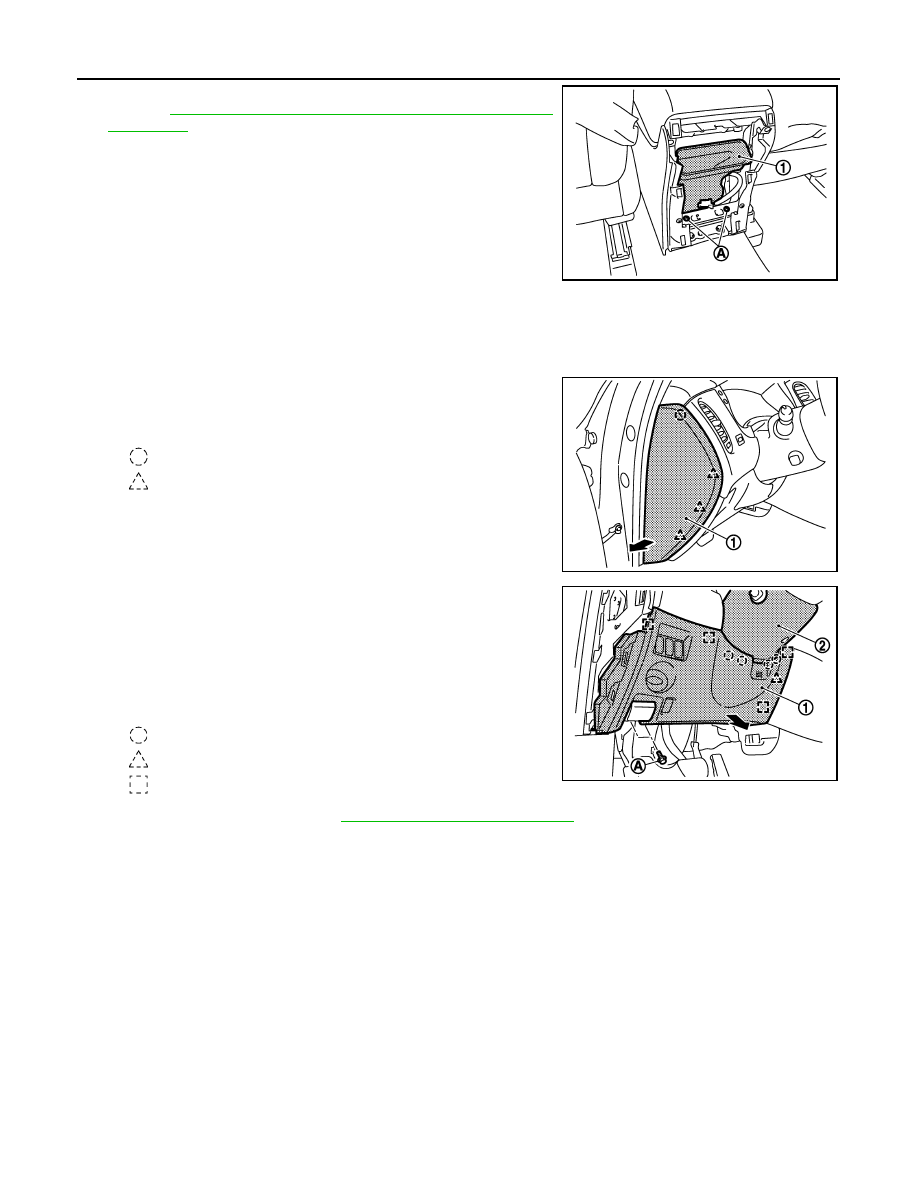

8.

Remove rear ventilator duct (1).
Refer to

VTL-58, "REAR VENTILATOR DUCT 2 : Removal and

Installation"

.

9.

Remove center console fixing screws (A).

10. Remove center console assembly.

• Lift up center console assembly back side.
• Disconnect harness connectors.

11. Put front seat to rear most position.
12. Remove instrument side finisher LH.

• Insert a remover tool into lower space.
• Pull the instrument side finisher LH (1) crosswise.

13. Remove instrument lower panel LH.

• Remove hood opener lever fixing bolts (A).
• Pull back instrument lower panel LH (1).
• Remove skirt clips of steering column lower cover (2).
• Release data link connector (pawl) then remove it from instru-

ment lower panel LH (1).

• Disconnect harness connectors and aspirator duct.

14. Remove steering wheel. Refer to

ST-16, "Removal and Installation"

.

JMJIA1615ZZ

: Clip

: Pawl

JMJIA1616ZZ

: Clip

: Pawl

: Metal clip

JMJIA1617ZZ

INSTRUMENT PANEL ASSEMBLY

IP-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

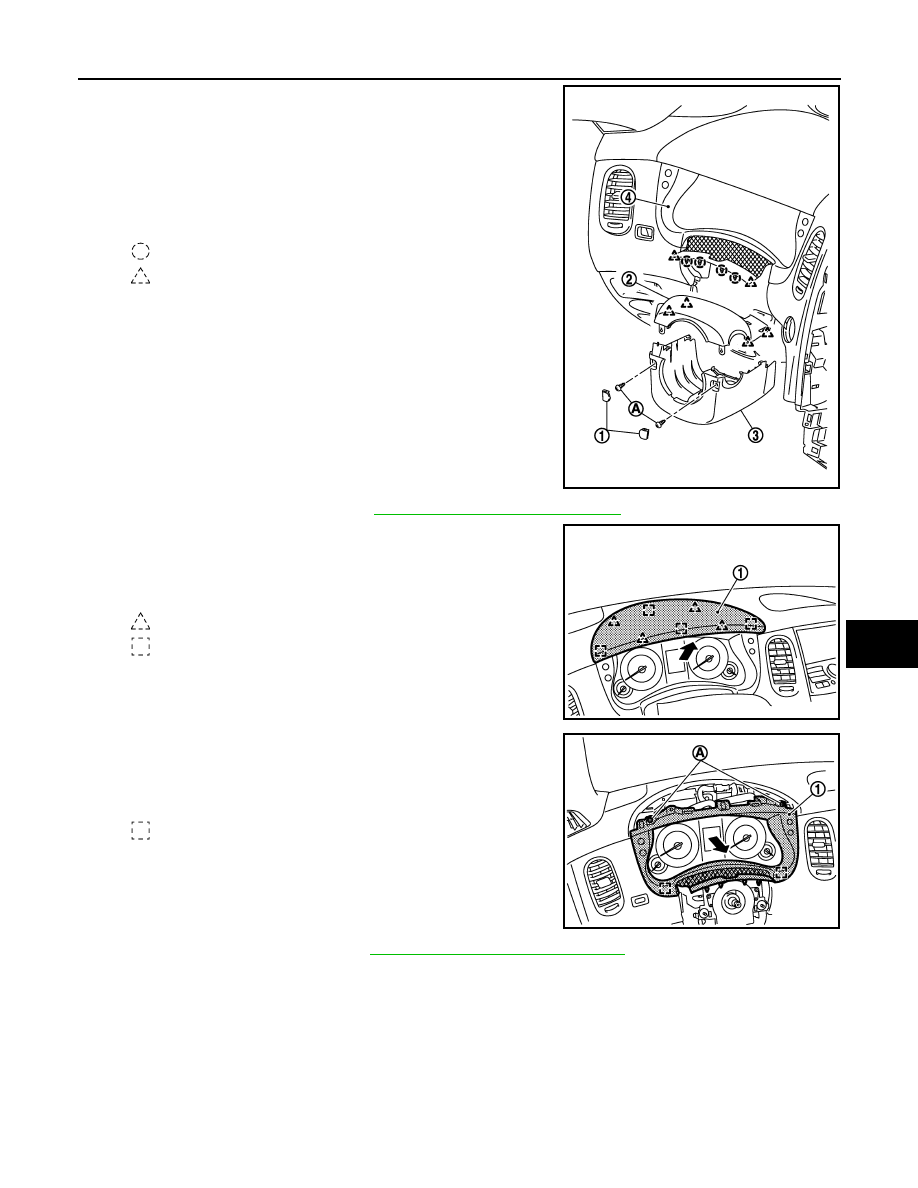

15. Remove steering column covers.

• Remove steering column mask (1).
• Remove steering column cover fixing screws (A).
• Pull up steering column upper cover (2), and then remove

steering column upper cover.

• Pull down steering column lower cover (3), and then remove

steering column lower cover.

• Disconnect ADP steering switch connector. (with ADP)

16. Remove combination switch. Refer to

BCS-85, "Removal and Installation"

.

17. Remove cluster lid A (upper).

• Pull back cluster lid A (upper) (1), and disengage pawls and

metal clips.

• Remove cluster lid A (upper).

18. Remove cluster lid A.

• Remove cluster lid A (1) fixing screws (A).
• Pull back cluster lid A, and disengage metal clips.
• Remove cluster lid A.

19. Remove combination meter. Refer to

MWI-162, "Removal and Installation"

.

: Clip

: Pawl

JMJIA1618ZZ

: Pawl

: Metal clip

JMJIA1619ZZ

: Metal clip

JMJIA1620ZZ

IP-16

< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

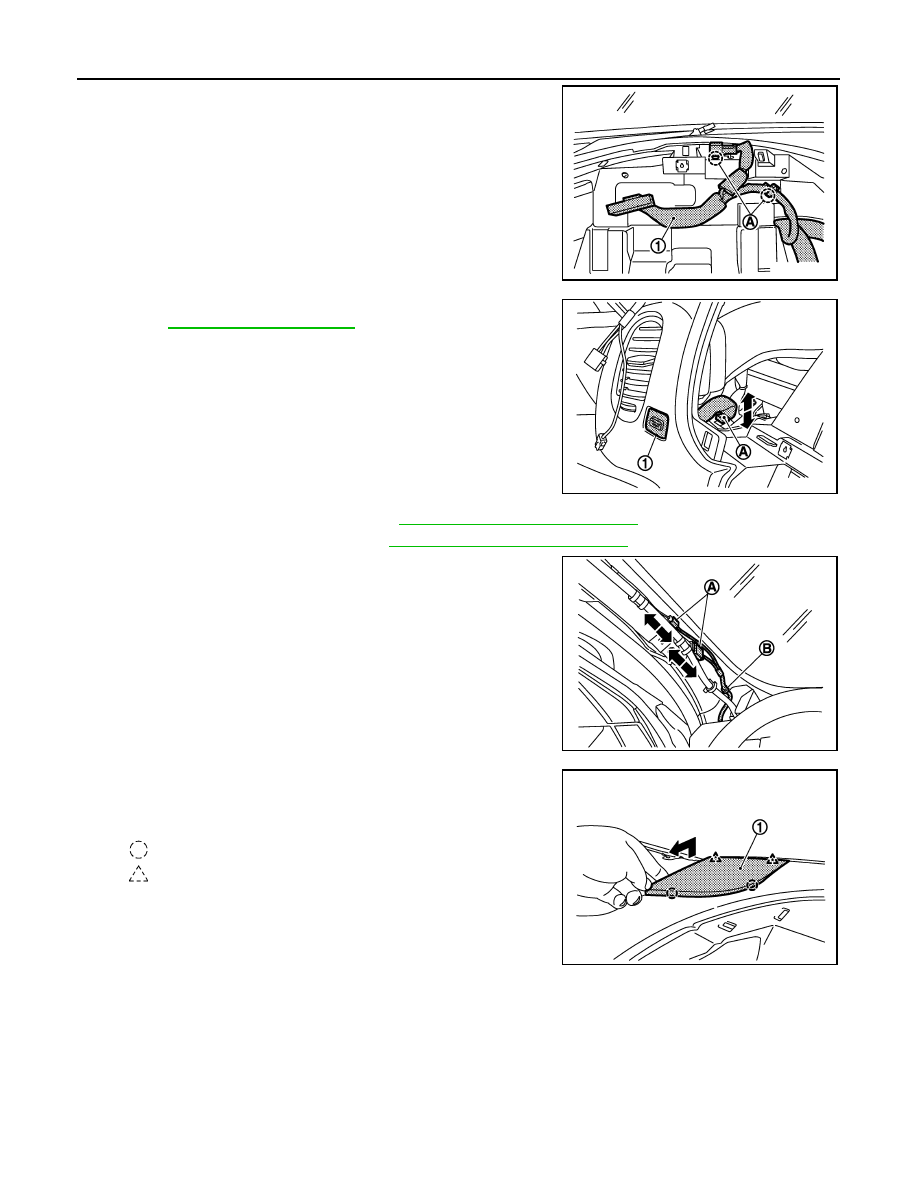

20. Remove instrument harness (1) fixing clips (A).

21. Disconnect trip A/B reset switch (1) harness connector (A).

Refer to

MWI-165, "Exploded View"

.

22. Remove front body side welt LH. Refer to

INT-20, "Removal and Installation"

.

23. Remove front pillar garnish LH. Refer to

INT-20, "Removal and Installation"

.

24. Disconnect antenna connectors (A).
25. Remove harness clip (B).

26. Remove speaker grille LH.

• Pull up and back speaker grille LH (1).
• Disconnect front squawker harness connector.

JMJIA1638ZZ

JMJIA1639ZZ

JMJIA1637ZZ

: Clip

: Pawl

JMJIA1621ZZ
