17. Remove headlining (1) from back door.

CAUTION:

• When removing, 2 workers are required.
• Never bend headlining when removing.
• Be careful not to scratch or damage any part of the body

while taking out the headlining.

18. Remove the following parts after removing headlining.

• Personal lamp. Refer to

INL-107, "Removal and Installation"

.

• Map lamp assembly. Refer to

INL-100, "Removal and Installation"

.

• Over-head console.
• Antenna feeder assembly. Refer to the following.
- Base audio without navigation. Refer to

AV-171, "Harness Layout"

.

- Bose audio without navigation. Refer to

AV-434, "Harness Layout"

.

- Bose audio with navigation. Refer to

AV-934, "Harness Layout"

.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• As for guide, install first sun-visor holder (LH/RH) and then the rear hidden clips at the back side of

headlining.

• Be careful not to bend the headlining when installing.

JMJIA1566ZZ

INT-34

< ON-VEHICLE REPAIR >

LUGGAGE FLOOR TRIM

LUGGAGE FLOOR TRIM

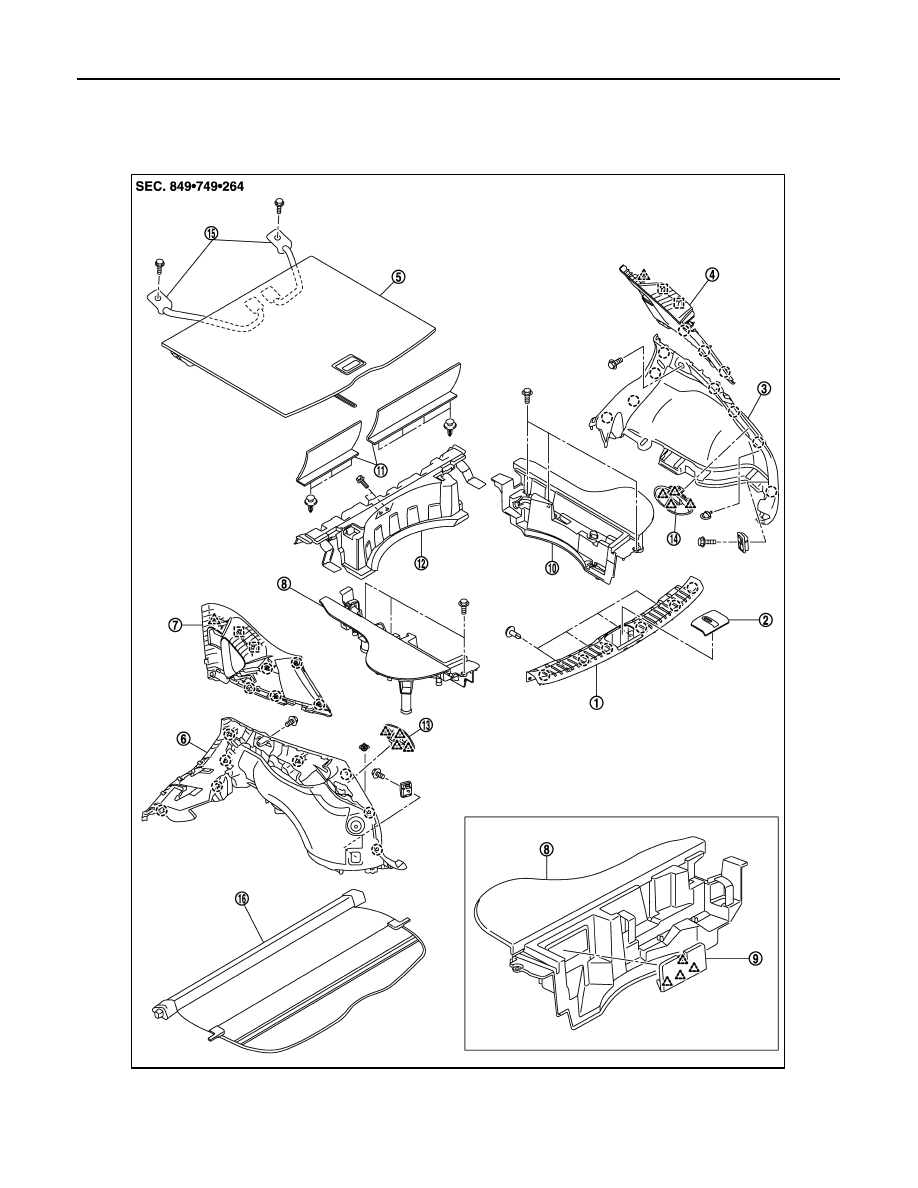

Exploded View

INFOID:0000000003591423

1.

Rear plate

2.

Rear plate cap

3.

Luggage side finisher lower (RH)

4.

Luggage side finisher upper (RH)

5.

Luggage finisher center

6.

Luggage side finisher lower (LH)

7.

Luggage side finisher upper (LH)

8.

Luggage floor spacer (LH)

9.

Luggage side finisher lid

JMJIA1568ZZ

LUGGAGE FLOOR TRIM

INT-35

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal and Installation

INFOID:0000000003591424

REMOVAL

LUGGAGE REAR PLATE

1.

Fully open back door.

2.

Remove tonneau cover assembly.

3.

Open and pull luggage finisher center (1) backwards, till the
bolts are visible.

4.

Remove both bolts and then remove luggage finisher center.

5.

Remove luggage side finisher lower fixing bolts (LH/RH) with a
remover tool (A).

6.

Remove back door weather strip.

7.

Remove luggage rear plate (1) fixing clips with remover tool.

8.

Hold both sides of luggage rear plate, pull upwards to remove.

9.

Remove the bolts located inside the luggage floor spacer and remove luggage floor spacer. (RH/LH)

10. Luggage floor spacer (RH)

11. Luggage floor finisher front

12. Luggage floor finisher ASSY front

13. Luggage side finisher lower escutch-

eon (LH)

14. Luggage side finisher lower escutch-

eon (RH)

15. Belt assembly

16. Tonneau cover

: Clip

: Pawl

: Metal clip

: Bolt

JMJIA1570ZZ

JMJIA1571ZZ

: Clip

JMJIA1704ZZ

INT-36

< ON-VEHICLE REPAIR >

LUGGAGE FLOOR TRIM

10. Open the rear plate cap (1) at approximately 90 degree, then pull it up to remove from the rear plate (2) as

shown by the figure below.

LUGGAGE SIDE FINISHER UPPER

1.

Remove rear seat belt anchor bolt (upper).

2.

Remove luggage side finisher lower.

3.

Remove tonneau cover and remove the luggage side finisher upper fixing bolts and clips.

4.

Remove luggage side upper finisher clips, pawls and metal clips
with remover tool (A).

5.

Remove luggage side upper finisher (1) from the body side
panel.

LUGGAGE SIDE FINISHER LOWER

1.

Remove rear kicking plate inner and rear body side welt. Refer to

INT-20, "Removal and Installation"

.

2.

Remove rear seat cushion fixing bolts. Refer to

SE-99, "Removal and Installation"

.

3.

Remove luggage rear plate.

4.

Disengage rope hook mounting bolt caps, and remove rope
hook mounting bolts with socket wrench (A), and then remove
rope hooks (1) (LH/RH).

5.

Remove the luggage side finisher lower room lamp. Refer to

INL-110, "LUGGAGE SIDE : Removal and

Installation"

.

JMJIA1703ZZ

JMJIA1569ZZ

JMJIA0617ZZ
