17. Remove headlining (1) from back door.

CAUTION:

• When removing, 2 workers are required.
• Never bend headlining when removing.
• Be careful not to scratch or damage any part of the body

while taking out the headlining.

18. Remove the following parts after removing headlining.

• Personal lamp. Refer to

INL-107, "Removal and Installation"

.

• Map lamp assembly. Refer to

INL-100, "Removal and Installation"

.

• Over-head console assembly.
• Antenna feeder harness. Refer to the following below.
- Base audio without navigation. Refer to

AV-171, "Harness Layout"

.

- Bose audio without navigation. Refer to

AV-434, "Harness Layout"

.

- Bose audio with navigation. Refer to

AV-934, "Harness Layout"

.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• As for guide, install first sun-visor holder (LH/RH) and then the rear hidden clips at the back side of

headlining.

• Be careful not to bend the headlining when installing.

SUNROOF

JMJIA1566ZZ

INT-30

< ON-VEHICLE REPAIR >

HEADLINING

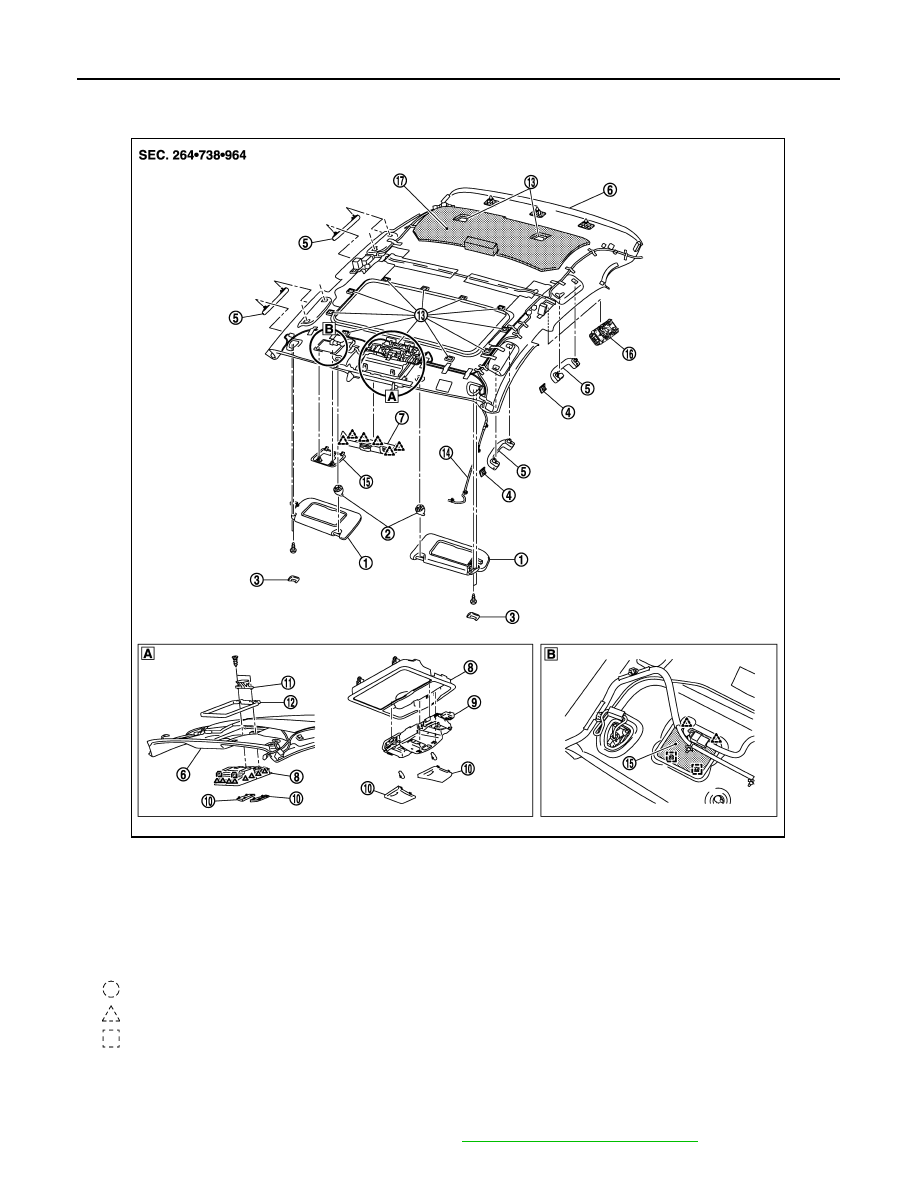

SUNROOF : Exploded View

INFOID:0000000003664586

SUNROOF : Removal and Installation

INFOID:0000000003664587

REMOVAL

1.

Remove rear seat cushion and seat back. Refer to

SE-99, "Removal and Installation"

.

1.

Sun-visor assembly

2.

Sun-visor holder

3.

Sun-visor cover

4.

Assist grip cap

5.

Assist grip

6.

Headlining assembly

7.

Front camera finisher

8.

Over head console

9.

Map lamp assembly

10. Map lamp lens

11. Bracket map lamp

12. Roof plate assembly

13. Dual lock fastener

14. Antenna feeder harness

15. Front roof finisher

16. Personal lamp assembly

17. Insulator roof

: Clip

: Pawl

: Metal clip

JMJIA1563ZZ

HEADLINING

INT-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

2.

Remove front seat belt anchor bolt (LH/RH). Refer to

SB-7, "SEAT BELT BUCKLE : Removal and Installa-

tion"

.

3.

Remove rear seat belt anchor bolt (LH/RH). Refer to

SB-12, "SEAT BELT BUCKLE : Removal and Instal-

lation"

.

4.

Remove luggage side lower finisher (LH/RH), luggage side upper finisher (LH/RH). Refer to

INT-35,

"Removal and Installation"

.

5.

Remove front pillar garnish (LH/RH), front kicking plate (LH/RH), center pillar lower garnish (LH/RH), cen-
ter pillar upper garnish (LH/RH), front body side welt (LH/RH), rear body side welt (LH/RH), rear kicking
plate (LH/RH). Refer to

INT-20, "Removal and Installation"

.

6.

Disconnect roof harness connectors (A) and clips (B), then
remove the roof harness (1).

7.

Remove front roof finisher mounting pawls with remover tool (A),
disconnect the harness connector and then remove front roof
finisher (1).

8.

Remove the front camera finisher mounting pawls with a
remover tool (A), then remove the front camera finisher.

9.

Remove sun-visor (LH/RH).
• Remove sun-visor cap.
• Remove mounting screws.
• Disconnect vanity mirror lamp harness connector (With vanity mirror lamp)

10. Disconnect inside mirror harness connector.

: Clip

JMJIA1565ZZ

: Pawl

: Metal clip

JMJIA1564ZZ

: Pawl

JMJIA1567ZZ

INT-32

< ON-VEHICLE REPAIR >

HEADLINING

11. Insert a small flatted-blade screwdriver (A) into the hole of the

sun-visor holder (1), press while rotating approximately 90
degrees to remove.

12. With a small flatted-blade screwdriver (A), press the upper side

mounting plastic clip (1) and pull up to remove the mounting
plastic clip (1) from assist grip (2).

•

13. Once the mounting plastic clip (1) is removed, pull out the assist

grip (2) to remove.

14. Recline front seat back to facilitate the headlining removal.

15. Pull map lamp assembly toward and disengage metal clips (B)

and dual-lock fastener (A).

CAUTION:

Map lamp assembly is crimped from the back of headlining.
Remove it by disengaging the crimped area of back of map
lamp assembly after removing headlining from the vehicle.

16. Using remover tool, remove headlining hidden clip at the back side of headlining.

JMJIA1706ZZ

JMJIA1379ZZ

JMJIA1380ZZ

: Metal clip
