HIGH-PRESSURE PIPE 1

HA-47

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

8.

Disconnect one-touch joint between high-pressure pipe 1 (1)
and high-pressure pipe 2 (2) with disconnector (A) (SST:
9253089908).

CAUTION:

Cap or wrap the joint of the A/C piping with suitable mate-
rial such as vinyl tape to avoid the entry of air.

9.

Remove high-pressure pipe 1.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• Check for leakages when recharging refrigerant.

JPIIA0703ZZ

HA-48

< ON-VEHICLE REPAIR >

LOW-PRESSURE PIPE 2

LOW-PRESSURE PIPE 2

Exploded View

INFOID:0000000003562730

Refer to

HA-13, "Refrigerant Connection"

.

Removal and Installation

INFOID:0000000003562731

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove cowl top cover. Refer to

EXT-22, "Exploded View"

.

1.

Blower unit

2.

O-ring

3.

Low-pressure pipe 2

4.

Low-pressure flexible hose

5.

Compressor

6.

Condenser

7.

High-pressure flexible hose

8.

High-pressure pipe 1

9.

Heater & cooling unit assembly

10. Expansion valve

11.

Evaporator

12. High-pressure pipe 2

13. Low-pressure pipe 1

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0684GB

LOW-PRESSURE PIPE 2

HA-49

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

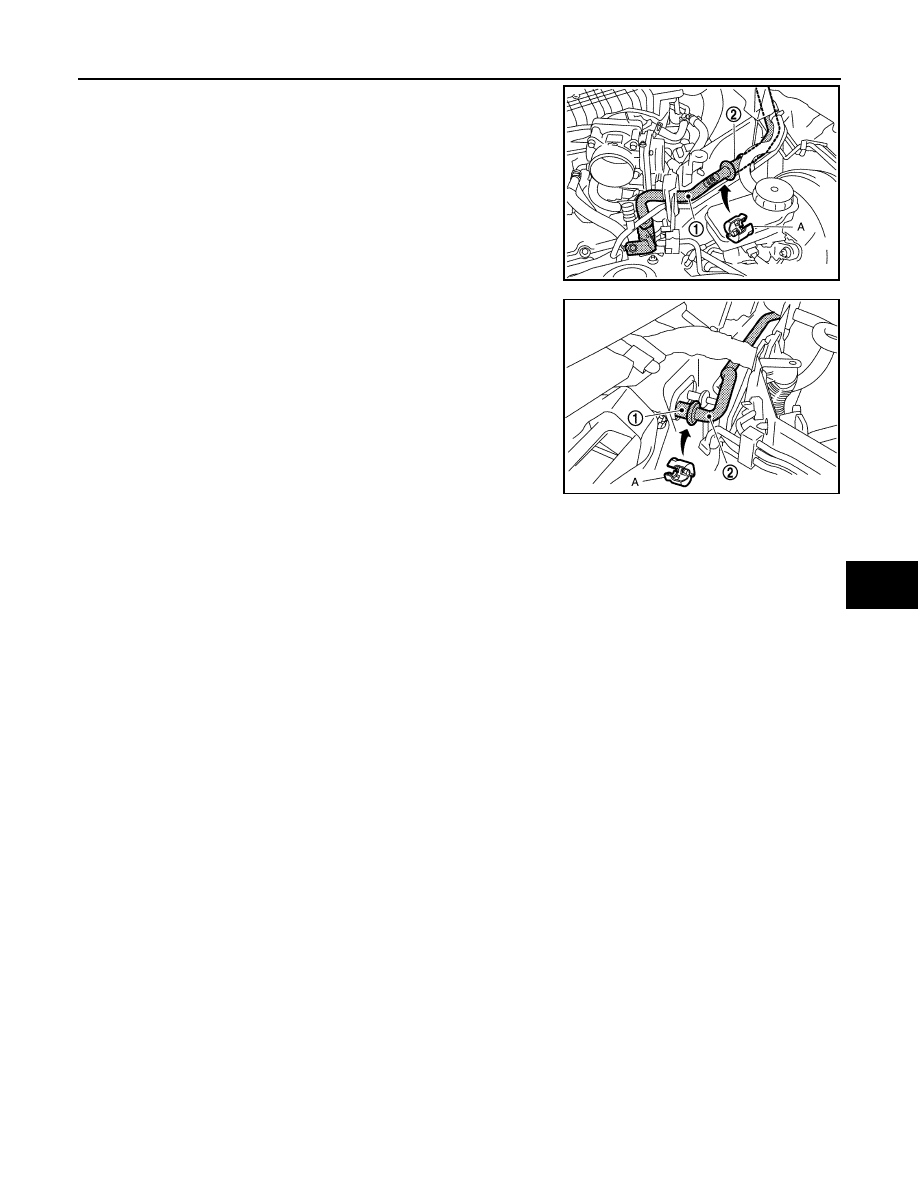

3.

Disconnect one-touch joint between low-pressure flexible hose
(1) and low-pressure pipe 2 (2) with disconnector (A) (SST:
9253089916).

CAUTION:

Cap or wrap the joint of the A/C piping with suitable mate-
rial such as vinyl tape to avoid the entry of air.

4.

Disconnect one-touch joint between low-pressure pipe 1 (1) and
low-pressure pipe 2 (2) with disconnector (A) (SST:
9253089916).

CAUTION:

Cap or wrap the joint of the A/C piping with suitable mate-
rial such as vinyl tape to avoid the entry of air.

5.

Remove low-pressure pipe 2.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• Check for leakages when recharging refrigerant.

JPIIA0698ZZ

JPIIA0699ZZ

HA-50

< ON-VEHICLE REPAIR >

LOW-PRESSURE PIPE 1 AND HIGH-PRESSURE PIPE 2

LOW-PRESSURE PIPE 1 AND HIGH-PRESSURE PIPE 2

Exploded View

INFOID:0000000003545485

Refer to

HA-13, "Refrigerant Connection"

.

Removal and Installation

INFOID:0000000003545486

REMOVAL

1.

Set the temperature at 18

°

C (60

°

F). Then disconnect the battery cable from the negative terminal.

2.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

3.

Remove cowl top cover. Refer to

EXT-22, "Exploded View"

.

1.

Blower unit

2.

O-ring

3.

Low-pressure pipe 2

4.

Low-pressure flexible hose

5.

Compressor

6.

Condenser

7.

High-pressure flexible hose

8.

High-pressure pipe 1

9.

Heater & cooling unit assembly

10. Expansion valve

11.

Evaporator

12. High-pressure pipe 2

13. Low-pressure pipe 1

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0684GB
