FL-10

< ON-VEHICLE REPAIR >

FUEL TANK

FUEL TANK

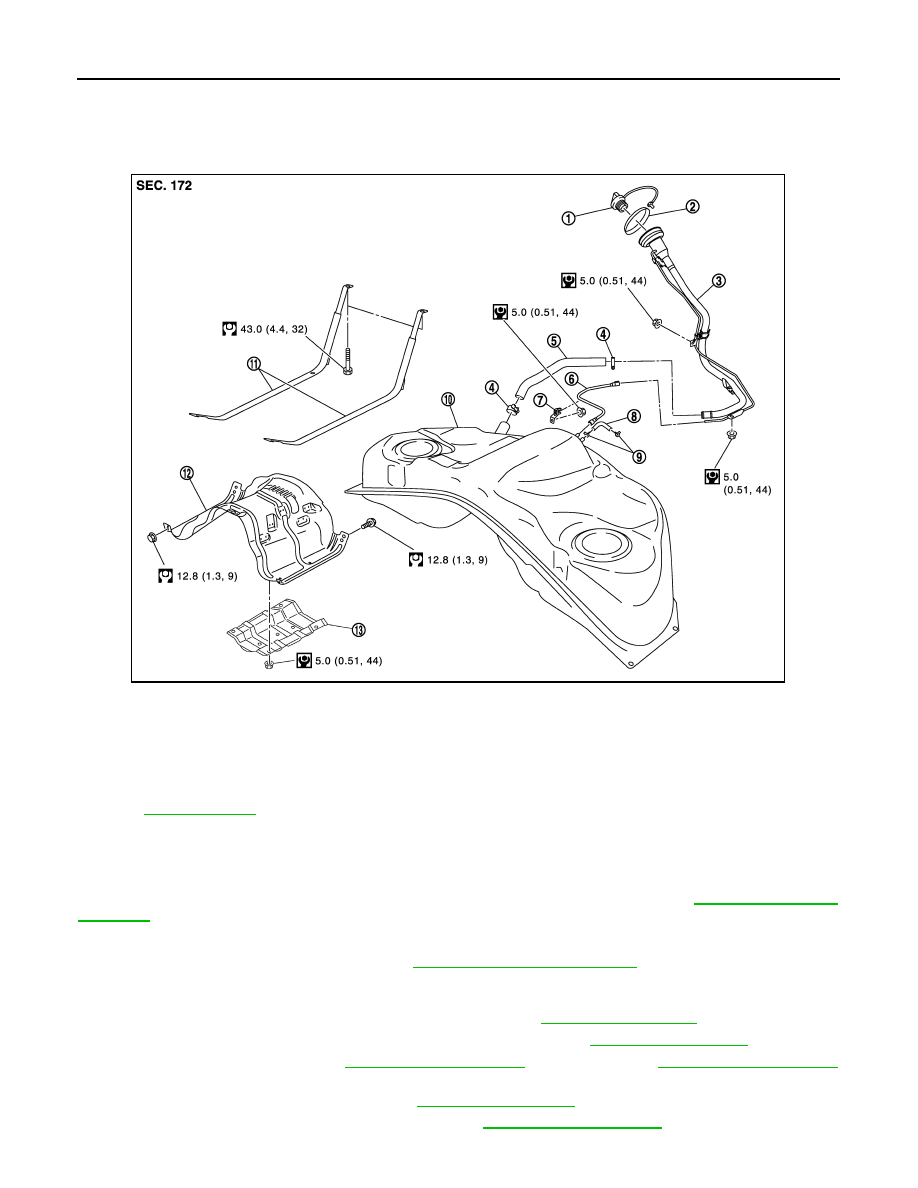

Exploded View

INFOID:0000000003136992

Removal and Installation

INFOID:0000000003136993

WARNING:

Be sure to read “General Precautions” when working on the fuel system. Refer to

FL-2, "General Pre-

cautions"

.

REMOVAL

• Drain fuel from fuel tank if necessary. Refer to

FL-5, "Removal and Installation"

.

• Perform work on level place.
1.

Perform steps 2 to 7 of “REMOVAL” in “ FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP
ASSEMBLY” on main and sub fuel level sensor units. Refer to

FL-5, "Exploded View"

.

2.

Remove exhaust front tube, center muffler and main muffler. Refer to

EX-5, "Exploded View"

.

3.

Remove propeller shaft. Refer to

DLN-81, "Exploded View"

 (2WD models) or

DLN-89, "Exploded View"

(AWD models).

4.

Remove parking rear brake cables. Refer to

PB-5, "Exploded View"

.

5.

Remove rear suspension member assembly. Refer to

RSU-17, "Exploded View"

.

1.

Fuel filler cap

2.

Grommet

3.

Fuel filler tube

4.

Clamp

5.

Fuel filler hose

6.

EVAP tube

7.

Clamp

8.

Vent hose

9.

Clamp

10. Fuel tank

11.

Fuel tank mounting band

12. Fuel tank protector

13. Insulator

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1837GB

FUEL TANK

FL-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

6.

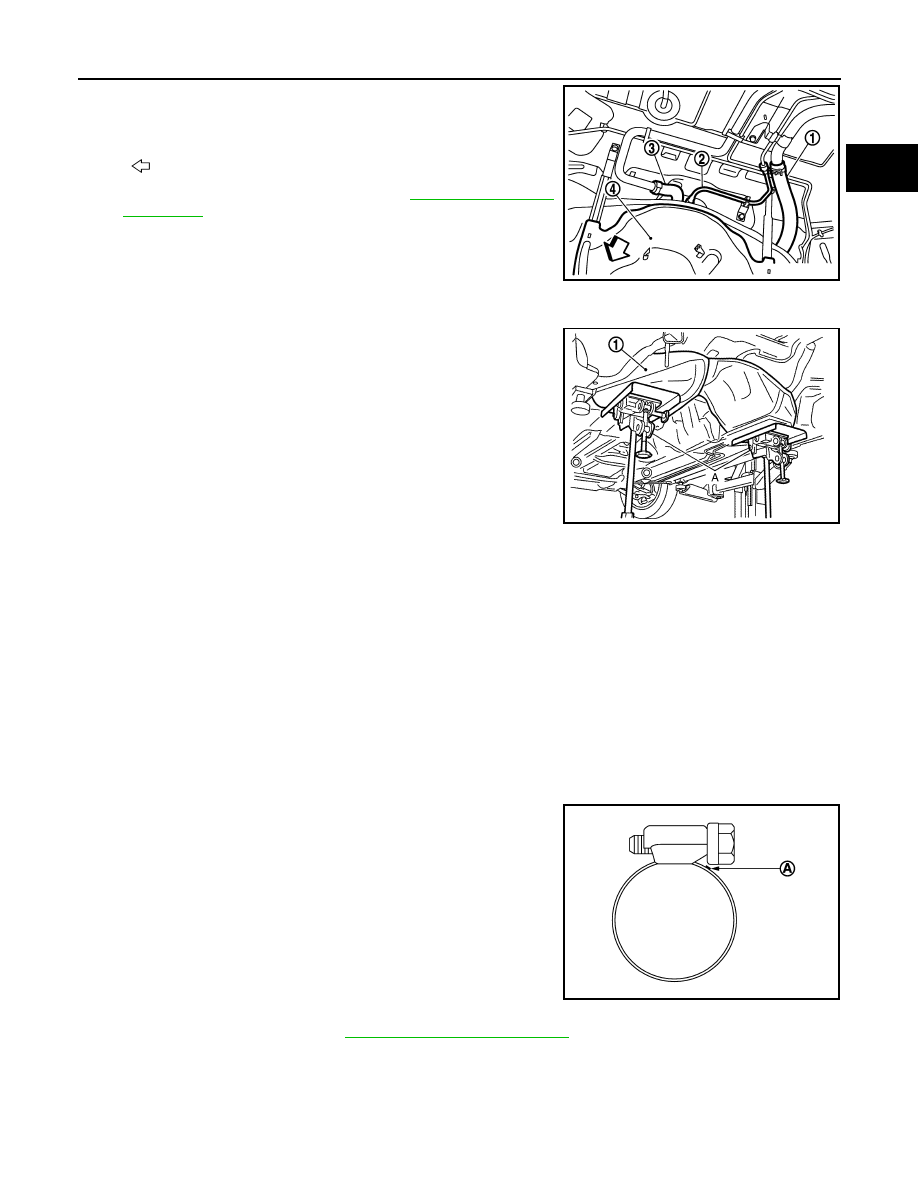

Disconnect fuel filler hose (1), EVAP tube (2) and vent hoses (3)
at fuel tank side.

• To disconnect quick connector, refer to

FL-5, "Removal and

Installation"

.

7.

Remove fuel tank protector.

8.

Support the lower part of fuel tank (1) with transmission jack (A).

CAUTION:

Support the position that fuel tank mounting bands never
engage.

9.

Remove fuel tank mounting bands.

10. Supporting with hands, descend transmission jack carefully, and remove fuel tank.

CAUTION:

• Check that all connection points have been disconnected.
• Confirm there is no interference with vehicle.

11. Remove fuel filler tube, as necessary.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Surely clamp fuel hoses and insert hose to the length below.

• Be sure hose clamp is not placed on swelled area of fuel tube.
• Tighten the clamp hand with the top mark (A) until the mark is on

the bolt head flange.

• To connect quick connector, refer to

FL-5, "Removal and Installation"

.

Inspection

INFOID:0000000003136994

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leakage.

4

: Fuel tank protector

: Vehicle front

JPBIA1838ZZ

JPBIA0145ZZ

Fuel filler hose

: 35 mm (1.38 in)

The other hoses

: 25 mm (0.98 in)

JPBIA0146ZZ

FL-12

< ON-VEHICLE REPAIR >

FUEL TANK

1.

Turn ignition switch “ON” (with engine stopped), and check connections for leakage by applying fuel pres-
sure to fuel piping.

2.

Start engine and rev it up and check there are no fuel leakage at the fuel system tube and hose connec-
tions.

• After removing/installing rear suspension assembly, check to adjust wheel alignment.  Refer to

RSU-6,

"Inspection"

.

SERVICE DATA AND SPECIFICATIONS (SDS)

FL-13

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Tank

INFOID:0000000003136998

Standard and Limit

Fuel tank capacity

Approx. 76   (20 US gal, 16-5/8 Imp gal)

Fuel recommendation

Refer to

GI-28
