Infiniti EX35. Manual - part 838





FLOOR SIDE FAIRING

EXT-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FLOOR SIDE FAIRING

Exploded View

INFOID:0000000003671416

Removal and Installation

INFOID:0000000003671417

REMOVAL

ENGINE LOWER COVER

1.

Remove engine lower cover fixing clip.

2.

Remove engine lower cover fixing bolts with power tool.

3.

Remove engine lower cover.

FRONT UNDER SIDE COVER (LH/RH)

1.

Remove engine lower cover.

2.

Remove front under side cover fixing clips.

3.

Remove front under side cover.

FLOOR UNDER COVER (LH/RH)

1.

Remove floor under cover fixing bolt and nuts with power tool.

2.

Remove floor under cover.

INSTALLATION

Install in the reverse order of removal.

1.

Floor under cover RH

2.

Front under side cover RH

3.

Front under side cover LH

4.

Floor under cover LH

5.

Front under cover (AWD models) 6.

Engine lower cover

7.

Front under cover (2WD models)

JMKIA2195ZZ

EXT-32

< ON-VEHICLE REPAIR >

FILLET MOLDING

FILLET MOLDING

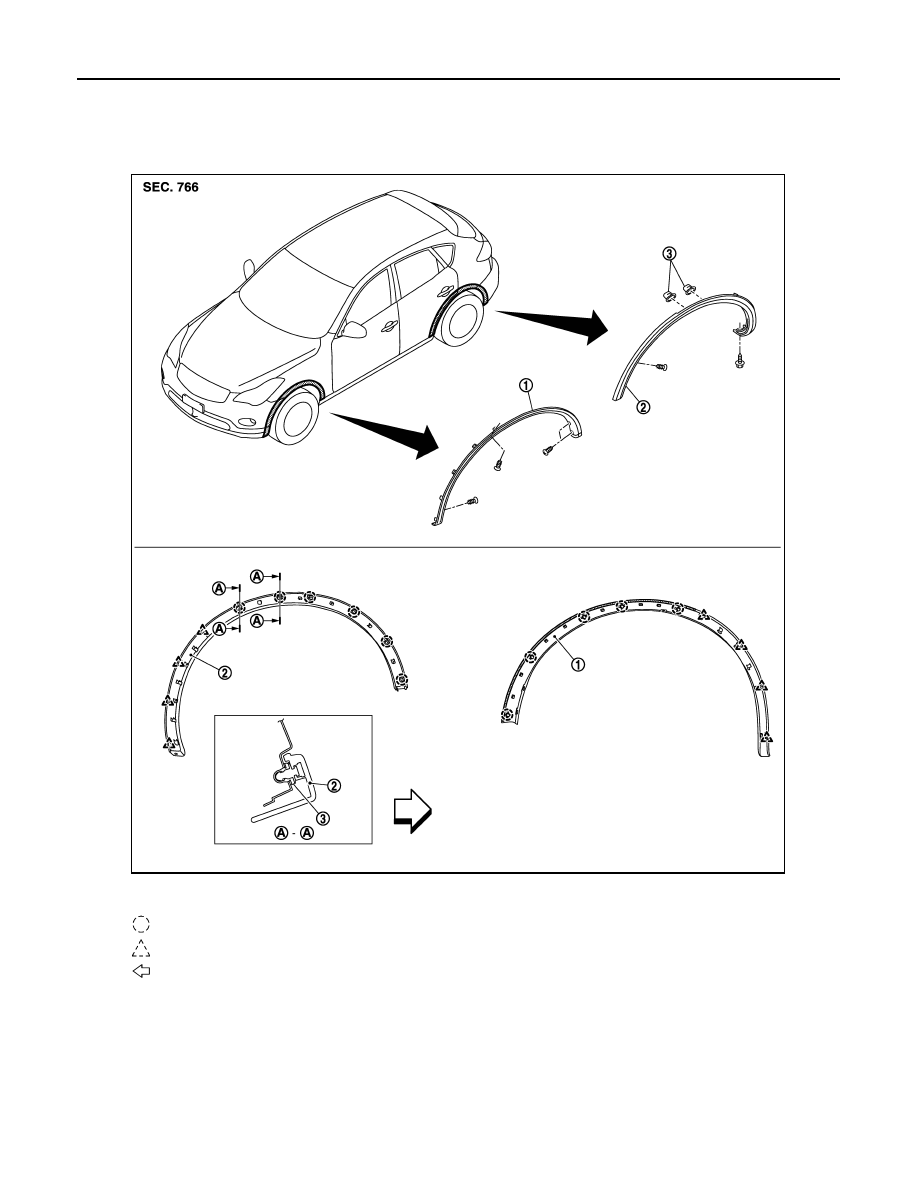

Exploded View

INFOID:0000000003698490

Removal and Installation

INFOID:0000000003698491

REMOVAL

FRONT FILLET MOLDING

1.

Remove front fillet molding fixing screws.

1.

Front fillet molding

2.

Rear fillet molding

3.

Grommet

: Clip

: Pawl

: Vehicle front

JMKIA2232ZZ

FILLET MOLDING

EXT-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

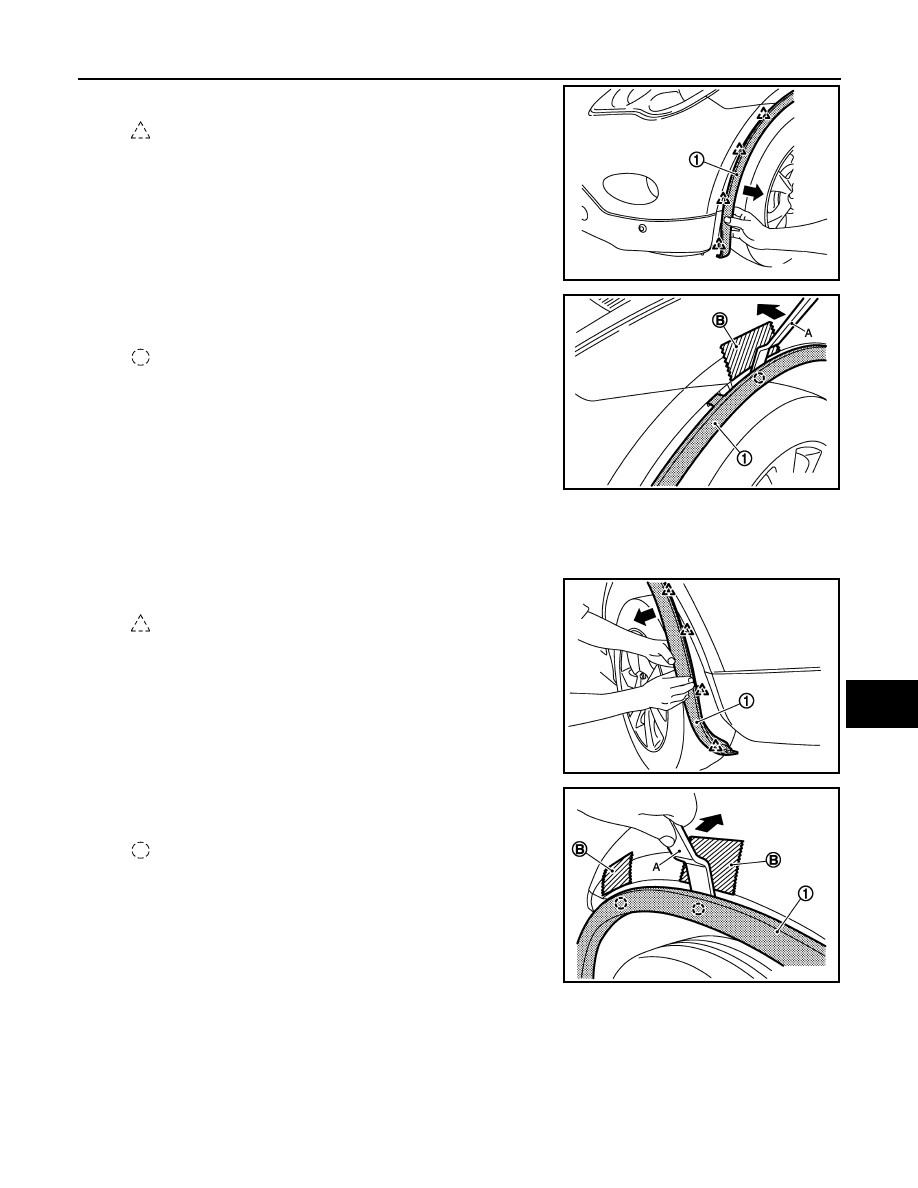

2.

Disengage the pawls from the front fillet molding (1) frontal part.

3.

Using a remover tool (A), disengage the clips from the front fillet
molding (1) by starting from the front.

CAUTION:

• Apply a protective tape (B) on the body to protect the

painted surface from damage.

• Disengage the clips slowly and carefully.
• Do not pull the front fillet molding (1) strongly.

REAR FILLET MOLDING

1.

Remove rear mud guard fixing screws, and then remove rear mud guard.

2.

Remove rear fillet molding fixing screws.

3.

Disengage the pawls from the rear fillet molding (1) rear side.

4.

Using a remover tool (A), disengage the clips from the rear fillet
molding (1) by starting from the rear.

CAUTION:

• Apply a protective tape (B) on the body to protect the

painted surface from damage.

• Disengage the clips slowly and carefully.
• Do not pull the rear fillet molding (1) strongly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When installing, check visually the fillet molding and the clips, then replace them with new parts if

they have been damaged.

• When installing fillet molding, check that blind clips are securely fitted in panel holes on body, and

then press them in.

: Pawl

JMKIA2233ZZ

: Clip

JMKIA2234ZZ

: Pawl

JMKIA2235ZZ

: Clip

JMKIA2236ZZ

EXT-34

< ON-VEHICLE REPAIR >

ROOF RAIL

ROOF RAIL

Exploded View

INFOID:0000000003671436

Removal and Installation

INFOID:0000000003671437

REMOVAL

1.

Insert a remover tool (A) into front space.

2.

Remove front roof rail cover (1) outside pawls with remover tool
(B).

CAUTION:

Apply protective tape (C) around the roof rail.

1.

Rear roof rail cover RH

2.

Roof rail assembly RH

3.

Front roof rail cover RH

4.

Roof panel

5.

Front roof rail cover LH

6.

Roof rail assembly LH

7.

Roof rack cap

8.

Rear roof rail cover LH

Refer to

GI-4, "Components"

 of symbols in the figure.

JMKIA2196GB

: Pawl

JMKIA2197ZZ
