Infiniti EX35. Manual - part 836

COWL TOP

EXT-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000003134290

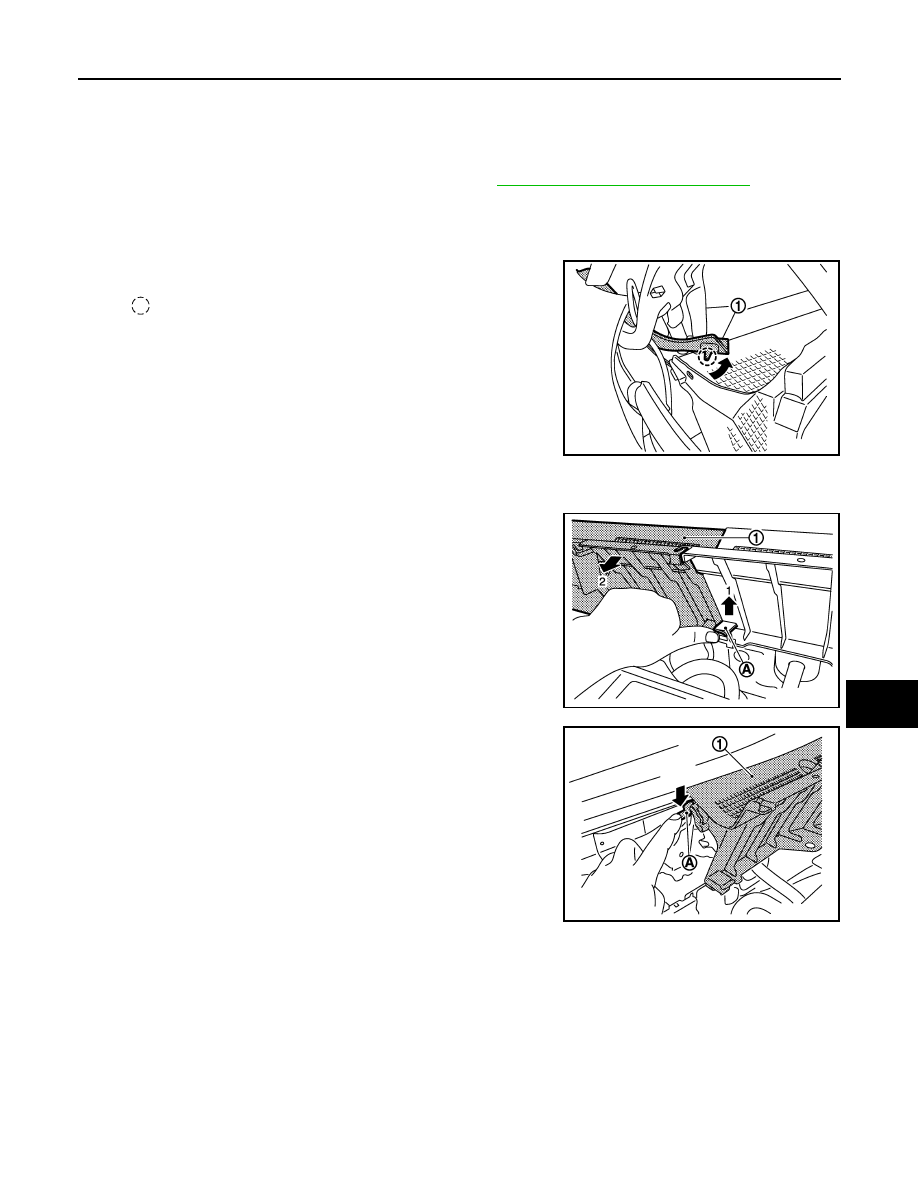

REMOVAL

1.

Fully open hood assembly.

2.

Remove front wiper arm (LH/RH) from vehicle. Refer to

WW-106, "Removal and Installation"

.

3.

Remove battery cover and brake master cylinder cover.

4.

Remove cowl top cover seal (LH/RH).

5.

Remove hoodledge cover mounting clips and then remove hoodledge cover (LH/RH).

6.

Remove front fender cover (1) fixing clips (LH/RH).

7.

Remove cowl top seal fixing clips with remover tool, and then remove cowl top seal.

8.

Remove cowl top cover fixing clips.

9.

Pull up plastic pawl (A) to remove cowl top cover RH (1) as
shown in the figure.

10. Push plastic pawl (A) as shown by the arrow in the figure to

remove cowl top cover LH (1).

INSTALLATION

Note the following, and install in the reverse order of removal.

: Clip

JMKIA2237ZZ

JMKIA2158ZZ

JMKIA2159ZZ

EXT-24

< ON-VEHICLE REPAIR >

COWL TOP

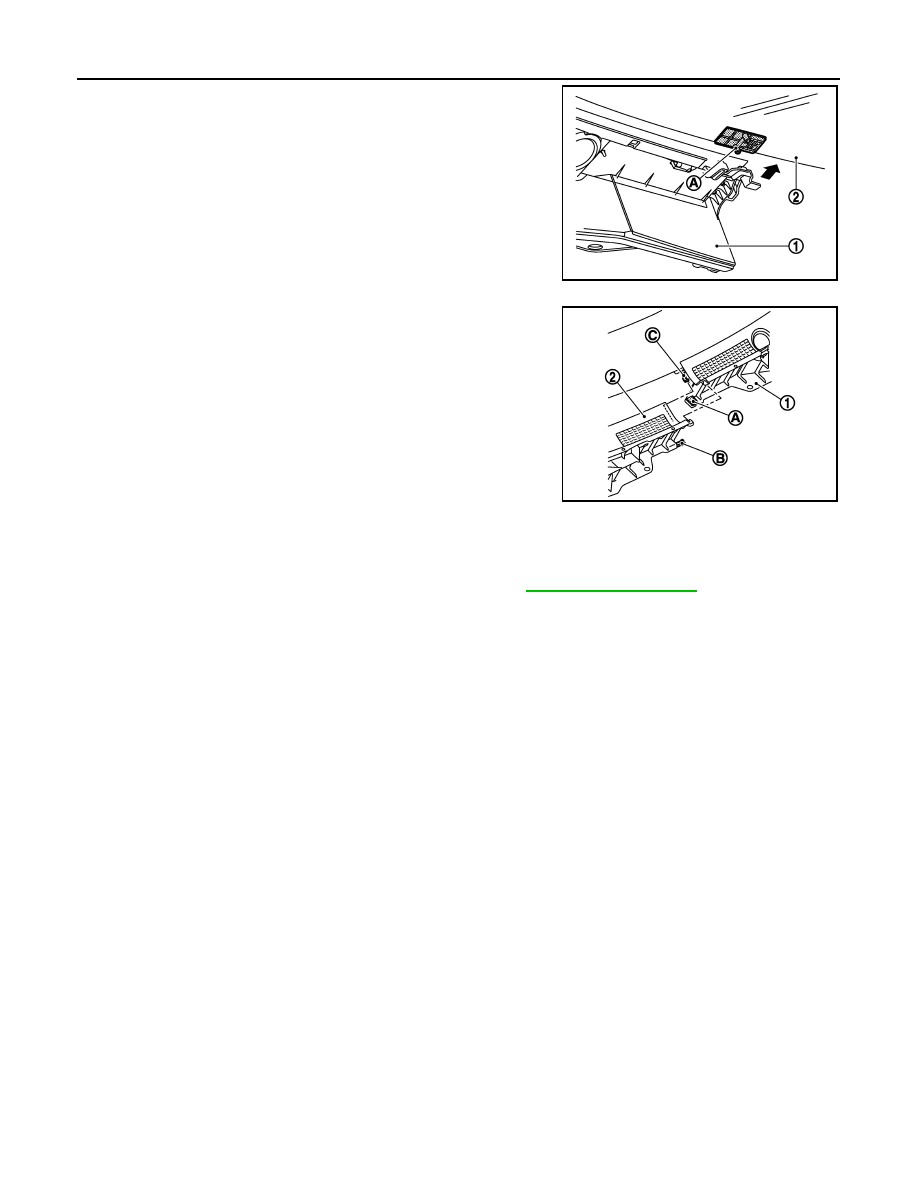

• Install cowl top cover LH (1) with (A) [pin from front windshield

glass(2)] aligned with concave part.

• Slide the pawl while aligning with the concave part of (C).
• Engage the joint of plastic pawl of (A) with (B), and then assemble

cowl top covers LH (1) and RH (2).

CAUTION:

• Always replace cowl top cover EPT sealer on rear of vehicle with a new one when installing old cowl

top cover.

• After installing, perform adjustment of wiper arm. Refer to

WW-106, "Adjustment"

.

JMKIA2160ZZ

JMKIA2161ZZ

FENDER PROTECTOR

EXT-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FENDER PROTECTOR

FENDER PROTECTOR

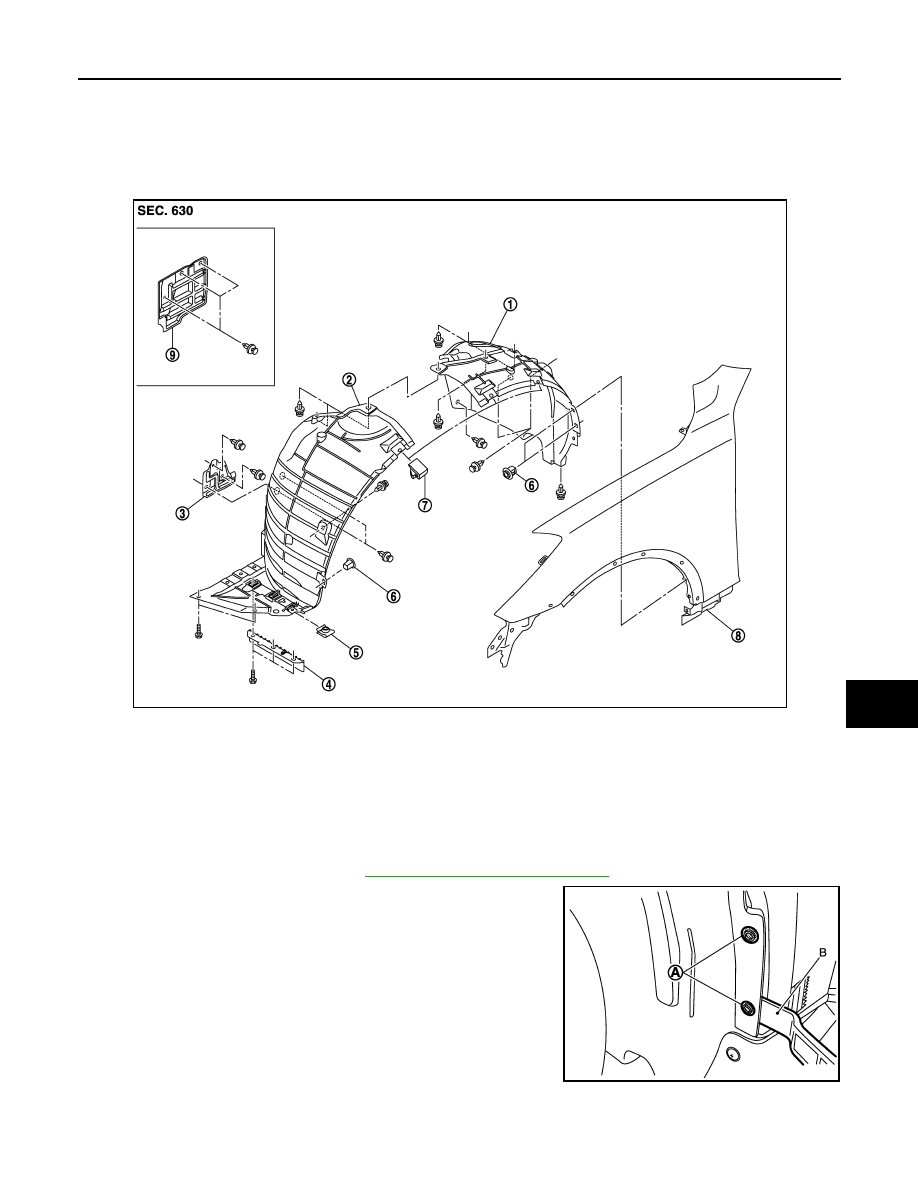

FENDER PROTECTOR : Exploded View

INFOID:0000000003134291

FENDER PROTECTOR : Removal and Installation

INFOID:0000000003134292

REMOVAL

1.

Remove front fillet molding. Refer to

EXT-32, "Removal and Installation"

.

2.

Remove front fender (rear) fixing grommets (A) with remover
tool (B).

1.

Fender protector (rear)

2.

Fender protector (front)

3.

Splash guard

4.

Air guide

5.

J-nut

6.

Grommet

7.

Fender clip

8.

Front fender

9.

Splash guard (AWD)

JMKIA2162ZZ

JMKIA2164ZZ

EXT-26

< ON-VEHICLE REPAIR >

FENDER PROTECTOR

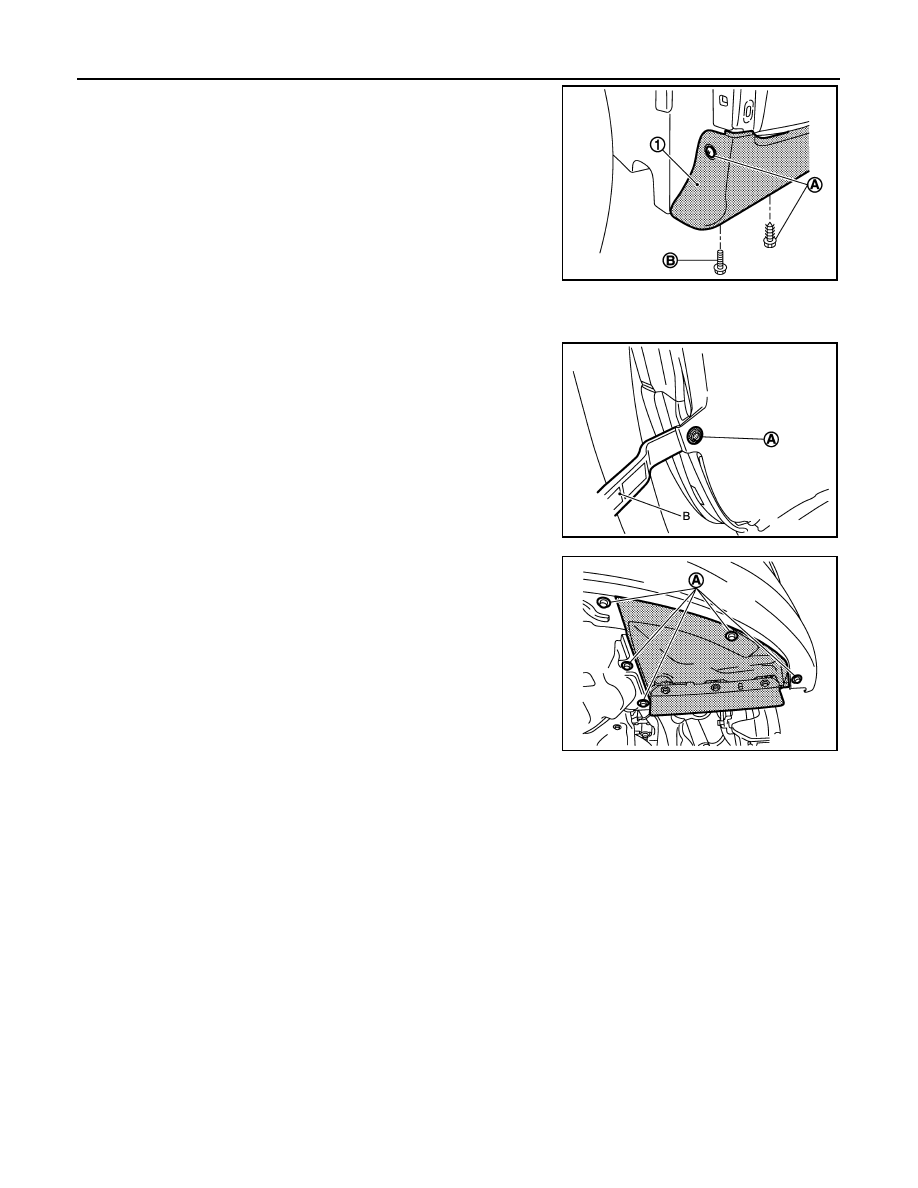

3.

Remove center mudguard (1) fixing screws (A).

4.

Remove center mudguard fixing bolt (B).

5.

Remove clips of fender protector (rear).

6.

Remove fender clip from wheel house arches, and then remove fender protector (rear) from wheel house.

7.

Remove front fender (front) fixing grommet (A) with remover tool
(B).

8.

Remove fender protector (front) fixing bolts (A).

9.

Remove fender protector (front) mounting clips.

10. Remove fender clip from wheel house arches, and then remove fender protector (front) from wheel house.

11. Remove the following parts after removing front fender protector.

• Air guide
• Fender clip

INSTALLATION

Install in the reverse order of removal.

REAR WHEEL HOUSE PROTECTOR

JMKIA2238ZZ

JMKIA2163ZZ

JMKIA0107GB
