Infiniti EX35. Manual - part 830





EXL-364

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

LICENSE PLATE LAMP

LICENSE PLATE LAMP

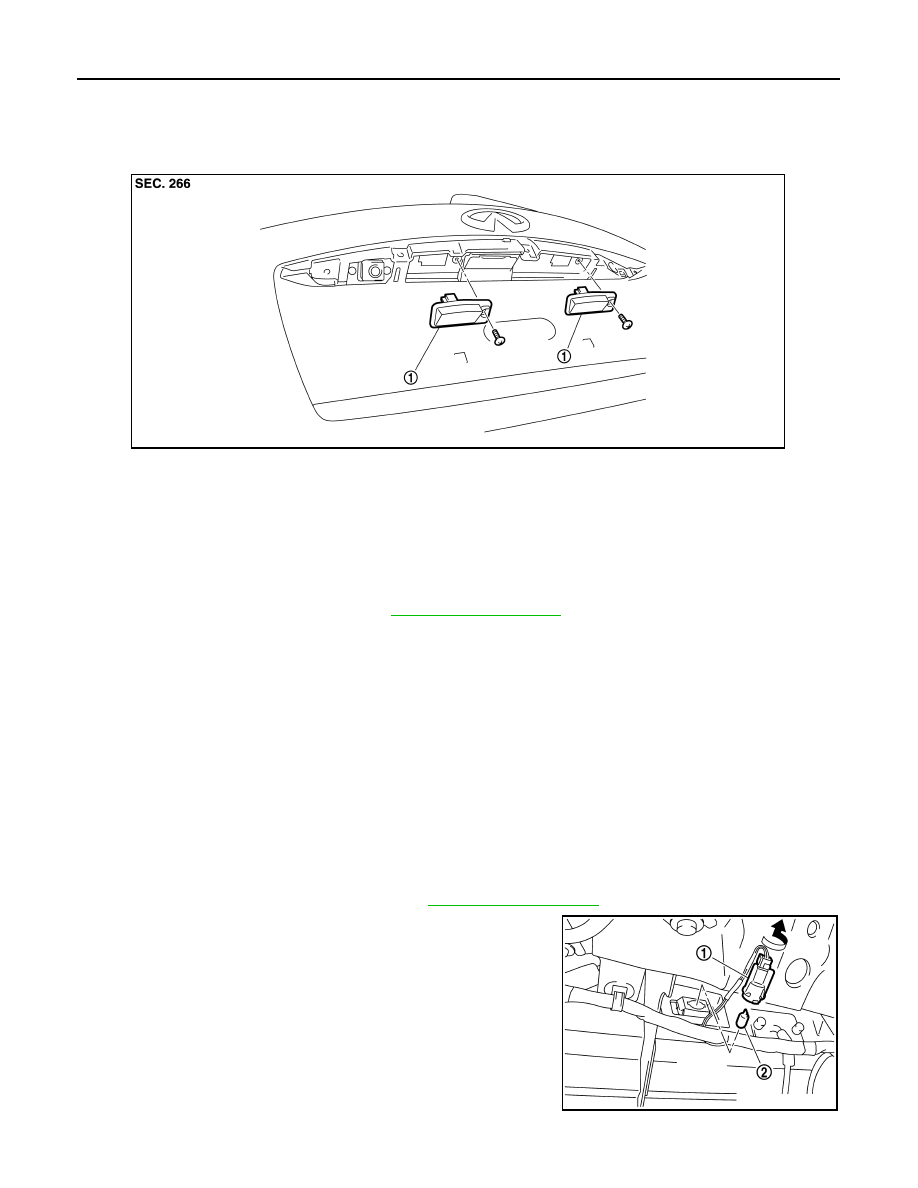

Exploded View

INFOID:0000000003757023

Removal and Installation

INFOID:0000000003757024

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the door handle cover. Refer to

INT-38, "Exploded View"

.

2.

Remove the screw. And then remove the license plate lamp.

3.

Disconnect the license plate lamp connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000003757025

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove the back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Turn the bulb socket (1) counterclockwise and unlock it.

3.

Remove the bulb (2) from the socket.

1.

License plate lamp

JPLIA0929ZZ

JPLIA0930ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-365

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000003534097

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI)

H9 (Halogen)

65

Headlamp (LO)

H11 (Halogen)

55

Front turn signal lamp

W21W

21

Parking lamp

W5W

5

Front side marker lamp

W5W

5

Front fog lamp

H8

35

Rear combination lamp

Stop lamp/Tail lamp

LED

Rear side marker lamp

LED

Rear turn signal lamp

PY21W (Amber)

21

Back-up lamp

W16W

16

License plate lamp

W5W

5

High-mounted stop lamp

LED

EXT-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

EXT

A

B

EXT

N

O

P

CONTENTS

EXTERIOR

SYMPTOM DIAGNOSIS  ...............................

3

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

3

Work Flow  .................................................................

3

Inspection Procedure  ................................................

5

Diagnostic Worksheet  ...............................................

7

PRECAUTION ...............................................

9

PRECAUTIONS ...................................................

9

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

9

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  ...................................
..

9

Precaution for Procedure without Cowl Top Cover

....

10

Precaution for Work  ................................................

10

PREPARATION ...........................................

11

PREPARATION ..................................................

11

Special Service Tools ..............................................

11

Commercial Service Tools .....................................

11

ON-VEHICLE REPAIR .................................

12

FRONT BUMPER  ...............................................

12

Exploded View  ........................................................

12

Removal and Installation .........................................

13

REAR BUMPER  .................................................

16

Exploded View  ........................................................

16

Removal and Installation .........................................

17

FRONT GRILLE  .................................................

20

Exploded View  ........................................................

20

Removal and Installation .........................................

20

COWL TOP .........................................................

22

Exploded View  ........................................................

22

Removal and Installation .........................................

23

FENDER PROTECTOR  ....................................

25

FENDER PROTECTOR  .............................................

25

FENDER PROTECTOR : Exploded View  ...............

25

FENDER PROTECTOR : Removal and Installa-
tion ...........................................................................

25

REAR WHEEL HOUSE PROTECTOR  ......................

26

REAR WHEEL HOUSE PROTECTOR : Exploded
View .........................................................................

27

REAR WHEEL HOUSE PROTECTOR : Removal
and Installation  ........................................................

27

CENTER MUD GUARD .....................................

29

Exploded View .........................................................

29

Removal and Installation  .........................................

29

FLOOR SIDE FAIRING  .....................................

31

Exploded View .........................................................

31

Removal and Installation  .........................................

31

FILLET MOLDING .............................................

32

Exploded View .........................................................

32

Removal and Installation  .........................................

32

ROOF RAIL  .......................................................

34

Exploded View .........................................................

34

Removal and Installation  .........................................

34

ROOF SIDE MOLDING  .....................................

37

Exploded View .........................................................

37

Removal and Installation  .........................................

37

DOOR SASH MOLDING  ...................................

39

Exploded View .........................................................

39

Removal and Installation  .........................................

39

DOOR OUTSIDE MOLDING  .............................

41

Exploded View .........................................................

41

Removal and Installation  .........................................

41

DOOR OUTSIDE LOWER MOLDING ...............

44

Exploded View .........................................................

44
