FRONT FOG LAMP

2.

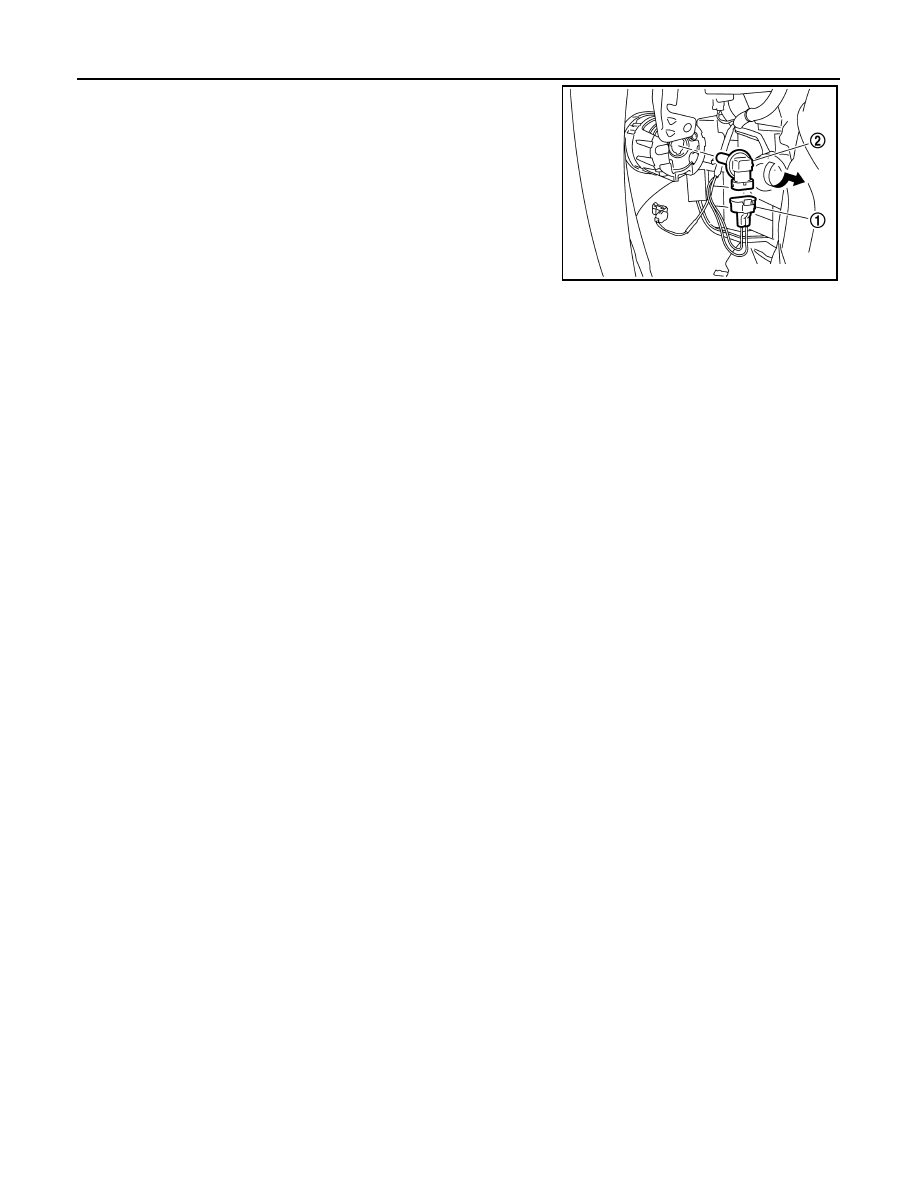

Remove the front fog lamp bulb connector (1).

3.

Rotate the bulb (2) counterclockwise and unlock it.

JPLIA0921ZZ

OPTICAL SENSOR

EXL-357

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

OPTICAL SENSOR

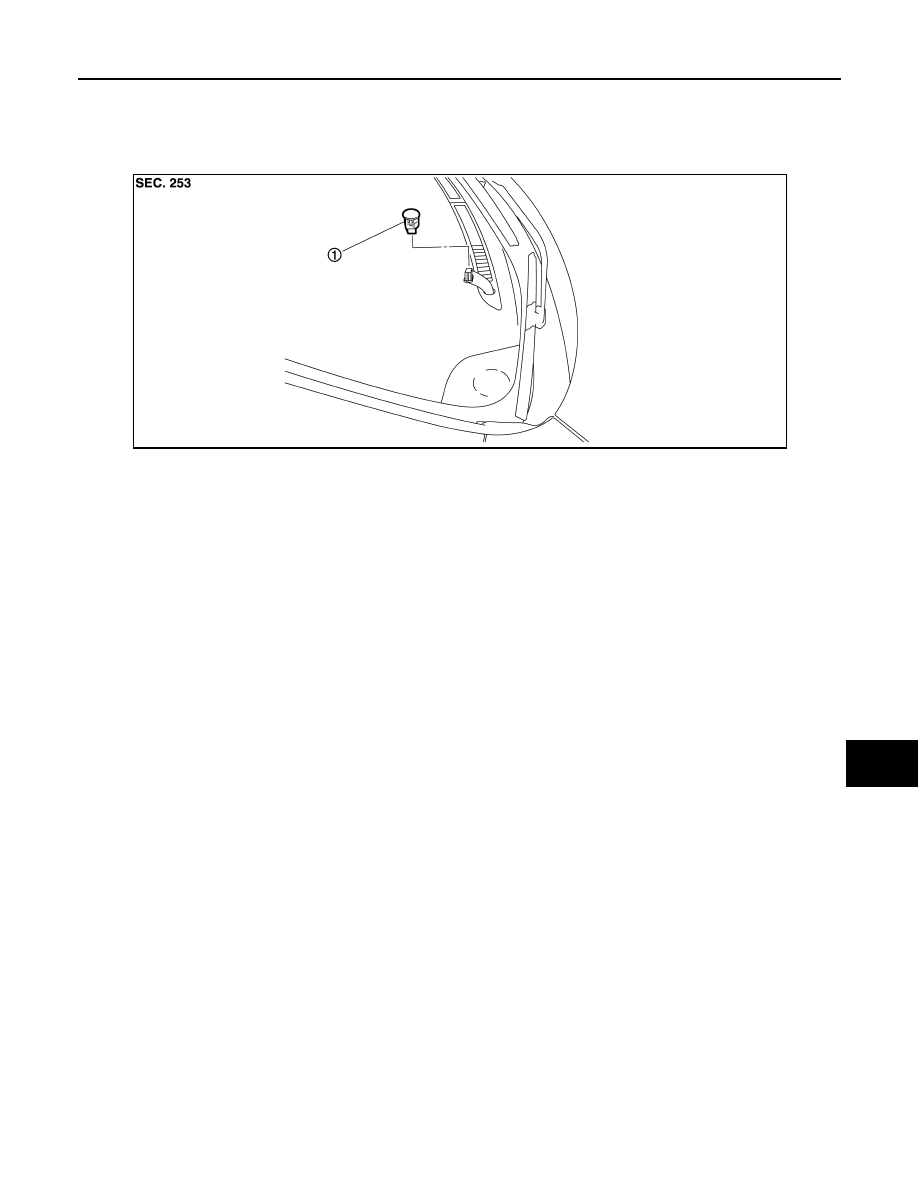

Exploded View
