Infiniti EX35. Manual - part 713





TIMING CHAIN

EM-51

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Removal and Installation

INFOID:0000000003139117

REMOVAL

1.

Release the fuel pressure. Refer to

EC-538, "Inspection"

.

2.

Disconnect the battery cable from the negative terminal.

3.

Remove engine cover with power tool. Refer to

EM-25, "Exploded View"

.

4.

Remove radiator reservoir tank. Refer to

CO-13, "Exploded View"

.

5.

Remove air duct and air cleaner case assembly (RH and LH). Refer to

EM-27, "Exploded View"

.

6.

Remove engine undercover with power tool.

7.

Drain engine coolant from radiator. Refer to

CO-7, "Draining"

.

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine coolant on drive belt.

8.

Remove radiator hose (upper and lower). Refer to

CO-13, "Exploded View"

.

9.

Drain engine oil. Refer to

LU-8, "Draining"

.

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine oil on drive belt.

10. Remove drive belt. Refer to

EM-13, "Exploded View"

.

11. Remove radiator cooling fan assembly. Refer to

CO-16, "Exploded View"

.

12. Separate engine harnesses removing their brackets from front timing chain case.
13. Remove intake manifold collector. Refer to

EM-29, "Exploded View"

.

14. Remove intake manifold. Refer to

EM-32, "Exploded View"

.

15. Remove fuel sub tube mounting bolt. Refer to

EM-37, "Exploded View"

.

16. Remove oil level gauge and oil level gauge guide.

17. Remove A/C compressor from bracket with piping connected, and temporarily secure it aside. Refer to

HA-39, "Exploded View"

.

18. Remove power steering oil pump from bracket with piping connected, and temporarily secure it aside.

Refer to

ST-45, "Exploded View"

.

19. Remove power steering oil pump bracket. Refer to

ST-45, "Exploded View"

.

20. Remove idler pulley, auto tensioner and bracket.

21. Remove alternator and alternator bracket. Refer to

CHG-25, "2WD : Exploded View"

 (2WD models) or

CHG-27, "AWD : Exploded View"

 (AWD models).

22. Remove water outlet (front) and water piping. Refer to

CO-23, "Exploded View"

.

23. Remove valve timing control covers (bank 1 and bank 2) and gasket as follows:

10. Slack guide

11. Crankshaft sprocket

12.

Camshaft sprocket (INT)

13.

Valve timing control cover gasket
(bank 1)

14. Seal ring

15.

Valve timing control cover (bank 1)

16. O-ring

17.

Exhaust valve timing control sole-
noid valve (bank 1)

18.

Oil level gauge

19. Oil level gauge guide

20. O-ring

21.

Intake valve timing control solenoid
valve (bank 2)

22. Valve timing control cover (bank 2)

23.

Exhaust valve timing control sole-
noid valve (bank 2)

24.

Valve timing control cover gasket (bank
2)

25. Front oil seal

26. Crankshaft pulley

27.

Crankshaft pulley bolt

28.

Intake valve timing control solenoid
valve (bank 1)

29. Power steering oil pump bracket

30.

Idler pulley bracket

31. Alternator bracket

32. Water outlet (front)

33.

Front timing chain case

34. Rear timing chain case

35. O-ring

36.

O-ring

37. O-ring

A.

Refer to

EM-94

B.

Refer to

EM-51

C.

Oil filter

Refer to

GI-4, "Components"

 for symbols in the figure.

EM-52

< ON-VEHICLE REPAIR >

TIMING CHAIN

a.

Disconnect valve timing control harness connector.

b.

Loosen mounting bolts in reverse order as shown in the figure.

CAUTION:

Shaft is internally jointed with camshaft sprocket (INT) cen-
ter hole. When removing, keep it horizontal until it is com-
pletely disconnected.

c.

Shaft is engaged with intake side camshaft sprocket center hole on inside. pull straight out so as not to tilt
until the joint is disengaged.
• The mating surface of magnet retarder (2) may be fitted with

the exhaust side camshaft sprocket via the engine oil. Open
valve timing control cover (1) carefully

• If the mating surface of magnet retarder is fitted with the cam-

shaft sprocket, open the cover within the range that the load is
not applied to the harness. And then, remove it so as to pre-
vent magnet retarder from dropping.

CAUTION:

• Be careful not to damage magnet retarder.
• When carrying valve timing control cover, face the mag-

net retarder side up to prevent the cover from falling from
magnet retarder.

• Never remove magnet retarder from valve timing control cover. (Disassembly prohibited parts)

24. Remove rocker covers (bank 1 and bank 2). Refer to

EM-47, "Exploded View"

.

25. Obtain No. 1 cylinder at TDC of its compression stroke as follows:

a.

Rotate crankshaft pulley clockwise to align timing mark (grooved
line without color) with timing indicator.

b.

Check that intake and exhaust cam noses on No. 1 cylinder
(engine front side of bank 1) are located as shown in the figure.

• If not, turn crankshaft one revolution (360 degrees) and align

as shown in the figure.

26. Remove crankshaft pulley as follows:

a.

Remove front cross bar. Refer to

FSU-37, "Exploded View"

. (AWD models)

b.

Remove power steering pipe mounting bolt. Refer to

ST-51, "2WD : Exploded View"

.

A

:  Bank  1

B

:  Bank  2

C

: Dowel pin hole

JPBIA0041ZZ

JPBIA0042ZZ

: Timing mark (grooved line without color)

JPBIA0043ZZ

: Engine front

JPBIA0044ZZ

TIMING CHAIN

EM-53

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

c.

Remove rear cover plate and set the ring gear stopper [SST:
KV10118600 (J-48641)] (A) as shown in the figure.

d.

Loosen crankshaft pulley bolt and rotate bolt seating surface at
10 mm (0.39 in) from its original position.

CAUTION:

Never remove crankshaft pulley bolt as it will be used as a
supporting point for suitable puller.

e.

Place suitable puller tab on holes of crankshaft pulley, and pull
crankshaft pulley through.

CAUTION:

Never put suitable puller tab on crankshaft pulley periphery,
as this will damage internal damper.

27. Remove oil pan (lower). Refer to

EM-43, "Exploded View (2WD)"

 (2WD models) or

EM-44, "Exploded

View (AWD)"

 (AWD models).

28. Loosen two mounting bolts in front of oil pan (upper) with power

tool in reverse order as shown in the figure.

29. Remove front timing chain case as follows:

1

: Oil pan (upper)

2

: Drive plate

: Vehicle front

JPBIA0408ZZ

1

: Crankshaft pulley

JPBIA1364ZZ

JPBIA1368ZZ

: Engine front

JPBIA0047ZZ

EM-54

< ON-VEHICLE REPAIR >

TIMING CHAIN

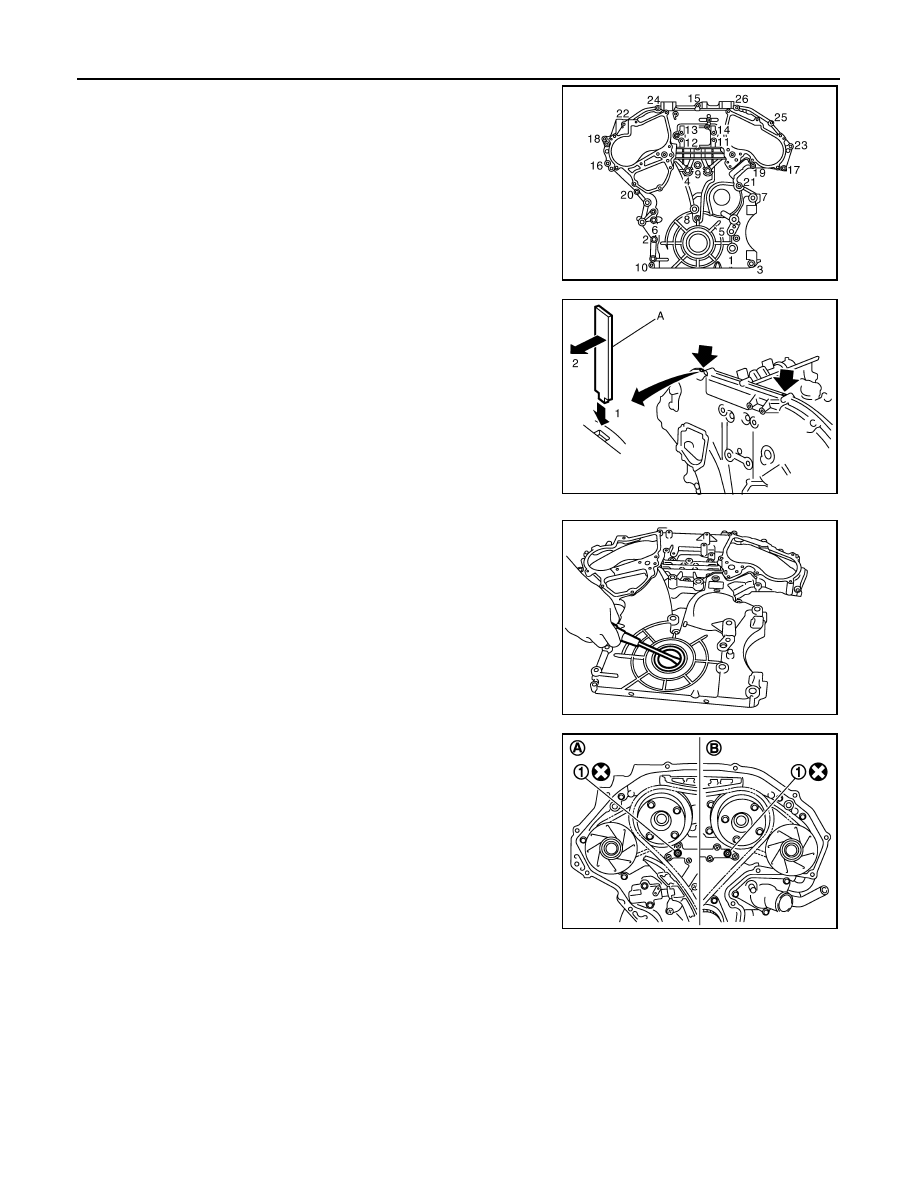

a.

Loosen mounting bolts in reverse order as shown in the figure.

b.

Insert a suitable tool (A) into the notch at the top of front timing
chain case as shown.

c.

Pry off case by moving the suitable tool as shown.
• Use the seal cutter [SST: KV10111100 (J37228)] to cut liquid

gasket for removal.

CAUTION:

• Never use a screwdriver or something similar.
• After removal, handle front timing chain case carefully so

it does not tilt, cant, or warp under a load.

30. Remove front oil seal from front timing chain case using a suit-

able tool.
• Use a screwdriver for removal.

CAUTION:

Be careful not to damage front timing chain case.

31. Remove O-rings (1) from rear timing chain case.

32. Remove timing chain tensioner (primary) as follows:

JPBIA0046ZZ

JPBIA0048ZZ

JPBIA0049ZZ

A

:  Bank  1

B

:  Bank  2

JPBIA0406ZZ
