OIL PAN (LOWER)

EM-43

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

OIL PAN (LOWER)

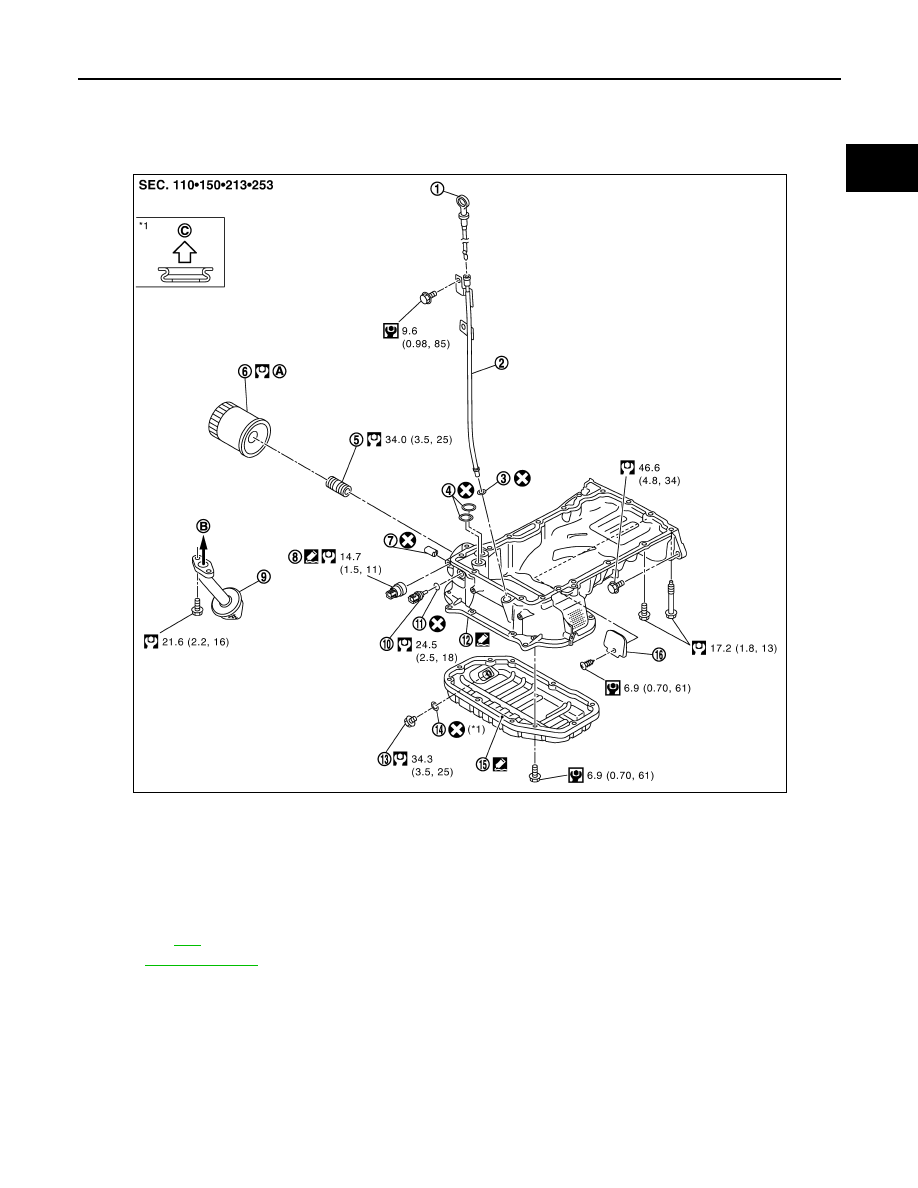

Exploded View (2WD)

INFOID:0000000003139110

1.

Oil level gauge

2.

Oil level gauge guide

3.

O-ring

4.

O-ring

5.

Connector bolt

6.

Oil filter

7.

Plug

8.

Oil pressure switch

9.

Oil strainer

10. Oil temperature sensor

11.

Washer

12. Oil pan (upper)

13. Drain plug

14. Drain plug washer

15. Oil pan (lower)

16. Rear plate cover

A.

Refer to

LU-9

B.

To oil pump

C.

Oil pan side

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA0530GB

EM-44

< ON-VEHICLE REPAIR >

OIL PAN (LOWER)

Exploded View (AWD)

INFOID:0000000003139111

Removal and Installation

INFOID:0000000003139112

REMOVAL

CAUTION:

Never drain engine oil when the engine is hot to avoid the danger of being scalded.

1.

Remove engine undercover with power tool.

2.

Drain engine oil. Refer to

LU-8, "Draining"

.

3.

Remove oil pan (lower) as follows:

1.

Oil level gauge

2.

Oil level gauge guide

3.

O-ring

4.

O-ring

5.

Gasket

6.

Oil strainer

7.

Drain plug

8.

Drain plug washer

9.

Oil pan (lower)

10. O-ring (small)

11.

Axle pipe

12. O-ring (large)

13. Rear plate cover

14. Oil pan (upper)

A.

Refer to

LU-11

B.

To oil pump

C.

Oil pan side

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1825GB

OIL PAN (LOWER)

EM-45

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

a.

Loosen mounting bolts in reverse order as shown in the figure to
remove.

b.

Insert the seal cutter [SST: KV10111100 (J37228)] (A) between
oil pan (upper) and oil pan (lower).

CAUTION:

• Be careful not to damage the mating surfaces.
• Never insert a screwdriver, this will damage the mating

surfaces.

c.

Slide the seal cutter [SST: KV10111100 (J37228)] by tapping on
the side of tool with a hammer. Remove oil pan (lower).

INSTALLATION

1.

Install oil pan (lower) as follows:

a.

Use scraper (A) to remove old liquid gasket from mating sur-
faces.
• Remove old liquid gasket from the bolt holes and thread.

CAUTION:

Never scratch or damage the mating surfaces when clean-
ing off old liquid gasket.

b.

Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to the oil pan (lower) as shown in the
figure.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

CAUTION:

Attaching should be done within 5 minutes after coating.

c.

Install oil pan (lower).

: Engine front

JPBIA0021ZZ

JPBIA0276ZZ

JPBIA0025ZZ

: Engine front

a

:

φ

4.0 - 5.0 mm (0.157 - 0.197 in)

JPBIA1556ZZ

EM-46

< ON-VEHICLE REPAIR >

OIL PAN (LOWER)

• Tighten mounting bolts in numerical order as shown in the fig-

ure.

2.

Install oil pan drain plug.
• Refer to the figure of components of former page for installation direction of drain plug washer. Refer to

EM-43, "Exploded View (2WD)"

 (2WD models) and

EM-44, "Exploded View (AWD)"

 (AWD models).

3.

Install in the reverse order of removal after this step.
NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.

Inspection

INFOID:0000000003139113

INSPECTION AFTER REMOVAL

Clean oil strainer if any object attached.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and adjust engine oil. Refer to

LU-6, "Inspection"

.

2.

Start engine, and check there is no leakage of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check the engine oil level again. Refer to

LU-6, "Inspection"

.
