EXHAUST MANIFOLD

EM-35

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

8.

Disconnect air fuel ratio sensor 1 harness connectors (bank 1 and bank 2) and remove harness clip.

9.

Using the heated oxygen sensor wrench [SST: KV10114400
(J38365)] (C), remove air fuel ratio sensor 1 (bank 1 and bank
2).

CAUTION:

• Be careful not to damage air fuel ratio sensor 1.
• Discard any air fuel ratio sensor 1 which has been

dropped onto a hard surface such as a concrete floor.
Replace with a new sensor.

10. Remove exhaust manifold cover (upper) (bank 1 and bank 2).

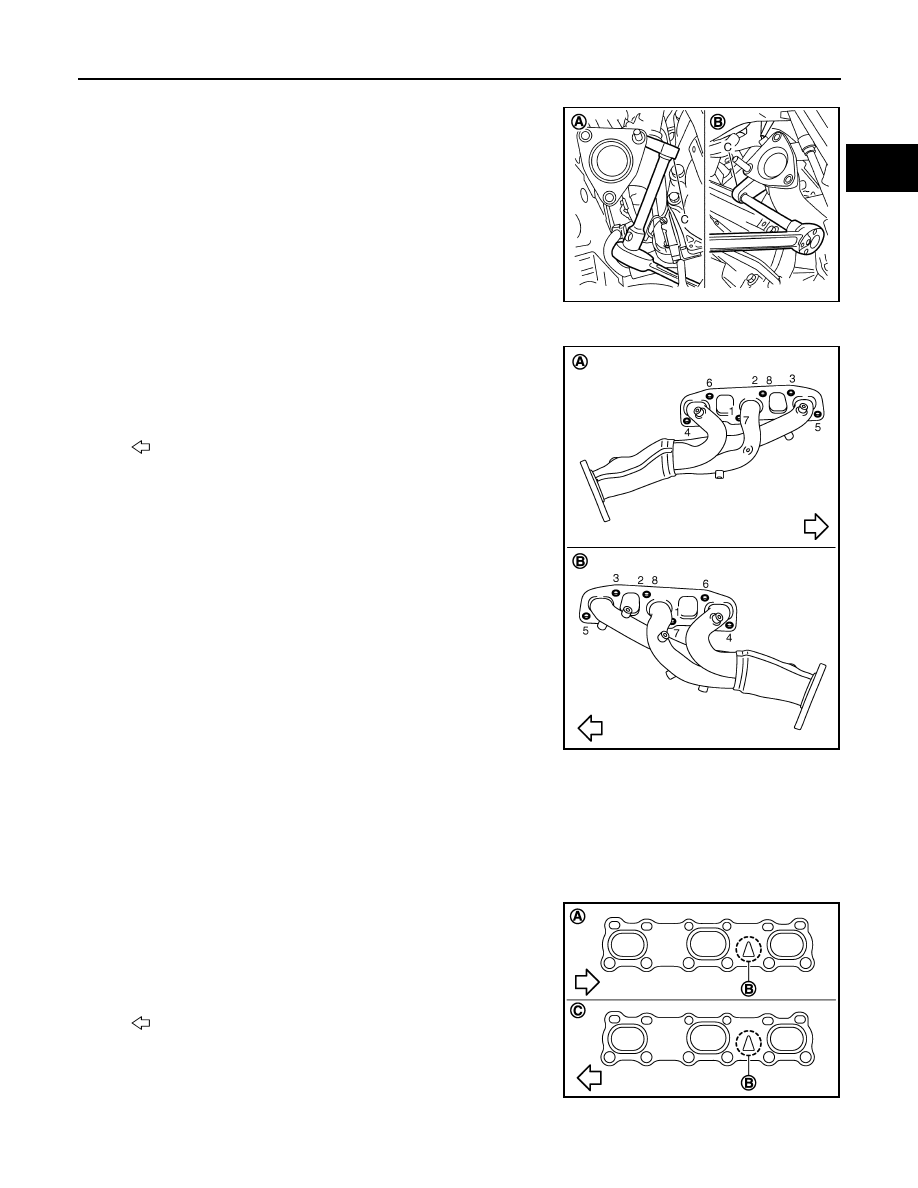

11. Loosen mounting nuts in the reverse order as shown in the fig-

ure to remove exhaust manifold.

NOTE:
Disregard the numerical order No. 7 and 8 in removal.

12. Remove gaskets.

CAUTION:

Cover engine openings to avoid entry of foreign materials.

INSTALLATION

Note the following, and install in the reverse order of removal.

EXHAUST MANIFOLD GASKET

• Install exhaust manifold gasket in direction shown in the figure.

(Follow same procedure for both banks.)

EXHAUST MANIFOLD

A

:  Bank  2

B

:  Bank  1

JPBIA0271ZZ

A

:  Bank  1

B

:  Bank  2

: Engine front

JPBIA0017ZZ

A

:  Bank  1

B

: Triangle press

C

:  Bank  2

: Engine front

JPBIA0019ZZ

EM-36

< ON-VEHICLE REPAIR >

EXHAUST MANIFOLD

• If stud bolts were removed, install them and tighten to the specified torque below.

• Install exhaust manifold and tighten mounting nuts in numerical

order as shown in the figure.

NOTE:
Tighten nuts No. 1 and 2 in two steps. The numerical order No. 7
and 8 shows second step.

AIR FUEL RATIO SENSOR 1

CAUTION:

• Before installing a new air fuel ratio sensor 1, clean exhaust system threads using heated oxygen

sensor thread cleaner tool (commercial service tool: J-43897-18 or J-43897-12) and apply anti-seize
lubricant.

• Never over torque air fuel ratio sensor 1. Doing so may cause damage to air fuel ratio sensor 1,

resulting in the “MIL” coming on.

Inspection

INFOID:0000000003139106

INSPECTION AFTER REMOVAL

Surface Distortion

• Check the surface distortion of the exhaust manifold mating sur-

face with a straightedge (A) and a feeler gauge (B).

• If it exceeds the limit, replace exhaust manifold.

Tightening torque

: Refer to

EM-34, "Exploded View"

.

A

:  Bank  1

B

:  Bank  2

: Engine front

JPBIA0017ZZ

Limit

: Refer to

EM-140, "Exhaust Manifold"

.

JPBIA0018ZZ

FUEL INJECTOR AND FUEL TUBE

EM-37

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

FUEL INJECTOR AND FUEL TUBE

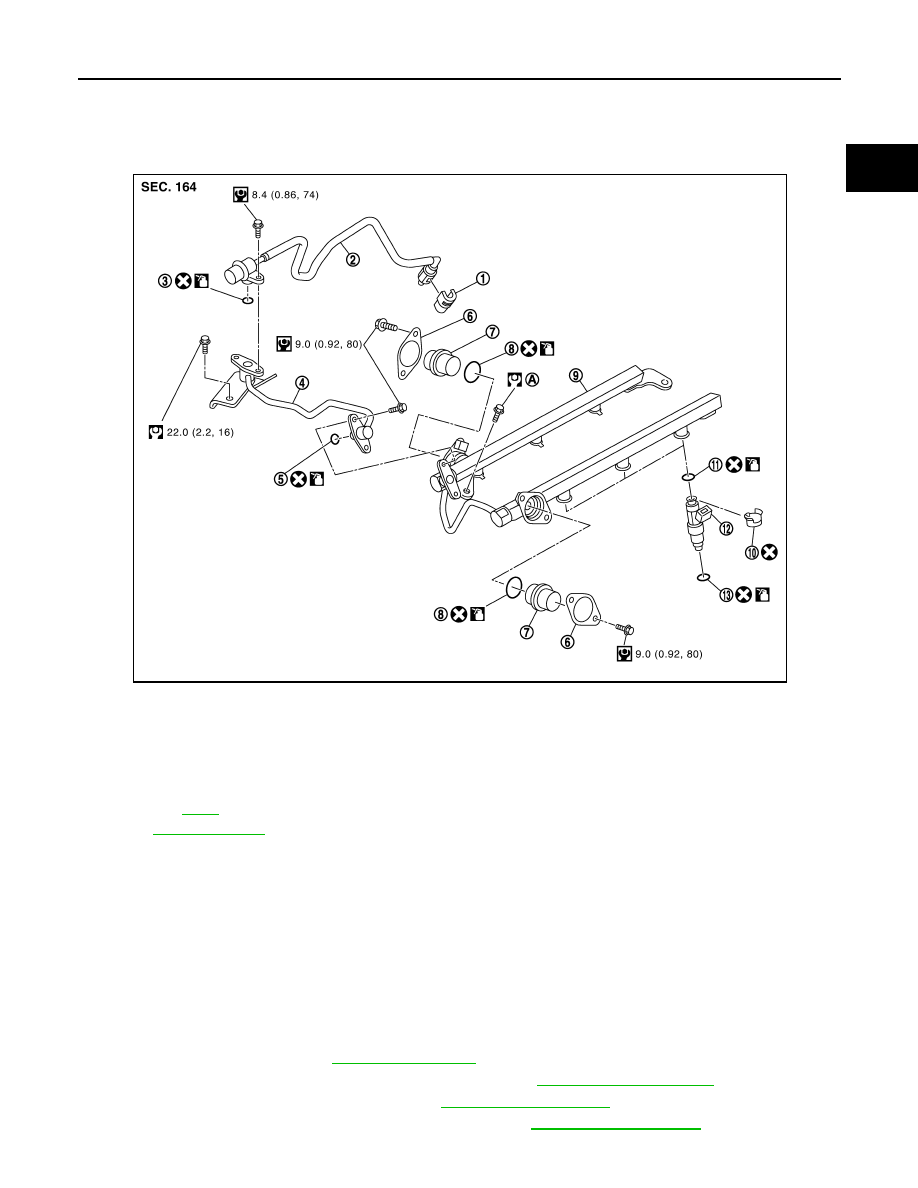

Exploded View

INFOID:0000000003139107

CAUTION:

Never remove or disassemble parts unless instructed as shown in the figure.

Removal and Installation

INFOID:0000000003139108

REMOVAL

WARNING:

• Put a “CAUTION: FLAMMABLE” sign in the workshop.
• Be sure to work in a well ventilated area and furnish workshop with a CO

2

fire extinguisher.

• Never smoke while servicing fuel system. Keep open flames and sparks away from the work area.
• Never drain engine coolant when the engine is hot to avoid the danger of being scalded.

1.

Release fuel pressure. Refer to

EC-538, "Inspection"

.

2.

Disconnect battery cable from the negative terminal. Refer to

PG-103, "Exploded View"

.

3.

Remove engine cover with power tool. Refer to

EM-25, "Exploded View"

.

4.

Remove air cleaner case and air duct (RH and LH). Refer to

EM-27, "Exploded View"

.

1.

Quick connector cap

2.

Fuel feed hose (with damper)

3.

O-ring

4.

Fuel sub tube

5.

O-ring

6.

Fuel damper cap

7.

Fuel damper

8.

O-ring

9.

Fuel tube

10. Clip

11. O-ring (black)

12. Fuel injector

13. O-ring (green)

A.

Refer to

EM-37

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1708GB

EM-38

< ON-VEHICLE REPAIR >

FUEL INJECTOR AND FUEL TUBE

5.

Remove intake manifold collector. Refer to

EM-29, "Exploded View"

.

6.

Remove fuel feed hose (with damper) (1) from fuel sub-tube (2)
and remove harness bracket (3).

NOTE:
There is no fuel return route.

CAUTION:

• While hoses are disconnected, plug them to prevent fuel

from draining.

• Never separate damper and hose.

7.

When separating fuel feed hose (with damper) and centralized under-floor piping connection, disconnect
quick connector as follows:

a.

Remove quick connector cap (2) from quick connector connec-
tion on right member side.

b.

Disconnect fuel feed hose (with damper) (1) from bracket hose
clamp.

c.

Push in retainer tabs (2).

d.

Draw and pull out quick connector (1) straight from centralized
under-floor piping (3).

CAUTION:

• Pull quick connector holding position (A) as shown in the

figure.

• Never pull with lateral force applied. O-ring inside quick

connector may be damaged.

• Prepare container and cloth beforehand as fuel will leak

out.

• Avoid fire and sparks.
• Keep parts away from heat source. Especially, be careful

when welding is performed around them.

• Never expose parts to battery electrolyte or other acids.
• Never bend or twist connection between quick connector and fuel feed hose (with damper) dur-

ing installation/removal.

• To keep clean the connecting portion and to avoid dam-

age and foreign materials, cover them completely with
plastic bags, etc. (A) or something similar.

8.

Remove fuel sub tube mounting bolt.

9.

Disconnect harness connector from fuel injector.

: Engine front

JPBIA0032ZZ

JPBIA0254ZZ

JPBIA1854ZZ

JPBIA0135ZZ
