DLN-54

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ETX13B]

FRONT CASE AND REAR CASE

2.

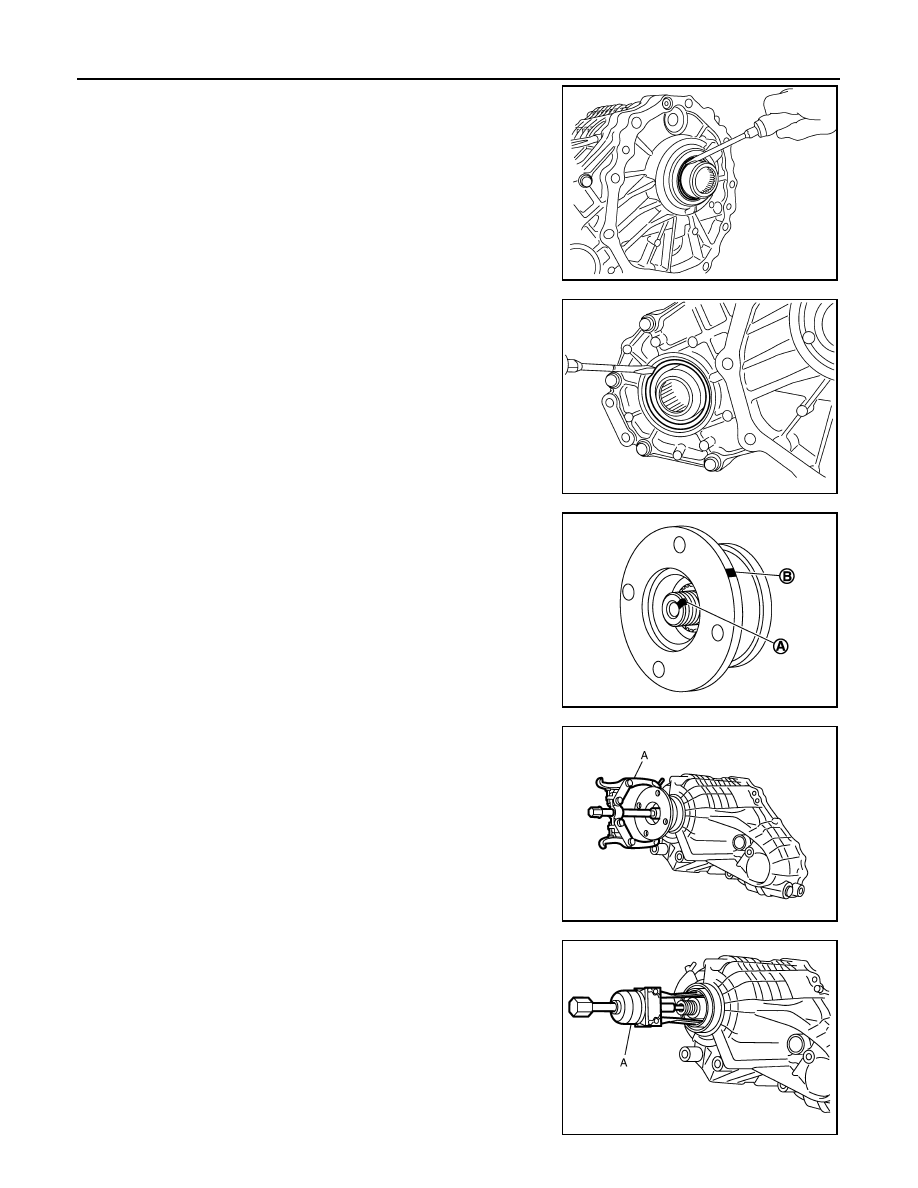

Remove mainshaft oil seal from front case with a suitable tool.

CAUTION:

Never damage the front case and mainshaft.

3.

Remove front oil seal from front case with a suitable tool.

CAUTION:

Never damage the front case and front drive shaft.

4.

Remove self-lock nut.

5.

Put a matching mark (A) on the end of mainshaft. The mark
should be in line with the mark (B) on the companion flange.

CAUTION:

For matching mark, use paint. Never damage mainshaft.

6.

Remove companion flange with a puller (A) (commercial service
tool).

CAUTION:

Never damage the companion flange.

7.

Remove rear oil seal from rear case with the puller (A) [SST:
KV381054S0 (J-34286)].

CAUTION:

Never damage the rear case.

PDIA0507J

PDIA0255E

JPDIE0060ZZ

JPDIE0087ZZ

JPDIE0065ZZ

FRONT CASE AND REAR CASE

DLN-55

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

8.

Remove spacer (1) from mainshaft.

9.

Remove front case and rear case fixing bolts, then remove har-
ness bracket.

10. Remove front case (1) from rear case by levering it up with a

suitable tool.

CAUTION:

Never damage the mating surface.

11. Remove snap ring (1) from front case.

JSDIA0097ZZ

Bolts symbol

Quantity

Bolt length “

” mm (in)

A

11

42 (1.65)

B

1

162 (6.38)

C

1

97  (3.82)

TORX bolt

1

40 (1.57)

JPDIE0053GB

JPDIE0066ZZ

JPDIE0067ZZ

DLN-56

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ETX13B]

FRONT CASE AND REAR CASE

12. Remove mainshaft bearing from front case with the drift (A)

[SST: KV38100300 (J-25523)].

13. Remove drive chain and front drive shaft while tapping front

drive shaft with plastic hammer.

CAUTION:

Never tap drive chain.

14. Remove oil gutter (1) from rear case.

15. Remove oil cover bolts from rear case. And then, remove oil

cover (1).

16. Remove retainer (1) from AWD solenoid harness connector.
17. Remove AWD solenoid harness connector from rear case.

18. Remove O-ring from AWD solenoid harness connector.

JPDIE0068ZZ

PDIA0257E

JSDIA0098ZZ

SDIA3609E

JSDIA0100ZZ

FRONT CASE AND REAR CASE

DLN-57

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

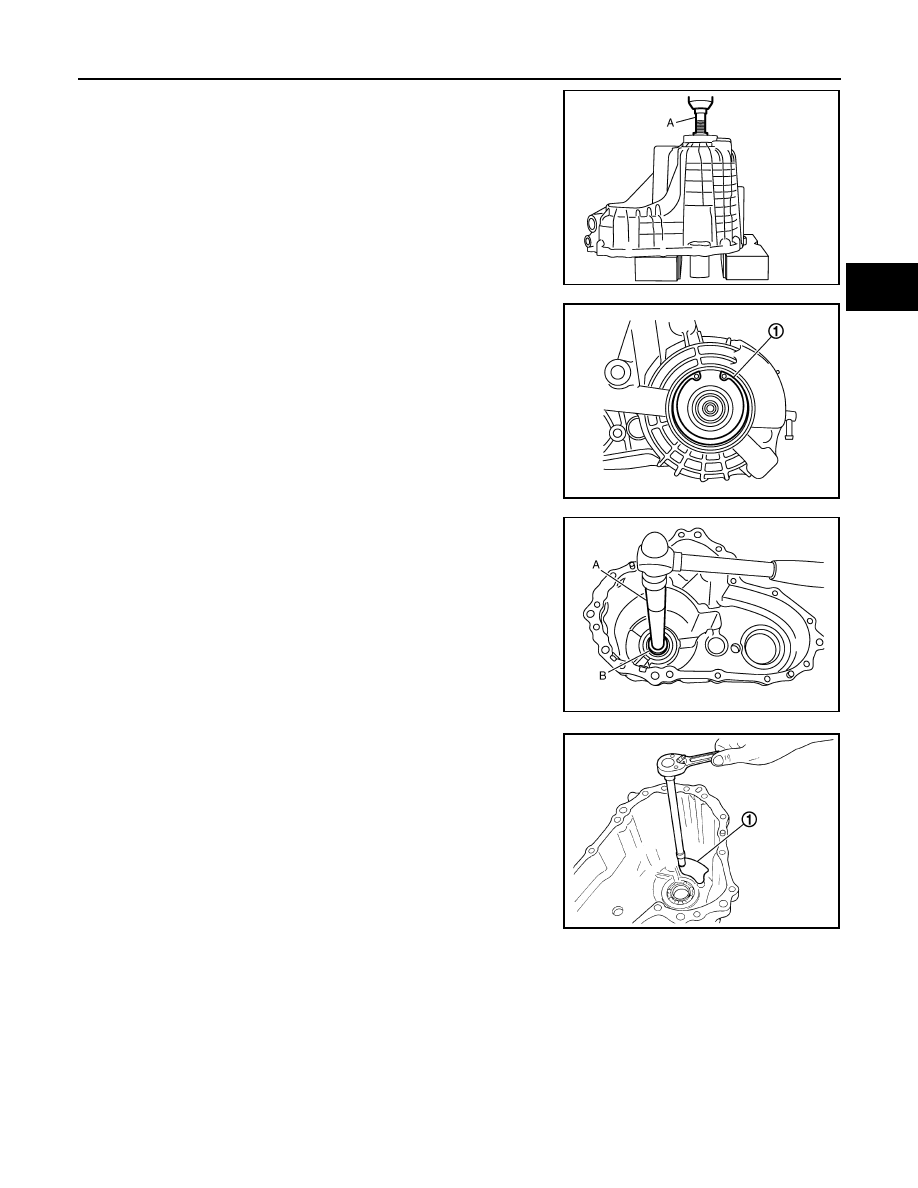

19. Remove mainshaft assembly from rear case with the drift (A)

[SST: ST33052000 (

—

)].

20. Remove snap ring (1) from rear case.

21. Remove rear bearing from rear case with the drifts.

22. Remove baffle plate (1) from rear case.

23. Remove breather tube from rear case.

JPDIE0069ZZ

JPDIE0070ZZ

A

: Drift bar [SST: ST30611000 (J-25742-1)]

B

: Drift [SST: ST35321000 (

—

)]

JPDIE0071ZZ

JPDIE0072ZZ
