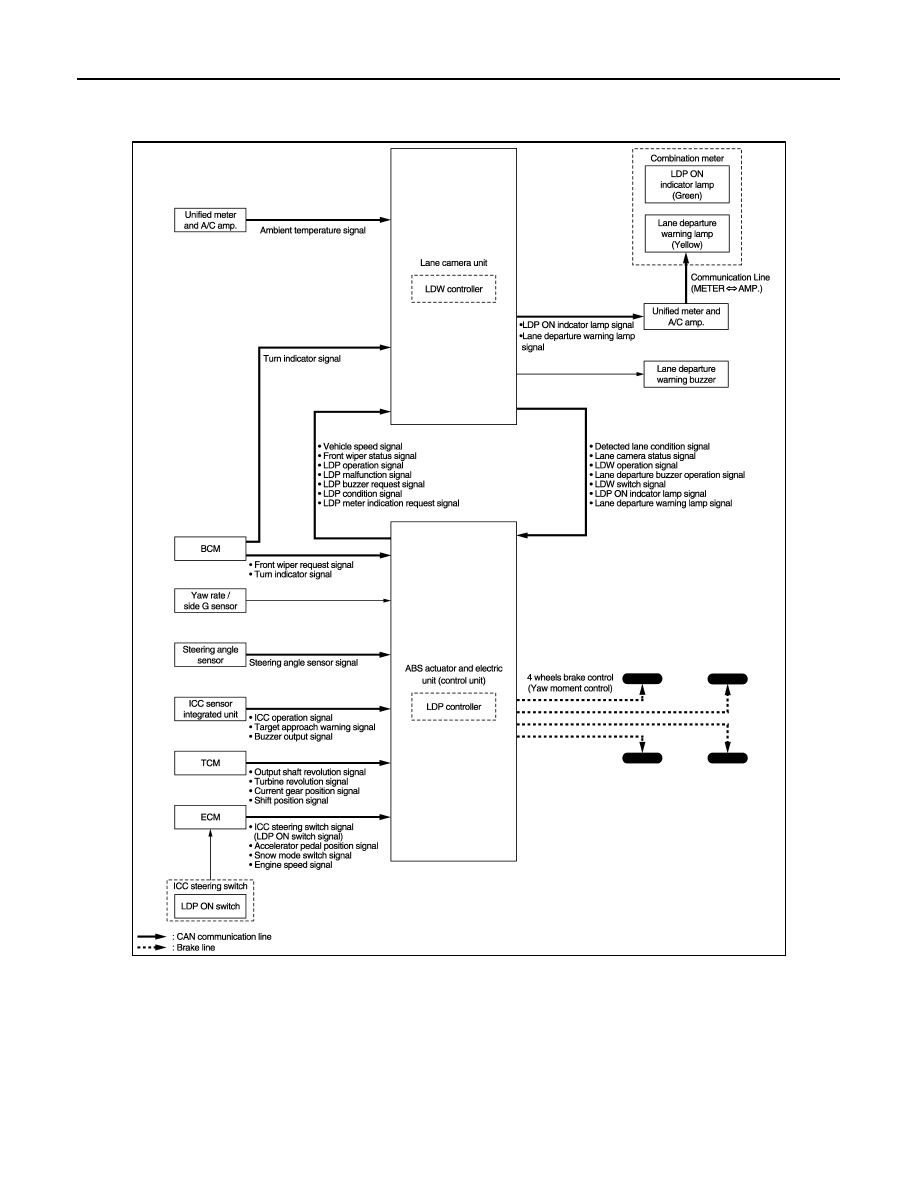

CCS LANE DEPARTURE WARNING (LDW) SYSTEM CCS-119 < FUNCTION DIAGNOSIS > [LDW & LDP] C D E F G H I J K L M B N P A LDW SYSTEM CONTROL DESCRIPTION • LDW system is controlled by lane camera unit. camera unit via CAN communication (through unified meter and A/C amp.). • When the lane camera unit judges vehicle deviation from the traveling lane, it controls following actions to alert the driver. - Requests the lane departure warning lamp activation to combination meter. LDW OPERATING CONDITION • LDW ON indicator: ON NOTE: • Vehicle speed: approximately 72 km/h (45 MPH) or more . SIGNAL INPUT/OUTPUT BY CAN COMMUNICATION Lane camera unit receives signals via CAN communication. It also detects vehicle conditions that are neces- Input Output Vehicle speed (Approx.) [km/h (MPH)] Vehicle condition/ Driver's op- eration Action LDW ON indictor Indication on the combination meter Buzzer Less than 64 (40) Close to lane marker No action ON OFF — 72 (45) or more Close to lane marker Warning • Buzzer sounds blinks ON Short continu- ous beeps • Close to lane marker side) No action ON OFF — JPOIA0018GB Reception Unit Signal Name Transmission Unit Description Lane camera unit Vehicle speed signal ABS actuator and elec- Detects the vehicle speed Turn indicator signal BCM Detects operation of turn signals Combination meter Lane departure warning lamp Lane camera unit Turns the lane departure warning lamp ON/OFF |
