INSPECTION AND ADJUSTMENT

CCS-115

< BASIC INSPECTION >

[LDW & LDP]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

1.

CHECK VEHICLE HEIGHT

Measure the wheelarch height. Calculate “Dh”.

NOTE:
“Dh” may be calculated as a minus value.

>> GO TO 2.

2.

CAMERA AIMING ADJUSTMENT

CONSULT-III WORK SUPPORT

CAUTION:

Operate CONSULT-III outside the vehicle, and close all the doors. (To retain vehicle attitude appropri-
ately)
1.

Select “Work Support” on “LANE CAM” with CONSULT-III.

2.

Select “AUTO AIM”.

3.

Confirm the following items;

-

The target should be accurately placed.

-

The vehicle should be stopped.

4.

Select “Start” to perform camera aiming.

CAUTION:

Never select “Start” when the target is not accurately placed.

5.

 Input “Dh”, and then select “Start”.

CAUTION:

Never change “Ht” and “Dt”.

6.

Confirm the displayed item.

-

“Normally Completed”: Select “Completion”.

-

“SUSPENSION” or “ABNORMALLY COMPLETED”: Perform the following services.

NOTE:

Replace camera unit if “SUSPENSION” is repeatedly indicated during the above two services are performed.

7.

Confirm that “Normally Completed” is displayed and then select “End” to close the aiming adjustment pro-
cedure.

>> GO TO 3.

3.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis of lane camera unit with CONSULT-III.
Is any DTC detected?

YES

>> Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to

CCS-

174, "DTC Index"

.

NO

>> GO TO 4.

4.

ACTION TEST

Test the LDW/LDP system operation by action test. Refer to

CCS-110, "Description"

.

>> WORK END

Dh [mm] = (Hfl + Hfr)

÷

 2

 747

where,

Hfl: Front left wheelarch height [mm]

Hfr: Front right wheelarch height [mm]

JPMIA0929ZZ

Displayed item

Service procedure

SUSPENSION

00H Routine not activated

Position the target appropriately again. Perform the aiming again.
Refer to

CCS-113, "CAMERA AIMING ADJUSTMENT : Special Re-

pair Requirement (Target Setting)"

.

10H Writing error

ABNORMALLY COMPLETED

CCS-116

< BASIC INSPECTION >

[LDW & LDP]

INSPECTION AND ADJUSTMENT

CAMERA AIMING ADJUSTMENT : Special Repair Requirement (Target Mark Sample)

INFOID:0000000003514567

NOTE:
Print this illustration so that the diameter of the circle is 200 mm (7.87 in).

PGIA0105J

CCS

LANE DEPARTURE WARNING (LDW) SYSTEM

CCS-117

< FUNCTION DIAGNOSIS >

[LDW & LDP]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

FUNCTION DIAGNOSIS

LANE DEPARTURE WARNING (LDW) SYSTEM

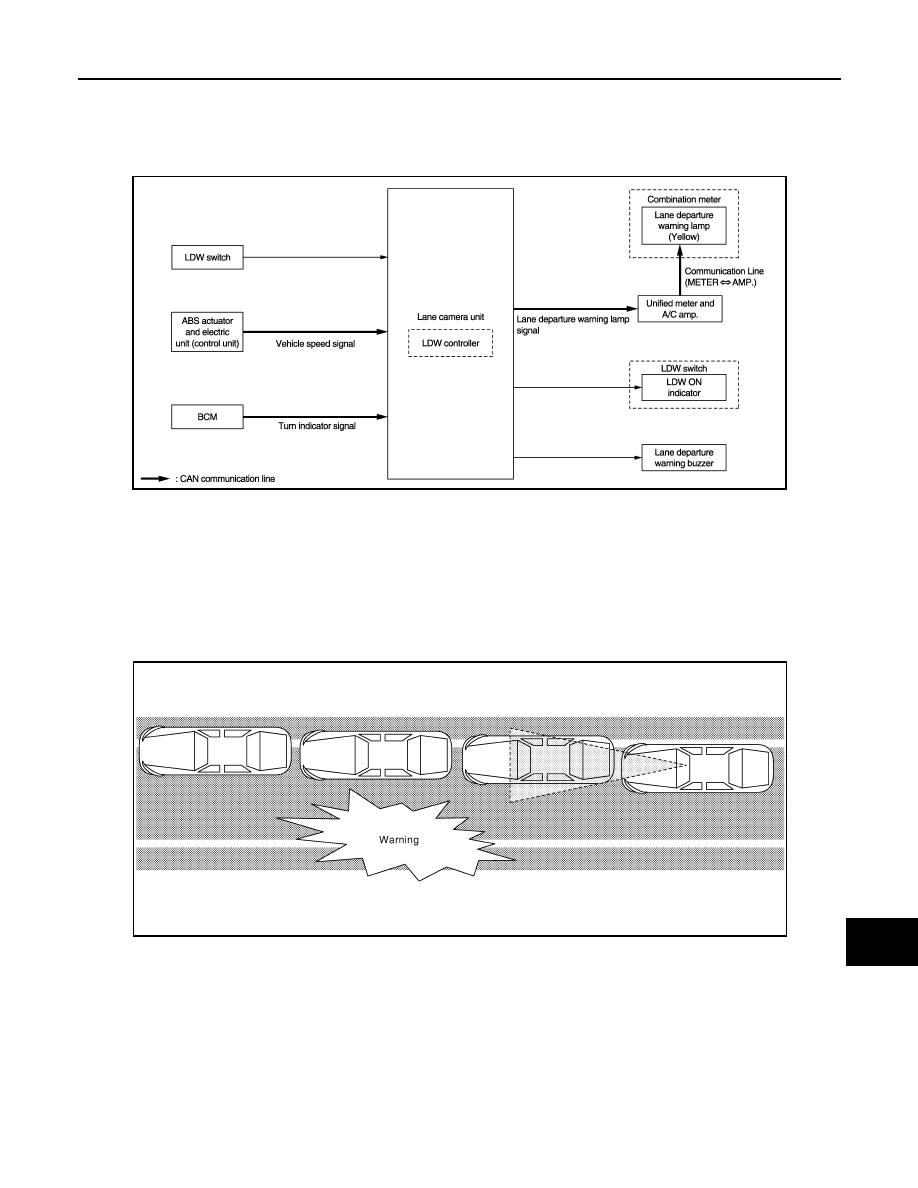

System Diagram

INFOID:0000000003514568

System Description

INFOID:0000000003514569

OUTLINE

• Lane Departure Warning (LDW) system provides a lane departure warning function when the vehicle is

driven at speeds of approximately 72 km/h (45 MPH) or more.

• When the vehicle approaches either the left or the right side of the traveling lane, a warning will sound and

the lane departure warning lamp (yellow) on the combination meter will blink to alert the driver.

• The warning function will stop when the vehicle returns inside of the lane markers.

BASIC OPERATIONS

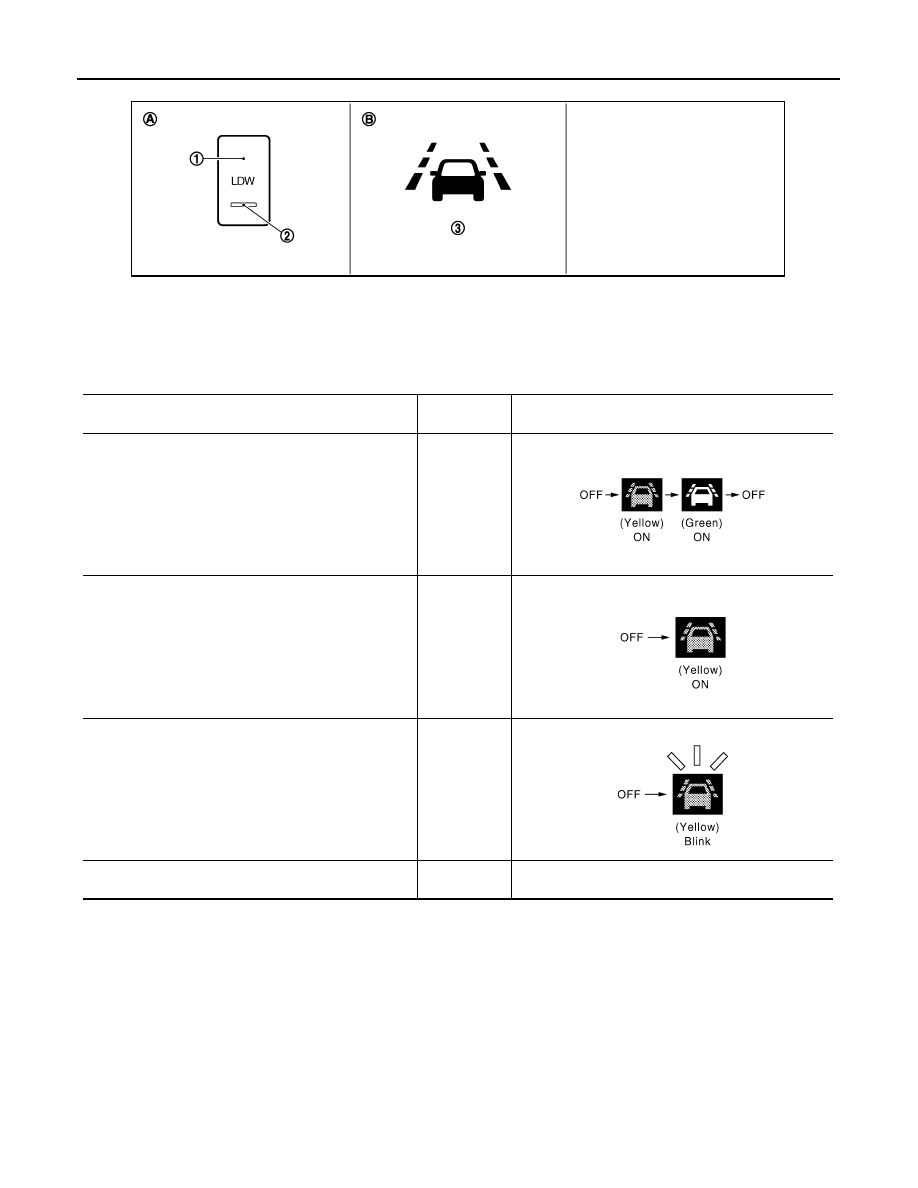

Switches And Indicator/Warning Lamps

JPMIA0928GB

JPOIA0014GB

CCS-118

< FUNCTION DIAGNOSIS >

[LDW & LDP]

LANE DEPARTURE WARNING (LDW) SYSTEM

Bulb Check Action and Fail-safe Indication

LDW INITIAL STATE CHANGE

CAUTION:

Never change LDW initial state “ON”

 “OFF” without the consent of the customer.

LDW initial state can be changed.
• LDW initial ON* - LDW function is automatically turned ON, when the ignition switch OFF

 ON.

• LDW initial OFF - LDW function is still OFF when the ignition switch OFF

 ON.

*: Factory setting

How to change LDW initial state

1.

Turn ignition switch ON.

2.

Switch LDW and LDP functions to OFF.

3.

Push and hold LDW switch for more than 4 seconds.

4.

Buzzer sounds and blinking of the lane departure warning lamp informs that the LDW initial state change
is completed.

1.

LDW switch

2.

LDW ON indicator

3.

Lane departure warning lamp
(Yellow)

A.

On the instrument driver lower panel

B.

On the combination meter

JPOIA0031ZZ

Vehicle condition/ Driver's operation

LDW ON indi-

cator

Indication on the combination meter

Ignition switch:
OFF

 ON

2 sec. ON

When DTC is detected
(Except “C1B01” and “C1B03”)

ON

Camera aiming is not completed
(“C1B01” is detected)

ON

Temporary disabled status at high temperature
(“C1B03” is detected)

Blink

OFF

JPOIA0017GB

JPOIA0019GB

JPOIA0020GB
