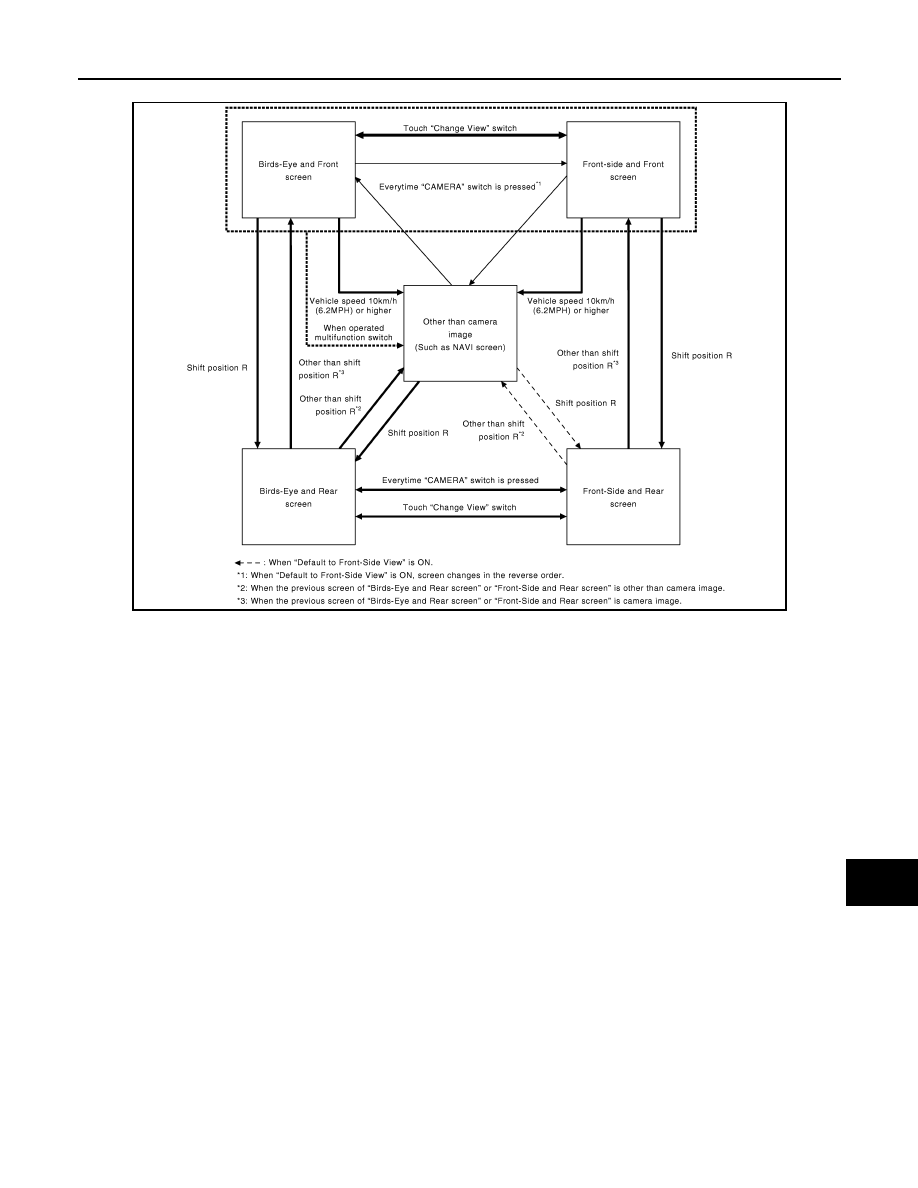

Around view monitor screen transition

FRONT VIEW

• The front view image is from the front camera.
• When the selector lever is in any position other than the reverse position, the front view is displayed by

pressing the “CAMERA” switch. It improves the visibility of obstacles in front of the vehicle and helps driving
by the images displayed from Birds-Eye view and Front-Side view.

• Display the vehicle width guiding line and vehicle distance guiding line in front view and display the predicted

course line according to the steering angle.

• If the steering angle is within approximately 90 degrees, the predicted course lines on the left/right side are

displayed. If the steering angle is exceeding approximately 90 degrees, only the predicted course line on the
outside (in the opposite side of steering direction) is displayed.

• Around view monitor control unit controls the direction and distance of the predicted course line according to

the sensor signal from steering angle sensor.

JSNIA0765GB

AV-470

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AROUND VIEW MONITOR SYSTEM

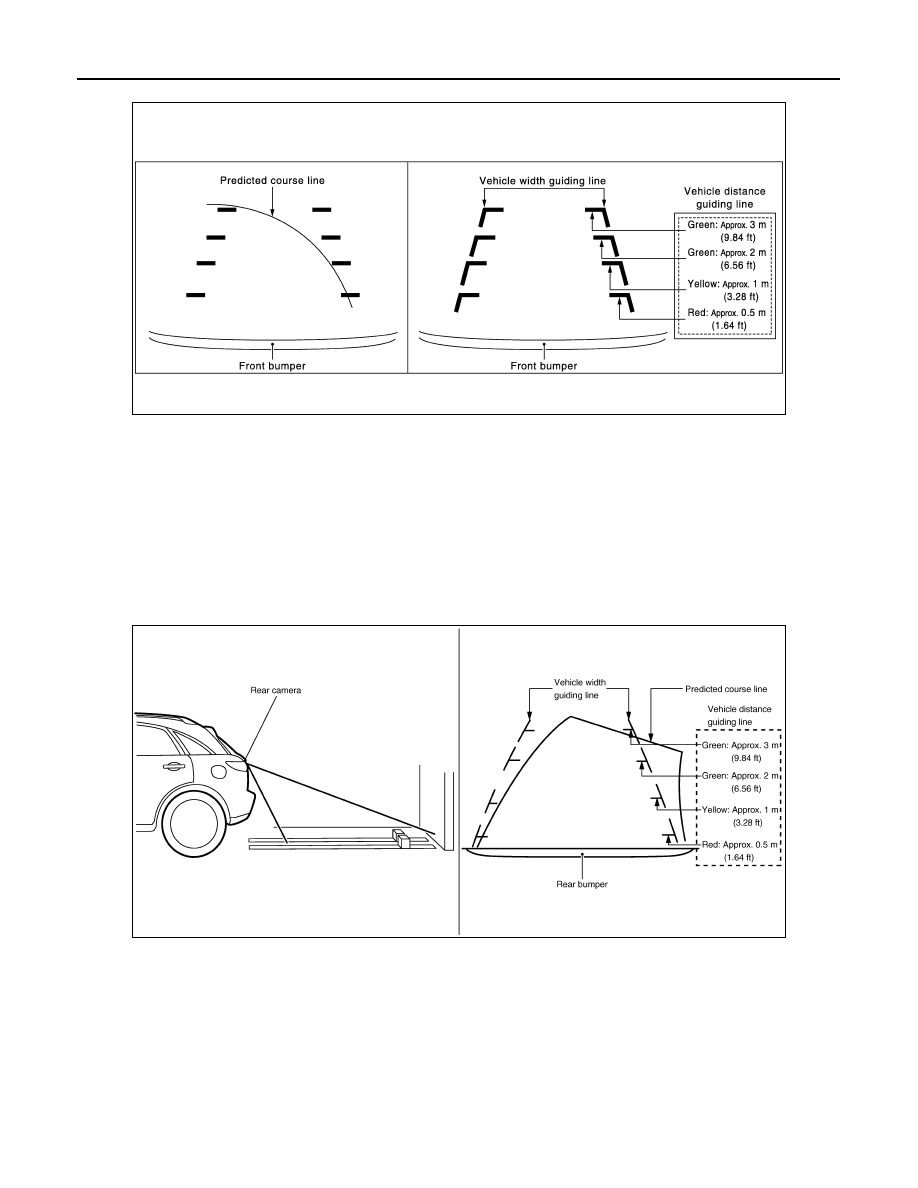

Front view guiding lines

REAR VIEW

• The rear view image is from the rear camera.
• When the selector lever is in the reverse position, the rear view is displayed. Backing and parking are

improved by the images from Birds-Eye view and Front-Side view.

• Display the vehicle width guiding line and vehicle distance guiding line in Rear view and display the pre-

dicted course line according to the steering angle.

• The predicted course line is not displayed at the steering neutral position. The predicted course line is dis-

played and the vehicle width guiding line is not displayed by turning the steering wheel.

• Around view monitor control unit controls the direction and distance of predicted course line according to the

sensor signal from steering angle sensor.

Rear view guiding lines

FRONT-SIDE VIEW

• The front-side view image is from the side camera RH.
• In Front-Side view, display the vehicle distance guiding line and vehicle width guiding line.
• The infrared LED illumination is installed on the door mirror RH to illuminate around the front wheels.

JSNIA0770GB

JSNIA0707GB

AV

AROUND VIEW MONITOR SYSTEM

AV-471

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

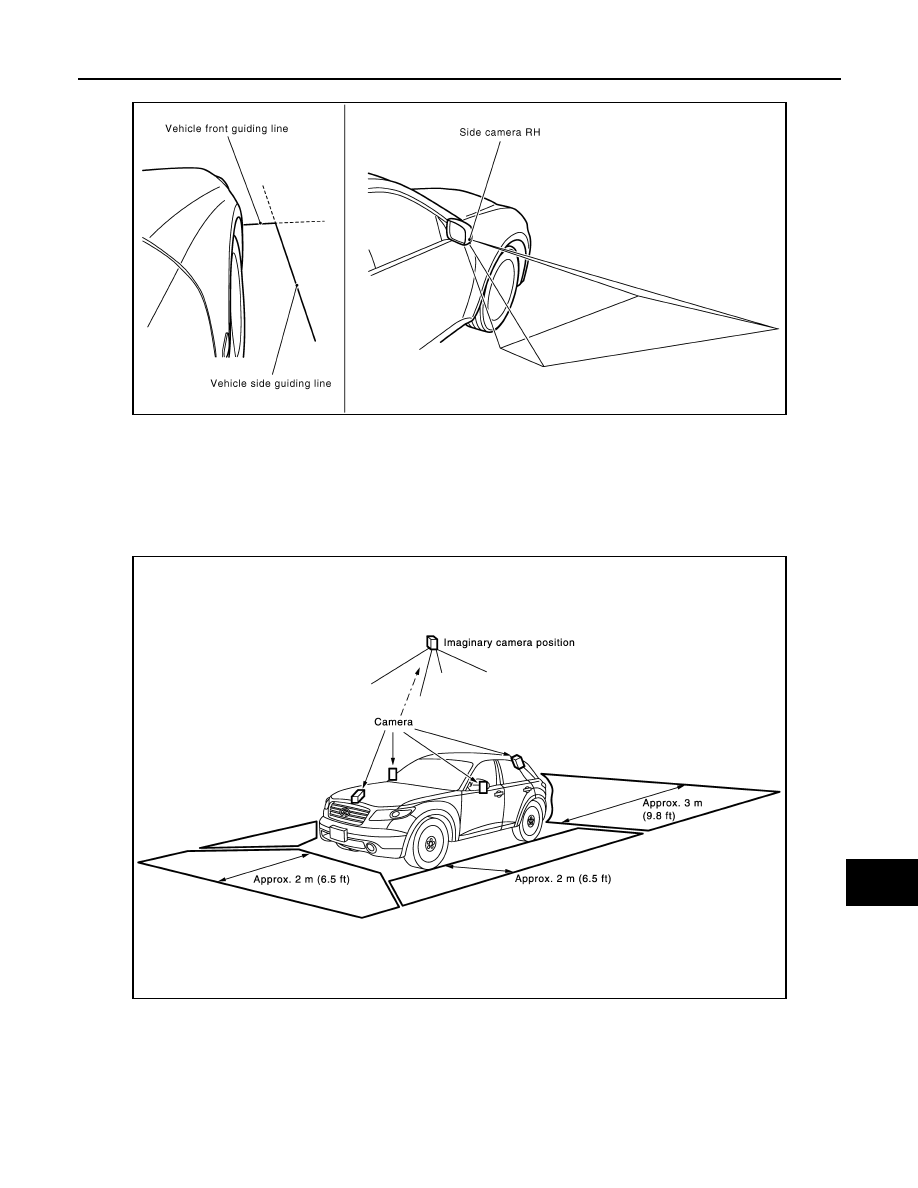

Front-side view area and guiding line

BIRDS-EYE VIEW

• The image from the 4 cameras is cut out and converted into the overhead view, and the surroundings of the

vehicle is displayed in birds-eye view.

• In Birds-Eye view, the invisible area is displayed on the image to specify the boundary of the 4 cameras.
• The invisible area is displayed in yellow in the Birds-Eye view after turning the ignition switch ON as an infor-

mation for the user. (OFF setting can be performed)

Birds-Eye view display image

JSNIA0771GB

JSNIA0767GB

AV-472

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AROUND VIEW MONITOR SYSTEM

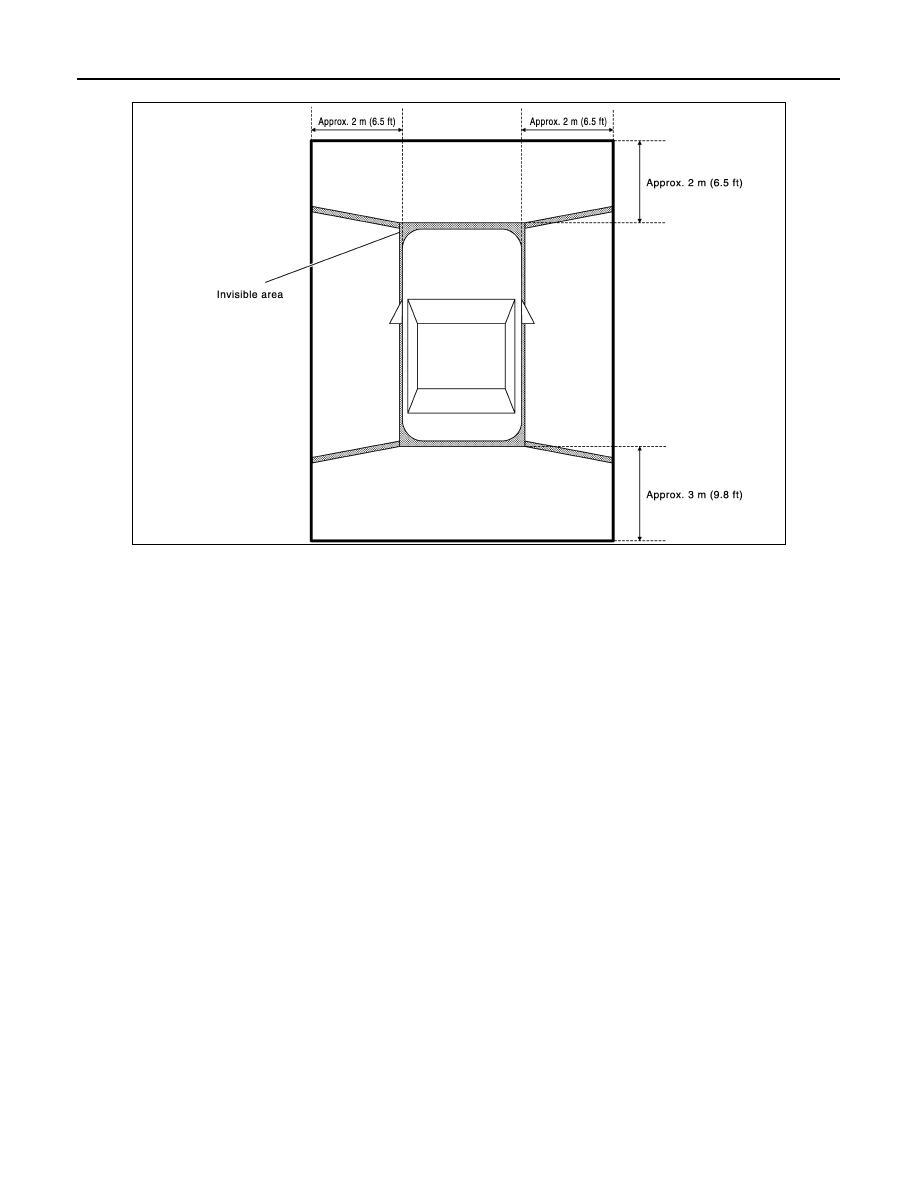

Birds-Eye view display area

CAMERA IMAGE OPERATION PRINCIPLE

• If the information writing to around view monitor control unit and the information from the camera are not

matched, the applicable camera position is indicated as an error on the Birds-Eye view display. (Calibration
operation is necessary when replacing each camera or when replacing around view monitor control unit.)

• Around view monitor control unit receives the camera switch signal from AV control unit via AV communica-

tion by pressing the “CAMERA” switch of multifunction switch.

• Around view monitor control unit that receives the camera switch signal supplies the power to each camera

and inputs the camera image from each camera.

• When the selector lever is in the reverse position, around view monitor control unit receives the reverse sig-

nal from AV control unit via AV communication, supplies the power to each camera, and inputs the camera
image from each camera.

• Around view monitor control unit that receives the camera image signal from each camera cuts out the

required screen for each view, superimposes the camera image, vehicle icon, guiding lines, sonar indicator,
and outputs them to the display unit.

PREDICTED COURSE LINE OPERATION PRINCIPLE

Detection of steering rotation direction

Around view monitor control unit detects the rotation direction of steering according to the phase difference of
two pairs of pulse signals (sensor signal 1 and sensor signal 2) input from steering angle sensor.

Detection of steering neutral position

The sensor signal 3 input from the steering angle sensor is generated at 1 pulse per 1 rotation of the steering
wheel. Around view monitor control unit detects the steering neutral position from this pulse.

JSNIA0775GB
