Component Parts Location

INFOID:0000000003579817

1.

Center speaker

2.

Corner sensor front RH

3.

Front squawker LH

4.

Front camera

5.

Corner sensor front LH

6.

Side camera LH

JPNIA0911ZZ

A

V

- 4

6

2

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

NAVIGATION SYSTEM

Component Description

INFOID:0000000003515972

7.

Front door speaker LH

8.

• Around view monitor control unit

(with around view monitor)

• Camera control unit (with rear view

monitor)

9.

Rear door speaker LH

10. Rear squawker LH

11. BOSE amp.

12. Corner sensor rear LH

13. Woofer

14. • Rear camera (with around view

monitor)

• Rear view camera (with rear view

monitor)

15. Corner sensor rear RH

16. Buzzer

17. Rear squawker RH

18. Antenna base (antenna amp and sat-

ellite antenna)

19. Rear door speaker RH

20. Side camera RH

21. Front door speaker RH

22. Front squawker RH

23. Display unit

24. Steering angle sensor

25. Steering switch

26. Preset switch

27. Sonar control unit (with around view

monitor)

28. iPod connector

29. Auxiliary input jacks

30. AV control unit

31. Multifunction switch

32. iPod adapter

33. GPS antenna

34. Microphone

A.

Under front seat (LH side)

B.

Luggage floor (LH side)

C.

Luggage side RH

D.

Spiral cable part

E.

Cluster lid C removed condition

F.

Rear view of the display unit

G.

Instrument panel rear side

Part name

Description

AV CONTROL UNIT

• It is the master unit that controls each operation of the Navigation system.
• The HDD (Hard Disk Drive) is built in, and the map data is stored in HDD.
• The RGB signal (map information) is output to display.
• The voice guidance signal is output to BOSE amp.

DISPLAY UNIT

• Map image signal is input from AV control unit, and it is indicated on display.
• Each operation of navigation can be performed by the touch panel function.

BOSE AMP.

Voice guidance signal is input from AV control unit, and it is output to front LH/RH
speakers.

FRONT DOOR SPEAKER

Voice guidance signal from BOSE amp. is output.

FRONT SQUAWKER

MULTIFUNCTION SWITCH

• Each operation of navigation can be performed.
• Connected with preset switch via cables and operation signal is transmitted to

AV control unit via AV communication.

STEERING SWITCH

• Each operation of navigation, etc. can be performed.
• Switch operating signal is output to AV control unit.

GPS ANTENNA

GPS signal is received and is output to AV control unit.

AV

REAR VIEW MONITOR SYSTEM

AV-463

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW MONITOR SYSTEM

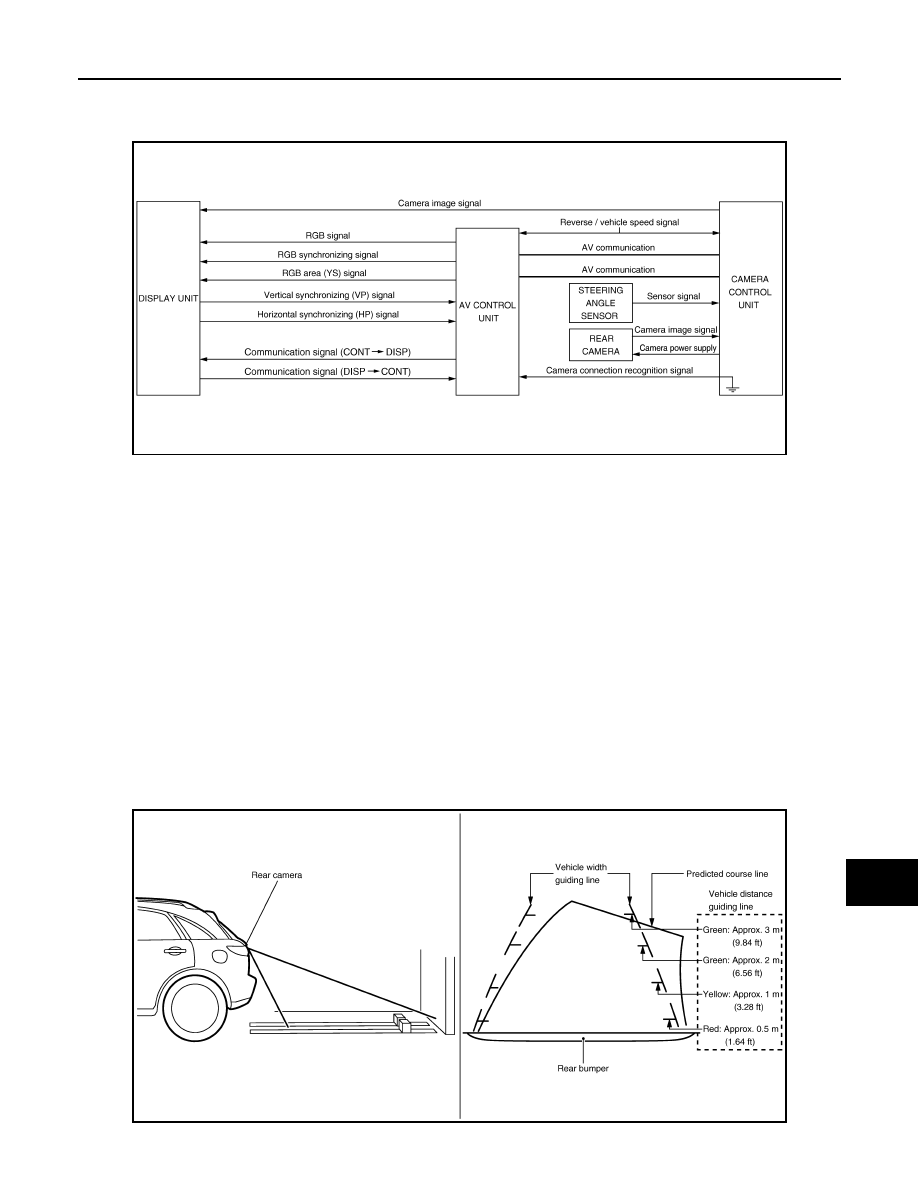

System Diagram

INFOID:0000000003160615

System Description

INFOID:0000000003515973

CAMERA IMAGE OPERATION PRINCIPLE

• Power is supplied to rear view camera from camera control unit and the rear view camera outputs the cam-

era image to the camera control unit when selector lever is set to reverse position and the reverse signal on
camera control unit is input.

• Camera control unit superimposes the guiding line and predicted course line to the image from rear view

camera and outputs to display unit. In this case, the reverse signal is also input to AV control unit. Therefore,
AV control unit recognizes the selector lever as in the reverse position. And then AV control unit switches the
image displayed by the communication signal between AV control unit and display unit with the camera
image.

• Camera control unit controls the direction and distance of the predicted course line according to the sensor

signal from steering angle sensor.

• AV control unit determines whether rear view camera is equipped or not, based on the presence of camera

connection recognition signal. It switches to rear view monitor image at the time of reverse signal input when
it is equipped.

• Warning message under the rear view monitor display is described by AV control unit.

Rear view monitor guiding line

JSNIA0704GB

JSNIA0707GB

AV-464

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW MONITOR SYSTEM

PREDICTED COURSE LINE OPERATION PRINCIPLE

Detection of steering rotation direction

Camera control unit detects the rotation direction of steering according to the phase difference of two pairs of
pulse signals (sensor signal 1 and sensor signal 2) input from steering angle sensor.

Detection of steering neutral position

The sensor signal 3 input from steering angle sensor is generated at 1 pulse per 1 steering wheel rotation.
Camera control unit detects the steering neutral position from this pulse.

Correction of steering neutral position

Camera control unit corrects the steering neutral position during driving according to the vehicle speed signal
and steering angle sensor signal.

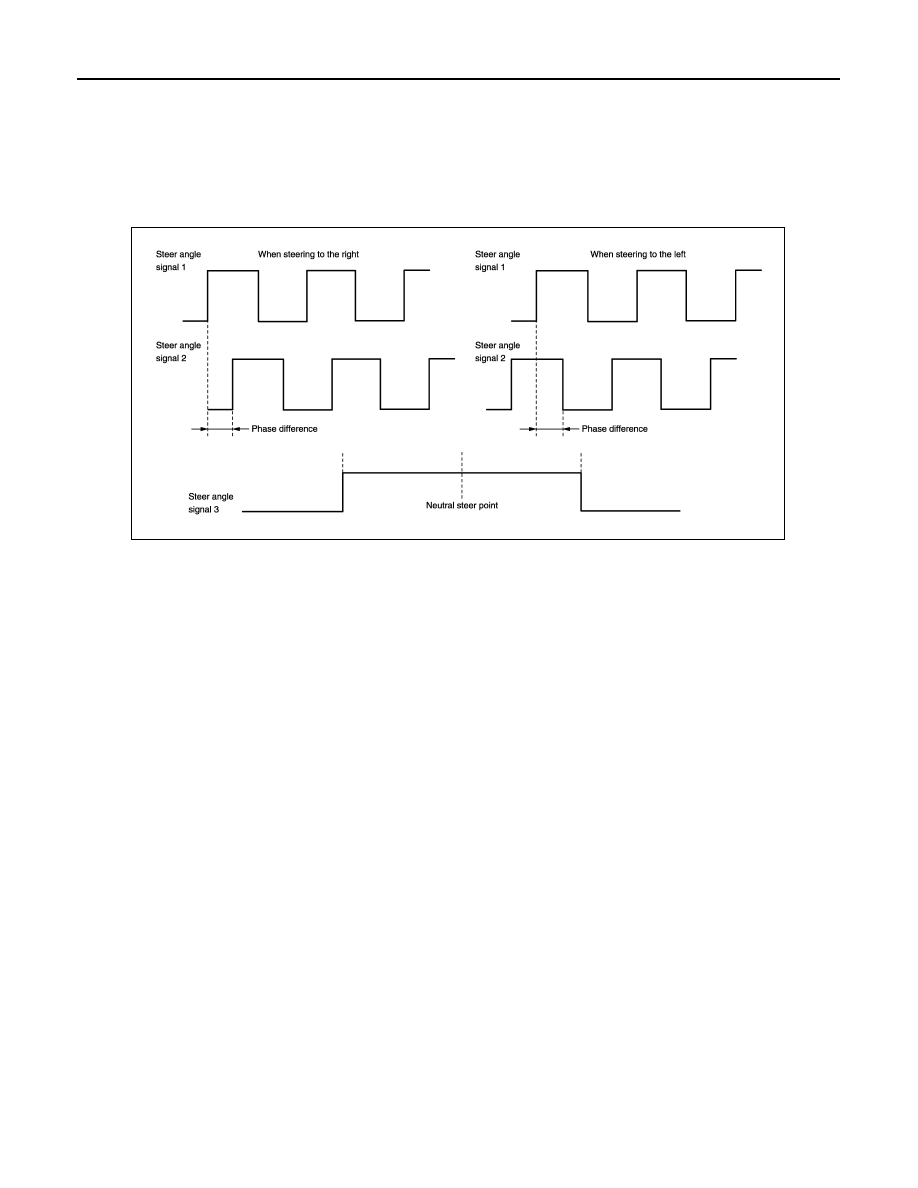

JSNIA0708GB
