FRONT WASHER NOZZLE AND TUBE

Check that air can pass through the hose by blowing forward (toward
the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown in the figure.

Unit: mm (in)

JPLIA0562ZZ

1.

Black printed frame line

: Spray area

: Target spray position

Spray position

H

L

X

Y

S

A

295 (11.61)

453 (17.83)

80 (3.15)

130 (5.12)

65 (2.56)

B

279 (10.98)

333 (13.11)

80 (3.15)

130 (5.12)

65 (2.56)

C

288 (11.34)

139 (5.47)

80 (3.15)

130 (5.12)

65 (2.56)

D

283 (11.14)

82 (3.23)

80 (3.15)

180 (7.09)

90 (3.54)

E

277 (10.91)

275 (10.83)

80 (3.15)

160 (6.30)

80 (3.15)

F

247 (9.72)

470 (18.50)

80 (3.15)

130 (5.12)

65 (2.56)

JPLIA0972ZZ

FRONT WASHER NOZZLE AND TUBE

WW-105

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

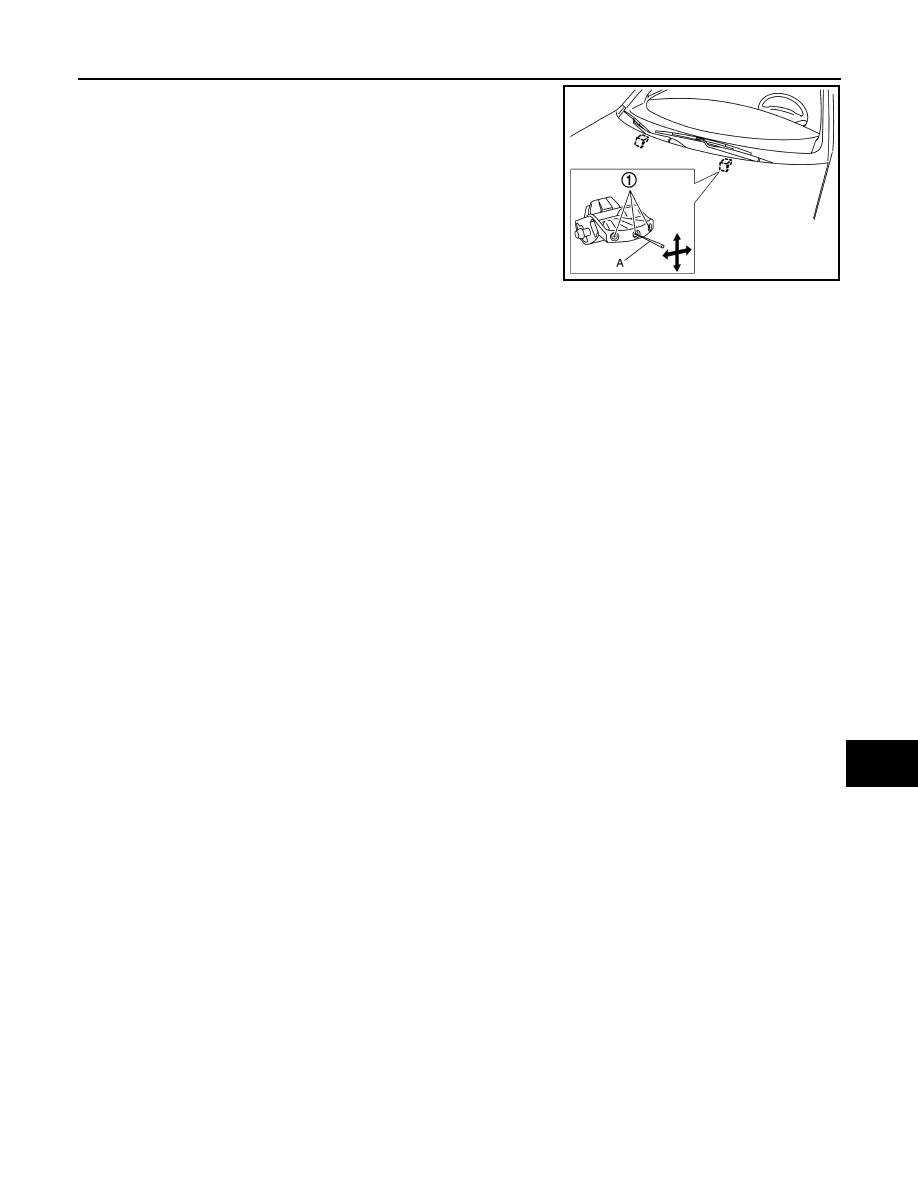

Insert a needle or similar object (A) into the spray opening (1) and
move up/down and left/right to adjust the spray position.
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a needle
or small pin.

JPLIA0564ZZ

WW-106

< ON-VEHICLE REPAIR >

FRONT WIPER ARM AND BLADE

FRONT WIPER ARM AND BLADE

Exploded View

INFOID:0000000003139016

Removal and Installation

INFOID:0000000003139017

REMOVAL

1.

Operate the front wiper to move it to the auto stop position.

2.

Open the hood.

3.

Remove front wiper arm caps.

4.

Remove the front wiper arm mounting nuts.

5.

Raise front wiper arm, and remove front wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nuts
from being loosened.

2.

Operate the front wiper motor to move the front wiper to the auto
stop position.

3.

Adjust the front wiper blade position. Refer to

WW-106, "Adjust-

ment"

.

4.

Install the front wiper arm by tightening the mounting nuts.

5.

Inject the washer fluid.

6.

Operate the front wiper to move it to the auto stop position.

7.

Check that the front wiper blades stop at the specified position.

8.

Install front wiper arm caps.

Adjustment

INFOID:0000000003139018

WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of cowl top cover and the top of wiper blade center

1.

Front wiper blade (RH)

2.

Front wiper arm (RH)

3.

Front wiper blade (LH)

4.

Front wiper arm (LH)

5.

Front wiper arm cap

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0973GB

ELH0717D

FRONT WIPER ARM AND BLADE

WW-107

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Standard clearance

Replacement

INFOID:0000000003601794

FLAT BLADE REFILL

1.

Remove the wiper blade from wiper arm.

2.

Pick up the blade refill rear end to direction (A), pull out the
wiper blade refill to direction (B).

CAUTION:

Never use excessive force to pull the blade refill out. The
blade refill may be torn.

3.

Insert a tip of new blade refill (“LOCK” mark is blade refill rear
end) from the wiper blade rear end. And then slide until the hole
of the blade refill fits in the tab of the wiper blade.
NOTE:
Confirm that “ ” mark (Wiper blade side) fits to “LOCK” mark
(Blade refill side).

4.

Confirm that an installation condition of the blade refill.

5.

Install the wiper blade to the wiper arm.

R

: 48.0

±

7.5 mm (1.890

±

 0.295 in)

L

: 76.5

±

7.5 mm (3.012

±

 0.295 in)

JPLIA0082ZZ

JSLIA0145ZZ

JSLIA0146ZZ
