WW-100

< ON-VEHICLE REPAIR >

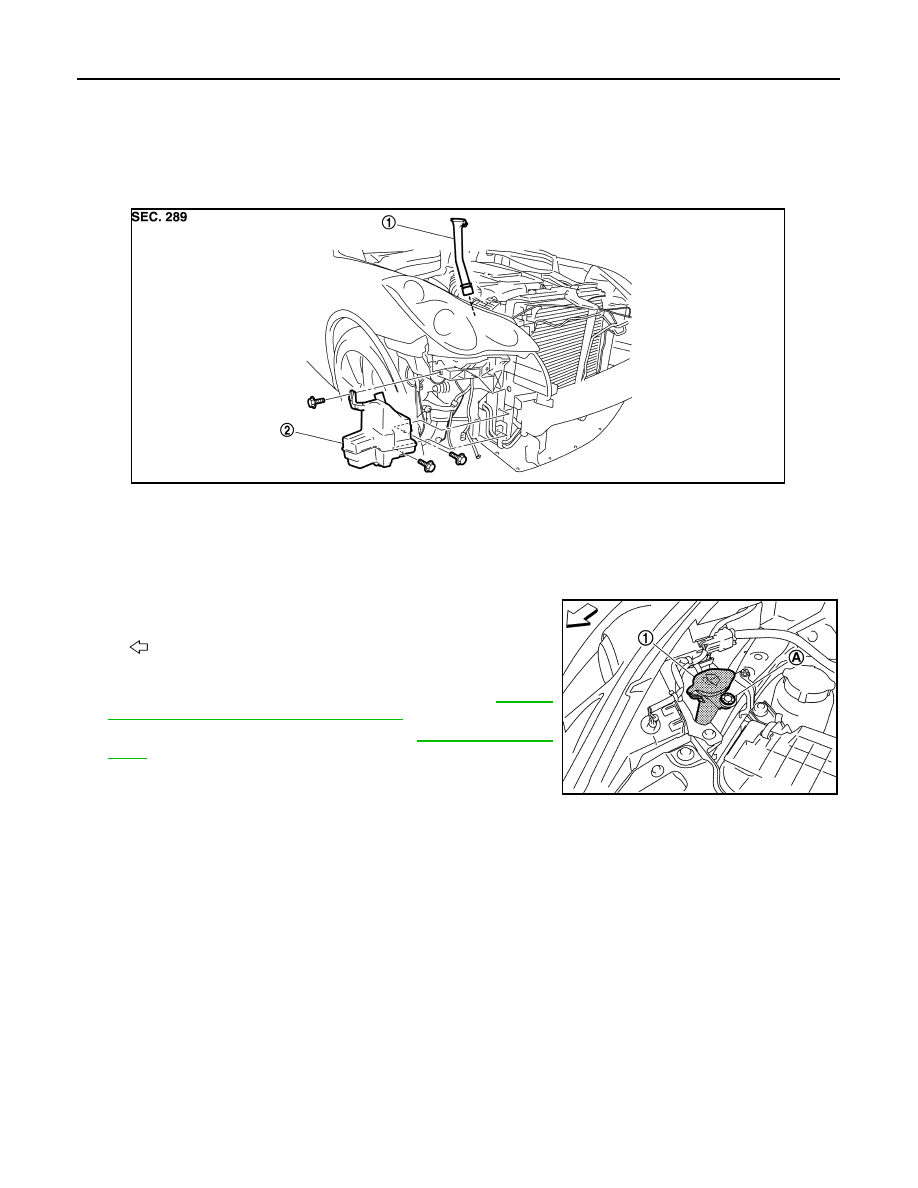

WASHER TANK

ON-VEHICLE REPAIR

WASHER TANK

Exploded View

INFOID:0000000003139008

Removal and Installation

INFOID:0000000003139009

REMOVAL

1.

Remove the clip (A).

2.

Pull out the washer tank inlet (1) from the washer tank.

3.

Remove the fender protector RH (front). Refer to

EXT-25,

"FENDER PROTECTOR : Exploded View"

.

4.

Remove the engine lower cover. Refer to

EXT-31, "Exploded

View"

.

5.

Disconnect washer pump connector.

6.

Disconnect the washer level switch connector.

7.

Remove front washer tube and rear washer tube.

8.

Remove washer tank mounting bolts.

9.

Remove washer tank from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Add water up to the top of the washer tank inlet after installing. Check that there is no leakage.

1.

Washer tank inlet

2.

Washer tank

JPLIA0968ZZ

: Vehicle front

JPLIA0969ZZ

FRONT WASHER PUMP

WW-101

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WASHER PUMP

Exploded View

INFOID:0000000003139010

Removal and Installation

INFOID:0000000003139011

REMOVAL

1.

Remove the fender protector RH (front). Refer to

EXT-25, "FENDER PROTECTOR : Removal and Instal-

lation"

.

2.

Disconnect the washer pump connector.

3.

Remove front washer tube and rear washer tube.

4.

Remove washer pump from the washer tank.

5.

Remove the packing from the washer tank.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Never twist the packing when installing the washer pump.

1.

Washer pump connector

2.

Rear washer tube

3.

Washer pump

4.

Front washer tube

5.

Packing

6.

Washer tank

: Vehicle front

JPLIA0970ZZ

WW-102

< ON-VEHICLE REPAIR >

WASHER LEVEL SWITCH

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000003139012

The washer level switch must be replaced together with the washer tank as an assembly. Refer to

WW-100,

"Removal and Installation"

.

FRONT WASHER NOZZLE AND TUBE

WW-103

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

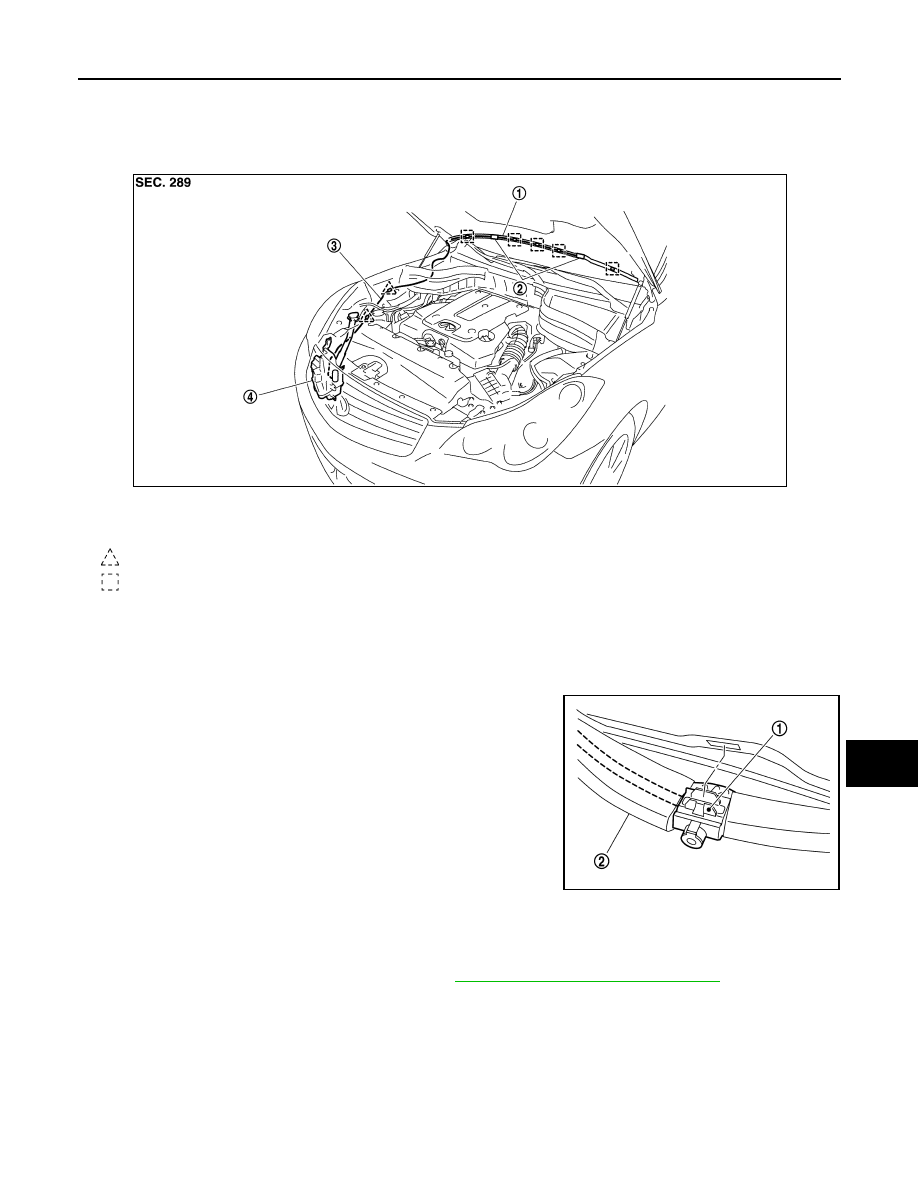

FRONT WASHER NOZZLE AND TUBE

Hydraulic Layout

INFOID:0000000003139013

Removal and Installation

INFOID:0000000003587113

REMOVAL

1.

Open the hood.

2.

Use the stop point of washer nozzle (1) as the support point and
rotate nozzle to remove it from body, while pushing nozzle spray
point side along the hood.

3.

Remove the washer tube (2) from the washer nozzle.

INSTALLATION

1.

Install washer tube into the washer nozzle.

2.

Install the washer nozzle to the hood.

3.

Adjust the washer nozzle spray position. Refer to

WW-103, "Inspection and Adjustment"

.

CAUTION:

The spray positions differ. Check that left and right nozzles are installed correctly.

Inspection and Adjustment

INFOID:0000000003587114

INSPECTION

Washer Nozzle Inspection

1.

Front washer tube

2.

Front washer nozzle

3.

Front washer tube

4.

Washer tank

: Clip

: Clip

JPLIA0971ZZ

JPLIA0561ZZ
