DIAGNOSIS AND REPAIR WORKFLOW

>> GO TO 2.

2.

SYMPTOM CHECK

Check the symptom from the customer's information.

>> GO TO 3.

3.

BASIC INSPECTION

Check the operation of each part. Check that any symptom occurs other than the interviewed symptom.

>> GO TO 4.

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self-diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9.

6.

FAIL-SAFE ACTIVATION CHECK

Check that the symptom is applied to the fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system that the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9.

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9.

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self-diagnosis with CONSULT-III. Check that any DTC is not detected. Erase DTC if DTC is
detected before the repair. Check that DTC is not detected again.

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 11.

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?

YES

>> INSPECTION END

NO

>> GO TO 3.

FRONT WIPER AND WASHER SYSTEM

WW-5

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FUNCTION DIAGNOSIS

FRONT WIPER AND WASHER SYSTEM

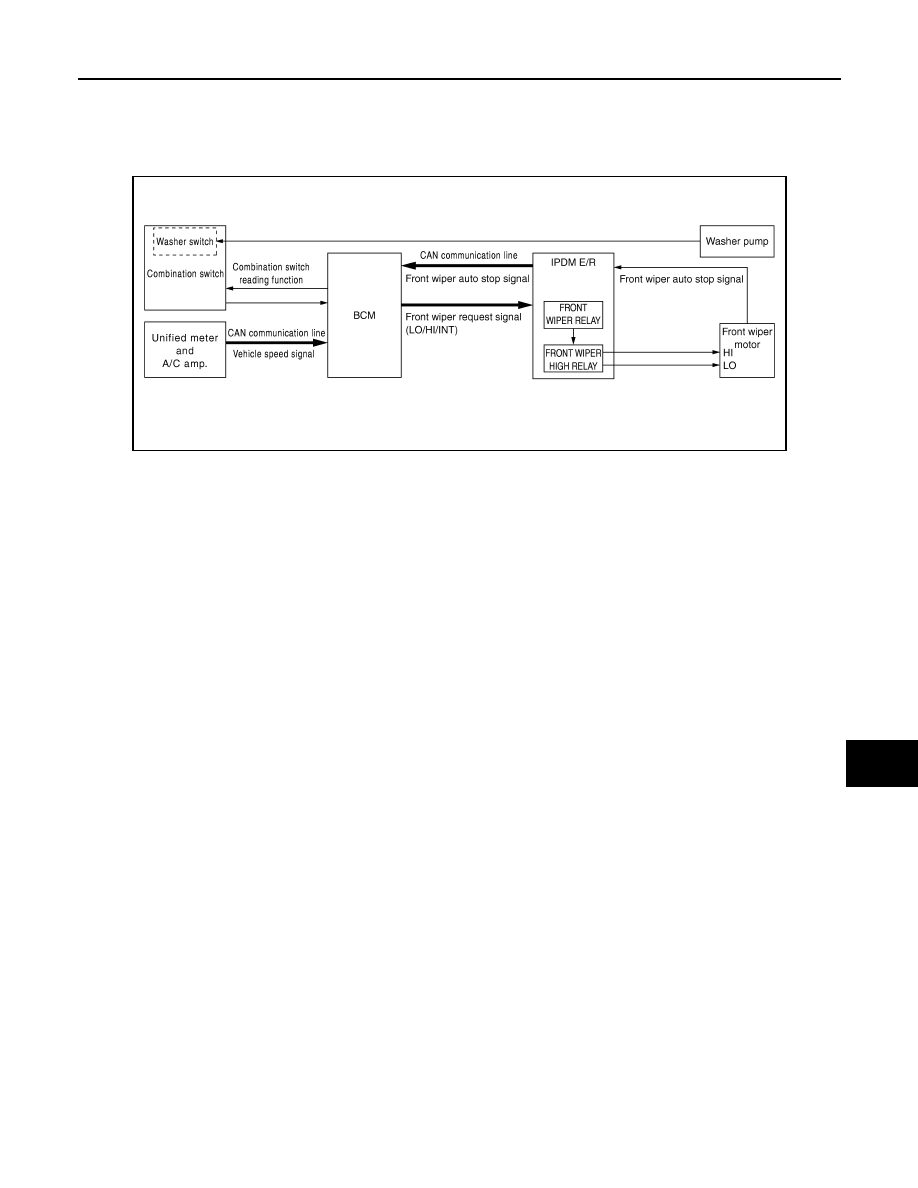

System Diagram

INFOID:0000000003591516

System Description

INFOID:0000000003591517

OUTLINE

The front wiper is controlled by each function of BCM and IPDM E/R.

Control by BCM

• Combination switch reading function
• Front wiper control function

Control by IPDM E/R

• Front wiper control function
• Relay control function

FRONT WIPER BASIC OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the front wiper request signal to IPDM E/R with CAN communication depending on each

operating condition of the front wiper.

• IPDM E/R turns ON/OFF the integrated front wiper relay and the front wiper high relay according to the front

wiper request signal. IPDM E/R provides the power supply to operate the front wiper HI/LO operation.

FRONT WIPER LO OPERATION

• BCM transmits the front wiper request signal (LO) to IPDM E/R with CAN communication according to the

front wiper LO operating condition.

Front wiper LO operating condition

- Ignition switch ON
- Front wiper switch LO or front wiper switch MIST (while pressing)
• IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LO).

FRONT WIPER HI OPERATION

• BCM transmits the front wiper request signal (HI) to IPDM E/R with CAN communication according to the

front wiper HI operating condition.

Front wiper HI operating condition

- Ignition switch ON
- Front wiper switch HI
• IPDM E/R turns ON the integrated front wiper relay and the front wiper high relay according to the front wiper

request signal (HI).

FRONT WIPER INT OPERATION

JPLIA0020GB

WW-6

< FUNCTION DIAGNOSIS >

FRONT WIPER AND WASHER SYSTEM

• BCM transmits the front wiper request signal (INT) to IPDM E/R with CAN communication depending on the

front wiper INT operating condition and intermittent operation delay interval according to the wiper intermit-
tent dial position.

Front wiper INT operating condition

- Ignition switch ON
- Front wiper switch INT
• IPDM E/R turns ON the integrated front wiper relay so that the front wiper is operated only once according to

the front wiper request signal (INT).

• BCM detects stop position/except stop position of the front wiper motor according to the front wiper auto stop

signal received from IPDM E/R with CAN communication.

• BCM transmits the front wiper request signal (INT) again after the intermittent operation delay interval.

NOTE:
Factory setting of the front wiper intermittent operation is the operation without vehicle speed. Front wiper
intermittent operation can be set to the operation with vehicle speed by CONSULT-III. Refer to

WW-14,

"WIPER : CONSULT-III Function (BCM - WIPER)"

.

Front wiper intermittent operation with vehicle speed

• BCM calculates the intermittent operation delay interval from the following
- Vehicle speed signal (received from the unified meter and A/C amp. with CAN communication)
- Wiper intermittent dial position

*: When without vehicle speed setting

FRONT WIPER AUTO STOP OPERATION

• BCM stops transmitting the front wiper request signal when the front wiper switch is turned OFF.
• IPDM E/R detects the front wiper auto stop signal from the front wiper motor and detects the front wiper

motor position (stop position/except stop position).

Wiper intermittent

dial position

Intermittent

operation

interval

Intermittent operation delay Interval (s)

Vehicle speed

Vehicle stopped or

less than 5 km/h (3.1

MPH)

5 km/h (3.1MPH) or

more or less than

35km/h (21.7 MPH)

35 km/h (21.7 MPH)
or more or less than

65km/h (40.4 MPH)*

65 km/h (40.4MPH)

or more

1

Short

↑

↓

Long

0.8

0.6

0.4

0.24

2

4

3

2

1.2

3

10

7.5

5

3

4

16

12

8

4.8

5

24

18

12

7.2

6

32

24

16

9.6

7

42

31.5

21

12.6

JPLIA0094GB

FRONT WIPER AND WASHER SYSTEM

WW-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

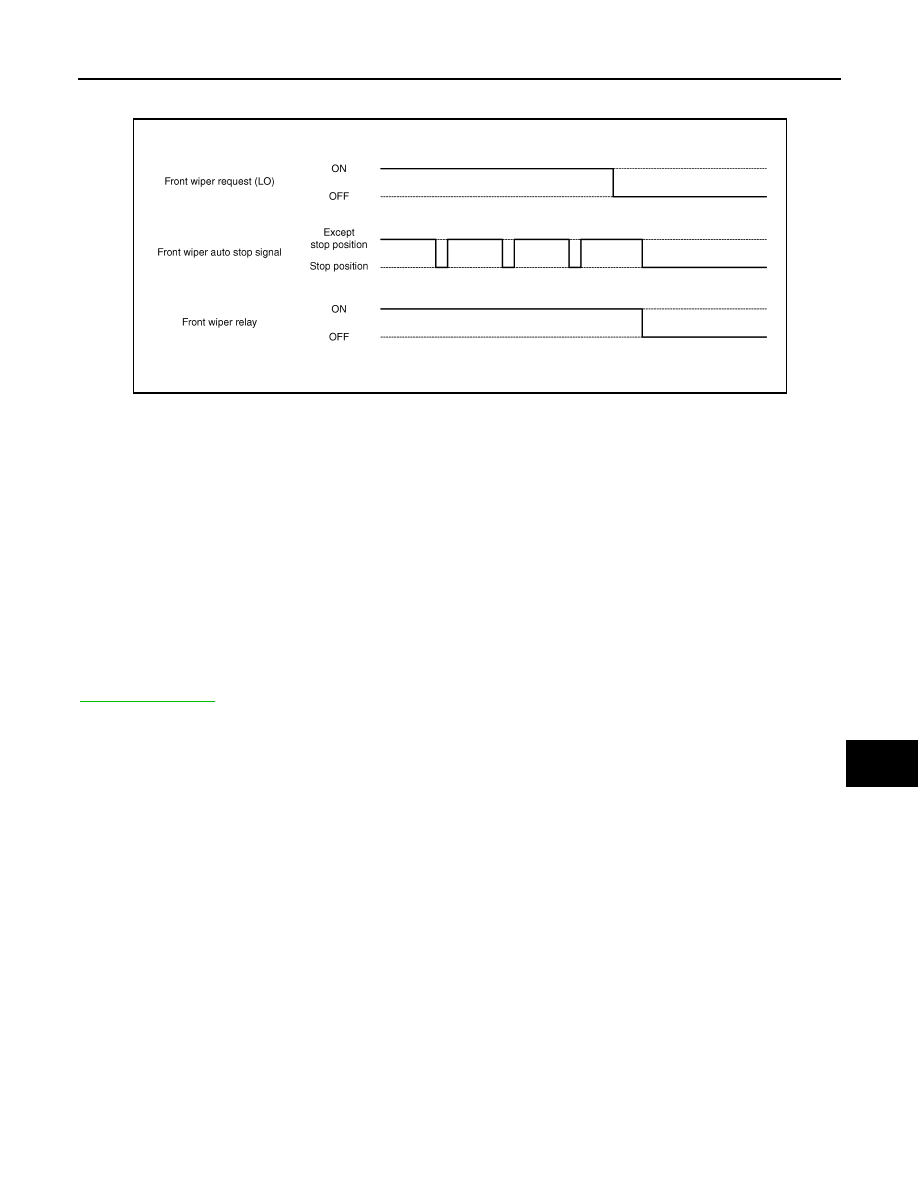

• When the front wiper request signal is stopped, IPDM E/R turns ON the front wiper relay until the front wiper

motor returns to the stop position.

NOTE:
• BCM stops the transmitting of the front wiper request signal when the ignition switch OFF.
• IPDM E/R turns the front wiper relay OFF when the ignition switch OFF.

FRONT WIPER OPERATION LINKED WITH WASHER

• BCM transmits the front wiper request signal (LO) to IPDM E/R with CAN communication according to the

washer linked operating condition of the front wiper.

• BCM transmits the front wiper request signal (LO) so that the front wiper operates approximately 2 times

when the front washer switch OFF is detected.

Washer linked operating condition of front wiper

- Ignition switch ON
- Front washer switch ON (0.4 second or more)
• IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LO).
• The washer pump is grounded through the combination switch when the front washer switch ON.

FRONT WIPER FAIL

−

SAFE OPERATION

When the front wiper auto stop circuit is malfunctioning, IPDM E/R performs the fail-safe function. Refer to

PCS-30, "Fail-safe"

.

JPLIA0095GB
