WT-100

< ON-VEHICLE REPAIR >

ROAD WHEEL TIRE ASSEMBLY

• Perform the ID registration, after tire rotation. Refer to

WT-6, "ID REGISTRATION PROCEDURE : Special

Repair Requirement"

.

TRANSMITTER

WT-101

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

REMOVAL AND INSTALLATION

TRANSMITTER

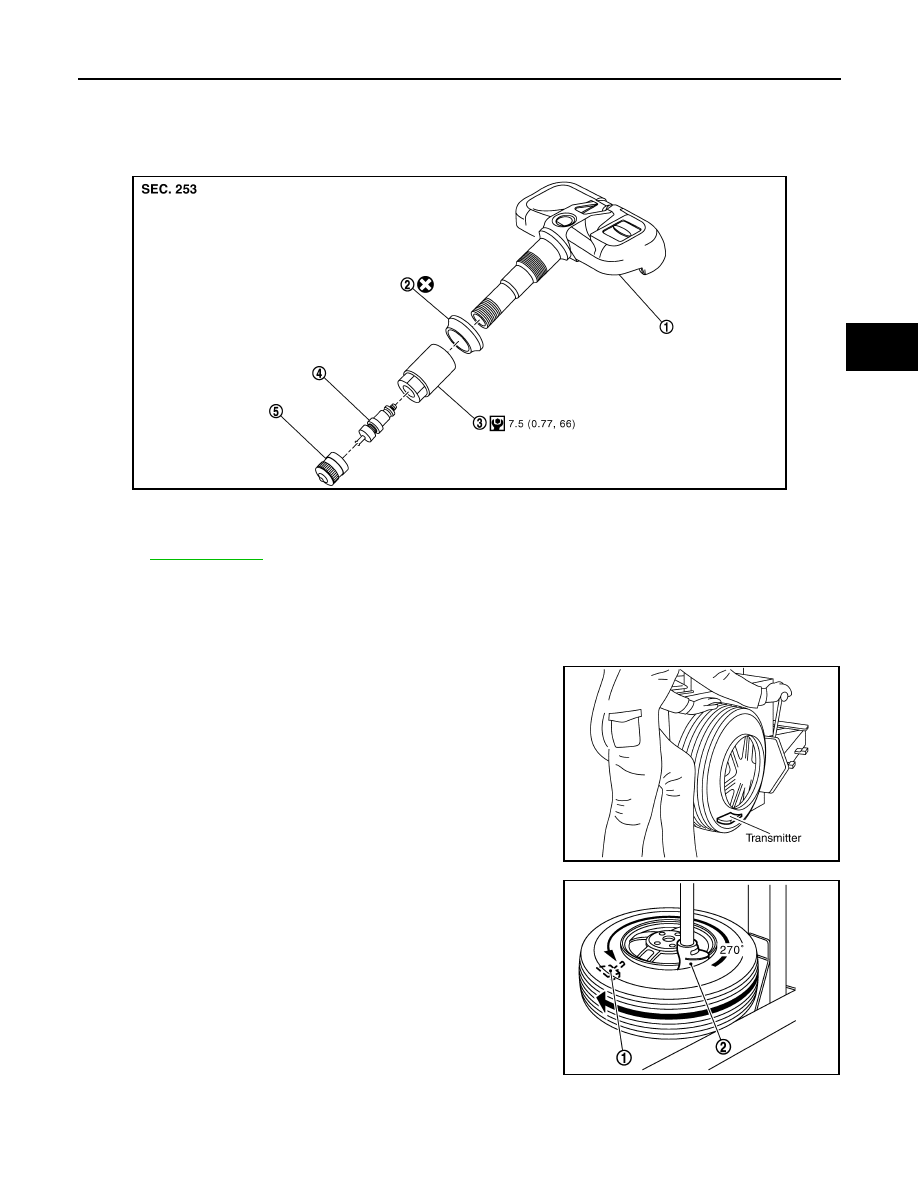

Exploded View

INFOID:0000000003579773

Removal and Installation

INFOID:0000000003579774

REMOVAL

1.

Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.

2.

Gently bounce tire so that transmitter falls to bottom of tire.
Place on tire changing machine and break both tire beads
ensuring that the transmitter remains at the bottom of the tire.

3.

Turn tire so that valve hole is at bottom and bounce so that
transmitter (1) is near valve hole. Carefully lift tire onto turntable
and position valve hole (and transmitter) 270 degree from
mounting/dismounting head (2).

4.

Lubricate tire well and remove first side of the tire. Reach inside
the tire and remove the transmitter.

INSTALLATION

JPEIC0006GB

1.

Transmitter

2.

Grommet seal

3.

Valve nut

4.

Valve core

5.

Cap

Refer to

GI-4, "Components"

 for symbols in figure.

SEIA0047E

JPEIC0014GB

WT-102

< REMOVAL AND INSTALLATION >

TRANSMITTER

1.

Put first side of tire onto rim.

2.

Mount transmitter on rim and tighten nut.

CAUTION:

Speed for tightening nut should be less than 10 rpm.

3.

Place wheel on turntable of tire machine. Ensure that transmitter
(1) is 270 degree from mounting head (2) when second side of
tire is fitted.
NOTE:
Do not touch transmitter at mounting head.

4.

Lubricate tire well and fit second side of tire as normal. Ensure
that tire does not rotate relative to rim.

5.

Inflate tire and fit to appropriate wheel position.

SEIA0049E

JPEIC0014GB

TIRE PRESSURE RECEIVER

WT-103

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

TIRE PRESSURE RECEIVER

Exploded View

INFOID:0000000003579775

Removal and Installation

INFOID:0000000003579776

REMOVAL

1.

Remove the instrument lower cover. Refer to

IP-11, "Exploded View"

.

2.

Remove the glove box assembly.

3.

Remove the instrument lower panel RH.

4.

Disconnect tire pressure receiver (1) harness connector.

5.

Remove Tire pressure receiver mounting screw.

6.

Remove tire pressure receiver.

INSTALLATION

Install is the reverse order of removal.

JPEIC0053ZZ

1.

Tire pressure receiver

:

Vehicle front

JPEIC0056ZZ
