VTL-26

< ON-VEHICLE REPAIR >

AMBIENT SENSOR

AMBIENT SENSOR

Exploded View

INFOID:0000000003545402

Removal and Installation

INFOID:0000000003545403

REMOVAL

1.

Remove hood lock cover. Refer to

DLK-216, "Exploded View"

.

2.

Disconnect ambient sensor connector (A), and then remove
ambient sensor (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Ambient sensor

JPIIA0643ZZ

JPIIA0644ZZ

IN-VEHICLE SENSOR

VTL-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

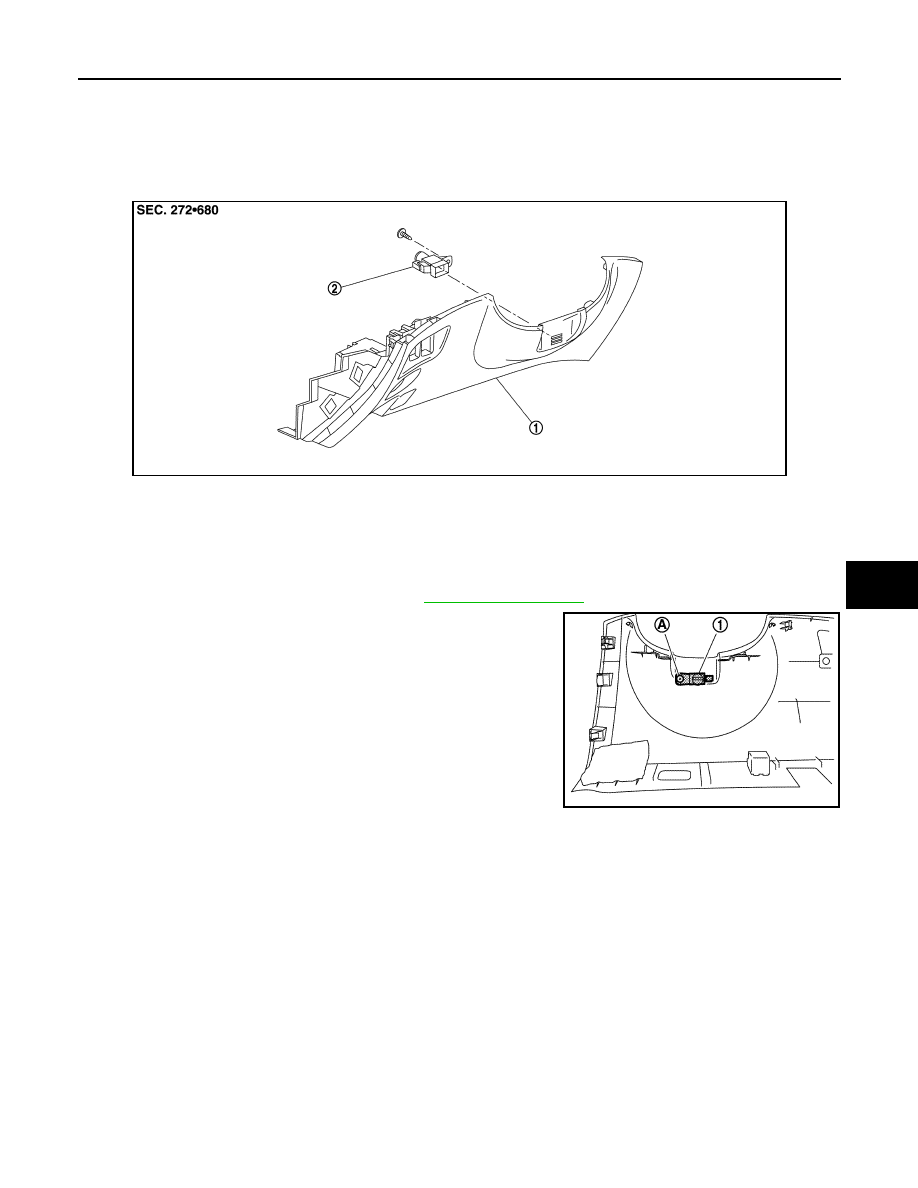

IN-VEHICLE SENSOR

Exploded View

INFOID:0000000003545404

Removal and Installation

INFOID:0000000003545405

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-11, "Exploded View"

.

2.

Remove mounting screw (A), and then remove in-vehicle sensor
(1).

INSTALLATION

Installation is basically the reverse order of removal.

JPIIA0645ZZ

1.

Instrument driver lower panel

2.

In-vehicle sensor

JPIIA0646ZZ

VTL-28

< ON-VEHICLE REPAIR >

SUNLOAD SENSOR

SUNLOAD SENSOR

Exploded View

INFOID:0000000003545406

Removal and Installation

INFOID:0000000003545407

REMOVAL

1.

Remove front defroster grille (left) (1). Refer to

VTL-49, "FRONT

DEFROSTER GRILLE : Exploded View"

.

2.

Disconnect sunload sensor connector, and then remove sunload
sensor (2).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Front defroster grille (left)

2.

Sunload sensor

JPIIA0648ZZ

JPIIA0648ZZ

INTAKE SENSOR

VTL-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INTAKE SENSOR

Exploded View

INFOID:0000000003545408

1.

Ventilator seal

2.

Ventilator door

3.

Defroster seal

4.

Packing

5.

Defroster door (right)

6.

Packing

7.

Foot duct (right)

8.

Ventilator door spring

9.

Ventilator door lever

10.

Foot door lever

11.

Foot door link

12. Main link sub

13.

Ventilator door link

14.

Main link

15. Mode door motor bracket

16.

Mode door motor

17.

Evaporator cover

18. Low-pressure pipe 1

19.

Cooler pipe grommet

20.

High-pressure pipe 2

21. O-ring

22.

Expansion valve

23.

Evaporator

24. Insulator

25.

Drain hose

26.

Clamp

27. Evaporator cover adapter

28.

Heater pipe bracket

29.

Heater pipe grommet

30. Heater core

31.

Heater pipe cover

32.

Packing

33. Case packing

34.

Heater & cooling unit case (left)

35.

Air mix door adapter

36. Air mix door motor (driver side)

*

JPIIA0649GB
