Infiniti EX35. Manual - part 1476





VTL-22

< ON-VEHICLE MAINTENANCE >

IN-CABIN MICROFILTER

ON-VEHICLE MAINTENANCE

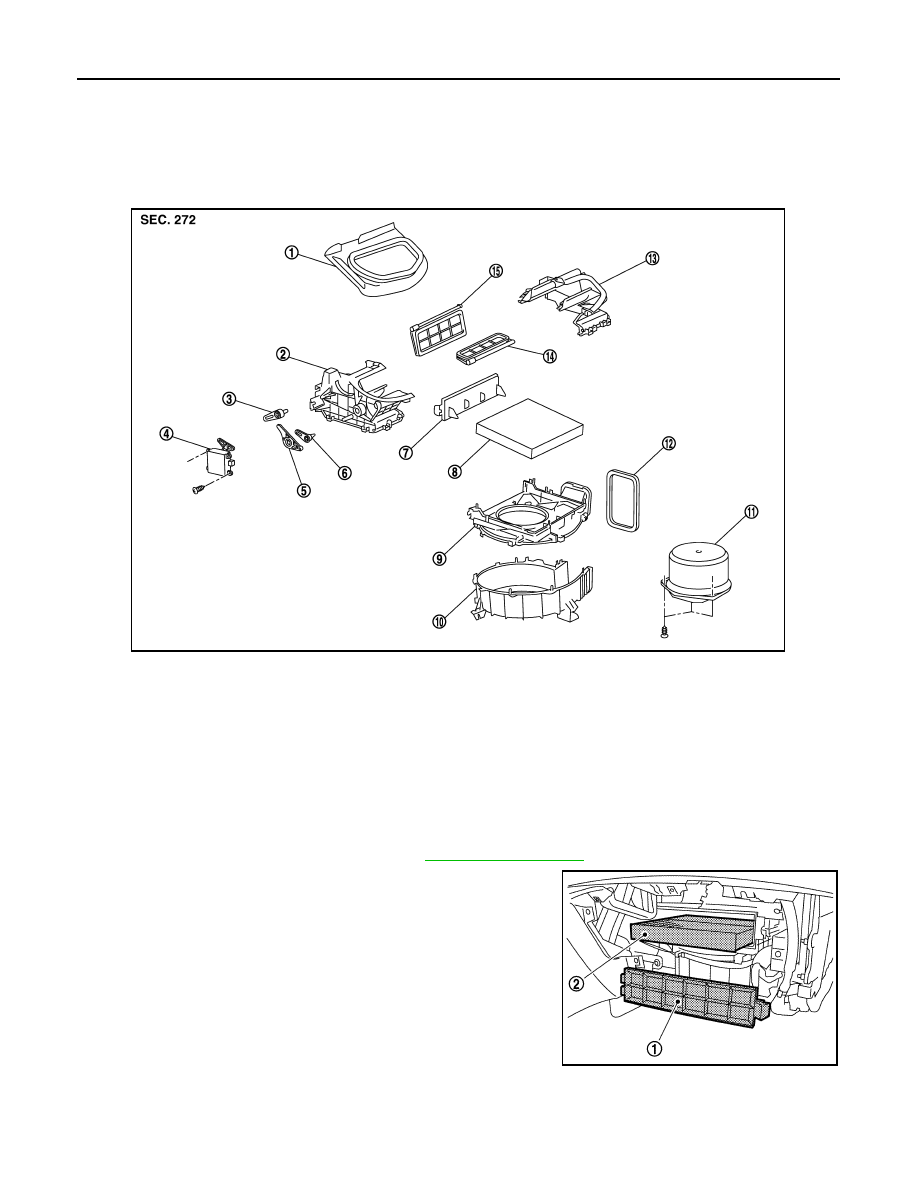

IN-CABIN MICROFILTER

Exploded View

INFOID:0000000003545395

Removal and Installation

INFOID:0000000003545396

REMOVAL

1.

Remove instrument lower panel RH. Refer to

IP-11, "Exploded View"

.

2.

Remove filter cover (1), and then remove in-cabin microfilter (2).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Adapter

2.

Intake box (right)

3.

Intake door lever 2

4.

Intake door motor

5.

Intake door link

6.

Intake door lever 1

7.

Filter cover

8.

In-cabin microfilter

9.

Intake upper case

10. Intake lower case

11.

Blower motor assembly

12. Seal

13. Intake box (left)

14.

Intake door 1

15. Intake door 2

JSIIA0009GB

JPIIA0642ZZ

IN-CABIN MICROFILTER

VTL-23

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Replacement

INFOID:0000000003545397

Replace in-cabin microfilter.
Refer to

MA-6, "Schedule 1"

 and

MA-8, "Schedule 2"

.

Affix a caution label inside the glove box when replacing filter.

VTL-24

< ON-VEHICLE REPAIR >

PRESET SWITCH

ON-VEHICLE REPAIR

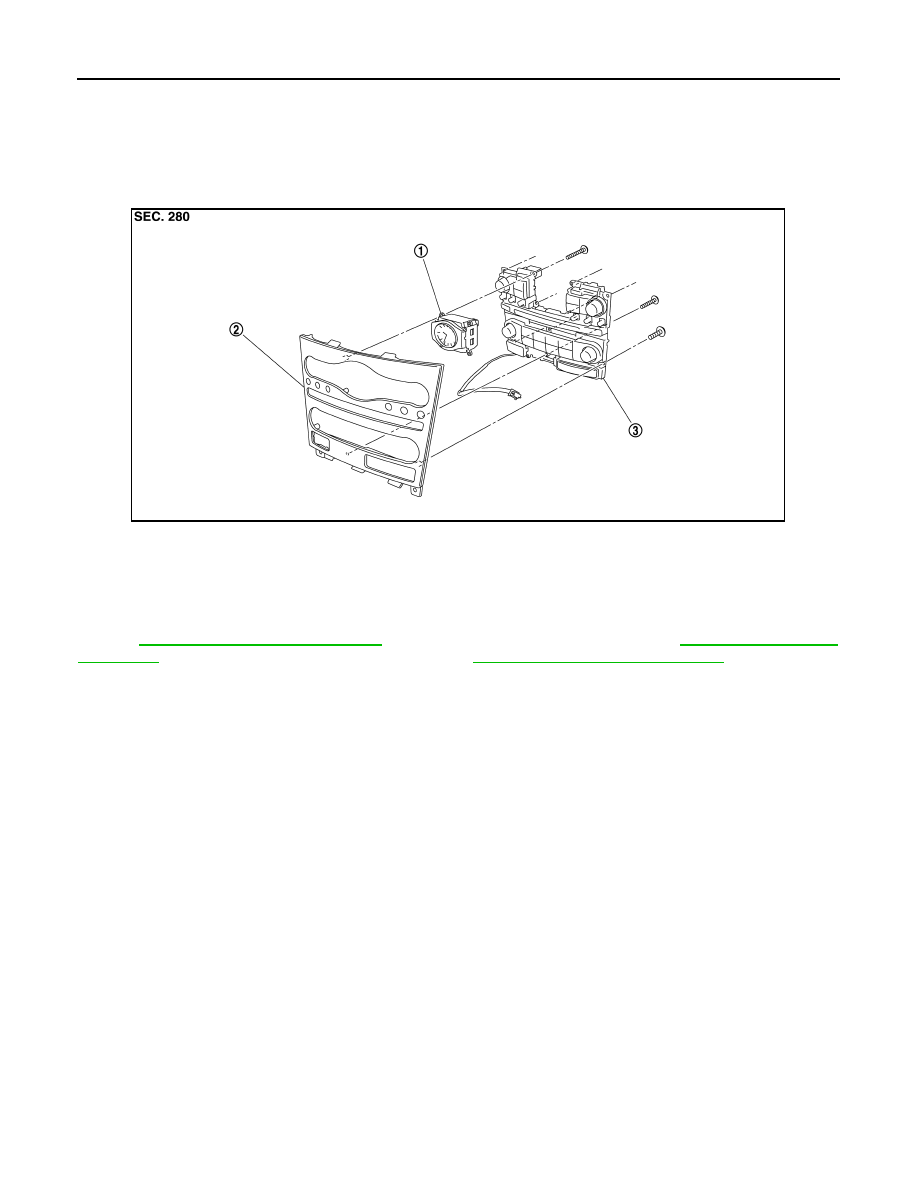

PRESET SWITCH

Exploded View

INFOID:0000000003545398

Removal and Installation

INFOID:0000000003545399

REMOVAL

Refer to

AV-164, "Removal and Installation"

 (BASE AUDIO WITHOUT NAVIGATION),

AV-424, "Removal and

Installation"

 (BOSE AUDIO WITHOUT NAVIGATION),

AV-914, "Removal and Installation"

 (BOSE AUDIO

WITH NAVIGATION).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Clock

2.

Cluster lid C

3.

Preset switch

JSNIA0107ZZ

UNIFIED METER AND A/C AMP.

VTL-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

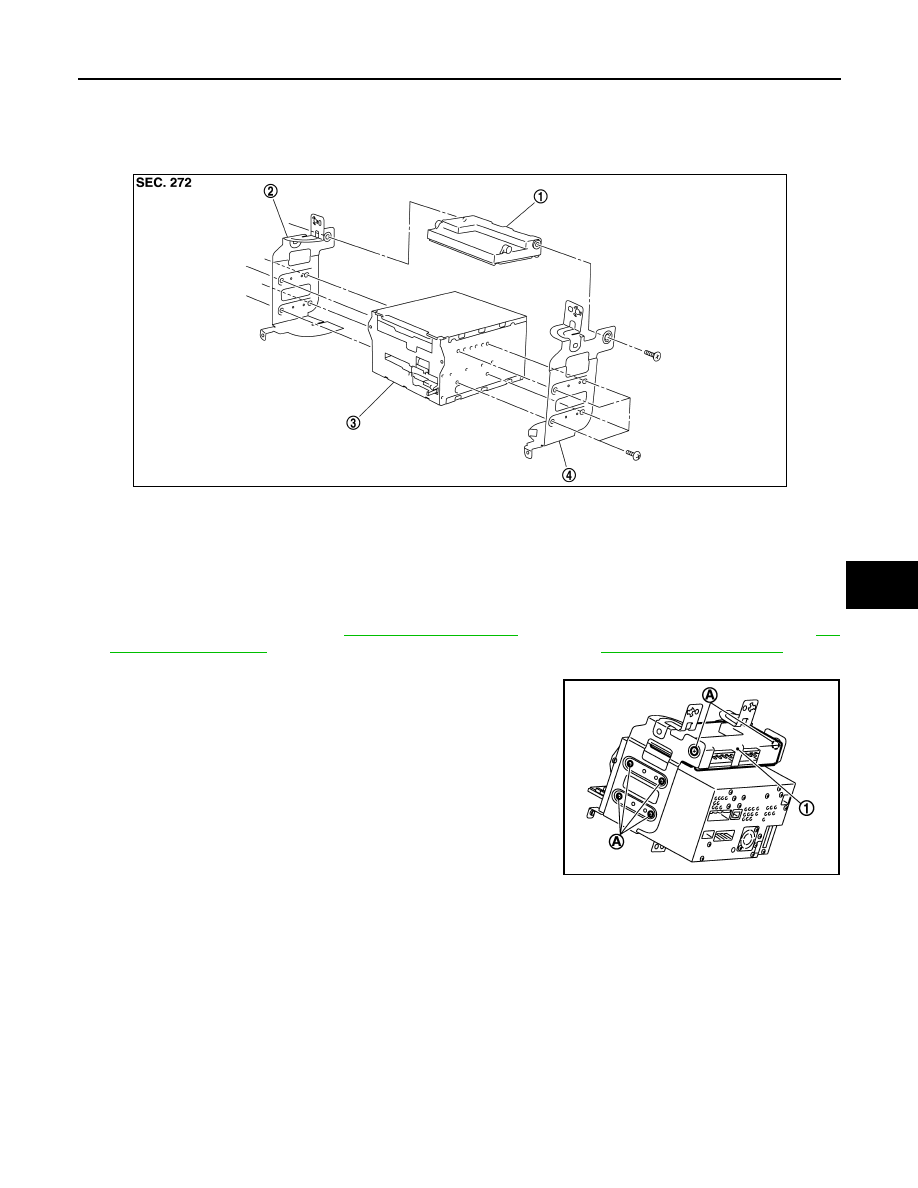

UNIFIED METER AND A/C AMP.

Exploded View

INFOID:0000000003545400

Removal and Installation

INFOID:0000000003545401

REMOVAL

1.

Remove AV control unit. Refer to

AV-156, "Exploded View"

 (BASE AUDIO WITHOUT NAVIGATION),

AV-

412, "Exploded View"

 (BOSE AUDIO WITHOUT NAVIGATION) or

AV-903, "Exploded View"

 (BOSE

AUDIO WITH NAVIGATION).

2.

Remove mounting screws (A), and then remove unified meter
and A/C amp. (1).

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

Since unified meter and A/C amp. connector and AV control unit connector have the same form, be
careful not to insert them wrongly.

1.

Unified meter and A/C amp.

2.

Bracket (LH)

3.

AV control unit

4.

Bracket (RH)

JSNIA0105ZZ

JSIIA0015ZZ
