Infiniti EX35. Manual - part 1459





TM-224

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

60. Remove manual shaft from transmission case.

61. Remove manual shaft oil seals using a flat-bladed screwdriver.

CAUTION:

Be careful not to scratch transmission case.

62. Remove detent spring and spacer from transmission case.

63. Using pair of snap ring pliers, remove snap ring from transmis-

sion case.

64. Remove servo assembly (with return spring) from transmission

case.

SCIA5716E

SCIA2331E

SCIA5248E

SCIA2333E

SCIA5679E

TRANSMISSION ASSEMBLY

TM-225

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

65. Remove return spring from servo assembly.

66. Remove O-rings from servo assembly.

67. Remove needle bearing (1) from rear extension (2WD) or

adapter case (AWD).

68. Remove parking actuator support from rear extension (2WD) or

adapter case (AWD).

69. Remove parking pawl (with return spring) and pawl shaft from

rear extension (2WD) or adapter case (AWD).

SCIA5717E

SCIA5719E

SCIA6179J

SCIA3423E

SCIA3424E

TM-226

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

70. Remove return spring (1) from parking pawl (2).

71. Remove rear oil seal from rear extension (2WD) or adapter case

(AWD).

CAUTION:

Be careful not to scratch rear extension (2WD) or adapter
case (AWD).

Assembly

INFOID:0000000003130649

1.

As shown in the figure, use a drift [22 mm (0.87 in) dia. commer-
cial service tool] to drive manual shaft oil seals into the transmis-
sion case until it is flush.

CAUTION:

• Do not reuse manual shaft oil seals.
• Apply ATF to manual shaft oil seals.

SCIA6180J

SCIA5481E

SCIA5259E

TRANSMISSION ASSEMBLY

TM-227

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

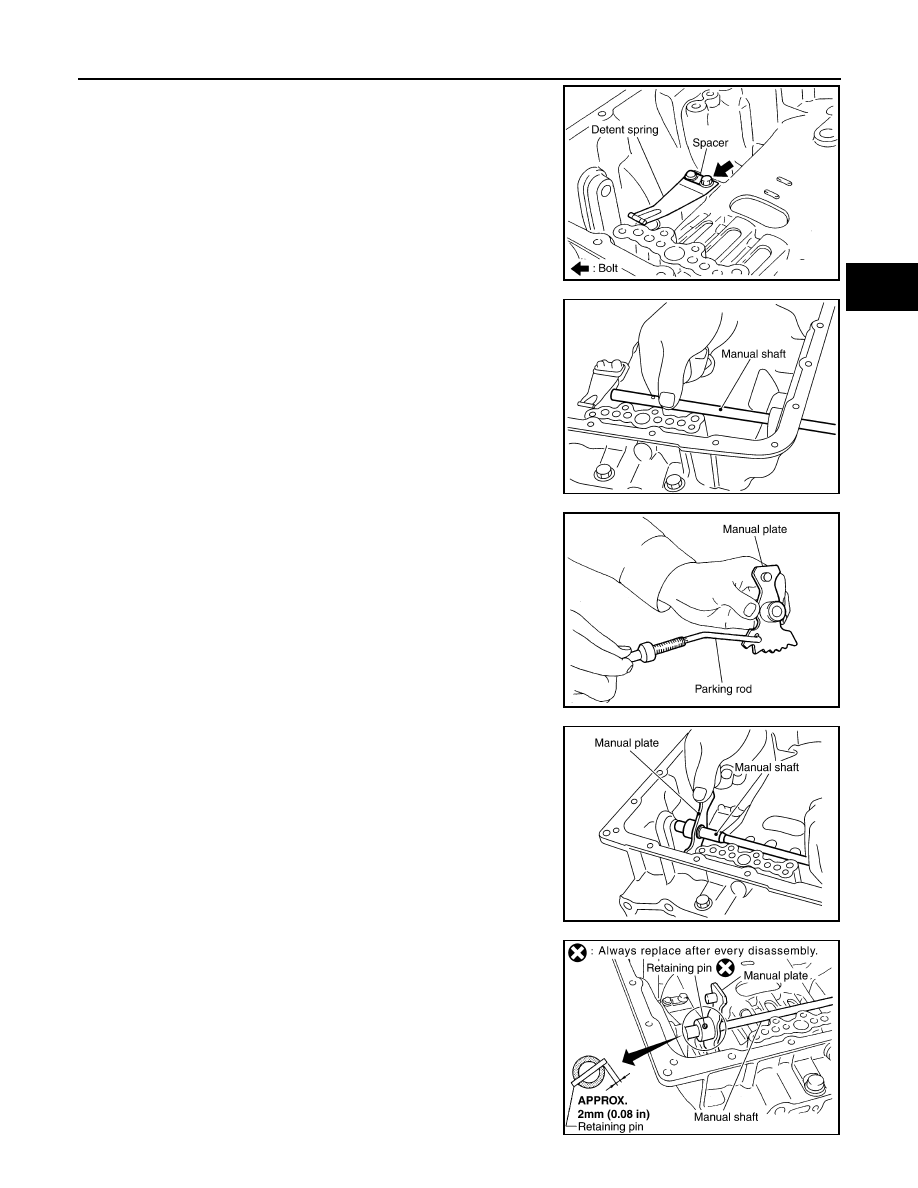

2.

Install detent spring and spacer in transmission case. Tighten
detent spring and spacer bolt to the specified torque.

3.

Install manual shaft to transmission case.

4.

Install parking rod to manual plate.

5.

Install manual plate (with parking rod) to manual shaft.

6.

Install retaining pin into the manual plate and manual shaft.

a.

Fit pinhole of the manual plate to pinhole of the manual shaft
with a pin punch.

b.

Use a hammer to tap the retaining pin into the manual plate.

CAUTION:

Drive retaining pin to 2

±

0.5 mm (0.08

±

0.020 in) over the

manual plate.

SCIA5248E

SCIA5716E

SCIA5220E

SCIA5715E

SCIA5297E
