Infiniti EX35. Manual - part 1457

TM-216

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

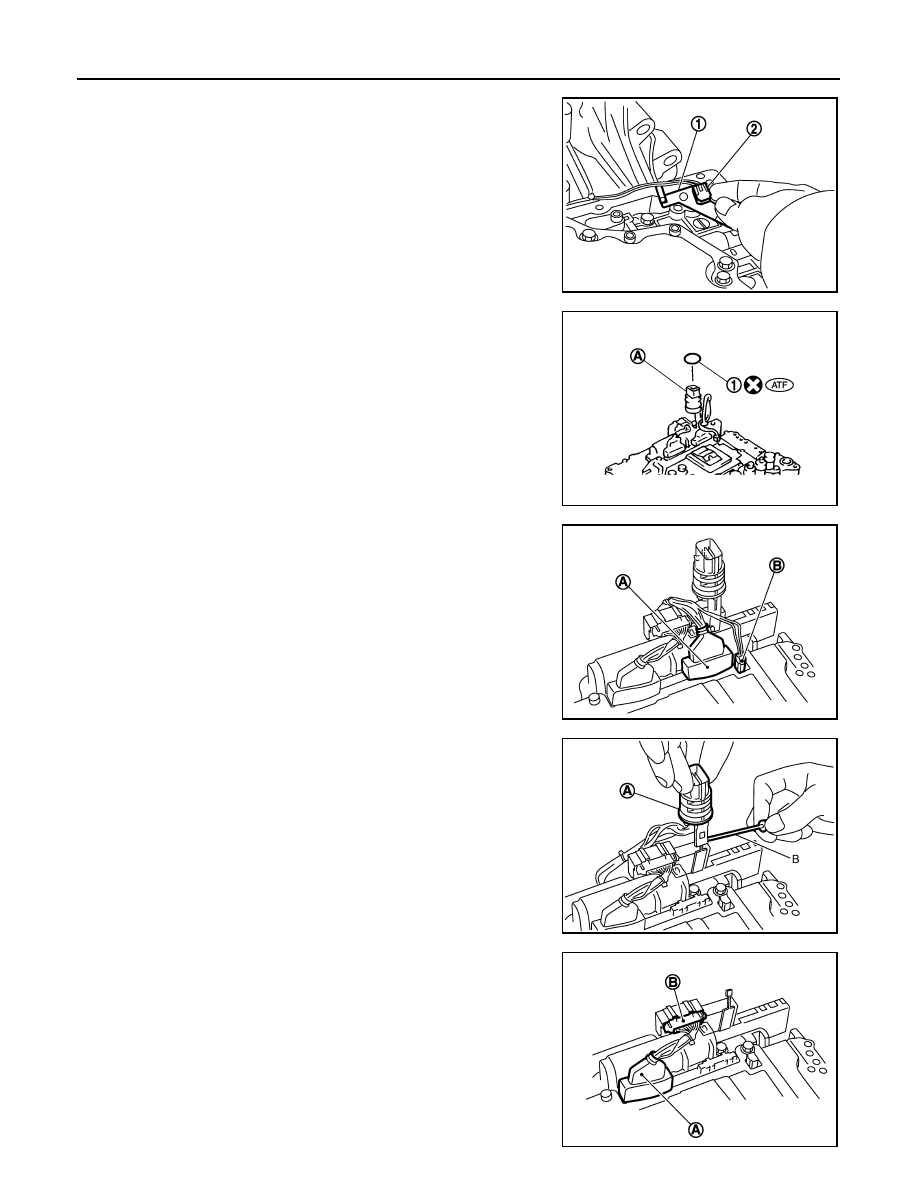

38. Remove bracket (1) from A/T fluid temperature sensor 2 (2).

39. Remove O-ring (1) from A/T assembly harness connector (A).

40. Disconnect TCM connectors (A) and (B).

CAUTION:

Be careful not to damage connectors.

41. Remove A/T assembly harness connector (A) from control valve

with TCM using a flat-bladed screwdriver (B).

42. Disconnect TCM connector (A) and park/neutral position switch

connector (B).

CAUTION:

Be careful not to damage connectors.

JPDIA0014ZZ

JPDIA0015ZZ

JPDIA0016ZZ

JPDIA0017ZZ

JPDIA0018ZZ

TRANSMISSION ASSEMBLY

TM-217

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

43. Remove rear extension assembly (2WD) or adapter case assembly (AWD) according to the following pro-

cedures.

a.

2WD

i.

Remove tightening bolts for rear extension assembly and trans-
mission case.

ii.

Tap rear extension assembly with a soft hammer.

iii.

Remove rear extension assembly from transmission case. (With
needle bearing).

iv.

Remove bearing race from output shaft.

1

: Self-sealing bolt

A

:  Bolt

JPDIA0026ZZ

SCIA5028E

SCIA5029E

SCIA5245E

TM-218

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

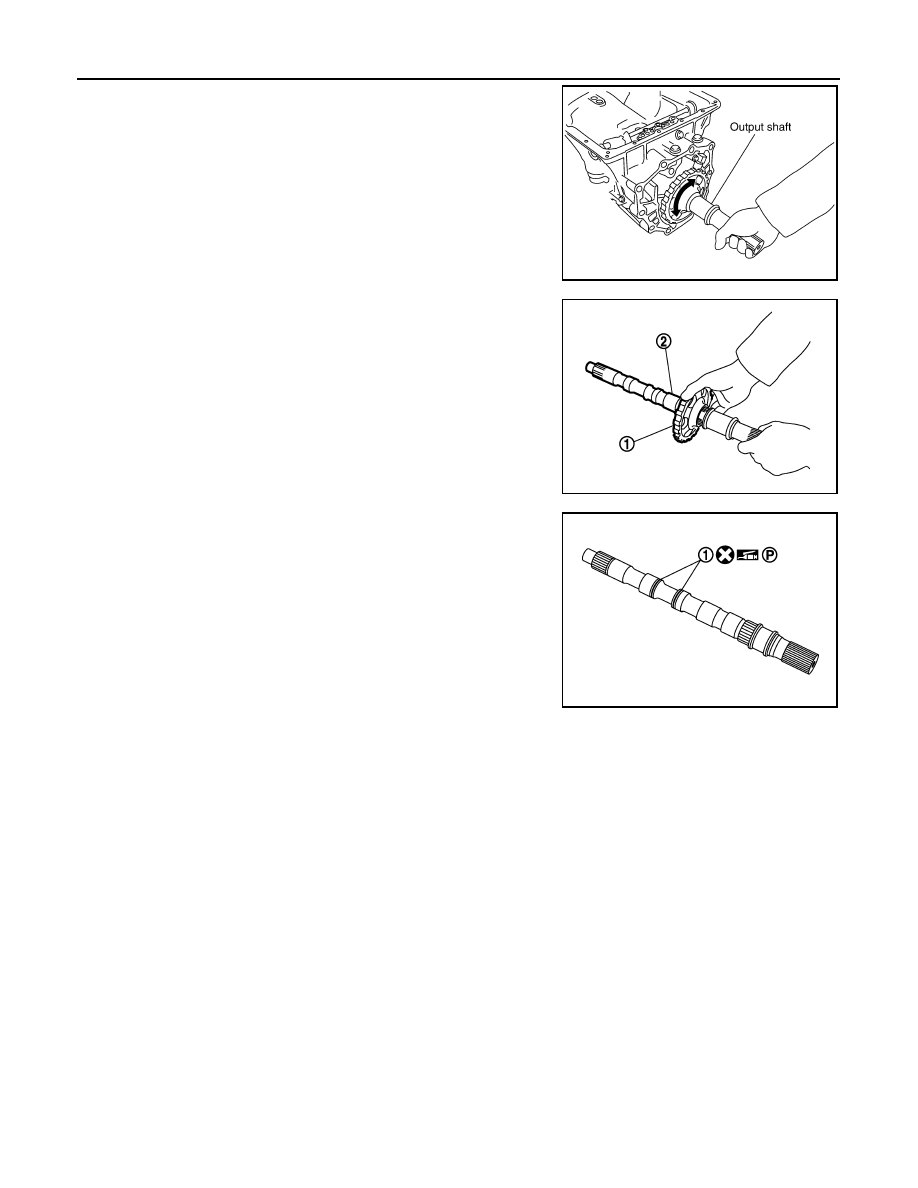

v.

Remove output shaft from transmission case by rotating left/
right.

vi. Remove parking gear (1) from output shaft (2).

vii. Remove seal rings (1) from output shaft.

b.

AWD

SCIA5030E

JPDIA0029ZZ

JPDIA0030ZZ

TRANSMISSION ASSEMBLY

TM-219

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

i.

Remove tightening bolts (1) for adapter case assembly and
transmission case. [With bracket (2).]

ii.

Tap adapter case assembly with a soft hammer.

iii.

Remove adapter case assembly from transmission case. (With
needle bearing)

iv.

Remove gasket from transmission case.

3

: Self-sealing bolt

: Bolt

SCIA6910E

SCIA5201E

SCIA5186E

SCIA5231E
