TM-168

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

A/T FLUID TEMPERATURE SENSOR 2

A/T FLUID TEMPERATURE SENSOR 2

Exploded View

INFOID:0000000003130614

Removal and Installation

INFOID:0000000003130615

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Drain ATF through drain plug.

3.

Remove exhaust mounting bracket. Refer to

EX-5, "Exploded View"

.

4.

Disconnect heated oxygen sensor 2 harness connectors (A).

5.

Remove heated oxygen sensor 2 harness (B) from clips (1).

6.

Remove bracket (2) from transmission assembly.

1.

A/T

2.

Bracket

3.

Bracket

4.

A/T fluid temperature sensor 2

5.

Clip

6.

Oil pan mounting bolt

7.

Oil pan

8.

Magnet

9.

Drain plug

10. Drain plug gasket

11.

Oil pan gasket

Refer to

GI-4, "Components"

 for symbols in the figure.

JSDIA0123GB

: Vehicle front

: Bolt

SCIA8269E

A/T FLUID TEMPERATURE SENSOR 2

TM-169

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

7.

Remove clips (1).

8.

Remove oil pan (2) and oil pan gasket.

9.

Remove magnets (1) from oil pan.

10. Disconnect A/T fluid temperature sensor 2 connector (A).

CAUTION:

Be careful not to damage connector.

11. Disengage terminal clip (

).

12. Remove A/T fluid temperature sensor 2 (1) with bracket (2) from

control valve with TCM.

13. Remove bracket (1) from A/T fluid temperature sensor 2 (2).

3

: Drain plug

: Vehicle front

: Oil pan mounting bolt

SCIA8117E

JPDIA0009ZZ

SCIA8125E

: Bolt

JPDIA0025ZZ

JPDIA0014ZZ

TM-170

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

A/T FLUID TEMPERATURE SENSOR 2

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Be careful not to damage connector.
• Do not reuse drain plug gasket.
• Adjust bolt hole of bracket to bolt hole of control valve with TCM when installing A/T fluid tempera-

ture sensor 2 (with bracket).

• Refer to the following when installing oil pan (2) (with oil pan gas-

ket) and clips (1) to transmission case.

CAUTION:

• Do not reuse oil pan gasket and oil pan mounting bolts.
• Install oil pan gasket in the direction to align hole position.
• Install it so that drain plug (3) comes to the position as

shown in the figure.

• Be careful not to pinch harnesses.
• Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.

- Tighten oil pan mounting bolts to the specified torque in numerical

order shown in the figure after temporarily tightening them. Tighten
oil pan mounting bolts to the specified torque.

Inspection

INFOID:0000000003130616

INSPECTION AFTER REMOVAL

Check foreign materials in oil pan to help determine causes of mal-
function. If the ATF is very dark, smells burned, or contains foreign
particles, the frictional material (clutches, band) may need replace-
ment. A tacky film that will not wipe clean indicates varnish build up.
Varnish can cause valves, servo, and clutches to stick and can
inhibit pump pressure.
• If frictional material is detected, perform A/T fluid cooler

cleaning. Refer to

TM-143, "Cleaning"

.

INSPECTION AFTER INSTALLATION

Check for A/T fluid leakage and A/T fluid level after completing installation. Refer to

TM-141, "Inspection"

.

: Vehicle front

: Oil pan mounting bolt

: Vehicle front

SCIA8117E

JPDIA0021ZZ

SCIA5199E

PARKING COMPONENTS

TM-171

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

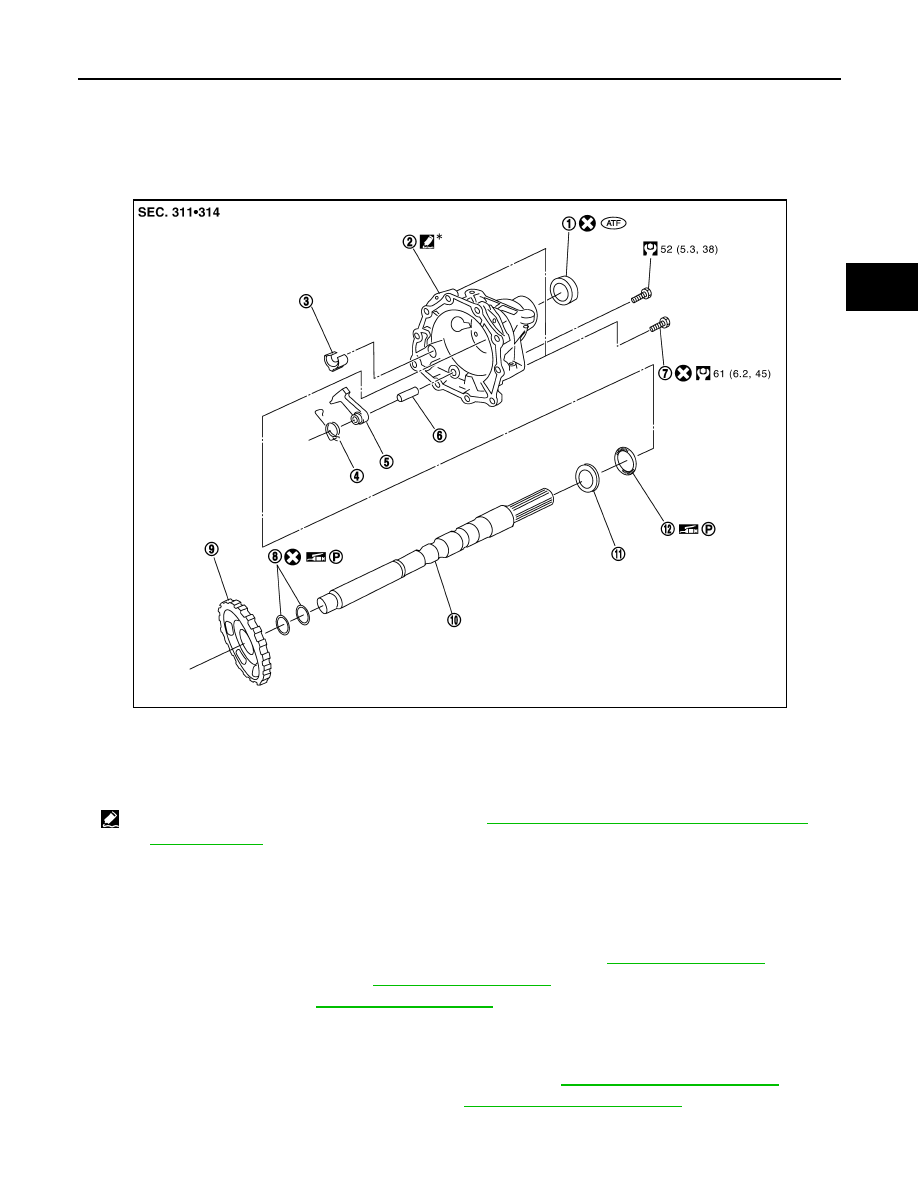

PARKING COMPONENTS

2WD

2WD : Exploded View

INFOID:0000000003130617

2WD : Removal and Installation

INFOID:0000000003130618

REMOVAL

1.

Drain ATF through drain plug.

2.

Remove exhaust front tube and center muffler with power tool. Refer to

EX-5, "Exploded View"

.

3.

Remove rear propeller shaft. Refer to

DLN-81, "Exploded View"

.

4.

Remove control rod. Refer to

TM-161, "Exploded View"

.

5.

Support A/T assembly with a transmission jack.

CAUTION:

When setting transmission jack, be careful not to allow it to collide against the drain plug.

6.

Remove rear engine mounting member with power tool. Refer to

EM-79, "2WD : Exploded View"

.

7.

Remove engine mounting insulator (rear). Refer to

EM-79, "2WD : Exploded View"

.

1.

Rear oil seal

2.

Rear extension

3.

Parking actuator support

4.

Return spring

5.

Parking pawl

6.

Pawl shaft

7.

Self-sealing bolt

8.

Seal ring

9.

Parking gear

10.

Output shaft

11.

Bearing race

12. Needle bearing

*

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

SCIA8364E
