MALFUNCTION DETECTION BUZZER SOUNDS DURING POWER RETURN MO-

TOR INVERSE ROTATION

SE-75

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

NO

>> Repair or replace the malfunctioning parts.

4.

CONFIRM THE OPERATION

Confirm the operation again.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-38, "Intermittent Incident"

.

NO

>> GO TO 1.

SE-76

< SYMPTOM DIAGNOSIS >

DOES NOT RETURN BUT MALFUNCTION DETECTION BUZZER SOUNDS

DOES NOT RETURN BUT MALFUNCTION DETECTION BUZZER
SOUNDS

LH

LH : Diagnosis Procedure

INFOID:0000000003642234

1.

CHECK PRIMARY POSITION LIMIT SWITCH (LH)

Check primary position limit switch (LH).
Refer to

SE-24, "LH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK MOTOR SENSOR (LH)

Check motor sensor (LH).
Refer to

SE-34, "LH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CONFIRM THE OPERATION

Confirm the operation again.
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-38, "Intermittent Incident"

.

NO

>> GO TO 1.

RH

RH : Diagnosis Procedure

INFOID:0000000003642235

1.

CHECK PRIMARY POSITION LIMIT SWITCH (RH)

Check primary position limit switch (RH).
Refer to

SE-24, "LH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK MOTOR SENSOR (RH)

Check motor sensor (RH).
Refer to

SE-35, "RH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CONFIRM THE OPERATION

Confirm the operation again.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-38, "Intermittent Incident"

.

NO

>> GO TO 1.

ANTI-PINCH FUNCTION DOES NOT OPERATE

SE-77

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ANTI-PINCH FUNCTION DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000003642236

1.

CHECK MOTOR SENSOR (LH)

Check motor sensor (LH).
Refer to

SE-34, "LH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK MOTOR SENSOR (RH)

Check motor sensor (RH).
Refer to

SE-35, "RH : Component Function Check"

.

Is the inspection result normal?

YES

>> Replace rear seatback power return control unit. Refer to

SE-105, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning parts.

SE-78

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SQUEAK AND RATTLE TROUBLE DIAGNOSES

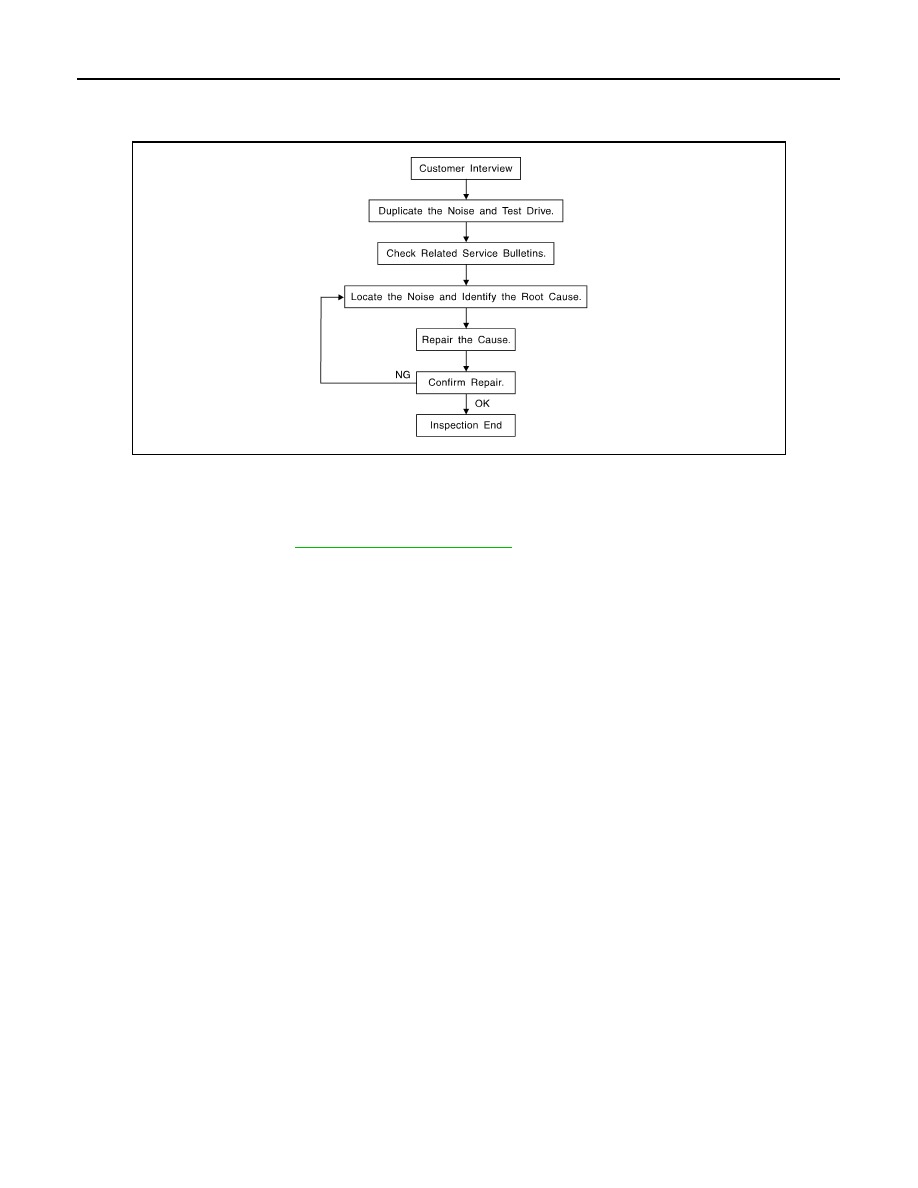

Work Flow

INFOID:0000000003508319

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any of
customer's comments; refer to

SE-82, "Diagnostic Worksheet"

. This information is necessary to duplicate the

conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, perform a diagnosis and repair the noise that the customer is

concerned about. This can be accomplished by performing a cruise test on the vehicle with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

• Rattle – (Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

• Knock – (Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick – (Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz – (Like a bumblebee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending up on the person. A noise that you may judge

as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.

SBT842
