REAR SEAT BACK POWER RETURN CONTROL UNIT

SE-67

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

JCJWM0261GB

SE-68

< ECU DIAGNOSIS >

REAR SEAT BACK POWER RETURN CONTROL UNIT

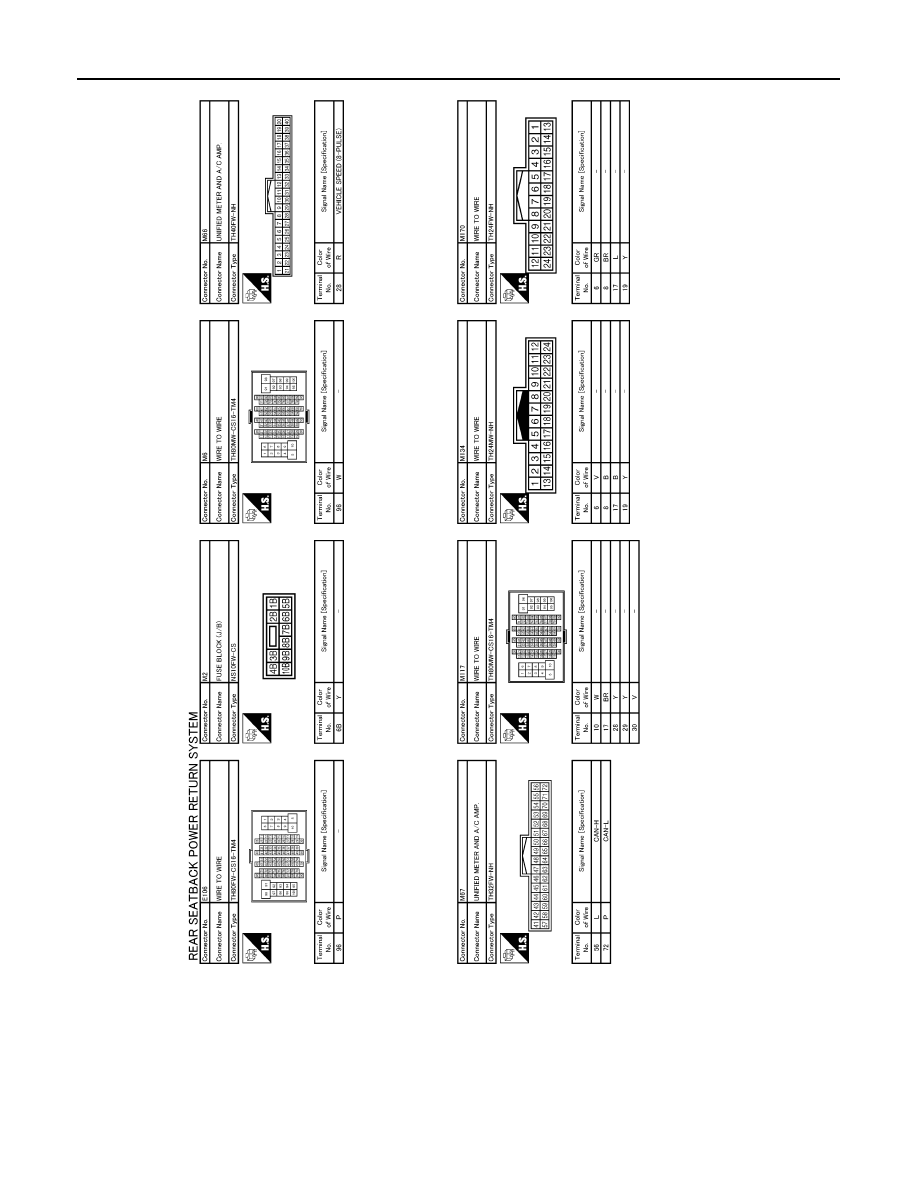

JCJWM0262GB

REAR SEAT BACK POWER RETURN CONTROL UNIT

SE-69

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Fail Safe

INFOID:0000000003642228

Even if the automatic return control is inactivated, the fold-down and manual return operations can be per-
formed

JCJWM0263GB

SE-70

< ECU DIAGNOSIS >

REAR SEAT BACK POWER RETURN CONTROL UNIT

Possible location of malfunction

Diagnosis mode

Corrective action

Return complete limit switch “ON” mal-
function

The return completion position cannot be de-
tected

Detect the lock with the rear seatback
power return control unit, and then re-
verse the power return motor

Return complete limit switch “OFF” mal-
function

The automatic return cannot be performed
because the return completion position is
misrecognized

The manual return operation can be per-
formed

Primary position limit switch “ON” mal-
function

The initial position of the sector gear cannot
be detected

Detect the lock with the rear seatback
power return control unit, and then stop
the power return motor
* If the above condition is repeated for 4
times, stop the subsequent automatic re-
turn operation. However, the manual re-
turn operation can be performed

Primary position limit switch “OFF” mal-
function

The initial position of the sector gear is mis-
recognized
(The sector gear reverse operation cannot be
performed)

• Return the sector gear to the initial po-

sition if the primary position limit switch
is not turned to ON after starting the re-
turn (Lock detection)

• The manual return operation can be

performed

Sensor malfunction (fixed to High or
Low)

The motor lock is misrecognized because the
pulse does not change

• If the pulse does not change complete-

ly after starting the motor operation, re-
turn the sector gear to the initial
position

• The manual return operation can be

performed
