WHEEL ALIGNMENT

WHEEL ALIGNMENT

Inspection

INFOID:0000000003130377

DESCRIPTION

Measure wheel alignment under unladen conditions.
NOTE:
“Unladen conditions” means that fuel, engine coolant, and lubricant are full. Spare tire, jack, hand tools and
mats are in designated positions.

PRELIMINARY CHECK

Check the following:
• Tires for improper air pressure and wear.
• Road wheels for runout. Refer to

WT-97, "Inspection"

.

• Wheel bearing axial end play. Refer to

RAX-5, "Inspection"

.

• Ball joint axial end play of suspension arm. Refer to

RSU-19, "Ball Joint"

.

• Shock absorber operation.
• Each mounting point of axle and suspension for looseness and deformation.
• Each of front lower link, rear lower link, radius rod, rear suspension member, suspension arm and shock

absorber for cracks, deformation, and other damage.

• Vehicle height (posture).

GENERAL INFORMATION AND RECOMMENDATIONS

• A four-wheel thrust alignment should be performed.
- This type of alignment is recommended for any NISSAN/INFINITI vehicle.
- The four-wheel “thrust” process helps ensure that the vehicle is properly aligned and the steering wheel is

centered.

- The alignment rack itself should be capable of accepting any NISSAN/INFINITI vehicle.
- The rack should be checked to ensure that it is level.
• Make sure the machine is properly calibrated.
- Your alignment equipment should be regularly calibrated in order to give correct information.
- Check with the manufacturer of your specific equipment for their recommended Service/Calibration Sched-

ule.

 ALIGNMENT PROCESS

IMPORTANT:
Use only the alignment specifications listed in this Service Manual.
• When displaying the alignment settings, many alignment machines use “indicators”: (Green/red, plus or

minus, Go/No Go). Do not use these indicators.

- The alignment specifications programmed into your machine that operate these indicators may not be cor-

rect.

- This may result in an ERROR.
• Some newer alignment machines are equipped with an optional “Rolling Compensation” method to “com-

pensate” the sensors (alignment targets or head units). Never use this “Rolling Compensation” method.

- Use the “Jacking Compensation Method”. After installing the alignment targets or head units, raise the vehi-

cle and rotate the wheels 1/2 turn both ways.

- See Instructions in the alignment machine you're using for more information on this.

Adjustment

INFOID:0000000003757147

CAMBER

WHEEL ALIGNMENT

RSU-7

< ON-VEHICLE MAINTENANCE >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

If camber is exceeds the standard value, adjust with adjusting bolt
(1) in front lower link (2).

CAUTION:

After adjusting camber, be sure to check toe-in.

TOE-IN

• If toe-in is exceeds the standard value, adjust with adjusting bolt

(1) in rear lower link (2).

CAUTION:

Be sure to adjust equally on right and left side with adjusting
bolt.

- If toe-in is not still within the specification, inspect and replace any

damaged or worn suspension parts.

Standard

Camber: Refer to

RSU-19, "Wheel Alignment"

.

JPEIB0096ZZ

Standard

Toe-In: Refer to

RSU-19, "Wheel Alignment"

.

JPEIB0097ZZ

RSU-8

< ON-VEHICLE REPAIR >

REAR LOWER LINK & COIL SPRING

ON-VEHICLE REPAIR

REAR LOWER LINK & COIL SPRING

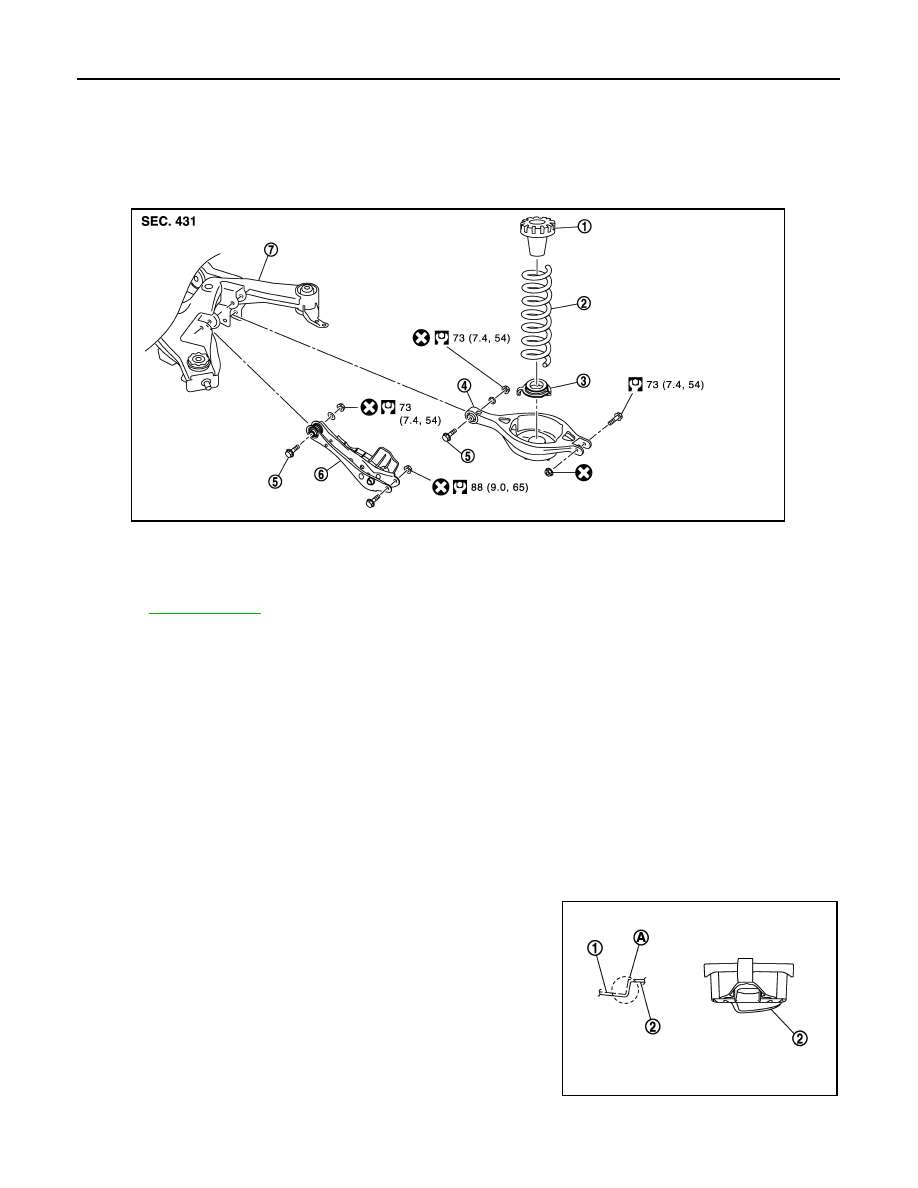

Exploded View

INFOID:0000000003130378

Removal and Installation

INFOID:0000000003130379

REMOVAL

1.

Remove tires with power tool.

2.

Set suitable jack under rear lower link to relieve the coil spring tension.

3.

Loosen rear lower link mounting nuts (rear suspension member side), and remove rear lower link mount-
ing bolts and nuts (axle housing side) with power tool.

4.

Slowly lower jack, then remove upper seat, coil spring and rubber sheet from rear lower link.

5.

Remove rear lower link mounting nuts and adjusting bolts (rear suspension member side), and remove
rear lower link.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Match up rubber seat indentions and rear lower link grooves and attach.
• Install coil spring by aligning the lower end of the large diameter

side to the step (A) between the rubber seat (1) and the rear lower
link (2).

CAUTION:

Make sure spring is not up side down.

• Perform the final tightening of rear suspension member and axle

installation position (rubber bushing) under unladen condition with
tires on level ground.

1.

Upper seat

2.

Coil spring

3.

Rubber seat

4.

Rear lower link

5.

Adjusting bolt

6.

Front lower link

7.

Rear suspension member

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0089GB

JPEIB0098ZZ

REAR LOWER LINK & COIL SPRING

RSU-9

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

Inspection

INFOID:0000000003130380

INSPECTION AFTER REMOVAL

Check rear lower link, bushing and coil spring for deformation, crack, and damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

2.

Adjust neutral position of steering angle sensor. Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.
