Infiniti EX35. Manual - part 1216





RAX-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000003138877

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000003138878

Tool number
(Kent-Moore No.)
Tool name

Description

KV38100500
(

)

Drift
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.

Installing drive shaft plug

KV38102200
(

)

Drift
a: 90 mm (3.54 in) dia.
b: 31 mm (1.22 in) dia.

Installing drive shaft plug

KV40107300
(

)

Boot band crimping tool

Installing boot band

ZZA0701D

ZZA0920D

ZZA1229D

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

REAR WHEEL HUB AND HOUSING

RAX-5

< ON-VEHICLE MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

ON-VEHICLE MAINTENANCE

REAR WHEEL HUB AND HOUSING

Inspection

INFOID:0000000003138879

MOUNTING INSPECTION

Make sure the mounting conditions (looseness, back lash) of each component and component conditions
(wear, damage) are normal.

WHEEL BEARING INSPECTION

• Move wheel hub and bearing assembly in the axial direction by hand. Make sure there is no looseness of

wheel bearing.

• Rotate wheel hub, and make sure that is no unusual noise or other irregular conditions. If there is any of

irregular conditions, replace wheel hub and bearing assembly.

Standard

Axial end play

: Refer to

RAX-15, "Wheel Bearing"

.

RAX-6

< ON-VEHICLE MAINTENANCE >

REAR DRIVE SHAFT

REAR DRIVE SHAFT

Inspection

INFOID:0000000003138880

• Check drive shaft mounting point and joint for looseness and other damage.
• Check boot for cracks and other damage.

CAUTION:

Replace entire drive shaft assembly when noise or vibration occur from drive shaft.

REAR WHEEL HUB AND HOUSING

RAX-7

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

ON-VEHICLE REPAIR

REAR WHEEL HUB AND HOUSING

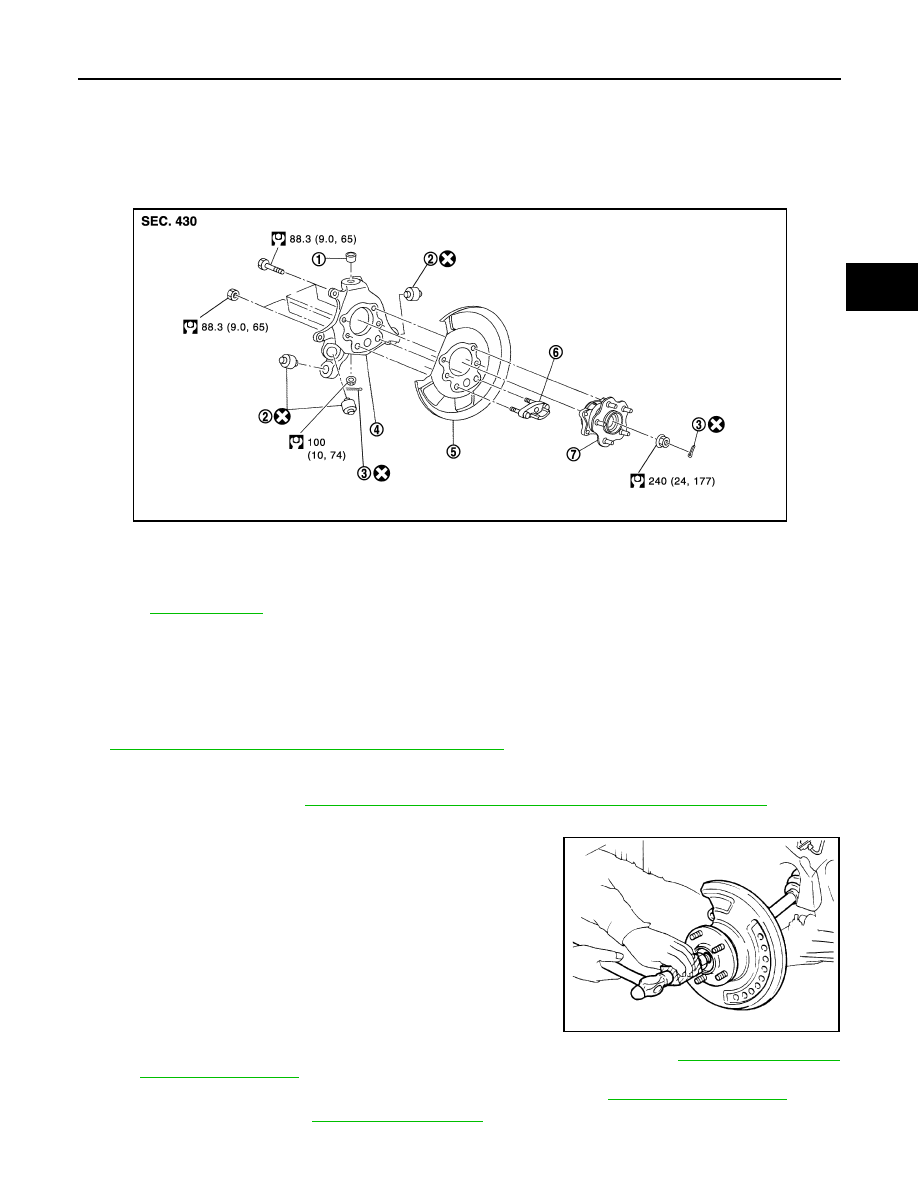

Exploded View

INFOID:0000000003138881

Removal and Installation

INFOID:0000000003138882

REMOVAL

1.

Remove tire with power tool.

2.

Remove caliper assembly with power tool. Hang it in a place where it will not interfere with work. Refer to

BR-40, "BRAKE CALIPER ASSEMBLY : Exploded View"

.

CAUTION:

Never depress brake pedal while caliper assembly is removed.

3.

Remove disc rotor. Refer to

BR-41, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

.

4.

Remove cotter pin, then loosen hub lock nut with a power tool.

5.

Patch hub lock nut with a piece of wood. Hammer the wood to
disengage wheel hub and bearing assembly from drive shaft.
Take out the hub lock nut.

CAUTION:

• Never place drive shaft joint at an extreme angle. Also be

careful not to overextend slide joint.

• Never allow drive shaft to hang down without support for

counterpart such as joint sub-assembly, and other parts.

NOTE:
Use a suitable puller, if wheel hub and bearing assembly and
drive shaft cannot be separated even after performing the above
procedure.

6.

Remove parking brake shoe and parking brake cable from back plate. Refer to

PB-7, "Exploded View"

and

PB-5, "Exploded View"

.

7.

Remove stabilizer connecting rod (upper side) with power tool. Refer to

RSU-16, "Exploded View"

.

8.

Remove coil spring. Refer to

RSU-8, "Exploded View"

.

9.

Set suitable jack under axle housing.

1.

Ball seat

2.

Bushing

3.

Cotter pin

4.

Axle housing

5.

Back plate

6.

Anchor block

7.

Wheel hub and bearing assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIG0100GB

JPDIG0070ZZ
