HARNESS LAYOUT

HARNESS LAYOUT

How To Read Harness Layout

INFOID:0000000003131924

CONNECTOR SYMBOL

Main symbols of connector (in Harness Layout) are indicated in the below.

1

: Connector model

2

: Cavity

3

: Male (M) and female (F) terminals

4

: Connector color

5

: Special type

JPMIA0113GB

JPMIA0114GB

PG

HARNESS LAYOUT

PG-79

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Outline

INFOID:0000000003131925

Click here to view the eWD.

JCMIM0271GB

PG-80

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

HARNESS LAYOUT

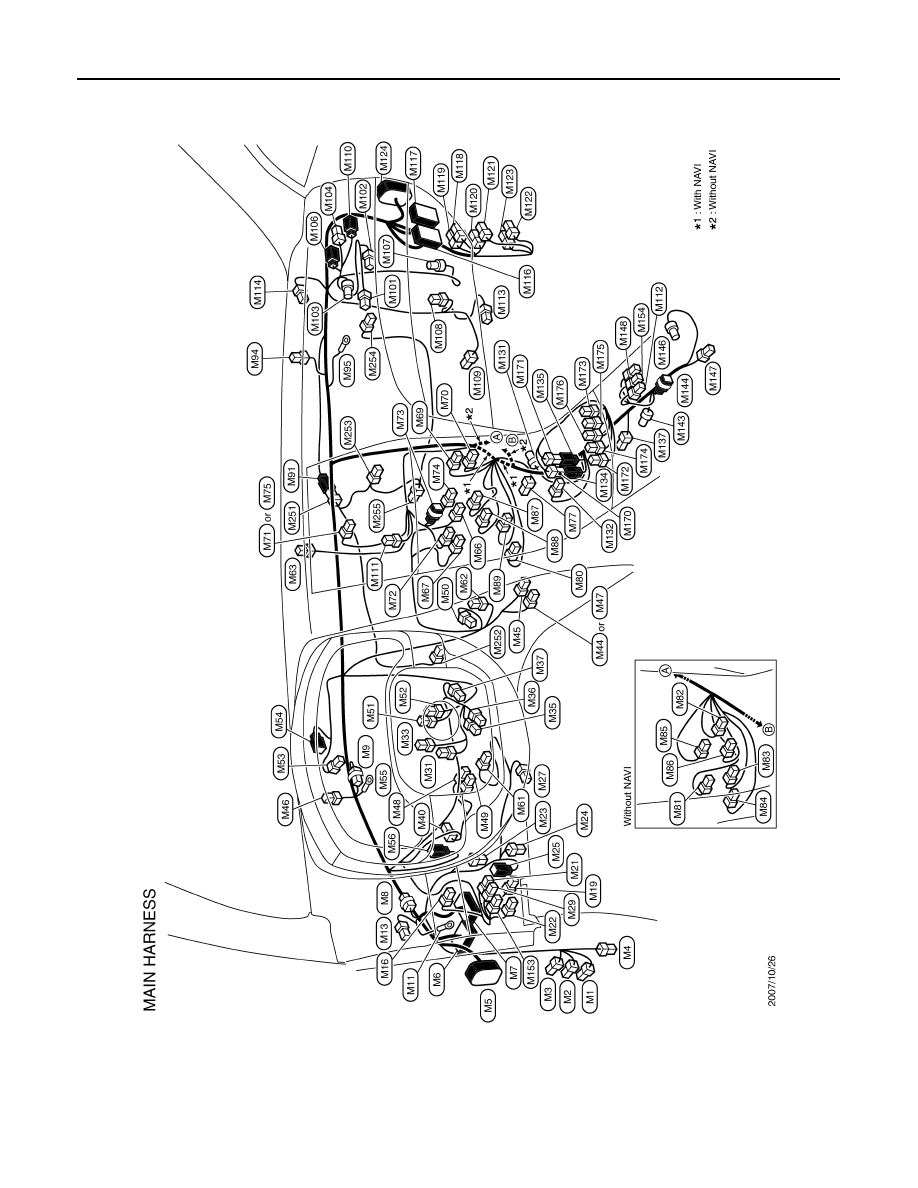

Main Harness

INFOID:0000000003131926

Click here to view the eWD.

Engine Room Harness

INFOID:0000000003131927

Click here to view the eWD.

JCMIM0272GB

PG

HARNESS LAYOUT

PG-81

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ENGINE COMPARTMENT

JCMIM0273GB
