Infiniti EX35. Manual - part 1175

PG-70

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWM1489GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-71

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

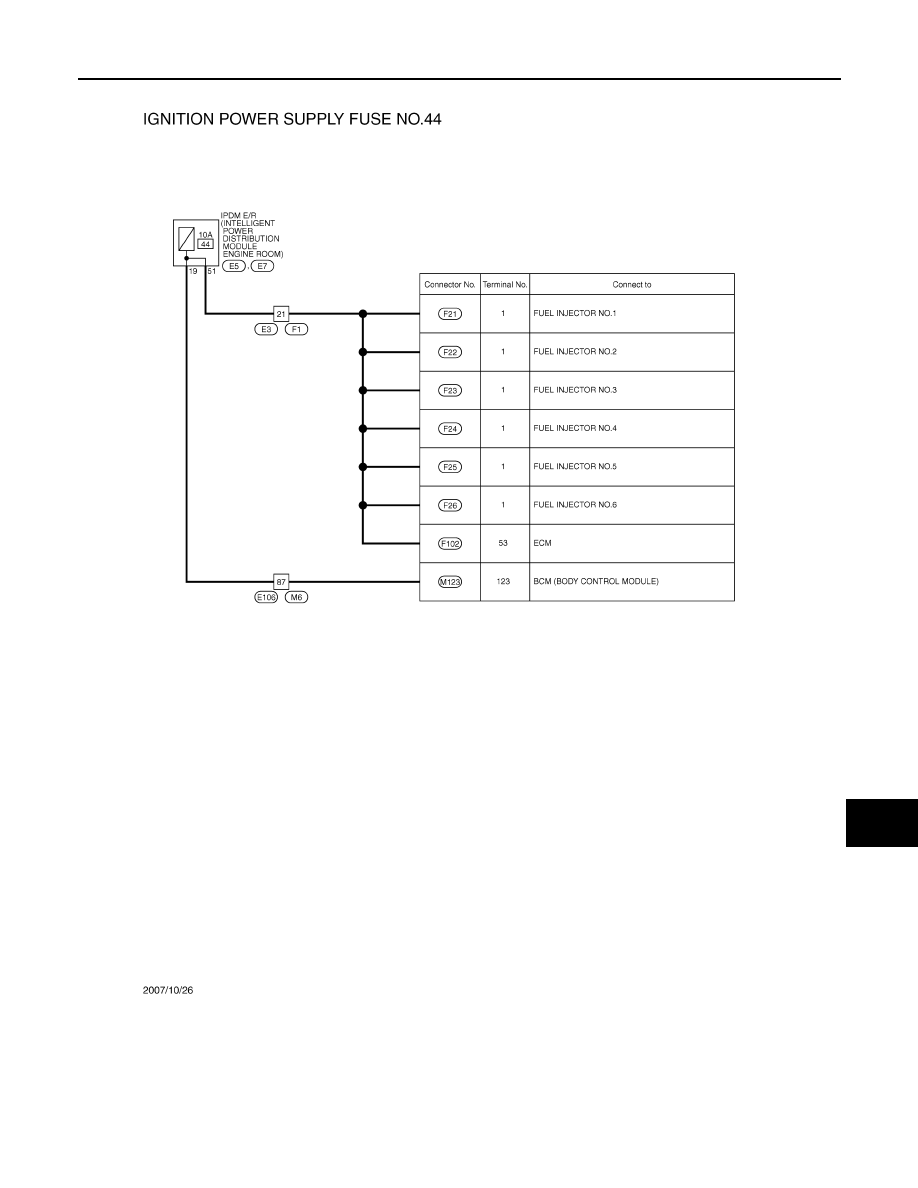

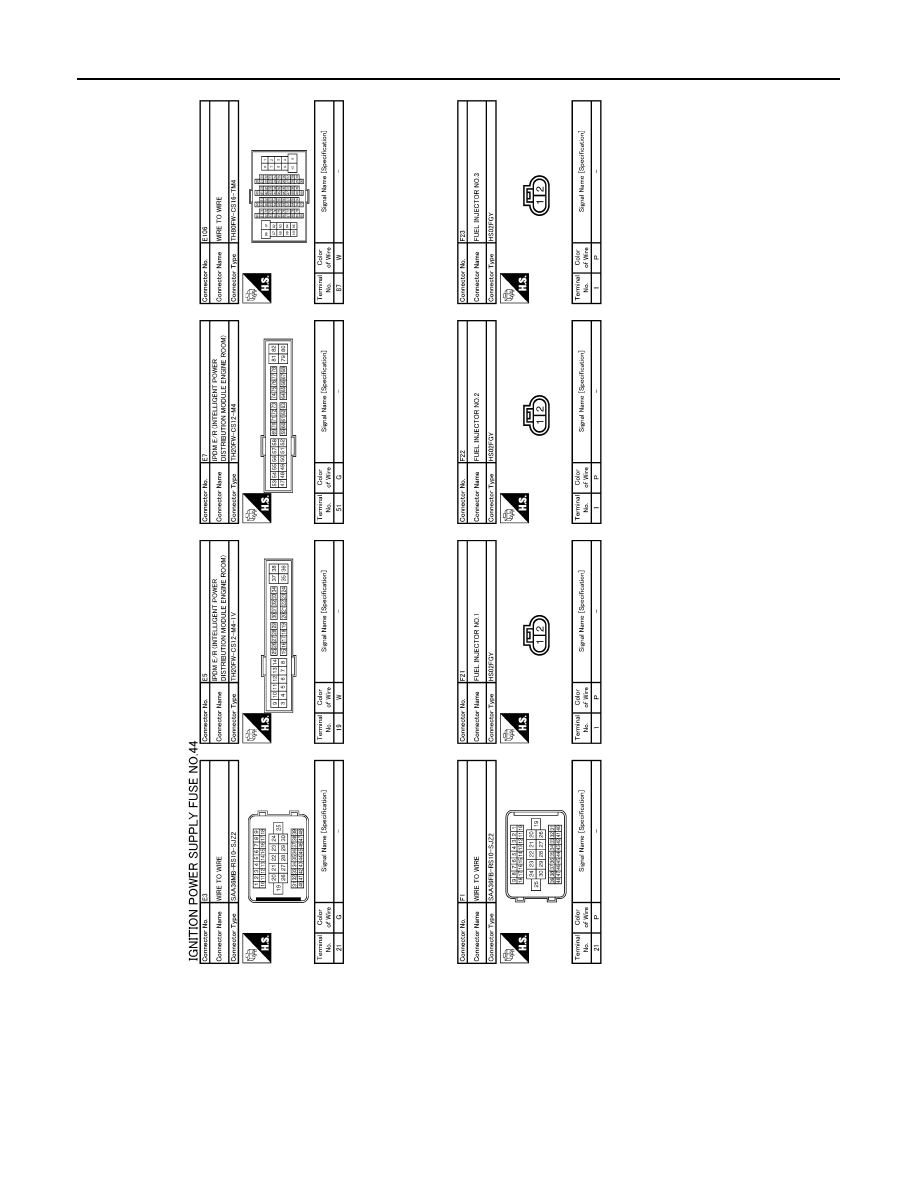

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 44 -

INFOID:0000000003131919

JCMWM1490GB

PG-72

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWM1491GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-73

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM1492GB
