POWER SUPPLY ROUTING CIRCUIT

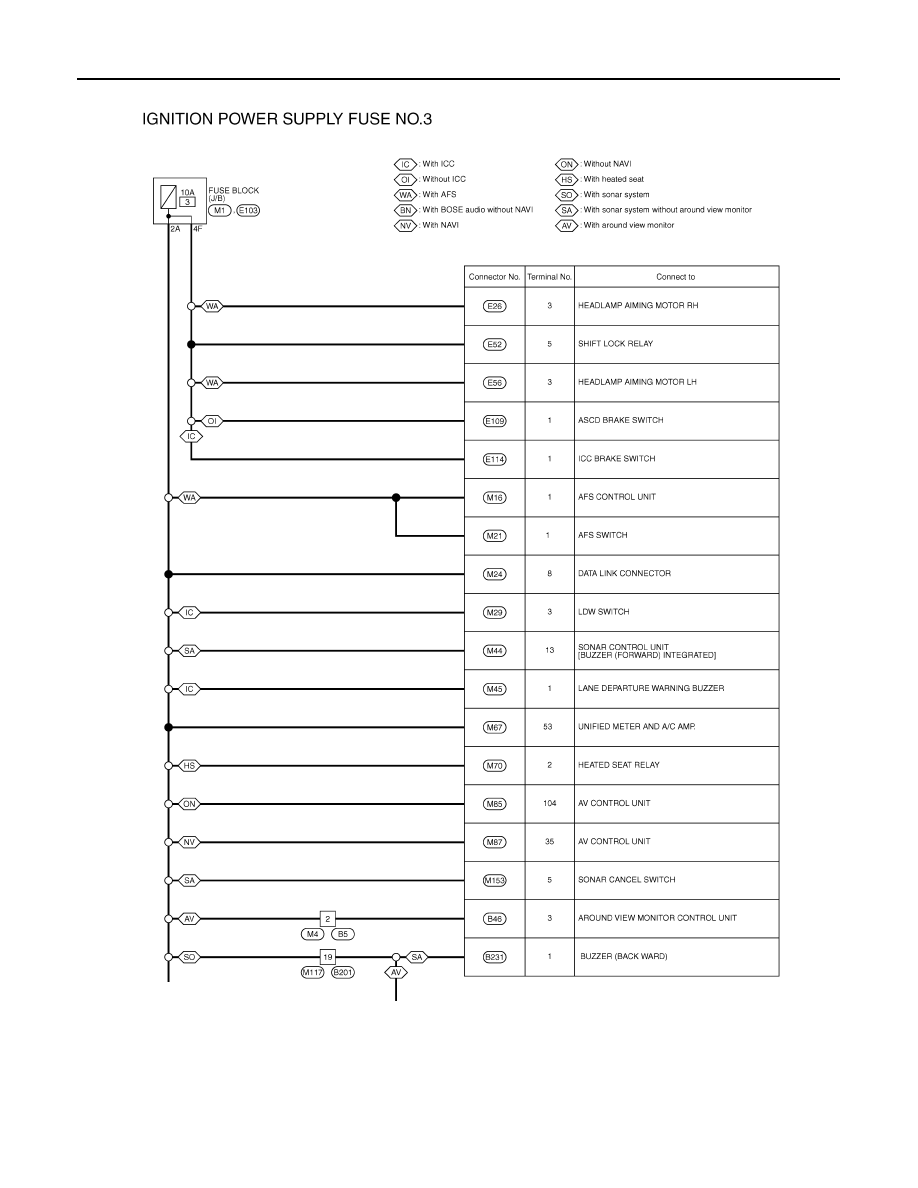

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 3 -

INFOID:0000000003131917

JCMWM1481GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-63

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM1482GB

PG-64

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

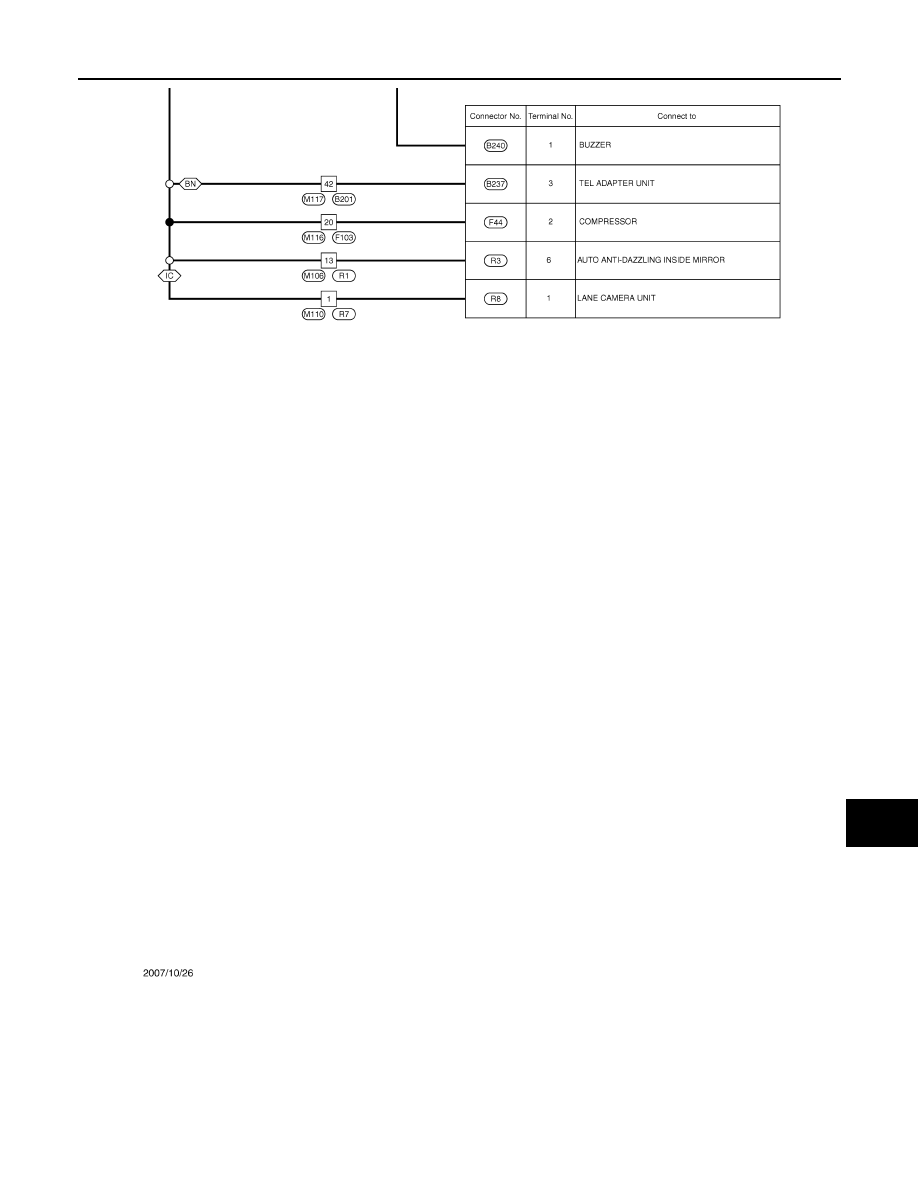

POWER SUPPLY ROUTING CIRCUIT

JCMWM1483GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-65

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWM1484GB
