Infiniti EX35. Manual - part 8

ADP-26

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

OUTPUT PARTS

MEMORY FUNCTION

MEMORY FUNCTION : System Diagram

INFOID:0000000003134627

MEMORY FUNCTION : System Description

INFOID:0000000003134628

OUTLINE

The driver seat control unit can store the optimum driving positions (seat, steering column and door mirror
position) for 2 people. If the front seat position is changed, one-touch (pressing desired memory switch for
more than 0.5 second) operation allows changing to the other driving position.
NOTE:
Further information for the memory storage procedure. Refer to

ADP-10, "MEMORY STORING : Description"

.

OPERATION PROCEDURE

1.

Turn ignition switch ON

2.

Press desired memory switch for more than 0.5 second.

3.

Driver seat, steering and door mirror will move to the memorized position.

OPERATION CONDITION

Reclining sensor

Detect the tilt of seatback.

Sliding sensor

Detect the front/rear position of seat.

Item

Function

Item

Function

Door mirror motor
(driver side/passenger side)

Move the outside mirror face upward/downward and leftward/rightward.

Tilt & telescopic motor

Move the steering column upward/downward and frontward/rearward.

Lifting motor (rear)

Move the seat lifter (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat frontward/rearward.

JMJIA0163GB

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-27

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Satisfy all of the following items. The memory function is not performed if these items are not satisfied.

However, the memory operation can be performed for 45 seconds after opening the driver door (driver door switch OFF

→

 ON) even if

the IGN position is in OFF position.

DETAIL FLOW

Item

Request status

Ignition position

ON

Switch inputs
• Power seat switch
• Tilt & telescopic switch
• Door mirror control switch
• Set switch
• Memory switch

OFF

(Not operated)

A/T selector lever

P position

Order

Input

Output

Control unit condition

1

Memory switch

—

The memory switch signal is inputted to the automatic drive positioner
control unit when memory switch 1 or 2 is operated.
Memory switch signal is input to driver seat control unit via UART
communication.

2

—

Motors
(Seat, Steering,
door mirror)

Driver seat control unit operates each motor of seat when it recogniz-
es the memory switch pressed for 0.5 second or more and requests
each motor operation to automatic drive positioner control unit via
UART communication. The automatic drive positioner control unit op-
erates each motor.

Memory switch Indica-
tor

Driver seat control unit requests the flashing of memory indicator to
automatic drive positioner control unit via UART communication while
either of the motors is operating. The automatic drive positioner con-
trol unit illuminates the memory indicator.

3

Sensors
(Seat, steering col-
umn, door mirror)

—

Driver seat control unit judges the operating seat position with each
seat sensor input. The positions of the steering column and outside
mirror are monitored with each sensor signal that is input from auto
drive positioner control unit via UART communication. Driver seat
control unit stops the operation of each motor when each part reach-
es the recorded address.

4

—

Memory switch Indica-
tor

Driver seat control unit requests the illumination of memory indicator
to auto drive positioner control unit via UART communication after all
motors stop. The auto driving positioner control unit illuminates the
memory indicator for 5 seconds.

ADP-28

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

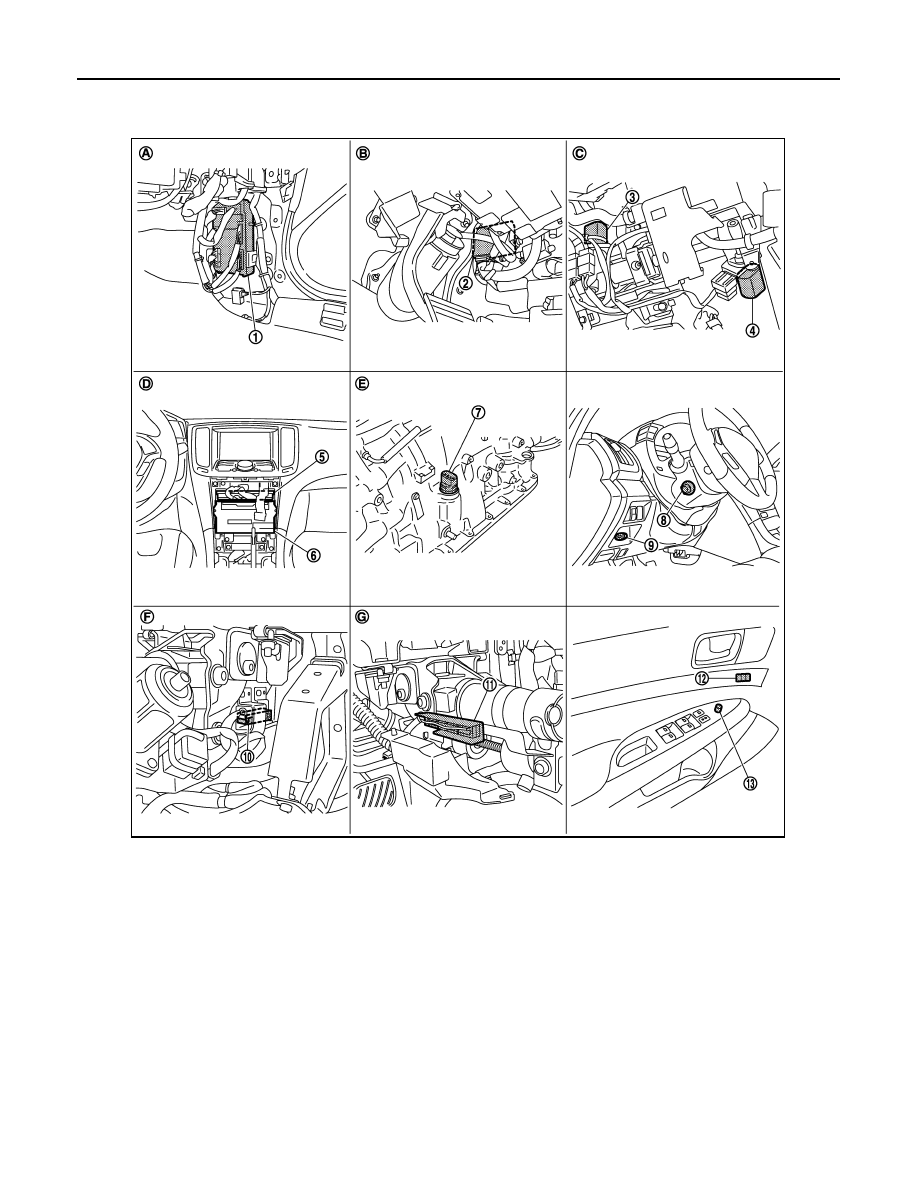

MEMORY FUNCTION : Component Parts Location

INFOID:0000000003586968

1.

BCM M118, M119, M122, M123

2.

Automatic drive positioner control unit
M51, M52

3.

Tilt motor M49

4.

Telescopic motor M49

5.

Unified meter and A/C amp. M67

6.

AV control unit
With NAVI M87, M88
Without NAVI M83, M85

7.

AT assembly connector F51

8.

Tilt & telescopic switch M31

9.

Key slot M22

10. Tilt sensor M48

11.

Telescopic sensor M48

12. Seat memory switch D5

13. Door mirror remote control switch

D17

A.

Dash side lower (Passenger side)

B.

View with instrument driver lower
panel removed

C.

View with steering column cover low-
er and upper removed

D.

Behind cluster lid C

E.

A/T assembly
(TCM is built in A/T assembly)

F.

View with instrument driver lower
panel removed

G

View with steering column cover low-
er and upper removed

JMJIA1472ZZ

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-29

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

MEMORY FUNCTION : Component Description

INFOID:0000000003134630

CONTROL UNITS

INPUT PARTS

Switches

Sensors

14. Front door switch (driver side) B16

15. Control device (detention switch)

M137

16. Sliding, lifting switch

 (Power seat switch B459)

17. Reclining switch (power seat switch

B459)

18.  Door mirror (driver side) D3

19. Reclining motor B454

20.  Driver seat control unit B451, B452

21. Lifting motor (front) B455

22. Lifting motor (rear) B456

23. Sliding motor B461

24. Sliding sensor B453

H.

View with center console assembly
removed

I.

View with seat cushion pad and seat-
back pad removed

J.

Backside of the seat cushion

JMJIA1473ZZ

Item

Function

Driver seat control unit

• The address of each part is recorded.
• Operates each motor of seat to the registered position.
• Requests the operations of steering column and door mirror to automatic drive

positioner control unit

Automatic drive positioner control unit

Operates the steering column and door mirror with the instructions from the driver
seat control.

Item

Function

Memory switch 1/2

The registration and memory function can be performed with its operation.

Item

Function

Door mirror sensor
(driver side/passenger side)

Detect the up/down and left/right position of outside mirror face.

Tilt & telescopic sensor

Detect the up/down and left/right position of steering column.

Lifting sensor (front)

Detect the up/down position of seat lifting (front).

Lifting sensor (rear)

Detect the up/down position of seat lifting (rear).

Reclining sensor

Detect the tilt of seatback.

Sliding sensor

Detect the front/rear position of seat.
