ADP-22

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

Sensors

OUTPUT PARTS

SEAT SYNCHRONIZATION FUNCTION

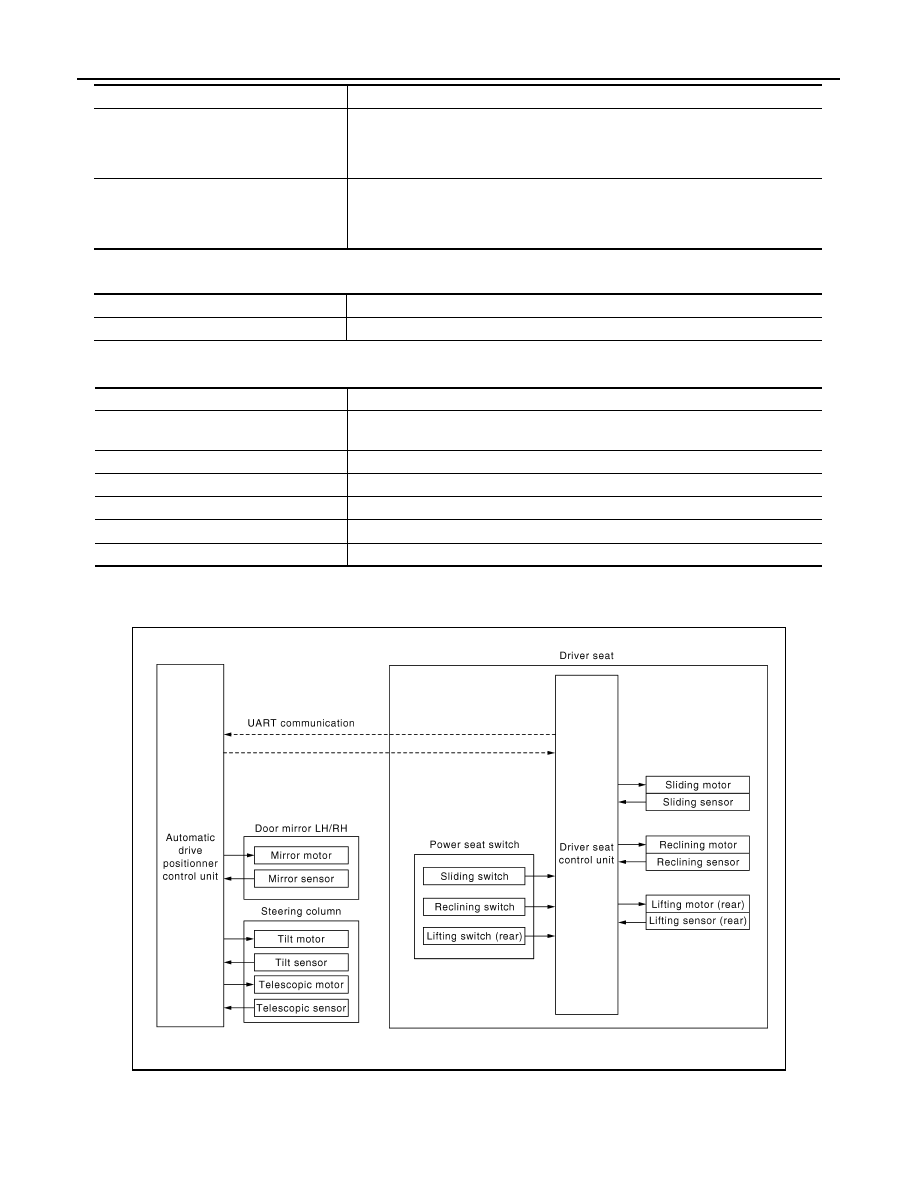

SEAT SYNCHRONIZATION FUNCTION : System Diagram

INFOID:0000000003134623

SEAT SYNCHRONIZATION FUNCTION : System Description

INFOID:0000000003134624

OUTLINE

Tilt & telescopic switch

The following switch is installed.
• Tilt switch
• Telescopic switch
The specific parts can be operated with the operation of each switch.

Door mirror remote control switch

The following switch is installed.
• Mirror switch
• Changeover switch
The specific parts can be operated with the operation of each switch.

Item

Function

Item

Function

Tilt and telescopic sensor

Detect the up/down and left/right position of steering column.

Item

Function

Door mirror motor
(driver side/passenger side)

Move the outside mirror face upward/downward and leftward/rightward.

Tilt & telescopic motor

Move the steering column upward/downward and frontward/rearward.

Lifting motor (front)

Move the seat lifter (front) upward/downward.

Lifting motor (rear)

Move the seat lifter (rear) upward/downward.

Reclining motor

Tilt and raise up the seatback.

Sliding motor

Slide the seat frontward/rearward.

JMJIA0115GB

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-23

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

The steering column position and door mirror position is adjusted to the position automatically according to the
direction and distance of seat movement when performing the manual operation of sliding, reclining or lifting
(rear). This function saves adjusting the mirror and steering column when adjusting the seat.
NOTE:
• This function is set to OFF before delivery (initial setting).
• This function can be stopped by turning both or either of the entry/exit assist function (seat) and the entry/

exit assist function (steering) OFF.
For the system setting procedure. Refer to

ADP-11, "SYSTEM SETTING : Description"

.

OPERATION PROCEDURE

1.

Turn ignition switch ON.

2.

Adjust seat position [sliding, reclining, lifting (rear)].

3.

The steering and outside mirror is adjusted automatically.

NOTE:
• The seat synchronization function will not operate if seat adjusting value is more than limit value.

• The seat synchronization function will not operate if the steering column or door mirror moves to the operat-

ing end while this function is operating. Perform memory function or drive the vehicle at vehicle speed of 7
km/h or more once to activate this function again.

• If the seat position is uncomfortable after the adjustment, seat position can be adjusted easily by memory

operation.

OPERATION CONDITION

Satisfy all of the following items. The seat synchronization function is not performed if these items are not sat-
isfied.

DETAIL FLOW

Item

Limit value

Seat sliding

76 [mm]

Seat reclining

9.1 [degrees]

Seat lifter (rear)

20 [mm]

Item

Request status

Ignition position

ON

System setting [Entry/exit assist function (seat/steering)]

ON

Switch inputs
• Power seat switch
• Tilt & telescopic switch
• Door mirror remote control switch
• Set switch
• Memory switch

OFF

(Not operated)

A/T selector lever

P position

Order

Input

Output

Control unit condition

1

Perform Manual operation [Sliding, reclining or lifting (rear)].

2

Sensors
[Sliding, reclining, lifting
(rear)]

The driver seat control unit judges the direction and distance of
seat movement according to the signal input from each seat sen-
sor during manual operation.

3

Motors
(Tilt, telescopic, out-
side mirror)

Driver seat control unit requests the operation to position accord-
ing to the direction and distance of seat movement to the automat-
ic drive positioner control unit via UART communication. The
automatic drive positioner control unit operates each motor.

Sensors
(Tilt, telescopic, outside
mirror)

Driver seat control unit stops the operation of each motor when the
value of each sensor that is input to automatic drive positioner con-
trol unit via UART communication reaches the target address.

ADP-24

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

SEAT SYNCHRONIZATION FUNCTION : Component Parts Location

INFOID:0000000003586965

1.

BCM M118, M119, M122, M123

2.

Automatic drive positioner control unit
M51, M52

3.

Tilt motor M49

4.

Telescopic motor M49

5.

Unified meter and A/C amp. M67

6.

AV control unit
With NAVI M87, M88
Without NAVI M83, M85

7.

AT assembly connector F51

8.

Tilt & telescopic switch M31

9.

Key slot M22

10. Tilt sensor M48

11.

Telescopic sensor M48

12. Seat memory switch D5

13. Door mirror remote control switch

D17

A.

Dash side lower (Passenger side)

B.

View with instrument driver lower
panel removed

C.

View with steering column cover low-
er and upper removed

D.

Behind cluster lid C

E.

A/T assembly
(TCM is built in A/T assembly)

F.

View with instrument driver lower
panel removed

G

View with steering column cover low-
er and upper removed

JMJIA1472ZZ

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-25

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

SEAT SYNCHRONIZATION FUNCTION : Component Description

INFOID:0000000003134626

CONTROL UNITS

INPUT PARTS

Switches

Sensors

14. Front door switch (driver side) B16

15. Control device (detention switch)

M137

16. Sliding, lifting switch

 (Power seat switch B459)

17. Reclining switch (power seat switch

B459)

18.  Door mirror (driver side) D3

19. Reclining motor B454

20.  Driver seat control unit B451, B452

21. Lifting motor (front) B455

22. Lifting motor (rear) B456

23. Sliding motor B461

24. Sliding sensor B453

H.

View with center console assembly
removed

I.

View with seat cushion pad and seat-
back pad removed

J.

Backside of the seat cushion

JMJIA1473ZZ

Item

Function

Driver seat control unit

Operates the specific seat motor with the signal from the power seat switch.

Automatic drive positioner control unit

Operates the steering motor and door mirror with the instructions from the driver
seat control unit.

Item

Function

Power seat switch

The following switch is installed.
• Reclining switch
• Lifting switch (front)
• Lifting switch (rear)
• Sliding switch
The specific parts can be operated with the operation of each switch.

Item

Function

Door mirror sensor
(driver side/passenger side)

Detect the up/down and left/right position of outside mirror face.

Tilt and telescopic sensor

Detect the up/down and left/right position of steering column.

Lifting sensor (rear)

Detect the up/down position of seat lifter (rear).
