7-60

Maintenance

License Plate Light Bulb
Replacement

1. Using a flat-blade screwdriver,

gently pry the lens cover from the
lamp housing.

2. Remove the bulb by pulling it

straight out.

3. Install a new bulb.
4. Reinstall in the reverse order.

OFE078032

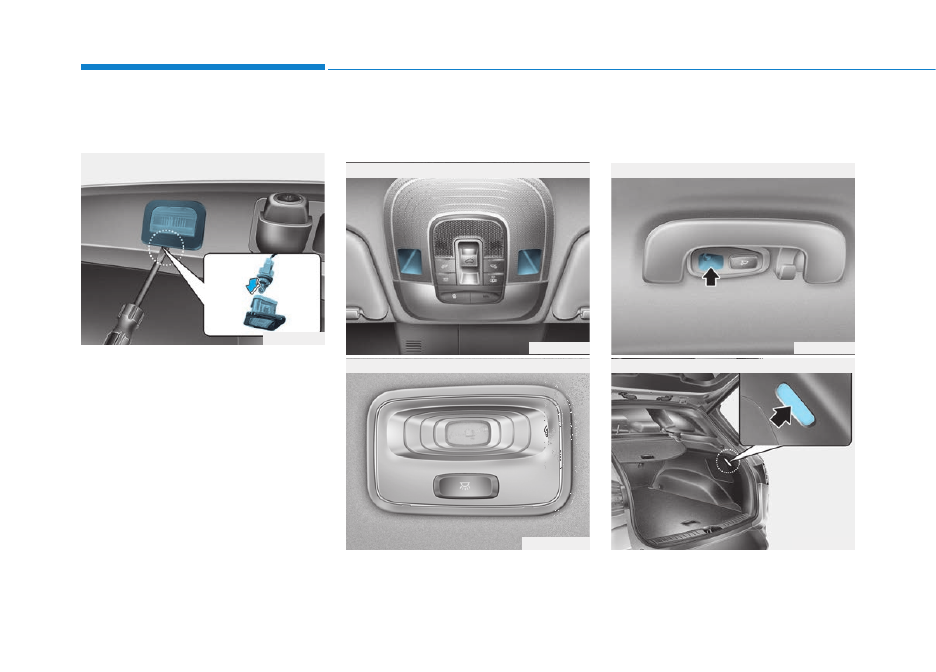

Interior Light Bulb Replacement

Map lamp, room lamp and luggage compartment lamp

OFE078034

Room lamp (Type B)

OFE078036

Luggage compartment lamp

OFE078033

Map lamp

OAEE076027

Room lamp (Type A)

Your vehicle is equipped with LED lamps. LED lamps do not have replace-
able bulbs. If the LED lamp does not operate, have the vehicle checked by an
authorized HYUNDAI dealer.

7-61

7

Maintenance

1. Using a flat-blade screwdriver,

gently pry the lens from the interi-
or lamp housing.

2. Remove the bulb by pulling it

straight out.

3. Install a new bulb in the socket.
4. Align the lens tabs with the interi-

or lamp housing notches and snap
the lens into place.

Use care not to dirty or damage
lens, lens tab, and plastic hous-
ings.

NOTICE

Prior to working on the Interior
Lights, ensure that the lamp is
off to avoid burning your fingers
or receiving an electric shock.

WARNING

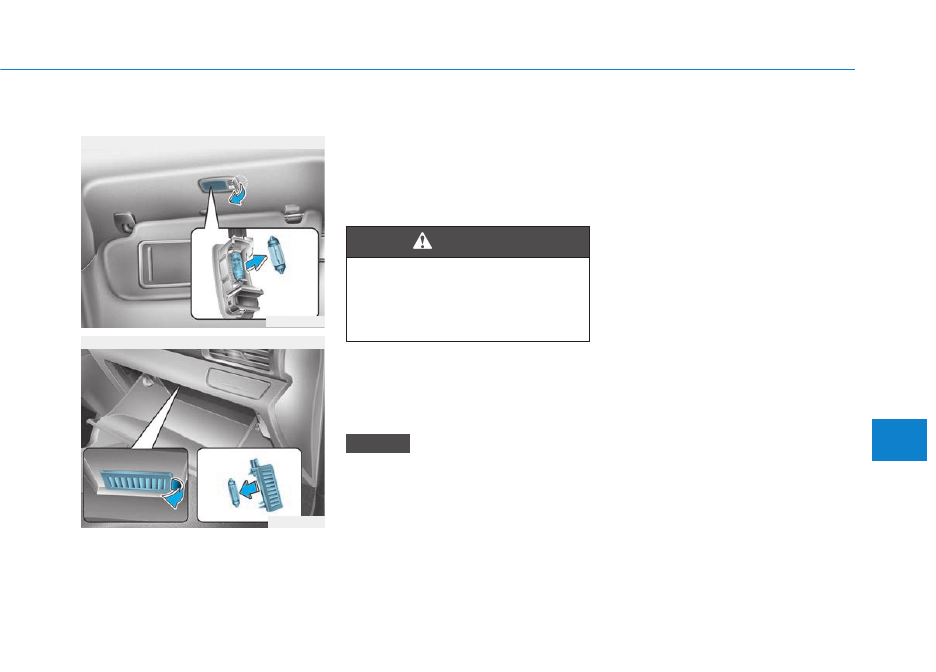

Vanity mirror lamp

Glove box lamp

OFE078035

OFE078037

Vanity mirror lamp and glove box lamp

7-62

Maintenance

A

AP

PP

PE

EA

AR

RA

AN

NC

CE

E  C

CA

AR

RE

E

Exterior Care

Exterior general caution

It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.

High-pressure washing

• When using high-pressure wash-

ers, make sure to maintain suffi-
cient distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.

• Do not spray the camera, sensors

or its surrounding area directly with
a high pressure washer. Shock
applied from high pressure water
may cause the device to not oper-
ate normally.

• Do not bring the nozzle tip close to

boots (rubber or plastic covers)or
connectors as they may be dam-
aged if they come into contact with
high pressure water.

• Do not use any high-pressure noz-

zles, which induce either one-direct
water stream or water swirling.

Protecting your vehicle’s finish

Washing

To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign
materials. Make sure the drain holes
in the lower edges of the doors and
rocker panels are kept clear and
clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain
water may not completely remove all
these deposits. A mild soap, safe for
use on painted surfaces, should be
used.

After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the fin-
ish.

After washing the vehicle, test
the brakes while driving slowly
to see if they have been affected
by water before getting on the
road. If braking performance is
impaired, dry the brakes by
applying them lightly while
maintaining a slow forward
speed.

WARNING

7-63

7

Maintenance

• Do not use strong soap, chemi-

cal detergents or hot water, and
do not wash the vehicle in direct
sunlight or when the body of the
vehicle is warm.

• Be careful when washing the

side windows of your vehicle.
Especially, with high-pressure
water, water may leak through
the windows and wet the interi-
or.

• To prevent damage to the plastic

parts, do not clean with chemi-
cal solvents or strong deter-
gents.

• Water washing in the fuel cell

power module compartment
including high pressure water
washing may cause the failure
of electrical circuits located in
the fuel cell power module com-
partment.

• Never allow water or other liquids

to come in contact with electri-
cal/electronic components inside
the vehicle as this may damage
them.

Matte paint finish vehicle
Automatic car wash which uses
rotating brushes should not be
used as this can damage the sur-
face of your vehicle. A steam
cleaner which washes the vehicle
surface at high temperature may
result the oil to adhere and leave
stains that is difficult to remove.
Use a soft cloth (for example,
microfiber towel or sponge) when
washing your vehicle and dry with
a microfiber towel. When you hand
wash your vehicle, you should not
use a cleaner that finishes with
wax. If the vehicle surface is too
dirty (sand, dirt, dust, contami-
nant, etc.), clean the surface with
water before washing the car.

NOTICE

NOTICE

NOTICE

OFE078045N

7-64

Maintenance

Waxing

A good coat of wax provides a barri-
er between your paint and environ-
mental contamination.
Keeping a good coat of wax on your
vehicle will help protect it.
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle
before waxing. Use a good quality
liquid or paste wax, and follow the
manufacturer’s instructions. Wax all
metal trim to protect it and to main-
tain its luster.
Removing oil, tar, and similar materi-
als with a spot remover will usually
strip the wax from the finish. Be sure
to re-wax these areas even if the rest
of the vehicle does not yet need wax-
ing.

• Wiping dust or dirt off the body

with a dry cloth will scratch the
finish.

• Do not use steel wool, abrasive

cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plat-
ed or anodized aluminum parts.
This may result in damage to the
protective coating and cause
discoloration or paint deteriora-
tion.

Matte paint finish vehicle
Do not use any polish protector
such as a detergent, an abrasive
and a polish. In case wax is
applied, remove the wax immedi-
ately using a silicon remover and
if any tar or tar contaminant is on
the surface use a tar remover to
clean. However, be careful not to
apply too much pressure on the
painted area.

Repairing your vehicle’s finish

Deep scratches or stone chips in the
painted surface must be repaired
promptly. Exposed metal will quickly
rust and may develop into a major
repair expense.

If your vehicle is damaged and
requires any metal repair or
replacement, be sure the body
shop applies anti-corrosion mate-
rials to the parts repaired or
replaced.

Matte paint finish vehicle
In case of matte paint finish vehi-
cles, it is impossible to modify
only the damaged area and repair
of the whole part is necessary. If
the vehicle is damaged and paint-
ing is required, have your vehicle
maintained and repaired by an
authorized HYUNDAI dealer. Take
extreme care, as it is difficult to
restore the quality after the repair.

NOTICE

NOTICE

NOTICE

NOTICE

7-65

7

Maintenance

Bright-metal maintenance

• To remove road tar and insects,

use a tar remover, not a scraper or
other sharp object.

• To protect the surfaces of bright-

metal parts from corrosion, apply a
coating of wax or chrome preser-
vative and rub to a high luster.

• During winter weather or in coastal

areas, cover the bright metal parts
with a heavier coating of wax or
preservative. If necessary, coat the
parts with non-corrosive petroleum
jelly or other protective compound.

Underbody maintenance

Corrosive materials used for ice and
snow removal and dust control may
collect on the underbody. If these
materials are not removed, acceler-
ated rusting can occur on underbody
parts such as the fuel lines, frame,
floor pan and exhaust system, even
though they have been treated with
rust protection.

Thoroughly flush the vehicle under-
body and wheel openings with luke-
warm or cold water once a month,
after off-road driving and at the end
of each winter. Pay special attention
to these areas because it is difficult
to see all the mud and dirt. It will do
more harm than good to wet down
the road grime without removing it.
The lower edges of doors, rocker
panels, and frame members have
drain holes that should not be
allowed to clog with dirt; trapped
water in these areas can cause rust-
ing.

Aluminum wheel maintenance

The aluminum wheels are coated
with a clear protective finish.

• Do not use abrasive cleaner, pol-

ishing compound, solvent, or
wire brushes on aluminum
wheels.

• Clean the wheel when it has

cooled.

• Use only a mild soap or neutral

detergent, and rinse thoroughly
with water. Also, clean the
wheels after driving on salted
roads.

• Do not wash the wheels with

high-speed car wash brushes.

• Do not use any cleaners con-

taining acid or alkaline deter-
gents.

NOTICE

After washing the vehicle, test
the brakes while driving slowly
to see if they have been affected
by water. If braking performance
is impaired, dry the brakes by
applying them lightly while
maintaining a slow forward
speed.

WARNING

7-66

Maintenance

Corrosion protection

Protecting your vehicle from corro-
sion

By using the most advanced design
and construction practices to combat
corrosion, HYUNDAI produces cars
of the highest quality. However, this is
only part of the job. To achieve the
long-term corrosion resistance your
vehicle can deliver, the owner’s
cooperation and assistance is also
required.

Common causes of corrosion

The most common causes of corro-
sion on your vehicle are:
• Road salt, dirt and moisture that is

allowed to accumulate underneath
the vehicle.

• Removal of paint or protective

coatings by stones, gravel, abra-
sion or minor scrapes and dents
which leave unprotected metal
exposed to corrosion.

High-corrosion areas

If you live in an area where your vehi-
cle is regularly exposed to corrosive
materials, corrosion protection is
particularly important. Some of the
common causes of accelerated cor-
rosion are road salts, dust control
chemicals, ocean air and industrial
pollution.

Moisture breeds corrosion

Moisture creates the conditions in
which corrosion is most likely to
occur. For example, corrosion is
accelerated by high humidity, partic-
ularly when temperatures are just
above freezing. In such conditions,
the corrosive material is kept in con-
tact with the car surfaces by moisture
that is slow to evaporate.
Mud is particularly corrosive
because it is slow to dry and holds
moisture in contact with the vehicle.
Although the mud appears to be dry,
it can still retain the moisture and
promote corrosion.

High temperatures can also acceler-
ate corrosion of parts that are not
properly ventilated so the moisture
can be dispersed. For all these rea-
sons, it is particularly important to
keep your vehicle clean and free of
mud or accumulations of other mate-
rials. This applies not only to the vis-
ible surfaces but particularly to the
underside of the vehicle.

To help prevent corrosion

Keep your car clean
The best way to prevent corrosion is
to keep your vehicle clean and free
of corrosive materials. Attention to
the underside of the vehicle is partic-
ularly important.

•  If you live in a high-corrosion area,

(where road salts are used, near
the ocean, areas with industrial
pollution, acid rain, etc.), you
should take extra care to prevent
corrosion. In winter, hose off the
underside of your vehicle at least
once a month and be sure to clean
the underside thoroughly when
winter is over.

7-67

7

Maintenance

• When cleaning underneath the

vehicle, pay particular attention to
the components under the fenders
and other areas that are hidden
from view. Do a thorough job; just
dampening the accumulated mud
rather than washing it away will
accelerate corrosion rather than
prevent it. Water under high pres-
sure and steam are particularly
effective in removing accumulated
mud and corrosive materials.

•  When cleaning lower door panels,

rocker panels and frame members,
be sure that drain holes are kept
open so that moisture can escape
and not be trapped inside to accel-
erate corrosion.

Keep your garage dry
Don’t park your car in a damp, poor-
ly ventilated garage. This creates a
favorable environment for corrosion.
This is particularly true if you wash
your vehicle in the garage or drive it
into the garage when it is still wet or
covered with snow, ice or mud. Even
a heated garage can contribute to
corrosion unless it is well ventilated
so moisture is dispersed.

Keep paint and trim in good condition
Scratches or chips in the finish
should be covered with "touch-up"
paint as soon as possible to reduce
the possibility of corrosion. If bare
metal is showing through, the atten-
tion of a qualified body and paint
shop is recommended.
Bird droppings are highly corrosive
and may damage painted surfaces in
just a few hours. Always remove bird
droppings as soon as possible.

Interior Care

Interior general precautions

Prevent caustic solutions such as
perfume and cosmetic oil, from con-
tacting the interior parts because
they may cause damage or discol-
oration. If they do contact the interior
parts, wipe them off immediately.
See the instructions for the proper
way to clean vehicle interior sur-
faces.

• Never allow water or other liq-

uids to come in contact with
electrical/electronic compo-
nents inside the vehicle as this
may damage them.

• When cleaning leather products

(steering wheel, seats etc.), use
neutral detergents or low alco-
hol content solutions. If you use
high alcohol content solutions
or acid/alkaline detergents, the
color of the leather may fade or
the surface may get stripped off.

NOTICE

7-68

Maintenance

Cleaning the upholstery and
interior trim

Vehicle interior surfaces (if
equipped)

Remove dust and loose dirt from
interior surfaces with a whisk broom
or a vacuum cleaner.
If necessary, clean interior surfaces
with a mixture of warm water and
mild non-detergent cleaner (test all
cleaners on a concealed area before
use).

Fabric (if equipped)

Remove dust and loose dirt from fab-
ric with a whisk broom or vacuum
cleaner. Clean with a mild soap solu-
tion recommended for upholstery or
carpets. Remove fresh spots imme-
diately with a fabric spot cleaner. If
fresh spots do not receive immediate
attention, the fabric can be stained
and its color can be affected. Also, its
fire-resistant properties can be
reduced if the material is not proper-
ly maintained.

Using anything but recommended
cleaners and procedures may
affect the fabric's appearance and
fire-resistant properties.

Leather (if equipped)

• Feature of Seat Leather

- Leather is made from the outer

skin of an animal, which goes
through a special process to be
available for use. Since it is a nat-
ural object, each part differs in
thickness or density.

Wrinkles may appear as a natural

result of stretching and shrinking
depending on the temperature
and humidity.

- The seat is made of stretchable

fabric to improve comfort.

- The parts contacting the body are

curved and the side supporting
area is high which provides driv-
ing comfort and stability.

- Wrinkles may appear naturally

from usage. It is not a fault of the
products.

NOTICE

Wrinkles or abrasions which
appear naturally from usage
are not covered by warranty.

Belts with metallic acces-
sories, zippers or keys inside
the back pocket may damage
the seat fabric.

Make sure not to wet the seat.
It may change the nature of
natural leather.

Jeans or clothes which could
bleach may contaminate the
surface of the seat covering
fabric.

CAUTION

7-69

7

Maintenance

• Caring for the leather seats

- Vacuum the seat periodically to

remove dust and sand on the
seat. It will prevent abrasion or
damage of the leather and main-
tain its quality.

- Wipe the natural leather seat

cover often with dry or soft cloth.

- Use of proper leather protective

may prevent abrasion of the
cover and helps maintain the
color. Be sure to read the instruc-
tions and consult a specialist
when using leather coating or
protective agent.

Light colored (beige, cream
beige) leather is easily contami-
nated and the stain is noticeable.
Clean the seats frequently.

- Avoid wiping with wet cloth. It may

cause the surface to crack.

• Cleaning the leather seats

Remove all contaminations
instantly. Refer to instructions
below for removal of each con-
taminant.

- Cosmetic products (sunscreen,

foundation, etc.)

Apply cleansing cream on a cloth
and wipe the contaminate spot.
Wipe off the cream with a wet
cloth and remove water with a dry
cloth.

- Beverages (coffee, soft drink,

etc.)

Apply a small amount of neutral
detergent and wipe until contami-
nations do not smear.

- Oil

Remove oil instantly with
absorbable cloth and wipe with
stain remover used only for natu-
ral leather.

- Chewing gum

Harden the gum with ice and
remove gradually.

Cleaning the seat belt webbing

Clean the belt webbing with any mild
soap solution recommended for
cleaning upholstery or carpet. Follow
the instructions provided with the
soap. Do not bleach or re-dye the
webbing because this may weaken
the seat belt.

Cleaning the interior window
glass

If the interior glass surfaces of the
vehicle become fogged (that is, cov-
ered with an oily, greasy or waxy
film), they should be cleaned with
glass cleaner. Follow the directions
on the glass cleaner container.

Do not scrape or scratch the
inside of the rear window. This
may result in damage to the rear
window defroster grid.

NOTICE

7-70

Maintenance

C

CA

AL

LIIF

FO

OR

RN

NIIA

A  P

PE

ER

RC

CH

HL

LO

OR

RA

AT

TE

E  N

NO

OT

TIIC

CE

E

Perchlorate Material-special handling may apply, See: https://dtsc.ca.gov/perchlorate

Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).

8

8

8

Specif

ications & Consumer inf

ormation

8

Specifications, Consumer information and Reporting safety defects

8

Dimensions ..............................................................8-2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-4
Volume and Weight................................................8-5
Air Conditioning System........................................8-5
Recommended Lubricants and Capacities ..........8-6
Vehicle Identification Number (VIN) ...................8-7
Vehicle Certification Label....................................8-7
Tire Specification and Pressure Label................8-8
Motor Number ........................................................8-8
Consumer Information...........................................8-9
Reporting Safety Defects ...................................8-10

D

DIIM

ME

EN

NS

SIIO

ON

NS

S

8-2

Specifications, Consumer information and Reporting safety defects

Items

in (mm)

Overall length

183.86 (4,670)

Overall width

73.23 (1,860)

Overall height

Without roof side rails : 64.17 (1,630)

With roof side rails : 64.57 (1,640)

Front tread

225/60 R17

63.70 (1,618)

245/45 R19

63.54 (1,614)

Rear tread

225/60 R17

64.13 (1,629)

245/45 R19

63.98 (1,625)

Wheelbase

109.84 (2,790)

8-3

8

8

Specif

ications

, Consumer inf

ormation and Re

porting saf

ety def

ects

B

BU

UL

LB

B  W

WA

AT

TT

TA

AG

GE

E

Light Bulb

Bulb Type

Wattage

Front

Headlight

Low/High

LED

LED

Turn signal lamp

LED

LED

Front center lamp

LED

LED

Parking lamp

LED

LED

Daytime running lamp (DRL)

LED

LED

Side Repeater lamp (Outside mirror)

LED

LED

Side marker

LED

LED

Rear

Rear combination lamp

Stop

LED

LED

Tail

LED

LED

Turn signal

LED

LED

Back up

LED

LED

Side marker

LED

LED

High mounted stop lamp

LED

LED

License plate lamp

W5W

5

Interior

Map lamp

LED

LED

Room lamp

LED

LED

Vanity mirror lamp

FESTOON

5

Luggage compartment lamp

LED

LED

Glove box lamp

FESTOON

5

8-4

Specifications, Consumer information and Reporting safety defects

T

TIIR

RE

ES

S  A

AN

ND

D  W

WH

HE

EE

EL

LS

S

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the drivetrain, cause driveability issues, and possibly cause
damage.

CAUTION

If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.

Items

Tire Size

Wheel Size

Inflation Pressure kPa (psi)

Wheel Lug Nut

Torque kgf

(lbf

ft, N

m)

Normal Load *

1

Maximum Load *

2

Front

Rear

Front

Rear

Full size tire

225/60 R17

7.0J X 17

250 (36)

250 (36)

250 (36)

250 (36)

11~13

(79~94, 07~127)

245/45 R19

7.5J X 19

• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect-

ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.

• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you

plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)

NOTICE

*

1

: Normal load : Up to 3 persons

*

2

: Maximum load : Up to 5 persons

8-5

8

8

Specif

ications

, Consumer inf

ormation and Re

porting saf

ety def

ects

V

VO

OL

LU

UM

ME

E  A

AN

ND

D  W

WE

EIIG

GH

HT

T

A

AIIR

R  C

CO

ON

ND

DIIT

TIIO

ON

NIIN

NG

G  S

SY

YS

ST

TE

EM

M

Contact an authorized HYUNDAI dealer for more details.

Gross Vehicle Weight

lbs. (kg)

Luggage Volume                cu ft (

l

)

Min.

Max.

5,159 (2,340)

16.28(461)

51.77 (1,466)

Items

Weight of Volume

Classification

Refrigerant

oz. (g)

20.28±0.88 (575±25)

R-1234yf

Compressor lubricant

oz. (cc)

4.59±0.35 (130±10)

POE

8-6

Specifications, Consumer information and Reporting safety defects

R

RE

EC

CO

OM

MM

ME

EN

ND

DE

ED

D  L

LU

UB

BR

RIIC

CA

AN

NT

TS

S  A

AN

ND

D  C

CA

AP

PA

AC

CIIT

TIIE

ES

S

To help achieve proper vehicle performance and durability, use only lubricants of the proper quality.
These lubricants and fluids are recommended for use in your vehicle.

Lubricant

Volume

Classification

Reduction gear fluid

1.06 US qt (1

l

)

GL4 75W/85, TGO-9

Coolant

Fuel cell stack

We recommend that you consult an authorized Hyundai dealer.

Traction motor

Brake fluid

Amount required

SAE J1704 DOT-4LV,
FMVSS116 DOT-4,
ISO4925 CLASS-6

Fuel

165.48 US qt. (156.6

l

) Hydrogen (SAE J2719 or ISO 14687-2)

8-7

8

8

Specif

ications

, Consumer inf

ormation and Re

porting saf

ety def

ects

The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.

The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.

The vehicle certification label attached
on the driver's side center pillar gives
the Vehicle Identification Number
(VIN).

V

VE

EH

HIIC

CL

LE

E  IID

DE

EN

NT

TIIF

FIIC

CA

AT

TIIO

ON

N  N

NU

UM

MB

BE

ER

R  ((V

VIIN

N))

OFE088005L

VIN label (if equipped)

OFE088001

Frame number

OFE088002

V

VE

EH

HIIC

CL

LE

E  C

CE

ER

RT

TIIF

FIIC

CA

AT

TIIO

ON

N

L

LA

AB

BE

EL

L

8-8

Specifications, Consumer information and Reporting safety defects

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pres-
sures recommended for your car.

The motor number can be seen from
under the vehicle.

T

TR

RA

AC

CT

TIIO

ON

N  M

MO

OT

TO

OR

R  N

NU

UM

MB

BE

ER

R

T

TIIR

RE

E  S

SP

PE

EC

CIIF

FIIC

CA

AT

TIIO

ON

N  A

AN

ND

D

P

PR

RE

ES

SS

SU

UR

RE

E  L

LA

AB

BE

EL

L

OFE088003

OFE088004N

8-9

8

8

Specif

ications

, Consumer inf

ormation and Re

porting saf

ety def

ects

C

CO

ON

NS

SU

UM

ME

ER

R  IIN

NF

FO

OR

RM

MA

AT

TIIO

ON

N

This consumer information has been prepared in accordance with regulations issued by the National Highway Traffic
Safety Administration of the U.S. Department of Transportation. Your HYUNDAI dealer will help answer any questions
you may have as you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in this Owner’s Manual, particularly
the information under the headings

"NOTICE", "CAUTION" and "WARNING".

If, after reading this manual, you have any questions regarding the operation of your vehicle, please contact the
Hyundai Customer Care Center:

HYUNDAI Customer Care

P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
consumeraffairs@hmausa.com

Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available Monday through Friday between
6:30 AM and 3:00 PM PST.

8-10

Specifications, Consumer information and Reporting safety defects

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying HYUNDAI
MOTOR AMERICA.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888- 327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA

1200 New Jersey Ave, SE.,
West Building Washington, D.C. 20590.

You can also obtain other information about motor vehicle safety from http://www.safercar.gov.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group
of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual prob-
lems between you, your dealer, or HYUNDAI MOTOR AMERICA.

R

RE

EP

PO

OR

RT

TIIN

NG

G  S

SA

AF

FE

ET

TY

Y  D

DE

EF

FE

EC

CT

TS

S

I-2

12V Battery.....................................................................7-27

Battery recharging ......................................................7-28
Reset Features ............................................................7-28

Accessing Your Vehicle ....................................................3-4

Immobilizer System....................................................3-11
Smart Key.....................................................................3-4

Active Hood Lift System ................................................2-70

System activation .......................................................2-70
System limitation........................................................2-71
System malfunction....................................................2-72

Air Bag - Advanced Supplemental Restraint System.....2-47

Additional Safety Precautions....................................2-69
Air Bag Warning Labels.............................................2-69
How Does the Air Bag System Operate?...................2-52
Occupant Classification System (OCS) .....................2-58
SRS Care ....................................................................2-68
What to Expect After an Air Bag Inflates ..................2-57
Where Are the Air Bags? ...........................................2-49
Why Didn't My Air Bag Go Off in a Collision?........2-63

Air Cleaner......................................................................7-20

Filter Replacement .....................................................7-20

Air Conditioning System ..................................................8-5
Appearance Care.............................................................7-62

Exterior Care ..............................................................7-62
Interior Care ...............................................................7-67

Automatic Climate Control System..............................3-151

Automatic Temperature Control Mode ....................3-152
Manual Temperature Control Mode.........................3-152
System Maintenance ................................................3-160
System Operation .....................................................3-158

Before Driving ..................................................................5-4

Before Entering the Vehicle .........................................5-4
Before Starting .............................................................5-4

Blind-Spot Collision-Avoidance Assist (BCA) ..............5-67

Blind-Spot Collision-Avoidance Assist description...5-67
Blind-Spot Collision-Avoidance Assist setting and
activation ....................................................................5-68
Warning message and function control ......................5-71

Blind-Spot View Monitor (BVM) ..................................5-85

Blind-Spot View Monitor warning.............................5-86
Operating conditions ..................................................5-85

Brake Fluid .....................................................................7-19

Checking the Brake Fluid Level ................................7-19

Braking System...............................................................5-19

Anti-lock Brake System (ABS)..................................5-30
Auto Hold ...................................................................5-26
Disc Brake Wear Indicator .........................................5-20
Electronic Parking Brake (EPB) ................................5-20
Electronic Stability Control (ESC).............................5-32
Good Braking Practices..............................................5-37
Hill-Start Assist Control (HAC).................................5-37

Index

A

B

I-3

Power Brakes..............................................................5-19
Vehicle Stability Management (VSM) .......................5-35

Bulb Wattage.....................................................................8-3

California Perchlorate Notice .........................................7-70
Center Console Overview.................................................1-5
Child Restraint System (CRS) ........................................2-36

Children Always in the Rear ......................................2-36
Installing a Child Restraint System (CRS) ................2-39
Selecting a Child Restraint System (CRS).................2-37

Climate Control Additional Features ............................3-166

Air Conditioning Auto-drying..................................3-166
Automatic Ventilation...............................................3-167
Sunroof Inside Air Recirculation .............................3-167

Climate Control Air Filter...............................................7-22

Filter Inspection..........................................................7-22

Cluster Display ...............................................................3-84

Cluster Display Control..............................................3-84
Cluster Display Modes ...............................................3-85

Consumer Information ......................................................8-9

Declaration of Conformity............................................5-125

Front Radar...............................................................5-125
Rear Corner Radar....................................................5-125

Device Cooling Coolant .................................................7-13

Changing Coolant ......................................................7-15
Checking the Coolant Level.......................................7-13

Dimensions .......................................................................8-2
Door Locks .....................................................................3-12

Automatic Door Lock and Unlock Features ..............3-18
Child-Protector Rear Door Locks ..............................3-19
Door locking from outside the vehicle.......................3-15
Door unlocking from outside the vehicle...................3-12
Operating Door Locks from Inside the Vehicle .........3-15

Drive Mode Integrated Control System .........................5-38

Drive mode change alert ............................................5-39
ECO mode climate control.........................................5-39

Driver Attention Warning (DAW) ..................................5-80

Driver Attention Warning malfunction ......................5-83
Driver Attention Warning setting and activation .......5-80
Driver Attention Warning standby .............................5-82
Resetting Driver Attention Warning...........................5-82

Explanation of Scheduled Maintenance Items ...............7-12
Exterior Features ..................................................3-44/3-181

Emergency Fuel Filler Door Release .........................3-59
Fuel Filler Door..........................................................3-57
Hood ...........................................................................3-44
Non-Powered Liftgate ................................................3-45
Power Liftgate ............................................................3-47
Roof Side Rails ........................................................3-181
Smart Liftgate.............................................................3-54

I

Inde

x

C

D

E

I-4

Exterior Lights ................................................................3-94

Battery Saver Function...............................................3-97
Daytime Running Light (DRL)..................................3-98
Headlight Leveling Device ........................................3-98
Headlight Time-out Function .....................................3-97
High Beam Operation ................................................3-95
Lighting Control .........................................................3-94
Turn Signals and Lane Change Signals .....................3-96
Welcome System ........................................................3-98

Exterior Overview (Front View).......................................1-2
Exterior Overview (Rear View)........................................1-3

Forward Collision-Avoidance Assist (FCA)
(Sensor Fusion) ...............................................................5-40

Detecting sensor .........................................................5-45
Forward Collision-Avoidance Assist malfunction .....5-47
Forward Collision-Avoidance Assist setting and
activation ....................................................................5-40
Forward Collision-Avoidance Assist warning message
and function control ...................................................5-42
Lane-Change oncoming function ...............................5-55
Limitations of Forward Collision-Avoidance Assist..5-49
Limitations of the function.........................................5-56
Warning message and function control ......................5-55

Forward/Reverse Parking Distance Warning (PDW) ...3-113
Fuel Cell Power Module Compartment Overview ....1-6/7-3

Fuses ...............................................................................7-45

Fuel cell power module compartment Panel Fuse
Replacement ...............................................................7-47
Fuse/Relay Panel Description ....................................7-49
Instrument Panel Fuse Replacement  ........................7-46

H

2

O OUT ........................................................................3-92

CSD (Cold Shut-Down) .............................................3-93

Hazard Warning Flasher ...................................................6-2
High Beam Assist (HBA) .............................................3-103

High Beam Assist malfunction and limitations .......3-105
High Beam Assist operation.....................................3-104
High Beam Assist settings........................................3-103

If the 12 V Battery is Discharged .....................................6-5

Before Jump Starting....................................................6-5
Jump Starting................................................................6-6

If the Vehicle Overheats....................................................6-9
If the Vehicle will Not Start ..............................................6-4

If the vehicle stalls while driving.................................6-4
If you have a flat tire while driving .............................6-4

If You Have a Flat Tire (with Tire Mobility Kit) ...........6-17

Index

F

H

I

I-5

Important Safety Precautions............................................2-2

Air Bag Hazards ...........................................................2-2
Always Wear Your Seat Belt ........................................2-2
Control Your Speed ......................................................2-3
Driver Distraction.........................................................2-2
Keep Your Vehicle in Safe Condition ..........................2-3
Restrain All Children....................................................2-2

In Case of an Emergency While Driving .........................6-2

Emergency venting of hydrogen gas............................6-3
If a fire occurs ..............................................................6-3
If a submersion in water occurs ...................................6-3
If an accident occurs.....................................................6-2
If the vehicle stalls at a crossroad or crossing .............6-3

Infotainment system..........................................................4-2

Antenna ........................................................................4-2
Blue Link

®

Center ........................................................4-4

Bluetooth

®

Wireless Technology .................................4-4

Infotainment System ....................................................4-4
Steering Wheel Audio Control .....................................4-3
USB port ......................................................................4-2

Instrument Cluster...........................................................3-60

Cluster Display Messages ..........................................3-79
Gauges and Meters .....................................................3-62
Instrument Cluster Control.........................................3-62
Warning and Indicator lights ......................................3-68

Interior Features ............................................................3-169

AC Inverter...............................................................3-172
Cargo Security Screen ..............................................3-179
Clock ........................................................................3-177
Coat Hook ................................................................3-177
Cup Holder ...............................................................3-169
Floor Mat Anchor(s).................................................3-178
Luggage Net Holder .................................................3-178
Power Outlet.............................................................3-171
Sunvisor....................................................................3-170
USB Charger ............................................................3-173
Wireless Cellular Phone Charging System ..............3-174

Interior Lights ...............................................................3-100

Front Lamps .............................................................3-100
Glove Box Lamp ......................................................3-102
Interior Lamp AUTO Cut.........................................3-100
Luggage Compartment Lamp ..................................3-101
Puddle Lamp ............................................................3-102
Rear Lamp ................................................................3-101
Vanity Mirror Lamp .................................................3-101

Interior Overview..............................................................1-4

Lane Following Assist (LFA) .......................................5-108

Lane Following Assist operation..............................5-109
Limitations of Lane Following Assist ......................5-113
Warning message ......................................................5-111

I

Inde

x

L

I-6

Lane Keeping Assist (LKA) ...........................................5-57

Driver's attention ........................................................5-64
Lane Keeping Assist function change........................5-66
Lane Keeping Assist operation ..................................5-58
Warning light and message ........................................5-66

Leading Vehicle Departure Alert ..................................5-106

Leading Vehicle Departure Alert Setting and Operating
Conditions ................................................................5-106

Light Bulbs .....................................................................7-57

Headlight, front center lamp, turn signal lamp,
daytime running lamp, parking lamp,
side marker replacement.............................................7-58
High mounted stop lamp ............................................7-59
Interior Light Bulb Replacement ...............................7-60
License Plate Light Bulb Replacement .....................7-60
Rear Combination Light Bulb Replacement .............7-59
Side Repeater Lamp Replacement .............................7-58

Maintenance Services .......................................................7-4

Owner Maintenance Precautions..................................7-4
Owner's Responsibility.................................................7-4

Mirrors ............................................................................3-24

Inside Rearview Mirror ..............................................3-24
Side View Mirrors ......................................................3-32

Motor Number ..................................................................8-8

Owner Maintenance ..........................................................7-5

Owner maintenance schedule.......................................7-6

Paddle Shifter (Regenerative Braking Control) .............5-17
Power Button ....................................................................5-6

POWER Button Positions ............................................5-7
Starting the Vehicle ......................................................5-9
Turning Off the Vehicle..............................................5-10

Rear Cross-Traffic Collision-Avoidance Assist (RCCA) .5-115

Rear Cross-Traffic Collision-Avoidance Assist setting
and activation............................................................5-115
Warning message and function control ....................5-117

Rear View Monitor (RVM) ...........................................3-111
Recommended Lubricants and Capacities........................8-6
Reduction Gear ...............................................................5-11

Cluster Display Messages ..........................................5-13
Good Driving Practices ..............................................5-16
Parking........................................................................5-13
Reduction Gear Operation..........................................5-11

Index

M

O

P

R

I-7

Remote Smart Parking Assist (RSPA) ..........................3-117

Additional instructions (messages) ..........................3-147
How Smart Parking function works.........................3-124
How the Remote Moving Forward/Backward function
works ........................................................................3-142
How the remote parking function works .................3-131
How the Smart Exit function works.........................3-135
Limitations of Remote Smart Parking Assist...........3-120
Link with other systems ...........................................3-150
Non-operating condition...........................................3-119
Operating condition ..................................................3-118
Smart key showing vehicle state while the function in
activation ..................................................................3-149
Turn signal showing vehicle state while the function in
activation ..................................................................3-148

Reporting Safety Defects ................................................8-10

Scheduled Maintenance Services .....................................7-7

Maintenance Under Severe Usage Conditions...........7-10
Normal Maintenance Schedule ....................................7-8

Seat Belts ........................................................................2-21

Additional Seat Belt Safety Precautions ....................2-32
Care of Seat Belts.......................................................2-35
Seat Belt Restraint System .........................................2-24
Seat Belt Safety Precautions ......................................2-21
Seat Belt Warning Light .............................................2-22

Seats ..................................................................................2-4

Front Seats....................................................................2-6
Head Restraints ..........................................................2-13
Rear Seats ...................................................................2-10
Safety Precautions ........................................................2-5
Seat Warmers and Air Ventilation Seats.....................2-17

Smart Cruise Control(SCC) ............................................5-87

Limitations of Smart Cruise Control........................5-101
Sensor to detect distance to the vehicle ahead...........5-98
Smart Cruise Control speed .......................................5-88
Smart Cruise Control Switch .....................................5-87
Smart Cruise Control Vehicle-to-Vehicle Distance....5-94
To adjust the sensitivity of Smart Cruise Control....5-100
To convert to Cruise Control mode..........................5-100

Special Driving Conditions...........................................5-126

Driving at Night .......................................................5-127
Driving in Flooded Areas .........................................5-128
Driving in the Rain...................................................5-127
Hazardous Driving Conditions.................................5-126
Highway Driving......................................................5-128
Reducing the Risk of a Rollover..............................5-129
Rocking the Vehicle .................................................5-126
Smooth Cornering ....................................................5-127

Stack Cooling Coolant ....................................................7-16

Changing Coolant ......................................................7-18
Checking the Coolant Level.......................................7-16

I

Inde

x

S

I-8

Steering Wheel................................................................3-21

Heated Steering Wheel...............................................3-23
Horn............................................................................3-23
Motor Driven Power Steering (MDPS) .....................3-21
Tilt Steering / Telescope Steering ..............................3-22

Storage Compartment ...................................................3-168

Center Console Storage ............................................3-168
Glove Box ................................................................3-168

Surround View Monitor (SVM)....................................3-112

Theft-Alarm System .......................................................3-20
Tire Pressure Monitoring System (TPMS) .....................6-11

Changing a Tire with TPMS ......................................6-15
Check Tire Pressure....................................................6-11
Low Tire Pressure Position Telltale and Tire Pressure
Telltale ........................................................................6-13
Low Tire Pressure Telltale..........................................6-13
Tire Pressure Monitoring System...............................6-12
TPMS Malfunction Indicator .....................................6-14

Tire Specification and Pressure Label ..............................8-8

Tires and Wheels ......................................................7-29/8-4

All Season Tires .........................................................7-42
Check Tire Inflation Pressure.....................................7-31
Low Aspect Ratio Tires..............................................7-43
Radial-Ply Tires..........................................................7-42
Recommended Cold Tire Inflation Pressures.............7-30
Snow Tires..................................................................7-42
Summer Tires .............................................................7-42
Tire Care.....................................................................7-29
Tire Maintenance........................................................7-34
Tire Replacement........................................................7-33
Tire Rotation ..............................................................7-32
Tire Sidewall Labeling ...............................................7-34
Tire Terminology and Definitions .............................7-38
Tire Traction  ..............................................................7-34
Wheel Alignment and Tire Balance ...........................7-33
Wheel Replacement....................................................7-34

Towing ............................................................................6-24

Emergency Towing.....................................................6-26
Removable Towing Hook...........................................6-25
Towing Service...........................................................6-24

Trailer Towing...............................................................5-139
Trip Computer.................................................................3-88

Index

T

I-9

Vehicle Certification Label ...............................................8-7
Vehicle Identification Number (VIN)...............................8-7
Vehicle Load Limit .......................................................5-134

Tire Loading Information Label...............................5-134

Volume and Weight...........................................................8-5

Washer Fluid ...................................................................7-20

Checking the Washer Fluid Level ..............................7-20

Wide Sunroof ..................................................................3-39

Automatic Reversal ....................................................3-41
Power sunshade ..........................................................3-39
Resetting the sunroof..................................................3-42
Slide open/close..........................................................3-40
Sunroof Open Warning...............................................3-43
Tilt Open/Close ..........................................................3-40

Windows .........................................................................3-35

Power Windows..........................................................3-36

Windshield Defrosting and Defogging .........................3-162

Auto Defogging System (Additional Feature with
Automatic Temperature Control System) ................3-164
Rear Window Defroster............................................3-165

Winter Driving ..............................................................5-130

Snow or Icy Conditions............................................5-130
Winter Precautions ...................................................5-132

Wiper Blades...................................................................7-24

Blade Inspection .........................................................7-24
Blade Replacement.....................................................7-24

Wipers and Washers......................................................3-107

Front Windshield Washers........................................3-109
Front Windshield Wipers..........................................3-107
Rear Window Wiper and Washer .............................3-110

I

Inde

x

V

W















Content      ..     16      17      18
