7-28

Maintenance

Battery recharging

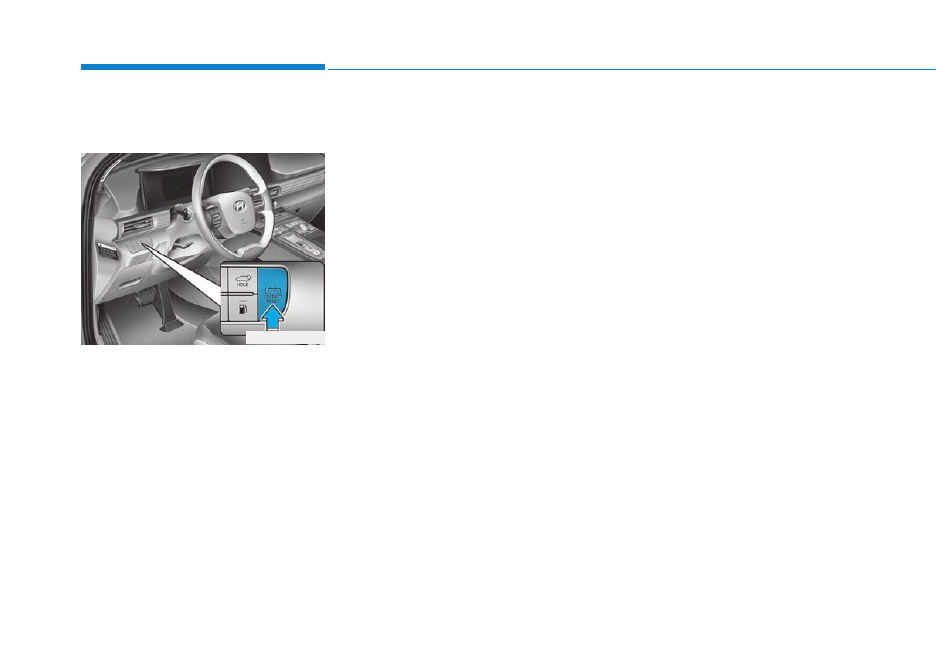

By RESET button

To charge the discharged 12V bat-
tery, attempt charging by pressing
12V BATT RESET button. For more
details, refer to “If the 12 volt battery
is discharged” in chapter 6.

By jump starting

After a jump start from a good bat-
tery, drive the vehicle for 20-30 min-
utes before it is shutoff. The vehicle
may not restart if you shut it off
before the battery had a chance to
adequately recharge. See “Jump
Starting” in chapter 6 for more infor-
mation on jump starting procedures.

Reset Features

Some items need to be reset after
the battery has been discharged or
the battery has been disconnected.
See chapter 3 for:
• Power Windows
• Trip Computer
• Climate Control System
• Clock
• Audio System
• Sunroof
• Driver Position Memory System

OFEQ019028L

7-29

7

Maintenance

T

TIIR

RE

ES

S  A

AN

ND

D  W

WH

HE

EE

EL

LS

S

Tire Care

For proper maintenance, safety, and
maximum fuel economy, you must
always maintain recommended tire
inflation pressures and stay within
the load limits and weight distribution
recommended for your vehicle.

ALWAYS replace tires with the
same size as each tire that
was originally supplied with
this vehicle. Using tires and
wheels other than the recom-
mended sizes could cause
unusual handling characteris-
tics, poor vehicle control, or
negatively affect your vehi-
cle's Anti-Lock Brake System
(ABS) resulting in a serious
accident.

Tire failure may cause loss of
vehicle control resulting in an
accident. To reduce risk of
SERIOUS INJURY or DEATH,
take the following precautions:

Inspect your tires monthly for
proper inflation as well as
wear and damage.

The recommended cold tire
pressure for your vehicle can
be found in this manual and
on the tire label located on the
driver's side center pillar.
Always use a tire pressure
gauge to measure tire pres-
sure. Tires with too much or
too little pressure wear
unevenly causing poor han-
dling.

Replace tires that are worn,
show uneven wear, or are
damaged. Worn tires can
cause loss of braking effec-
tiveness, steering) control, or
traction.

WARNING

7-30

Maintenance

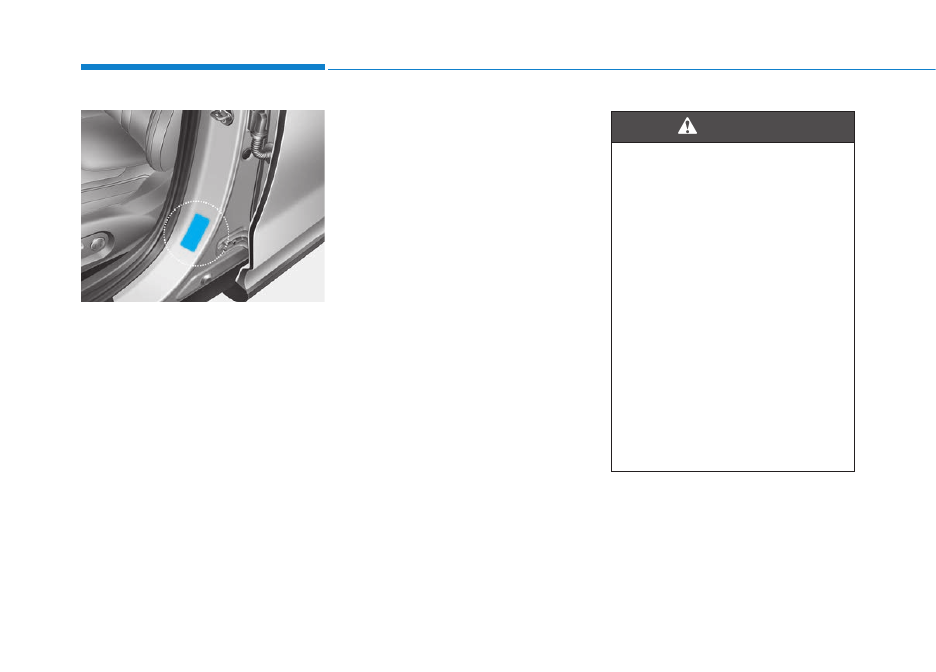

All specifications (sizes and pres-
sures) can be found on a label
attached to the driver’s side center
pillar.

Recommended Cold Tire
Inflation Pressures

All tire pressures should be checked
when the tires are cold. "Cold tires"
means the vehicle has not been driv-
en for at least three hours or driven
less than one mile (1.6 km).
Warm tires normally exceed recom-
mended cold tire pressures by 4 to 6
psi (28 to 41 kPa). Do not release air
from warm tires to adjust the pres-
sure or the tires will be under-inflat-
ed. For recommended inflation pres-
sure, refer to "Tire and Wheels" in
chapter 8.

Recommended pressures must
be maintained for the best ride,
vehicle handling, and minimum
tire wear.
Over-inflation or under-inflation
can reduce tire life, adversely
affect vehicle handling, and
lead to sudden tire failure that
could result in loss of vehicle
control resulting in an accident.
Severe under-inflation can lead
to severe heat build-up, causing
blowouts, tread separation and
other tire failures that can result
in the loss of vehicle control
resulting in an accident. This
risk is much higher on hot days
and when driving for long peri-
ods at high speeds.

WARNING

OFE088003

7-31

7

Maintenance

Check Tire Inflation Pressure

Check your tires once a month or
more.

How to check

Use a good quality tire pressure
gauge to check tire pressure. You
can not tell if your tires are properly
inflated simply by looking at them.
Radial tires may look properly inflat-
ed when they are under-inflated.
Remove the valve cap from the tire
valve stem. Press the tire gauge firm-
ly onto the valve to get a pressure
measurement. If the cold tire inflation
pressure matches the recommended
pressure on the tire and loading
information label, no further adjust-
ment is necessary. If the pressure is
low, add air until you reach the rec-
ommended pressure. Make sure to
put the valve caps back on the valve
stems. Without the valve cap, dirt or
moisture could get into the valve
core and cause air leakage. If a valve
cap is missing, install a new one as
soon as possible.

If you overfill the tire, release air by
pushing on the metal stem in the
center of the tire valve. Recheck the
tire pressure with the tire gauge. Be
sure to put the valve caps back on
the valve stems. Without the valve
cap, dirt or moisture could get into
the valve core and cause air leakage.
If a valve cap is missing, install a new
one as soon as possible.

Under-inflation results in
excessive wear, poor handling
and reduced fuel economy.
Wheel deformation is also
possible. Keep your tire pres-
sures at the proper levels. If a
tire frequently needs refilling,
have it checked by an author-
ized HYUNDAI dealer.

Over-inflation produces a
harsh ride, excessive wear at
the center of the tire tread,
and a greater possibility of
damage from road hazards.

CAUTION

7-32

Maintenance

Tire Rotation

To equalize tread wear, HYUNDAI
recommends that the tires be rotated
every 6,000 miles (10,000 km) or
sooner if irregular wear develops.
During rotation, check the tires for
correct balance.
When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire pres-
sure, improper wheel alignment, out-
of-balance wheels, severe braking or
severe cornering. Look for bumps or
bulges in the tread or side of tire.
Replace the tire if you find either of
these conditions. Replace the tire if
fabric or cord is visible. After rotation,
be sure to bring the front and rear tire
pressures to specification and check
lug nut tightness (proper torque is
79~94 lbf·ft [11~13 kgf·m]).

Disc brake pads should be inspected
for wear whenever tires are rotated.

Information

Tires that are asymmetrical or direc-
tional can only be installed on the
wheel in one direction. The outside
and inside of an asymmetrical tire is
not easily distinguishable. Pay careful
attention to the markings on the side-
walls of the tires, noting the "outside"
marking and also the rotating direc-
tion before installing them on the
vehicle.

i

Do not mix bias ply and radial
ply tires under any circum-
stances. This may cause unusu-
al handling characteristics that
may cause loss of vehicle con-
trol resulting in an accident.

WARNING

ODH073802

7-33

7

Maintenance

Wheel Alignment and Tire
Balance

The wheels on your vehicle were
aligned and balanced carefully at the
factory to give you the longest tire life
and best overall performance.
In most cases, you will not need to
have your wheels aligned again.
However, if you notice unusual tire
wear or your vehicle pulling one way
or the other, the alignment may need
to be reset.
If you notice your vehicle vibrating
when driving on a smooth road, your
wheels may need to be rebalanced.

Improper wheel weights can dam-
age your vehicle's aluminum
wheels. Use only approved wheel
weights.

Tire Replacement

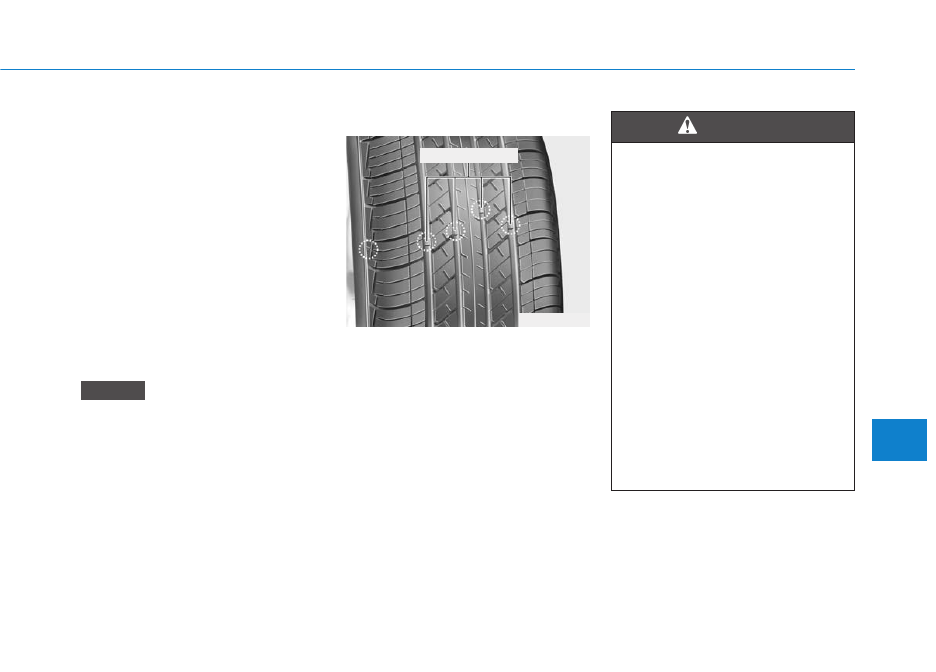

If the tire is worn evenly, a tread wear
indicator will appear as a solid band
across the tread. This shows there is
less than 1/16 inch (1.6 mm) of tread
left on the tire. Replace the tire when
this happens.
Do not wait for the band to appear
across the entire tread before replac-
ing the tire.

NOTICE

OLMB073027

Tread wear indicator

To reduce the risk of DEATH or
SERIOUS INJURY:

Replace tires that are worn,
show uneven wear, or are
damaged. Worn tires can
cause loss of braking effec-
tiveness, steering control, and
traction.

Always replace tires with the
same size as each tire that
was originally supplied with
this vehicle. Using tires and
wheels other than the recom-
mended sizes could cause
unusual handling characteris-
tics, poor vehicle control, or
negatively affect your vehi-
cle's Anti-Lock Brake System
(ABS) resulting in a serious
accident.

WARNING

7-34

Maintenance

Wheel Replacement

When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim width
and offset.

Tire Traction

Tire traction can be reduced if you
drive on worn tires, tires that are
improperly inflated or on slippery
road surfaces. Tires should be
replaced when tread wear indicators
appear. To reduce the possibility of
losing control, slow down whenever
there is rain, snow or ice on the road.

Tire Maintenance

In addition to proper inflation, correct
wheel alignment helps to decrease
tire wear. If you find a tire is worn
unevenly, have your dealer check the
wheel alignment.
When you have new tires installed,
make sure they are balanced. This
will increase vehicle ride comfort and
tire life. Additionally, a tire should
always be rebalanced if it is removed
from the wheel.

Tire Sidewall Labeling

This information identifies and
describes the fundamental charac-
teristics of the tire and also provides
the tire identification number (TIN)
for safety standard certification. The
TIN can be used to identify the tire in
case of a recall.

Tires degrade over time, even
when they are not being used.
Regardless of the remaining
tread, HYUNDAI recommends
that tires be replaced after six
(6) years of normal service.

When replacing tires (or
wheels), it is recommended to
replace the two front or two
rear tires (or wheels) as a pair.
Replacing just one tire can
seriously affect your vehicle's
handling.

Heat caused by hot climates
or frequent high loading con-
ditions can accelerate the
aging process. Failure to fol-
low this warning may cause
sudden tire failure, which
could lead to a loss of vehicle
control resulting in an acci-
dent.

7-35

7

Maintenance

1. Manufacturer or brand name

Manufacturer or brand name is
shown.

2. Tire size designation

A tire’s sidewall is marked with a tire
size designation. You will need this
information when selecting replace-
ment tires for your car. The following
explains what the letters and num-
bers in the tire size designation
mean.

Example tire size designation:
(These numbers are provided as an
example only; your tire size designa-
tor could vary depending on your
vehicle.)

225/60 R17 99H

225 - Tire width in millimeters.
60 - Aspect ratio. The tire’s section

height as a percentage of its
width.

R - Tire construction code (Radial).
17 - Rim diameter in inches.
99 - Load Index, a numerical code

associated with the maximum
load the tire can carry.

H - Speed Rating Symbol. See the

speed rating chart in this section
for additional information.

Wheel size designation

Wheels are also marked with impor-
tant information that you need if you
ever have to replace one. The follow-
ing explains what the letters and
numbers in the wheel size designa-
tion mean.
Example wheel size designation:

7.0J x 17

7.0 - Rim width in inches.
J - Rim contour designation.
17 - Rim diameter in inches.

OLMB073028

1

1

2

3

4

5,6

7

7-36

Maintenance

Tire speed ratings

The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger car tires. The
speed rating is part of the tire size
designation on the sidewall of the
tire. This symbol corresponds to that
tire’s designed maximum safe oper-
ating speed.

3. Checking tire life (TIN : Tire

Identification Number)

Any tires that are over six years old,
based on the manufacturing date,
should be replaced by new ones. You
can find the manufacturing date on
the tire sidewall (possibly on the
inside of the wheel), displaying the
DOT Code. The DOT Code is a
series of numbers on a tire consist-
ing of numbers and English letters.
The manufacturing date is designat-
ed by the last four digits (characters)
of the DOT code.

DOT : XXXX XXXX OOOO

The front part of the DOT means a
plant code number, tire size and
tread pattern and the last four num-
bers indicate week and year manu-
factured.
For example:
DOT XXXX XXXX 1523 represents
that the tire was produced in the 15th
week of 2023.

4. Tire ply composition and

material

The number of layers or plies of rub-
ber-coated fabric in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester, and others.
The letter "R" means radial ply con-
struction; the letter "D" means diago-
nal or bias ply construction; and the
letter "B" means belted-bias ply con-
struction.

5. Maximum permissible infla-

tion pressure

This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Refer
to the Tire and Loading Information
label for recommended inflation
pressure.

Speed

Rating

Symbol

Maximum Speed

S

112 mph (180 km/h)

T

118 mph (190 km/h)

H

130 mph (210 km/h)

V

149 mph (240 km/h)

W

168 mph (270 km/h)

Y

186 mph (300 km/h)

7-37

7

Maintenance

6. Maximum load rating

This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.

7. Uniform tire quality grading

Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and maxi-
mum section width.
For example:
TREAD wear 200
TRACTION AA
TEMPERATURE A

Tread wear

The tread wear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified govern-
ment test course. For example, a tire
graded 150 would wear one-and-a-
half times (1½) as well on the gov-
ernment course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices and differences in
road characteristics and climate.
These grades are molded on the
sidewalls of passenger vehicle tires.
The tires available as standard or
optional equipment on your vehicle
may vary with respect to grade.

Traction - AA, A, B & C

The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tire's ability to
stop on wet pavement as measured
under controlled conditions on spec-
ified government test surfaces of
asphalt and concrete. A tire marked
C may have poor traction perform-
ance.

The traction grade assigned to
this tire is based on straight-
ahead braking traction tests,
and does not include accelera-
tion, cornering, hydroplaning,
or peak traction characteristics.

WARNING

7-38

Maintenance

Temperature - A, B & C

The temperature grades are A (the
highest), B and C representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.
Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure.

Grade C

responds to a level of performance
which all passenger car tires must
meet under the Federal Motor
Vehicle Safety Standard No. 109.
Grades B and A represent higher
levels of performance on the labora-
tory test wheel than the minimum
required by law.

Tire Terminology  and
Definitions

Air Pressure

The amount of air inside the tire
pressing outward on the tire. Air
pressure is expressed in pounds per
square inch (psi) or kilopascal (kPa).

Accessory Weight

This means the combined weight of
optional accessories. Some exam-
ples of optional accessories are
reduction gear, power seats, and air
conditioning.

Aspect Ratio

The relationship of a tire's height to
its width.

Belt

A rubber coated layer of cords that is
located between the plies and the
tread. Cords may be made from steel
or other reinforcing materials.

The temperature grade for this
tire is established for a tire that
is properly inflated and not
overloaded. Excessive speed,
under-inflation, over-inflation,
or excessive loading, either
separately or in combination,
can cause heat build-up and
possible sudden tire failure.
This may cause loss of vehicle
control resulting in an accident.

WARNING

7-39

7

Maintenance

Bead

The tire bead contains steel wires
wrapped by steel cords that hold the
tire onto the rim.

Bias Ply Tire

A pneumatic tire in which the plies
are laid at alternate angles less than
90 degrees to the centerline of the
tread.

Cold Tire  Pressure

The amount of air pressure in a tire,
measured in pounds per square inch
(psi) or kilopascals (kPa) before a tire
has built up heat from driving.

Curb Weight

This means the weight of a motor
vehicle with standard and optional
equipment including the maximum
capacity of fuel, oil and coolant, but
without passengers and cargo.

DOT Markings

A code molded into the sidewall of a
tire signifying that the tire is in com-
pliance with the U.S. Department of
Transportation motor vehicle safety
standards. The DOT code includes
the Tire Identification Number (TIN),
an alphanumeric designator which
can also identify the tire manufactur-
er, production plant, brand and date
of production.

GVWR

Gross Vehicle Weight Rating

GAWR FRT

Gross Axle Weight Rating for the
Front Axle.

GAWR RR

Gross Axle Weight Rating for the
Rear axle.

Intended Outboard Sidewall

The side of an asymmetrical tire, that
must always face outward when
mounted on a vehicle.

Kilopascal (kPa)

The metric unit for air pressure.

Light truck(LT) tire

A tire designated by its manufacturer
as primarily intended for use on light-
weight trucks or multipurpose pas-
senger vehicles.

Load ratings

The maximum load that a tire is rated
to carry for a given inflation pressure.

Load Index

An assigned number ranging from 1
to 279 that corresponds to the load
carrying capacity of a tire.

7-40

Maintenance

Maximum Inflation Pressure

The maximum air pressure to which
a cold tire may be inflated. The max-
imum air pressure is molded onto the
sidewall.

Maximum Load Rating

The load rating for a tire at the maxi-
mum permissible inflation pressure
for that tire.

Maximum Loaded Vehicle
Weight

The sum of curb weight; accessory
weight; vehicle capacity weight; and
production options weight.

Normal Occupant Weight

The number of occupants a vehicle
is designed to seat multiplied by 150
pounds (68 kg).

Occupant Distribution

Designated seating positions.

Outward Facing Sidewall

An asymmetrical tire has a particular
side that faces outward when mount-
ed on a vehicle. The outward facing
sidewall bears white lettering or
bears manufacturer, brand, and/or
model name molding that is higher or
deeper than the same moldings on
the inner facing sidewall.

Passenger (P-Metric) tire

A tire used on passenger cars and
some light duty trucks and multipur-
pose vehicles.

Ply

A layer of rubber-coated parallel
cords.

Pneumatic tire

A mechanical device made of rubber,
chemicals, fabric and steel or other
materials, that, when mounted on an
automotive wheel provides the trac-
tion and contains the gas or fluid that
sustains the load.

Pneumatic options weight

The combined weight of installed
regular production options weighing
over 5 lb. (2.3 kg) in excess of the
standard items which they replace,
not previously considered in curb
weight or accessory weight, includ-
ing heavy duty breaks, ride levelers,
roof rack, heavy duty battery, and
special trim.

Recommended Inflation
Pressure

Vehicle manufacturer's recommend-
ed tire inflation pressure as shown
on the tire placard.

7-41

7

Maintenance

Radial Ply Tire

A pneumatic tire in which the ply
cords that extend to the beads are
laid at 90 degrees to the centerline of
the tread.

Rim

A metal support for a tire and upon
which the tire beads are seated.

Sidewall

The portion of a tire between the
tread and the bead.

Speed Rating

An alphanumeric code assigned to a
tire indicating the maximum speed at
which a tire can operate.

Traction

The friction between the tire and the
road surface. The amount of grip pro-
vided.

Tread

The portion of a tire that comes into
contact with the road.

Treadwear Indicators

Narrow bands, sometimes called
"wear bars", that show across the
tread of a tire when only 1/16 inch of
tread remains.

UTQGS

Uniform Tire Quality Grading
Standards is a tire information sys-
tem that provides consumers with
ratings for a tire's traction, tempera-
ture and treadwear. Ratings are
determined by tire manufacturers
using government testing proce-
dures. The ratings are molded into
the sidewall of the tire.

Vehicle Capacity Weight

The number of designated seating
positions multiplied by 150 lbs. (68
kg) plus the rated cargo and luggage
load.

Vehicle Maximum Load on the
Tire

Load on an individual tire due to curb
and accessory weight plus maximum
occupant and cargo weight.

Vehicle Normal Load on the Tire

Load on an individual tire that is
determined by distributing to each
axle its share of the curb weight,
accessory weight, and normal occu-
pant weight and dividing by 2.

Vehicle Placard

A label permanently attached to a
vehicle showing the original equip-
ment tire size and recommended
inflation pressure.

7-42

Maintenance

All Season Tires

HYUNDAI specifies all season tires
on some models to provide good
performance for use all year round,
including snowy and icy road condi-
tions. All season tires are identified
by ALL SEASON and/or M+S (Mud
and Snow) on the tire sidewall. Snow
tires have better snow traction than
all season tires and may be more
appropriate in some areas.

Summer Tires

HYUNDAI specifies summer tires on
some models to provide superior
performance on dry roads. Summer
tire performance is substantially
reduced in snow and ice. Summer
tires do not have the tire traction rat-
ing M+S (Mud and Snow) on the tire
side wall. If you plan to operate your
vehicle in snowy or icy conditions,
HYUNDAI recommends the use of
snow tires or all season tires on all
four wheels.

Snow Tires

If you equip your car with snow tires,
they should be the same size and
have the same load capacity as the
original tires. Snow tires should be
installed on all four wheels; other-
wise, poor handling may result. Snow
tires should carry 4 psi (28 kPa)
more air pressure than the pressure
recommended for the standard tires
on the tire label on the driver’s side of
the center pillar, or up to the maxi-
mum pressure shown on the tire
sidewall, whichever is less. Do not
drive faster than 75 mph (120 km/h)
when your vehicle is equipped with
snow tires.

Radial-Ply Tires

Radial-ply tires provide improved
tread life, road hazard resistance and
smoother high speed ride. The radi-
al-ply tires used on this vehicle are of
belted construction, and are selected
to complement the ride and handling
characteristics of your vehicle.
Radial-ply tires have the same load
carrying capacity, as bias-ply or bias
belted tires of the same size, and use
the same recommended inflation
pressure. Mixing of radial-ply tires
with bias-ply or bias belted tires is
not recommended. Any combina-
tions of radial-ply and bias-ply or bias
belted tires when used on the same
vehicle will seriously deteriorate
vehicle handling. The best rule to fol-
low is: Identical pairs of radial-ply
tires should always be used as a set
for the front tires and a set for the
rear tires.

7-43

7

Maintenance

Longer wearing tires can be more
susceptible to irregular tread wear. It
is very important to follow the tire
rotation interval in this chapter to
achieve the tread life potential of
these tires. Cuts and punctures in
radial-ply tires are repairable only in
the tread area, because of sidewall
flexing. Consult your tire dealer for
radial-ply tire repairs.

Low Aspect Ratio Tires

Low aspect ratio tires, the aspect
ratio is lower than 50, are provided
for sporty looks.
Because low aspect ratio tires are
optimized for handling and braking,
their sidewall is a little stiffer than a
standard tire. Also low aspect ratio
tires tend to be wider and conse-
quently have a greater contact patch
with the road surface. In some
instances they may generate more
road noise compared with standard
tires.

Do not mix bias ply and radial
ply tires under any circum-
stances. This may cause unusu-
al handling characteristics that
may cause loss of vehicle con-
trol resulting in an accident.

WARNING

Because the sidewall of a low
aspect ratio tire is shorter than
a standard tire, the rim of the
wheel and the tire itself is more
easily susceptible to damage.
Use caution when driving and
follow the guidelines below to
help minimize damage to the
wheel and tire:
- When driving on a rough road

or off road, drive cautiously
because tires and wheels may
be damaged. And after driving,
inspect tires and wheels.

- When passing over a pothole,

speed bump, manhole, or curb
stone, drive slowly so that the
tires and wheels are not dam-
aged.

- If the tire is subjected to a

severe impact, have the tire
and wheel inspected by an
authorized HYUNDAI dealer.

- Inspect the tire condition and

pressure every 1,800 miles
(3,000 km).

CAUTION

7-44

Maintenance

It is not easy to recognize tire
damage with your own eyes.
But if there is the slightest
hint of tire damage, have the
tire checked or replaced
because the tire damage may
cause air leakage from the
tire.

If the tire is damaged by driv-
ing on a rough road, off road,
pothole, manhole, or curb
stone, it will not be covered by
the warranty.

CAUTION

7-45

7

Maintenance

F

FU

US

SE

ES

S

A vehicle's electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 2 (or 3) fuse panels,
one located in the driver's side panel
bolster, the other in the fuel cell
power module compartment near the
battery.

If any of your vehicle’s lights, acces-
sories, or controls do not work, check
the appropriate circuit fuse. If a fuse
has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not
work, first check the driver's side
fuse panel. Before replacing a blown
fuse, turn the vehicle and all switch-
es off, and then disconnect the neg-
ative battery cable. Always replace a
blown fuse with one of the same rat-
ing.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved and imme-
diately consult an authorized
HYUNDAI dealer.

Information

Three kinds of fuses are used: blade
type for lower amperage rating, car-
tridge type, and multi fuse for higher
amperage ratings.

i

NEVER replace a fuse with any-
thing but another fuse of the
same rating.

A higher capacity fuse could
cause damage and possibly
cause a fire.

Do not install a wire or alu-
minum foil instead of the
proper fuse - even as a tem-
porary repair. It may cause
extensive wiring damage and
possibly a fire.

WARNING

Normal

Blade type

Cartridge type

Blown

Normal

Blown

OAEE076008

Normal

Blown

Multi fuse

7-46

Maintenance

Do not use a screwdriver or any
other metal object to remove
fuses because it may cause a
short circuit and damage the sys-
tem.

Instrument Panel Fuse
Replacement

1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of

the fuse panel cover to locate the
suspected fuse location.

5. Pull the suspected fuse straight

out. Use the removal tool provided
in the fuel cell power module com-
partment fuse panel.

6. Check the removed fuse; replace it

if it is blown. Spare fuses are pro-
vided in the instrument panel fuse
panels (or in the fuel cell power
module compartment fuse panel).

7. Push in a new fuse of the same

rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized HYUNDAI dealer.

NOTICE

OFE078018

OFE078017

7-47

7

Maintenance

In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not
need for operating the vehicle.
If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse panel
in the fuel cell power module com-
partment. If a fuse is blown, it must
be replaced with the same rating.

Fuel cell power module com-
partment Panel Fuse
Replacement

Blade / Cartridge type

1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by

pressing the tap and pulling up.

4. Check the removed fuse; replace

it if it is blown. To remove or insert
the fuse, use the removal tool in
the motor compartment fuse
panel.

5. Push in a new fuse of the same

rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized HYUNDAI dealer.

OFE078021

7-48

Maintenance

Multi fuse

If the multi fuse is blown, it must be
removed as follows:
1. Turn the vehicle off.
2. Disconnect the negative battery

connector located on the trunk.

3. Remove the fuse panel cover by

pressing the tab and pulling it up.

4. Remove the nuts shown in the pic-

ture above.

5. Replace the fuse with a new one

of the same rating.

6. Reinstall in the reverse order of

removal.

Information

If the multi fuse is blown, consult an
authorized HYUNDAI dealer.

i

OFE078022

After checking the fuse box in
the fuel cell power module com-
partment securely close the
fuse box cover inside the motor
compartment, until it clicks.
If the fuse box is not closed
properly, water may leak in side,
possibly causing a malfunction
with the electrical system.

CAUTION

7-49

7

Maintenance

Fuse/Relay Panel Description

Instrument panel fuse panel

Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.

Information

Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.

i

OFE078024

OFE093001N

7-50

Maintenance

Fuse Name

Fuse Rating

Protected Component

MEMORY

10 A

A/C Control Module, A/C Control Panel, Instrument Cluster

MODULE1

10 A

ICM Relay Box (Outside Mirror Folding/Unfolding Relay), A/V & Navigation Head Unit (Hazard Lamp Switch),
Shift Selection Switch (SBW), Auto Light & Photo Sensor, Driver/Passenger Power Outside Mirror,
PE Room Junction Block (RLY.4), Power Tail Gate Module

TAIL GATE

OPEN

10 A

Tail Gate Relay

P/WINDOW

RH

25 A

Power Window RH Relay, Passenger Safety Window Module, Rear Safety Window Module RH

P/WINDOW

LH

25 A

Power Window LH Relay, Driver Safety Window Module, Rear Safety Window Module LH

P/SEAT DRV

25 A

Driver Seat Manual Switch

MODULE4

7.5 A

IBU, Remote Control Smart Parking Assist Unit, VESS Unit, Electronic Parking Brake Switch,
Lane Keeping Assist Unit(Line), Blind-Spot Collision Warning Unit LH/RH, Crash Pad Switch,
Surround View Monitor Unit

MODULE8

7.5 A

Data Link Connector, Crash Pad Switch

S/HEATER RR

20 A

Rear Seat Heater

HEATED

MIRROR

10 A

Driver/Passenger Power Outside Mirror, A/C Control Panel

S/HEATER

FRT

20 A

Front Air Ventilation/Seat Heater Seat Control Module

Instrument panel fuse panel

7-51

7

Maintenance

Fuse Name

Fuse Rating

Protected Component

AMP

25 A

AMP

MULTI MEDIA

15 A

A/V & Navigation Head Unit

MODULE5

10 A

Front Air Ventilation/Seat Heater Seat Control Module, AMP, A/V & Navigation Head Unit,
A/C Control Panel, PTC Heater, A/C Control Module, Electro Chromic Mirror, Rear Seat Heater

WIPER (RR)

15 A

ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor

DOOR LOCK

20 A

Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Door Unlock Relay)

IBU1

15 A

IBU

BRAKE

SWITCH

10 A

IBU, Stop Lamp Switch

P/SEAT PASS

25 A

Passenger Seat Manual Switch

A/C

7.5 A

A/C Control Module, Incar Temperature Sensor, A/C Control Panel,
Cluster Ionizer, A/C Compressor

AIR BAG2

10 A

SRS Control Module

WASHER

15 A

Multifunction Switch

Instrument panel fuse panel

7-52

Maintenance

Fuse Name

Fuse Rating

Protected Component

MDPS2

7.5 A

MDPS Unit

MODULE7

7.5 A

Front Air Ventilation/Seat Heater Seat Control Module, AC Inverter,
Rear Seat Heater, Surround View Monitor Unit

SUNROOF2

20 A

Sunroof Unit

SUNROOF1

20 A

Sunroof Unit

CLUSTER

7.5 A

Instrument Cluster

MODULE3

7.5 A

SCU, Shift Selection Switch (SBW), IDC, VPD Sensor, Stop Lamp Switch, HMU, BMS Control Module

START

7.5 A

FCU, IBU

USB

CHARGER RR

10 A

USB Charger Rear

IBU2

7.5 A

IBU

A/BAG IND

7.5 A

Instrument Cluster, A/C Control Panel

MODULE6

7.5 A

IBU

MODULE2

10 A

BMS Control Module, Wireless Charger, USB Charger LH/RH, A/V & Navigation Head Unit,
Center Fascia Switch Panel, AMP, Power Outside Mirror Switch, IBU

AIR BAG1

15 A

SRS Control Module, Passenger Occupant Detection Sensor

Instrument panel fuse panel

Fuel cell power module com-
partment fuse panel

Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.

Information

Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.

i

7-53

7

Maintenance

OFE078025

OFE078048N

7-54

Maintenance

Motor compartment fuse panel

Type

Fuse Name

Fuse Rating

Circuit Protected

MULTI FUSE-1

B+2

60 A

ICU Junction Block (IPS Control Module, IPS1)

B+3

60 A

ICU Junction Block (IPS Control Module)

COOLING

PE PUMP

40 A

PE Room Coolant Pump (CPP)

EPB2

40 A

Electronic Brake Control Module

IG2

40 A

PE Room Junction Block (IG2 Relay)

EPB1

40 A

Electronic Brake Control Module, PE Room Junction Block (Multipurpose Check Connector)

B+4

60 A

ICU Junction Block (Fuse - SUNROOF1, SUNROOF2, AMP, P/SEAT DRV,
P/SEAT PASS, S/HEATER FRT, P/WINDOW LH, P/WINDOW RH, TAIL GATE OPEN)

IMEB

80 A

Electronic Brake Control Module

MULTI FUSE-2

BLOWER

50 A

PE Room Junction Block (Blower Relay)

MDPS

80 A

MDPS Unit

7-55

7

Maintenance

Motor compartment fuse panel

Type

Fuse Name

Fuse Rating

Circuit Protected

FUSE

HVJB LV

15 A

HV Junction Block

RCU

15 A

Driver / Passenger Auto Flush Door Handle Module,
Rear Auto Flush Door Handle Module LH/RH

FUEL DOOR

OPEN

7.5 A

ICM Relay Box (Fuel Filler Door Relay)

E-SHIFTER

40 A

PE Room Junction Block (E-Shifter Relay)

INVERTER

30 A

AC Inverter

REAR

HEATED

40 A

PE Room Junction Block (Rear Heated Relay)

B+1

50 A

ICU Junction Block ((Fuse - MODULE1, AIR BAG2, MODULE8,
S/HEATER RR, DOOR LOCK, IBU1, BRAKE SWITCH), Leak Current Autocut Relay)

POWER

TAIL GATE

30 A

Power Tail Gate Module

WIPER FRT

30 A

Front Wiper Motor

COOLING

STACK PUMP

10 A

Stack Coolant Pump (CSP)

INVERTER LV

7.5 A

Inverter

7-56

Maintenance

Type

Fuse Name

Fuse Rating

Circuit Protected

FUSE

BHDC

7.5 A

IDC

HMU1

10 A

HMU

BATTERY

MANAGEMENT

10 A

BMS Control Module

FUEL CELL

CONTROL UNIT

15 A

FCU

BMS FAN

15 A

PE Room Junction Block (BMS FAN Relay)

Motor compartment fuse panel

7-57

7

Maintenance

L

LIIG

GH

HT

T  B

BU

UL

LB

BS

S

Consult an authorized HYUNDAI
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlight
assembly to get to the bulb(s).
Removing/installing the headlight
assembly can result in damage to
the vehicle.

Information

The headlight and tail lamp lenses
could appear frosty if the vehicle is
washed after driving or the vehicle is
driven at night in wet weather. This
condition is caused by temperature
difference between the lamp inside
and outside and, it does not indicate a
problem with your vehicle. When
moisture condenses in the lamp, it will
be removed after driving with the
headlight on. The removable level
may differ depending on lamp size,
lamp position and environmental con-
dition. However, if moisture is not
removed, have the vehicle is inspected
by an authorized HYUNDAI dealer.

Information

• A normally functioning lamp may

flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or contin-
ues to flicker, have the vehicle be
checked by an authorized
HYUNDAI dealer.

• The parking lamp may not turn on

when the parking lamp switch is
turned on, but the parking lamp
and headlight switch may turn on
when the headlight switch is turned
on. This may be caused by network
failure or vehicle electrical control
system malfunction. If this occurs,
have the vehicle be checked by an
authorized HYUNDAI dealer.

i

i

Prior to replacing a lamp, shift
to P (Park), apply the parking
brake, place the POWER but-
ton in the OFF position and
take the key with you when
leaving the vehicle to avoid
sudden movement of the vehi-
cle and to prevent possible
electric shock.

Be aware the bulbs may be
hot and may burn your fin-
gers.

WARNING

7-58

Maintenance

Headlight, front center lamp,
turn signal lamp, daytime run-
ning lamp, parking lamp,
side marker replacement

(1) Headlight (Low/High)
(2) Front center lamp
(3) Turn

signal/daytime running

lamp/parking lamp

(4) Side marker

Your vehicle is equipped with LED
lamps. LED lamps do not have
replaceable bulbs. If the LED lamp
does not operate, have the vehicle
checked by an authorized HYUNDAI
dealer.

Information

The headlight aiming should be
adjusted after an accident or after the
headlight assembly is reinstalled at an
authorized HYUNDAI dealer.

Side Repeater Lamp
Replacement

Your vehicle is equipped with LED
lamps. LED lamps do not have
replaceable bulbs. If the LED lamp
does not operate, have the vehicle
checked by an authorized HYUNDAI
dealer.

i

OFE078028N

OFE078029

7-59

7

Maintenance

Rear Combination Light Bulb
Replacement

(1) Turn signal lamp/stop lamp
(2) Turn signal lamp/stop lamp
(3) Tail lamp
(4) Backup lamp
(5) Side marker

Stop lamp, tail lamp, turn signal
lamp, backup lamp and side
marker

Your vehicle is equipped with LED
lamps. LED lamps do not have
replaceable bulbs. If the LED lamp
does not operate, have the vehicle
checked by an authorized HYUNDAI
dealer.

High mounted stop lamp

If the high mounted stop lamp does
not operate, have the vehicle
checked by an authorized HYUNDAI
dealer.

OFE078040N

OFE078031















Content      ..     15      16      17      18     ..
