3-27

Con

v

enience f

eatur

es of y

our v

ehicle

3

To adjust the Zone setting:
1. Determine the desired Zone

Number based upon your current
location on the Zone Map.

2. Press and hold the

button for

more than 3 but less than 6 sec-
onds, the current Zone Number
will appear on the display.

3. Pressing and holding the

button

again will cause the numbers to
increment (Note: they will repeat
…13, 14, 15, 1, 2, …). Releasing
the button when the desired Zone
Number appears on the display
will set the new Zone.

4. Within about 5 seconds the com-

pass will start displaying a com-
pass heading again.

There are some conditions that can
cause changes to the vehicle mag-
nets, such as installing a ski rack or
a CB antenna. Body repair work on
the vehicle can also cause changes
to the vehicle's magnetic field. In
these situations, the compass will
need to be re-calibrated to quickly
correct these changes.

If you need to recalibrate the com-
pass:
1. Press and hold the

button for

more than 6 seconds. When the
compass memory is cleared a "C"
will appear in the display.

2. Drive the vehicle in 2 complete cir-

cles at less than 5 mph (8 km/h).

Integrated HomeLink

®

Wireless

Control System

The HomeLink

®

Wireless Control

System can replace up to three hand-
held radio-frequency (RF) transmit-
ters with a single built-in device. This
innovative feature will learn the radio
frequency codes of most current
transmitters to operate devices such
as gate operators, garage door open-
ers, entry door locks, security sys-
tems, even home lighting. Both stan-
dard and rolling code-equipped trans-
mitters can be programmed by fol-
lowing the outlined procedures.
Additional HomeLink

®

information

can be found at: www.homelink.com
or by calling 1-800-355-3515.
Retain the original transmitter of the
RF device you are programming for
use in other vehicles as well as for
future HomeLink

®

programming. It is

also suggested that upon the sale of
the vehicle, the programmed
HomeLink

®

buttons be erased for

security purposes.

3-28

Convenience features of your vehicle

Programming HomeLink

®

Please note the following:
• When programming a garage door

opener, it is advised to park the
vehicle outside of the garage.

• It is recommended that a new bat-

tery be placed in the hand-held
transmitter of the device being pro-
grammed to HomeLink

®

for quicker

training and accurate transmission
of the radio-frequency signal.

• Some vehicles may require the

POWER button to be placed in the
ACC (or "Accessories") position for
programming and/or operation of
HomeLink

®

.

• In the event that there are still pro-

gramming difficulties or questions
after following the programming
steps listed below, contact
HomeLink

®

at: www.homelink.com

or by calling 1-800-355-3515.

Rolling code programming
Rolling code devices which are
"code-protected" and manufactured
after 1996 may be determined by the
following:
• Reference the device owner’s

manual for verification.

• The handheld transmitter appears

to program the HomeLink

®

Universal Transceiver but does not
activate the device.

• Press and hold the trained

HomeLink button. The device has
the rolling code feature if the indi-
cator light flashes rapidly and then
turns solid after 2 seconds.

Before programming HomeLink

®

to a garage door opener or gate
operator, make sure people and
objects are out of the way of the
device to prevent potential harm
or damage. Do not use the
HomeLink

®

with any garage door

opener that lacks the safety stop
and reverse features required by
U.S. federal safety standards (this
includes any garage door opener
model manufactured before April
1, 1982). A garage door that can-
not detect an object - signaling
the door to stop and reverse -
does not meet current U.S. feder-
al safety standards. Using a
garage door opener without
these features increases the risk
of serious injury or death.

WARNING

3-29

Con

v

enience f

eatur

es of y

our v

ehicle

3

To train rolling code devices, follow
these instructions:
1. At the garage door opener receiv-

er (motor-head unit) in the garage,
locate the "learn" or "smart" but-
ton. This can usually be found
where the hanging antenna wire is
attached to the motor-head unit.
Exact location and color of the but-
ton may vary by garage door
opener brand. If there is difficulty
locating the training button, refer-
ence the device owner’s manual or
please visit our Web site at
www.homelink.com.

2. Firmly press and release the

"learn" or "smart" button (which
activates the "training light"). You
will have 30 seconds to initiate
step 3.

3. Return to the vehicle and firmly

press, hold for two seconds and
then release the desired
HomeLink

®

button. Repeat the

"press/hold/release" sequence a
second time to complete the pro-
gramming. (Some devices may
require you to repeat this
sequence a third time to complete
the programming.)

4. Press and hold the just-trained

HomeLink

®

button and observe

the red Status Indicator LED. If the
indicator light stays on constantly,
programming is complete and
your device should activate.

5. To program the remaining two

HomeLink

®

buttons, follow either

steps 1 through 4 above for other
Rolling Code devices or steps 2
through 5 in Standard Programming
for standard devices.

Standard programming
To train most devices, follow these
instructions:
1. For first-time programming, press

and hold the two outside buttons,
HomeLink

®

Channel 1 and

Channel 3 Buttons, until the indi-
cator light begins to flash (after 20
seconds). Release both buttons.
Do not hold the buttons for longer
than 30 seconds.

2. Position the end of your hand-held

transmitter 1-3 inches (2-8 cm)
away from the HomeLink

®

buttons

while keeping the indicator light in
view.

3. Simultaneously press and hold

both the HomeLink

®

and hand-

held transmitter button. DO NOT
release the buttons until step 4
has been completed.

4. While continuing to hold the but-

tons the red Indicator Status LED
will flash slowly and then rapidly
after HomeLink

®

successfully

trains to the frequency signal from
the hand-held transmitter. Release
both buttons.

3-30

Convenience features of your vehicle

5. Press and hold the just-trained

HomeLink

®

button and observe

the red Status Indicator LED. If the
indicator light stays on constantly,
programming is complete and
your device should activate when
the HomeLink

®

button is pressed

and released.

6. To program the remaining two

HomeLink

®

buttons, follow steps 2

through 5.

Gate operator & Canadian program-
ming
During programming, your handheld
transmitter may automatically stop
transmitting. Continue to press the
Integrated HomeLink

®

Wireless

Control System button (note
steps 2 through 4 in the Standard
Programming portion of this docu-
ment) while you press and re-press
("cycle") your handheld transmitter
every two seconds until the frequen-
cy signal has been learned. The indi-
cator light will flash slowly and then
rapidly after several seconds upon
successful training.

Operating HomeLink

®

To operate, simply press and release
the programmed HomeLink

®

button.

Activation will now occur for the
trained device (for example, garage
door opener, gate operator, security
system, entry door lock, home/office
lighting, etc.). For convenience, the
hand-held transmitter of the device
may also be used at any time.

3-31

Con

v

enience f

eatur

es of y

our v

ehicle

3

Reprogramming a single
HomeLink

®

button

To program a new device to a previ-
ously trained HomeLink

®

button, fol-

low these steps:
1. Press and hold the desired

HomeLink

®

button.

Do NOT

release until step 4 has been com-
pleted.

2. When the indicator light begins to

flash slowly (after 20 seconds),
position the handheld transmitter 1
to 3 inches away from the
HomeLink

®

surface.

3. Press and hold the handheld

transmitter button. The HomeLink

®

indicator light will flash, first slowly
and then rapidly.

4. When the indicator light begins to

flash rapidly, release both buttons.

5. Press and hold the just-trained

HomeLink

®

button and observe

the red Status Indicator LED. If the
indicator light stays on constantly,
programming is complete and
your new device should activate.

Erasing HomeLink

®

buttons

Individual buttons cannot be erased.
However, to erase all three pro-
grammed buttons:
1. Press and hold the two outer

HomeLink

®

buttons until the indi-

cator light begins to flash-after 20
seconds.

2. Release both buttons. Do not hold

for longer than 30 seconds.

The Integrated HomeLink

®

Wireless

Control System is now in the training
(learn) mode and can be pro-
grammed at any time following the
appropriate steps in the Programming
chapters above.

NVS

®

is a registered trademark and

Z-Nav™ is a trademark of the Gentex
Corporation, Zeeland, Michigan.
HomeLink

®

is a registered trademark

owned by Johnson Controls,
Incorporated, Milwaukee, Wisconsin.

FCC ID : NZLHFCHL4
IC : 4112A-HFCHL4

Information

This device complies with Part 15 of
the FCC Rules.

Operation is subject to the following
three conditions:

1. This device may not cause harmful

interference, and

2. This device must accept any inter-

ference received, including interfer-
ence that may cause undesired
operation.

3. The transceiver has been tested and

complies with FCC and Industry
Canada rules. Changes or modifi-
cations not expressly approved by
the party responsible for compli-
ance could void the user's authority
to operate the device.

i

3-32

Convenience features of your vehicle

Side View Mirrors

Make sure to adjust the side view
mirrors to your desired position
before you begin driving.
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with the remote switch. The
side view mirrors can be folded to
help prevent damage when going
through an automatic car wash or
when passing through a narrow
street.
The right side view mirror is convex.
Objects seen in the mirror are closer
than they appear.

Use the inside  side view mirror or
look back directly to determine the
actual distance of other vehicles
prior to changing lanes.

• Do not scrape ice off the mirror

face; this may damage the sur-
face of the glass.

• If the mirror is jammed with ice,

do not adjust the mirror by
force. Use an approved de-icer
(not radiator antifreeze) spray, or
a sponge or soft cloth with very
warm water, or move the vehicle
to a warm place and allow the
ice to melt.

Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.

Side view mirror adjustment

Adjusting the side view mirrors:
1. Press either the L (driver's side) or

R (passenger's side) button (1) to
select the side view mirror you
would like to adjust.

2. Use the mirror adjustment control

switch (2) to position the selected
mirror up, down, left or right.

NOTICE

NOTICE

OFE048019

Do not adjust or fold the side
view mirrors while driving. This
may cause loss of vehicle con-
trol resulting in an accident.

WARNING

OFE048430L

3-33

Con

v

enience f

eatur

es of y

our v

ehicle

3

• The mirrors stop moving when

they reach the maximum adjust-
ing angles, but the motor contin-
ues to operate while the switch
is pressed. Do not press the
switch longer than necessary,
because this can damage the
motor.

• Do not attempt to adjust the side

view mirrors by hand, because
this can damage the motor.

Folding the side view mirror

The side view mirror can be folded or
unfolded by pressing the switch.
• If 'Convenience

Welcome mirror/

light

On door unlock' is selected

in the vehicle Settings mode on the
Infotainment system screen, the
side view mirror will fold or unfold
automatically as follows:
- The mirror will fold or unfold when

the door is locked or unlocked by
the smart key.

- The mirror will fold or unfold when

the door is locked or unlocked by
the button on the outside door
handle.

• If 'Convenience

Welcome mirror/

light

On door unlock' and

'Convenience

Welcome mirror/

light

On driver approach' is

selected in the vehicle Settings
mode on the Infotainment system
screen, the side view mirror will
unfold automatically when you
approach the vehicle (all doors
closed and locked) with a smart key
in possession.

The electric type side view mirror
operates even though the POWER
button is in the OFF position.
However, to prevent unnecessary
battery discharge, do not adjust
the mirrors longer than necessary
while the vehicle is not in the
ready (

) mode.

Do not fold the electric type side
view mirror by hand. It could
cause motor failure.

NOTICE

NOTICE

NOTICE

OFE048021

3-34

Convenience features of your vehicle

Remote window opening func-
tion (if equipped)

Press and hold the Door Unlock but-
ton on the smart key for more than 3
seconds and the windows move
down after the doors are unlocked.
Window movement stops when you
release the door unlock button.

Information

• The remote window opening func-

tion may abruptly stop, when you
move away from your vehicle dur-
ing operation. Stay in close proximi-
ty from your vehicle, while monitor-
ing the window movement.

• One of the windows may stop oper-

ating, when the window is interrupt-
ed by certain force. However, the
other windows will keep operating.
Thus, you should make sure that all
windows are closed.

• The remote window opening func-

tion is operated on the window
equipped with an automatic power
window.

• Please be aware that the doors

unlock when the windows are
opened using the remote window
open function.

i

If you stay on the function after
operating the Remote window
opening function, it is likely to
cause a theft. In addition, please
use caution there might be a
malfunction due to the inflow of
water while raining.

WARNING

OFE048005

Type A

OFE048006N

Type B

3-35

Con

v

enience f

eatur

es of y

our v

ehicle

3

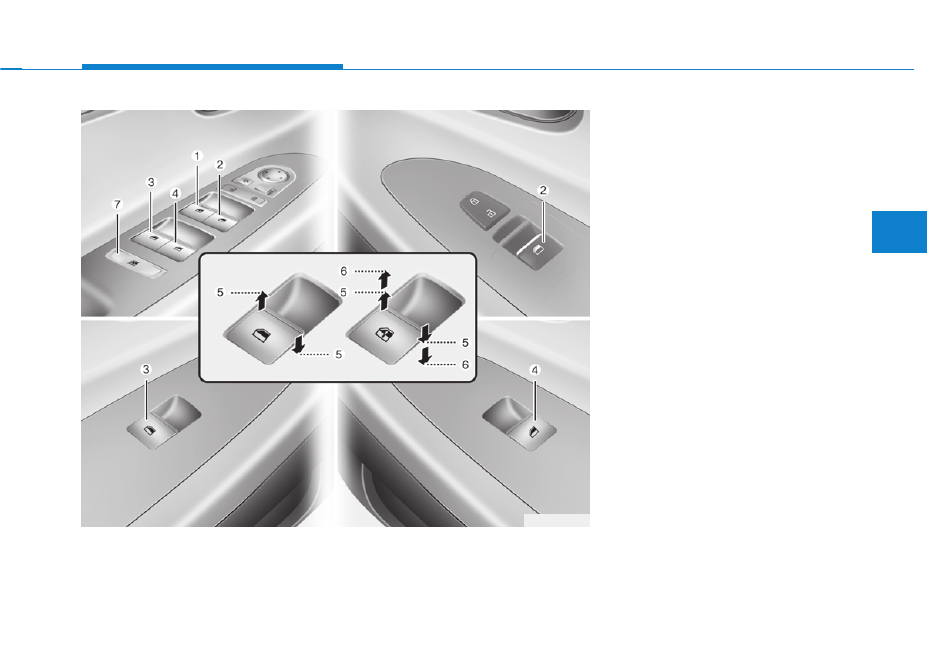

(1) Driver's door power window

switch

(2) Front passenger's door power

window switch

(3) Rear door (left) power window

switch

(4) Rear door (right) power window

switch

(5) Window opening and closing
(6) Automatic power window

(if equipped)

(7) Power window lock switch

W

WIIN

ND

DO

OW

WS

S

OFE048023N

3-35

Convenience features of your vehicle

3-36

Convenience features of your vehicle

Power Windows

The POWER button must be in the
ON position to be able to raise or
lower the windows. Each door has a
Power Window switch to control that
door's window. The driver has a
Power Window Lock switch which
can block the operation of rear pas-
senger windows. The power windows
will operate for approximately 10
minutes after the POWER button is
placed in the ACC or OFF position.
However, if the front doors are
opened, the Power Windows will not
operate even within the 10 minutes
period.

Information

• In cold and wet climates, power win-

dows may not work properly due to
freezing conditions.

• While driving with the rear win-

dows down or with the sunroof (if
equipped) opened (or partially
opened), your vehicle may demon-
strate a wind buffeting or pulsation
noise. This noise is normal and can
be reduced or eliminated by taking
the following actions. If the noise
occurs with one or both of the rear
windows down, partially lower both
front windows approximately one
inch. If you experience the noise
with the sunroof open, slightly close
the sunroof.

Window opening and closing

To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.

To close:
Pull the window switch up to the first
detent position (5). Release the win-
dow switch when you want the win-
dow to stop.

i

To avoid serious injury or death,
do not extend your head, arms
or body outside the windows
while driving.

WARNING

OFE048024

3-37

Con

v

enience f

eatur

es of y

our v

ehicle

3

Auto up/down window
(if equipped)

Pressing or pulling up the power win-
dow switch momentarily to the sec-
ond detent position (6) completely
lowers or lifts the window even when
the switch is released. To stop the
window at the desired position while
the window is in operation, pull up or
press down and release the switch.

To reset the power windows

If the power windows do not operate
normally, the automatic power win-
dow system must be reset as follows:
1. Place the POWER button to the

ON position.

2. Close the window and continue

pulling up on the power window
switch for at least one second.

If the power windows do not operate
properly after resetting, have the
system checked by an authorized
HYUNDAI dealer.

Automatic reverse (if equipped)

If a window senses any obstacle while
it is closing automatically, it will stop
and lower approximately 12 inches (30
cm) to allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then
lower approximately 1 inch (2.5 cm).
If the power window switch is pulled
up continuously again within 5 sec-
onds after the window is lowered by
the automatic window reverse fea-
ture, the automatic window reverse
will not operate.

The automatic reverse feature
doesn't activate while resetting
the power window system. Make
sure body parts or other objects
are safely out of the way before
closing the windows to avoid
injuries or vehicle damage.

WARNING

OLF044032

3-38

Convenience features of your vehicle

Information

The automatic reverse feature is only
active when the "Auto Up" feature is
used by fully pulling up the switch to
the second detent.

Do not install any accessories on
the windows. The automatic reverse
feature may not operate.

Power window lock switch

The driver can disable the power
window switches on the rear passen-
ger doors by pressing the power win-
dow lock switch.
When the power window lock switch
is pressed:
• The rear passenger control will not

be able to operate the rear passen-
ger power window

• Note that the front passenger con-

trol is still able to operate the front
passenger window, and that the
driver master control can still oper-
ate all the power windows.

• To prevent possible damage to

the power window system, do
not open or close two windows
or more at the same time. This
will also ensure the longevity of
the fuse.

• Never try to operate the main

switch on the driver's door and
the individual door window
switch in opposite directions at
the same time. If this is done, the
window will stop and cannot be
opened or closed.

NOTICE

NOTICE

i

Do not allow children to play
with the power windows. Keep
the driver's door power window
lock switch in the LOCK posi-
tion. Serious injury or death can
result from unintentional win-
dow operation by a child.

WARNING

Make sure body parts or other
objects are safely out of the way
before closing the windows to
avoid injuries or vehicle damage.
Objects less than 0.16 inch
(4 mm) in diameter caught
between the window glass and
the upper window channel may
not be detected by the automatic
reverse window and the window
will not stop and reverse direc-
tion.

WARNING

OFE048025

3-39

Con

v

enience f

eatur

es of y

our v

ehicle

3

If your vehicle is equipped with a
sunroof, you can slide or tilt your
sunroof with the sunroof switch locat-
ed on the overhead console.

The sunroof can only be operated
when the Start/Stop button is in the
ON or START position.
The sunroof can be operated for
about 10 minutes after the Start/Stop
button is in the ACC or OFF position.
However, if the front door is open, the
sunroof cannot be operated even
within the 10 minute period.

Do not operate the sunroof when
roof bars are installed on the vehi-
cle or when there is luggage on
the roof.

Power sunshade

Use the sunshade to block direct
sunlight coming through the sunroof
glass.
• Push the sunroof switch rearward

to the first detent position, the
power sunshade automatically
slides open.

• Push the sunroof switch forward to

the first detent position, the power
sunshade automatically closes.
However, if the sunroof glass is
open, the glass will close first.

To stop the power sunshade at any
point, push the sunroof switch in any
direction.

NOTICE

W

WIID

DE

E  S

SU

UN

NR

RO

OO

OF

F  ((IIF

F  E

EQ

QU

UIIP

PP

PE

ED

D))

OFE048026N

OFE048027

Adjust the sunroof or sun-
shade when your vehicle
stops. This could result in
loss of control and an acci-
dent that may cause injury, or
property damage.

Do not leave the vehicle run-
ning and the key in your vehi-
cle with unsupervised chil-
dren.

Unattended children

could operate the sunroof,
which could result in serious
injury.

Do not sit on the top of the
vehicle. It may cause injury or
vehicle damage.

WARNING

3-40

Convenience features of your vehicle

Do not pull or push the power
sunshade by hand as such action
may damage the power sunshade
or cause it to malfunction.

Information

Wrinkles formed on the power sun-
shade are normal due to material
characteristic.

Tilt Open/Close

• Push the sunroof switch upward,

the sunroof glass tilts open.
However, if the power sunshade is
closed, the sunshade will open
first.

• Push the sunroof switch upward or

forward when the sunroof glass is
tilt opened, the sunroof glass auto-
matically closes.

To stop the sunroof movement at any
point, push the sunroof switch in any
direction.

Slide open/close

• Push the sunroof switch rearward

to the first detent position, the sun-
roof glass opens. However, if the
power sunshade is closed, the
power sunshade will open first.
Push the sunroof switch forward to
the first detent position, the sun-
roof glass closes. However, if the
sunroof glass is closed, the power
sunshade will close.

i

NOTICE

OFE043028

OFE043027

3-41

Con

v

enience f

eatur

es of y

our v

ehicle

3

• Push the sunroof switch forward or

rearward to the second detent
position, the power sunshade and
sunroof glass operate automatical-
ly (auto slide feature).
To stop the sunroof movement at
any point, push the sunroof switch
in any direction.

Automatic Reversal

If the sunroof glass senses any
obstacle while it is closing automati-
cally, it will reverse direction then
stop at a certain position.
The auto reverse function may not
work if an object thin or soft is caught
between the sliding sunroof glass
and sunroof sash.

ODH043039

Make sure heads, hands, arms
or any other body parts or
objects are out of the way
before operating the sunroof.
Body parts or objects may get
caught causing injuries or
vehicle damage.

Never deliberately use your
body parts to test the auto-
matic reversal function. The
sunroof glass may reverse
direction, but there is a risk of
injury.

WARNING

3-42

Convenience features of your vehicle

• Do not continue to push the

sunroof switch after the sunroof
is fully opened, closed, or tilted.
Damage to the sunroof motor
could occur.

• Continuous operations such as

slide open/close, tilt open/close,
etc. may cause the motor or sun-
roof system to malfunction.

• Regularly remove any accumu-

lated dust on the sunroof rail.

• Dust accumulated between the

sunroof and roof panel can
make noise. Open the sunroof
and remove dust regularly using
a clean cloth.

• Do not try to open the sunroof

when the temperature is below
freezing or when the sunroof is
covered with snow or ice. The
sunroof may not work properly
and may break if opened by
force.

• Do not open or drive with the

sunroof glass open immediately
after rain or washing the vehicle.
Water may wet the interior of the
vehicle.

• Do not extend any luggage out-

side the sunroof while driving.
Vehicle damage may occur if the
vehicle suddenly stops.

Resetting the sunroof

In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be
required include:
• When the 12 V battery is either dis-

connected or discharged

• When the sunroof fuse is replaced
• If the sunroof one-touch AUTO

OPEN/CLOSE operation is not
functioning properly

NOTICE

OFE048418

Do not extend your head, arms,
body parts or objects outside
the sunroof while driving.
Injuries may occur if the vehicle
suddenly stops.

WARNING

3-43

Con

v

enience f

eatur

es of y

our v

ehicle

3

Sunroof resetting procedure:
1. It is recommended to perform the

reset procedure with the vehicle
engine running. Start the vehicle in
P (Park).

2. Make sure the sunroof glass is in

the fully closed position. If the sun-
roof glass is open, push the switch
forward until the sunroof glass is
fully closed.

3. Release the switch when the sun-

roof glass is fully closed.

4. Push the switch forward until the

sunroof glass moves slightly. Then
release the switch.

5. Once again push and hold the

sunroof switch forward until the
sunroof glass slides open and
close. Do not release the switch
until the operation is completed. If
you release the switch during
operation, start the procedure
again from step 2.

Information

If the sunroof is not reset when the
vehicle battery is disconnected or dis-
charged, or the sunroof fuse is blown,
the sunroof may not operate normally.

Sunroof Open Warning

If the driver turns off the vehicle
when the sunroof is not fully closed,
the warning chime will sound for sev-
eral seconds and the sunroof open
warning will appear on the cluster
display.
Close the sunroof securely when
leaving your vehicle.

i

OFE040111

Make sure the sunroof is closed
fully when leaving your vehicle.
If the sunroof is left open, rain or
snow may wet the interior of the
vehicle. Also, leaving the sun-
roof open when the vehicle is
unattended may invite theft.

CAUTION

3-44

Convenience features of your vehicle

Hood

Opening the hood

1. Park the vehicle and set the park-

ing brake.

2. Pull the release lever to unlatch

the hood. The hood should pop
open slightly.

3. Go to the front of the vehicle, raise

the hood slightly, push up the sec-
ondary hood release lever (1)
inside of the hood center and lift
the hood (2). After it has been
raised about halfway, it will raise
completely by itself.

Closing the hood

1. Before closing the hood, check the

following:
• All filler caps in fuel cell power

module compartment must be
correctly installed.

• Gloves, rags or any other com-

bustible material must be
removed from the fuel cell power
module compartment.

2. Lower the hood halfway (lifted

approximately 12 inches (30 cm)
from the closed position) and push
down to securely lock in place.
Then double check to be sure the
hood is secure. If the hood can be
raised slightly, it is not securely
locked. Open it again and close it
with more force.

E

EX

XT

TE

ER

RIIO

OR

R  F

FE

EA

AT

TU

UR

RE

ES

S

OFE048029

OFE048030N

3-45

Con

v

enience f

eatur

es of y

our v

ehicle

3

Non-Powered Liftgate
(if equipped)

Opening the liftgate

Before attempting to open the lift-
gate, make sure the vehicle is in P
(Park). To open the liftgate, perform
one the following:
1. Unlock all doors with the Door

Unlock button on your smart key.
From outside press the liftgate han-
dle switch and open the liftgate.

2. Press and hold the Liftgate Unlock

button on the smart key. From out-
side press the liftgate handle
switch and open the liftgate.

3. With the Smart Key in your pos-

session, press the liftgate handle
switch and open the liftgate.

Closing the liftgate

Lower the liftgate lid and press down
until it locks. To be sure the liftgate lid
is securely fastened, always check
by trying to pull it up again without
pressing the liftgate handle switch.

Information

In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.

i

Before closing the hood,
ensure all obstructions are
removed from around the
hood opening.

Always double check to be
sure that the hood is firmly
latched before driving away.
Check there is no hood open
warning light or message dis-
played on the instrument clus-
ter. Driving with the hood
opened may cause a total loss
of visibility,

which might

result in an accident.

Do not move the vehicle with
the hood in the raised posi-
tion, as vision is obstructed,
which might result in an acci-
dent, and the hood could fall
or be damaged.

WARNING

OFE048032

OFE048033

3-46

Convenience features of your vehicle

Make certain that you close the
liftgate before driving your vehi-
cle. Possible damage may occur
to the  liftgate struts and mounting
hinges if the liftgate  is not closed
prior to driving.

Emergency liftgate safety
release

Your vehicle is equipped with an
emergency liftgate safety release
lever located on the bottom of the lift-
gate inside the vehicle.
To unlock and open the liftgate man-
ually from inside the luggage com-
partment, perform the following
steps:
1. Remove the cover.
2. Push the release lever to the right.
3. Push the liftgate outward and

upward.

NOTICE

The liftgate swings upward.
Make sure no objects or people
are near the rear of the vehicle
when opening the liftgate.

WARNING

Do not hold on to or try to pull
on the liftgate strut. Be aware
that the deformation of the lift-
gate strut may cause vehicle
damage and risk of injury.

WARNING

OFE048035

Always keep the liftgate com-
pletely closed while the vehicle
is in motion. If it is left open or
ajar, poisonous exhaust gases
containing carbon monoxide
(CO) may enter the vehicle and
serious illness or death may
result.

WARNING

OFE048034

3-47

Con

v

enience f

eatur

es of y

our v

ehicle

3

Power Liftgate (if equipped)

Power liftgate operating condi-
tions

The power liftgate operates when the
gear is in P (Park) with the vehicle
running. However, the power liftgate
will operate regardless of the gear
position when the vehicle is off. Also,
the liftgate can be opened only when
vehicle speed is below 1.8 mph (3
km/h).
For safety, before attempting to open
or close the liftgate, make sure the
vehicle is in P (Park).

Be aware of the location of the
emergency liftgate safety
release lever in your vehicle
and know how to open the lift-
gate using the safety release
lever.

No one should be allowed to
occupy the luggage compart-
ment of the vehicle at any time.
The luggage compartment is a
very dangerous location in the
event of a crash.

Use the release lever for emer-
gencies only. Use extreme cau-
tion, especially while the vehi-
cle is in motion.

WARNING

Never leave children or ani-
mals unattended in your vehi-
cle. Children may operate the
power liftgate. Doing so can
result in injury to themselves
or others and can damage the
vehicle.

WARNING

Make sure that there are no
people or objects in the path
of the power liftgate or smart
liftgate prior to use. Serious
injury, damage to the vehicle
or damage to surrounding
objects (for example, walls,
ceilings, vehicles, etc.) may
result if contact with the lift-
gate occurs.

OFE043536

3-48

Convenience features of your vehicle

• Do not close or open the liftgate

manually. This may cause dam-
age to the power liftgate. If it is
necessary to close or open the
liftgate manually when the bat-
tery is discharged or discon-
nected, do not apply excessive
force.

• Do not operate the power liftgate

more than 10 times continuous-
ly when the vehicle is not run-
ning. Use the power liftgate with
the vehicle running when the
power liftgate is used repeatedly
to prevent battery discharge.

• Do not leave the power liftgate

open for a long period of time.
This may drain the battery.

• Do not apply excessive force

when the power liftgate is oper-
ating. Doing so could result in
vehicle damage.

Do not grab or hold on to the lift-
gate support struts at any time.
Damage to the liftgate support
struts could result. Deformation
of the liftgate support struts may
cause vehicle damage and per-
sonal injury may occur.

• Do not modify or repair any part

of the power liftgate by yourself.
This must be done by an author-
ized HYUNDAI dealer.

NOTICE

The liftgate may not open or
may close unintentionally
injuring people around the lift-
gate under the following situa-
tion:
- There is a lot of snow on the

liftgate.

- There is a heavy object on

the liftgate such as a bicycle
carrier, ladder, etc.

Do not open the liftgate before
removing snow or heavy
object on the liftgate.

OFE048035

3-49

Con

v

enience f

eatur

es of y

our v

ehicle

3

• Do not operate the power liftgate

under the following conditions.
The power liftgate may not oper-
ate properly.
- One side of the vehicle is lifted

to inspect the vehicle or
change a tire

- Parking on an uneven road

such as a slope, etc.

• Close the liftgate completely

and lock all doors and liftgate
using the central door lock but-
ton before using an automatic
car wash.

• Do not spray high pressure

water directly on the power lift-
gate outside open/close button.
The liftgate may open uninten-
tionally.

Information

• If the liftgate is not fully closed and

vehicle speed is at or above 1.8 mph
(3 km/h), a warning will sound 10
times. Immediately park the vehicle
at a safe place, close the liftgate, and
check that the liftgate open warning
on the instrument cluster is turned
off.

• In cold and wet climates, the outside

power liftgate open/close button
may not work properly due to freez-
ing conditions. If this occurs,
remove the ice before using the out-
side power liftgate open/close button
or use the power liftgate open/close
button on the smart key or the
instrument panel.

• Operating the power liftgate more

than 5 times continuously could
cause damage to the operating
motor. If this occurs, the power lift-
gate will not operate to prevent the
motor from overheating. If any of
the power liftgate buttons are
pressed to try to open the liftgate,
the chime will sound 3 times, but the
liftgate will remain closed. Allow the
power liftgate system to cool for
about 1 minute before operating the
system again.

i

3-50

Convenience features of your vehicle

Operating the power liftgate

Power liftgate open/close button
(Smart key, Instrument panel)

When the liftgate is closed, press the
power liftgate open/close button for 1
second. The power liftgate opens
with a warning sound.
While the liftgate is opening, press
the button to stop liftgate operation.
When the power liftgate is opened,
press and hold the power liftgate
open/close button to close the lift-
gate. If you release the button while
the liftgate is closing, power liftgate
operation will stop with a warning
sound for 5 seconds.
Also, if the smart key is not within
operation range (about 10 m) from
the vehicle, power liftgate operation
will stop with a warning sound for 5
seconds.

Power liftgate open/close button
(Outside the power liftgate)

When the liftgate is closed, press the
power liftgate open/close button to
open the liftgate.
If the vehicle is locked, press the
power liftgate open/close button with
the smart key in your possession.
If the liftgate is unlocked, the liftgate
will open or close with a warning
sound when the power liftgate
open/close button is pressed without
carrying the smart key.

OFE048037

OFE048036L

OFE048471L

3-51

Con

v

enience f

eatur

es of y

our v

ehicle

3

Power liftgate open/close button
(Inside the power liftgate)

Press the power liftgate open/close
button. The liftgate opens or closes
automatically.

Automatic reverse

During power liftgate operation if the
power liftgate senses any obstacle,
the liftgate will stop or will fully open.
The automatic reverse feature may
not operate properly, or it may oper-
ate unexpectedly under the following
circumstances:
• The automatic reverse feature may

not detect the resistance if the
detected resistance is below a cer-
tain level, or if the liftgate is almost
fully closed near the latched posi-
tion.

• The automatic reverse feature may

operate if a strong impact is
applied with no obstructions
placed.

Information

The power liftgate may stop operating
if the automatic reverse feature oper-
ates more than two times while
attempting to open or close the lift-
gate. If this occurs, carefully open or
close the liftgate manually, and then
after 30 seconds try to operate the
power liftgate automatically again.

i

OFE048040

Never intentionally place any
object or part of your body in
the path of the power liftgate to
make sure the automatic
reverse feature operates.
Serious injury, or damage to the
vehicle or object may occur.

WARNING

3-52

Convenience features of your vehicle

Setting the power liftgate

To use each feature, you must select
the opening speed or opening height
from the settings menu. Deselect the
settings when you do not want to use
the feature.

Power liftgate opening speed

To adjust the power liftgate speed,
select ‘Setup

Settings

Door/lift-

gate

Power liftgate opening speed

Fast/Slow’ in the infotainment sys-

tem. (Default setting is ‘Fast’)

Power liftgate opening height

To adjust the power liftgate opening
height, select ‘Setup

Settings

Door/liftgate

Power liftgate open-

ing height

Full Open/Level 3/Level

2/Level 1/User height setting’ in the
infotainment system.

The infotainment system may
change after updates. For detailed
information on system settings, see
the infotainment system web manu-
al.

User height setting

1.Position the liftgate manually to the

height you prefer.

2.Press the power liftgate open/close

button located inside the liftgate for
more than 3 seconds.
If ‘User height setting’ is selected
for the power liftgate opening
height, the power liftgate will auto-
matically open to the height manu-
ally set by you.

Information

• If the power liftgate opening height

has not been manually set, the
power liftgate will fully open when
‘User height setting’ from the info-
tainment system is selected.

• If one of the height setting (Full

Open/Level 3/Level 2/Level 1) is
selected from the settings menu in
the infotainment system, and then
‘User height setting’ is selected, the
liftgate will open to the height man-
ually set by you.

• The power liftgate opening speed

and opening height settings change
according to the linked User Profile.
If the User Profile is changed, power
liftgate opening speed and opening
height settings will change accord-
ingly.

i

3-53

Con

v

enience f

eatur

es of y

our v

ehicle

3

Resetting the power liftgate

In some circumstances resetting the
power liftgate operation may need to
be performed.

Some instances

where resetting the power liftgate
may be required include:
• When the 12 V battery is

recharged

• When the 12 V battery is rein-

stalled after removal or replace-
ment

• When the related fuse is rein-

stalled after removal or replace-
ment

1.With the engine off or running, put

the gear in P (Park).

2.Press the power liftgate open/close

inner button and outer button
simultaneously until a chime
sounds.

3.Slowly close the liftgate manually.
4.Press the power liftgate open/close

outer button. The power liftgate will
open with a chime sound.
Wait until the liftgate fully opens to
complete resetting. If the liftgate
stops before it is fully open, reset-
ting cannot be completed.

Information

If the power liftgate does not operate
properly after the above procedure,
have the system inspected by an
authorized HYUNDAI dealer.

Emergency liftgate safety
release

To unlock and open the liftgate man-
ually from inside the luggage com-
partment, perform the following pro-
cedure:
1.Remove the cover at the bottom of

the liftgate.

2.Slide the latch in the direction of

the arrow to unlock the liftgate.

3.Push the liftgate to open.

i

OFE048034

3-54

Convenience features of your vehicle

Smart Liftgate (if equipped)

On vehicles equipped with a smart
key, the liftgate can be opened with
hands-free activation using the
Smart Liftgate system.

How to use the Smart Liftgate

The hands-free smart liftgate system
can be opened automatically when
the following conditions are met:
• The Smart Liftgate option is

enabled in the User Settings in the
Infotainment system screen.

• The Smart Liftgate is activated and

ready 15 seconds after all the
doors are closed and locked

• The Smart Liftgate will open when

the smart key is detected in the
area behind the vehicle for 3 sec-
onds

For emergencies, be fully
aware of the location of the
emergency liftgate safety
release latch in the vehicle
and how to open the liftgate if
you are accidentally locked in
the luggage compartment.

No one, including animals,
should be allowed to occupy
the luggage compartment of
the vehicle at any time. The
luggage compartment is a
very dangerous location in
the event of an accident.

Use the release latch for
emergencies only.

Use

extreme caution, especially
while the vehicle is in motion.

WARNING

OFE048041

3-55

Con

v

enience f

eatur

es of y

our v

ehicle

3

Information

The Smart Liftgate will NOT operate
when:

• Any door is open, or all doors are

closed but not locked

• The smart key is detected within 15

seconds from when the doors were
closed and locked

• For vehicles equipped with illumi-

nated exterior front door handles, if
the smart key is detected within 15
seconds from when the doors were
closed and locked or if the smart key
is within 60 inches (1.5m) from the
front door handles

• The smart key is in the vehicle.

1. Setting
To activate the Smart Liftgate, go to
"Vehicle settings

Door/Tailgate"

and select Smart Tailgate (Liftgate)
on the Infotainment system screen.

For more information refer to the
separately supplied Navigation
manual.

2.Detect and Alert
The Smart Liftgate detecting area
extends approximately 20-40 in (50-
100 cm) behind the vehicle. If you
are positioned in the detecting area
and are carrying the smart key, the
hazard warning lights will blink and
the chime will sound to alert you that
the smart liftgate will open.

Information

Do not approach the detecting area if
you do not want the liftgate to open. If
you have unintentionally entered the
detecting area and the hazard warn-
ing lights and chime starts to operate,
move away from the area behind the
vehicle with the smart key. The lift-
gate will remain closed.

3. Automatic opening
After the hazard warning lights blink
and the chime sounds 6 times, the
power liftgate will open.

i

i

Make certain that you close
the liftgate before driving your
vehicle.

Make sure there are no people
or objects around the liftgate
before opening or closing the
liftgate.

Make sure objects in the rear
cargo area do not come out
when opening the liftgate,
especially if the vehicle is
parked on a grade or incline.

If you keep your vehicle
parked and locked on your
driveway, you may want to
temporarily deactivate the
Smart Liftgate system.
Otherwise, standing at the
rear of the vehicle with the
smart key may cause the lift-
gate to open unintentionally.

WARNING

3-56

Convenience features of your vehicle

How to deactivate the Smart
Liftgate function using the
smart key

1. Door lock
2. Door unlock
3. Liftgate open/close
4. Panic
If you press any button on the smart
key during the Detect and Alert
stage, the Smart Liftgate function will
be deactivated.
Make sure to be aware of how to
deactivate the Smart Liftgate func-
tion for emergency situations.

Information

• If you press the door unlock button

(2), the Smart Liftgate function will
be deactivated temporarily. But, if
you do not open any door for 30 sec-
onds, the Smart Liftgate function
will be activated again.

• If you press the liftgate open button

(3) for more than 1 second, the lift-
gate opens.

• The Smart Liftgate function will

still be activated if you press the
door lock button (1) or liftgate open
button (3) on the smart key as long
as the Smart Liftgate is not already
in the Detect and Alert stage.

• In case you have deactivated the

Smart Liftgate function by pressing
the smart key button and opened a
door, the Smart Liftgate function
can be activated again by closing
and locking all doors.

i

The key should be kept out of
reach of children. Children
may inadvertently open the
Smart Liftgate while playing
around the rear area of the
vehicle.

OFE048005

3-57

Con

v

enience f

eatur

es of y

our v

ehicle

3

Detecting area

• The Smart Liftgate detecting area

extends approximately 20-40 in
(50-100 cm) behind the vehicle. If
you are positioned in the detecting
area and are carrying the smart
key, the hazard warning lights will
blink and the chime will sound for
about 3 seconds to alert you that
the smart liftgate will open.

• The alert stops once the smart key

is moved outside of the detecting
area within the 3 second period.

Information

• The Smart Liftgate function may

not operate properly if any of the
following instances occur:

- The smart key is close to a radio

transmitter such as a radio station
or an airport which can interfere
with normal operation of the
transmitter.

- The smart key is near a mobile two

way radio system or a cellular
phone.

- Another vehicle's smart key is

being operated close to your vehi-
cle.

• The Smart Liftgate detecting area

may change when:

- The vehicle is parked on an incline

or slope

- One side of the vehicle is raised or

lowered relative to the opposite
side

Fuel Filler Door

Opening the fuel filler door

1. Turn the vehicle off.
2. Push the fuel filler door opener

button.

• The fuel filler door does not

open if the vehicle is not off.

• The fuel filler door may open after

several seconds from turning off
the vehicle. However, in cold
weather, the fuel door may not
open for about 45 seconds until
the cluster message "Powering
down..." disappears. This is for
protecting the fuel cell system.

NOTICE

i

OFE048042N

OFE039063L

3-58

Convenience features of your vehicle

3. Pull the fuel filler door (1) outward

to access the fuel filler cap.

4. Pull the fuel filler cap (2).

Information

If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break
the ice and release the door. Do not
pry on the door. If necessary, spray
around the door with an approved de-
icer fluid (do not use radiator anti-
freeze) or move the vehicle to a warm
place and allow the ice to melt.

Closing the fuel filler door

1. Cover the fuel filler with the cap.
2. Close the fuel filler door until it is

latched securely.

i

OFEQ018015N

If the fuel filler cap requires
replacement, you should use
parts for replacement from an
authorized Hyundai dealer. An
incorrect fuel filler cap can
result in a serious malfunc-
tion of the fuel system or
emission control system. you
should contact your HYUNDAI
dealer for replacement.

If the fuel filler door is not
completely closed, the vehicle
is not turned on. Close the
fuel filler door and turn on the
vehicle.

WARNING

Refueling dangers

Automotive fuels are flammable
materials. When refueling, please
note the following guidelines
carefully. Failure to follow these
guidelines may result in severe
personal injury, severe burns or
death by fire or explosion.

Read and follow all warning
posted at the gas station facil-
ity.

Before touching the fuel noz-
zle,

you should eliminate

potentially dangerous static
electricity discharge by touch-
ing another metal part of the
vehicle, a safe distance away
from the fuel filler neck, noz-
zle, or other gas source.

WARNING















Content      ..     4      5      6      7     ..
