2-67

Saf

ety system of y

our v

ehicle

2

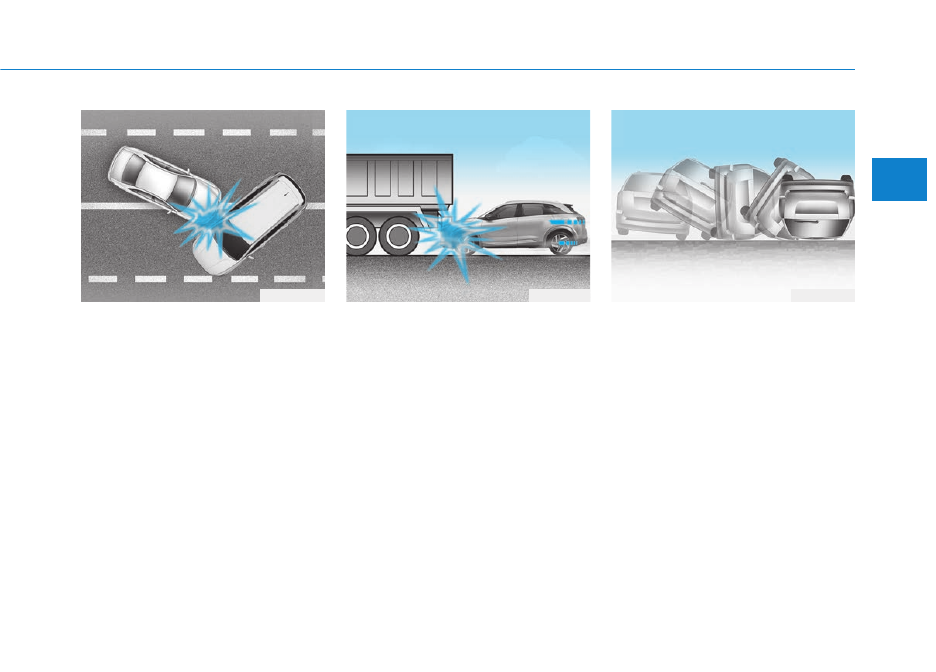

In an angled collision, the force of
impact may direct the occupants in a
direction where the air bags would
not be able to provide any additional
benefit, and thus the sensors may
not deploy any air bags.

Just before impact, drivers often
brake heavily. Such heavy braking
lowers the front portion of the vehicle
causing it to "ride" under a vehicle
with a higher ground clearance. Air
bags may not inflate in this "under-
ride" situation because deceleration
forces that are detected by sensors
may be significantly reduced by such
"underride" collisions.

Front air bags may not inflate in
rollover accidents because air bag
deployment could not provide protec-
tion to the occupants.
However, side and curtain air bags
may inflate when the vehicle is rolled
over by a side impact collision.

OTM038090

OFE038046

OTL035068

2-68

Safety system of your vehicle

Air bags may not inflate if the vehicle
collides with objects such as utility
poles or trees, where the point of
impact is concentrated and the colli-
sion energy is absorbed by the vehi-
cle structure.

SRS Care

The SRS is virtually maintenance-
free and there are no parts you can
safely service by yourself. If the SRS
air bag warning light does not illumi-
nate when the POWER button is in
the ON position, or continuously
remains on, have your vehicle imme-
diately inspected by an authorized
HYUNDAI dealer.
Any work on the SRS system, such
as removing, installing, repairing, or
any work on the steering wheel, the
front passenger's panel, front seats
and roof rails must be performed by
an authorized HYUNDAI dealer.
Improper handling of the SRS system
may result in serious personal injury.

To reduce the risk of serious
injury or death, take the follow-
ing precautions:

Do not attempt to modify or
disconnect the SRS compo-
nents or wiring, including the
addition of any kind of badges
to the pad covers or modifica-
tions to the body structure.

Do not place objects over or
near the air bag modules on
the steering wheel, instrument
panel, or the front passen-
ger’s panel above the glove
box.

Clean the air bag pad covers
with a soft cloth moistened
with plain water. Solvents or
cleaners could adversely
affect the air bag covers and
proper deployment of the sys-
tem.

Always have inflated air bags
replaced by an authorized
HYUNDAI dealer.

WARNING

OFE038047

2-69

Saf

ety system of y

our v

ehicle

2

Additional Safety Precautions

Passengers should not move out
of or change seats while the vehi-
cle is moving.

A passenger who is

not wearing a seat belt during a
crash or emergency stop can be
thrown against the inside of the vehi-
cle, against other occupants, or be
ejected from the vehicle.

Do not use any accessories on
seat belts.

Devices claiming to

improve occupant comfort or reposi-
tion the seat belt can reduce the pro-
tection provided by the seat belt and
increase the chance of serious injury
in a crash.

Do not modify the front seats.

Modification of the front seats could
interfere with the operation of the
supplemental restraint system sens-
ing components or side air bags.

Do not place items under the front
seats.

Placing items under the front

seats could interfere with the opera-
tion of the supplemental restraint
system sensing components and
wiring harnesses.

Do not cause impact to the doors.

Impact to the doors when the
POWER button is in the ON position
may cause the air bags to inflate.

Modifications to accommodate
disabilities.

If you require modifica-

tion to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 800-
633-5151.

Adding equipment to or modify-
ing your air bag equipped vehicle

If you modify your vehicle by chang-
ing your vehicle's frame, bumper sys-
tem, front end or side sheet metal or
ride height, this may affect the opera-
tion of your vehicle's air bag system.

Air Bag Warning Labels

Air bag warning labels, required by
the U.S. National Highway Traffic
Safety Administration (NHTSA), are
attached to alert the driver and pas-
sengers of potential risks of the air
bag system. Be sure to read all of the
information about the air bags that
are installed on your vehicle in this
Owners Manual.

If components of the air bag
system must be discarded, or if
the vehicle must be scrapped,
certain safety precautions
must be observed. Consult an
authorized HYUNDAI dealer for
the necessary information.
Failure to follow these precau-
tions could increase the risk of
personal injury.

OFE038049N

2-70

Safety system of your vehicle

The active hood lift system can help
reduce risk of injury to pedestrians
by raising the hood in certain acci-
dent situations. The active hood lift
system has the additional deforma-
tion space under the hood, which is
made available for subsequent head
impact.

System activation

Prerequisite for activation

The POWER button is in the START
position and the vehicle speed is
between about 15.5 mph (25 km/h)
and 31 mph (50 km/h).

Information

Active hood lift system
repair

• If the active hood lift system has been

activated, do not place the hood back
by yourself. Have the system repaired
by an authorized HYUNDAI dealer.

• If you change or repair the front

bumper, have the system checked by
an authorized HYUNDAI dealer.

System activation

The active hood lift system is
designed to work in a frontal collision
depending on the intensity, speed or
angles of impact of the front collision.

The system will activate when:
• There is a frontal collision with a

pedestrian, an animal, an obstacle
or a vehicle and certain operation
conditions (intensity, speed, angle
of impact, etc.) are met.

i

A

AC

CT

TIIV

VE

E  H

HO

OO

OD

D  L

LIIF

FT

T  S

SY

YS

ST

TE

EM

M  ((IIF

F  E

EQ

QU

UIIP

PP

PE

ED

D))

2-71

Saf

ety system of y

our v

ehicle

2

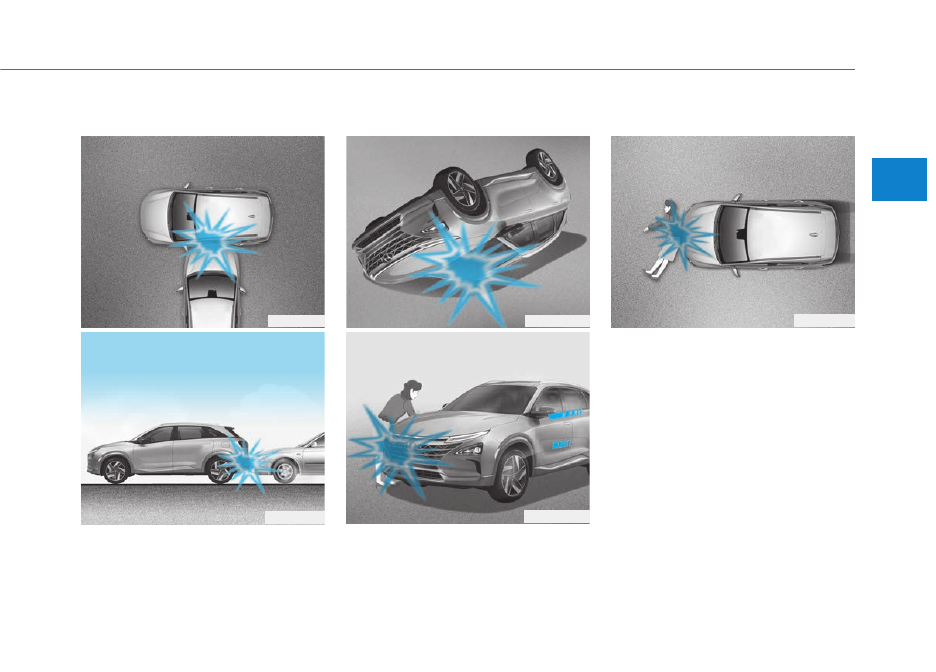

System limitation

The system will not activate when:
• On side collisions, rear collision,

and rollover accident. The vehicle
can detect only frontal collision.

• The front bumper is damaged or

modified.

• The vehicle is in an angled frontal

collision with pedestrians.

• A pedestrian is laying on the road.
• A pedestrian has an object to

absorb the shock such as a suit
case, buggy or cart.

OFE038065

OFE038067N

OFE038066

OFE038068N

OFE038069

2-72

Safety system of your vehicle

System malfunction

If there is a problem with the system
a message will appear on the cluster
display.
This warning message means that
the protection of pedestrians by the
active hood lift system is not working
properly.
If the warning message is displayed,
have the system checked as soon as
possible by an authorized HYUNDAI
dealer.

Information

• Do not remove or change the com-

ponents and the wiring of the active
hood system.

• Do not change the front bumper or

the body structure.

• Do not install or assemble any after-

market accessory on the front
bumper or cover.

• When replacing tires, make sure

they are the same size as your origi-
nal tires. If you drive with different
tire or wheel sizes, the active hood
lift system may not work normally.

The above situations  may cause a
malfunction of the active hood lift sys-
tem.

i

OIK037067L

Convenience features of your vehicle

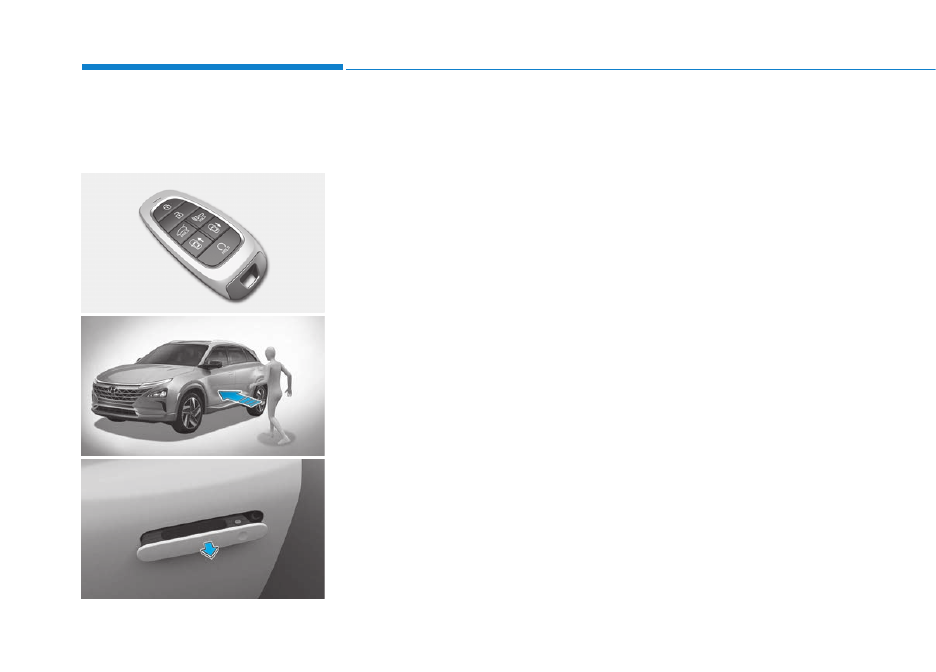

Accessing Your Vehicle .........................................3-4

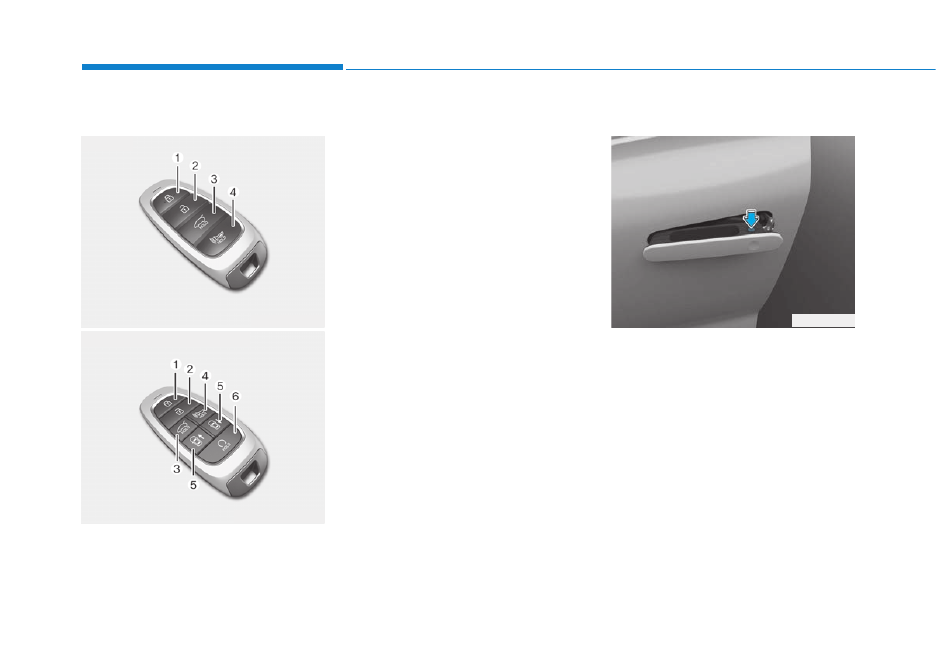

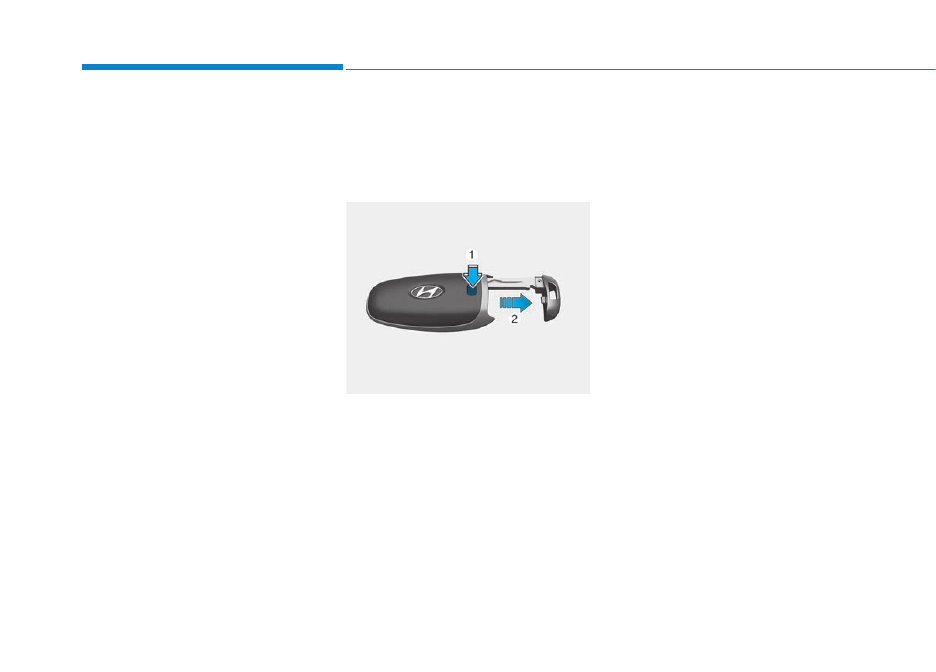

Smart Key............................................................................3-4
Immobilizer System .........................................................3-11

Door Locks............................................................3-12

Door unlocking from outside the vehicle .................3-12
Door locking from outside the vehicle ......................3-15

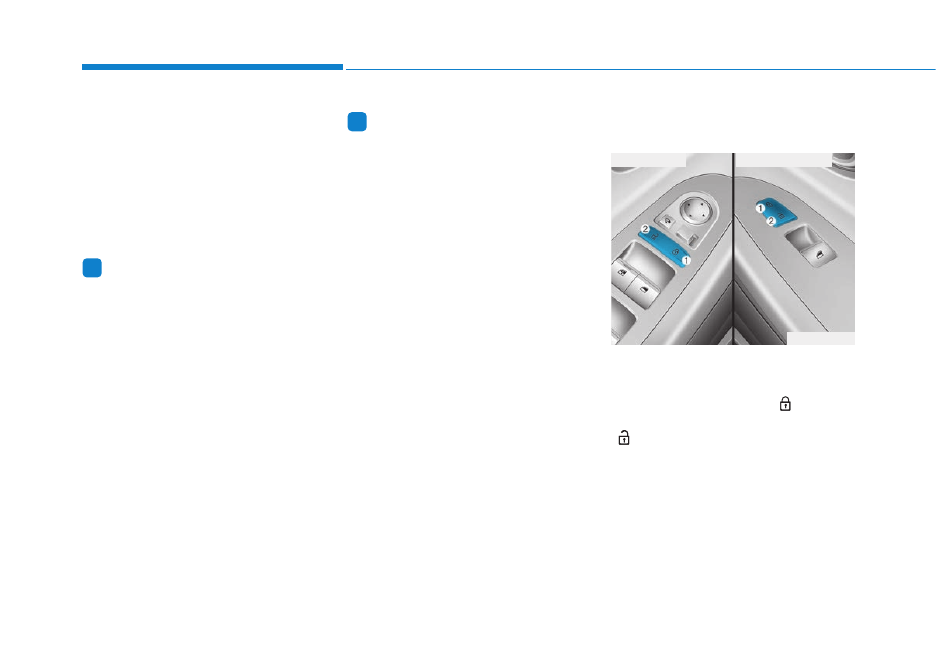

Operating Door Locks from Inside the Vehicle .......3-15
Automatic Door Lock and Unlock Features .............3-18
Child-Protector Rear Door Locks ...............................3-19

Theft-Alarm System............................................3-20
Steering Wheel .....................................................3-21

Motor Driven Power Steering (MDPS) ......................3-21
Tilt Steering / Telescope Steering..............................3-22
Horn....................................................................................3-23
Heated Steering Wheel..................................................3-23

Mirrors...................................................................3-24

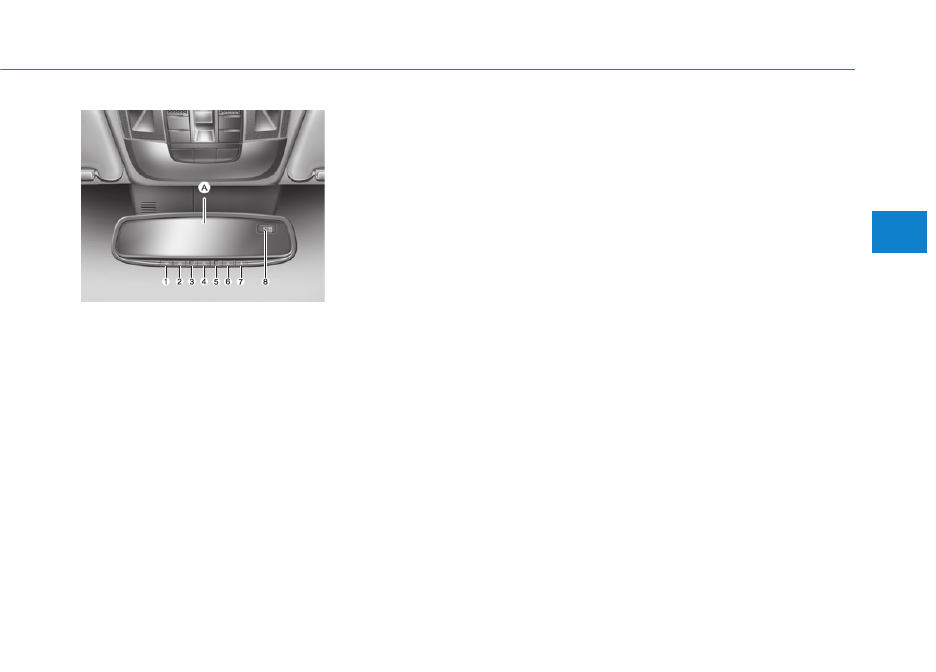

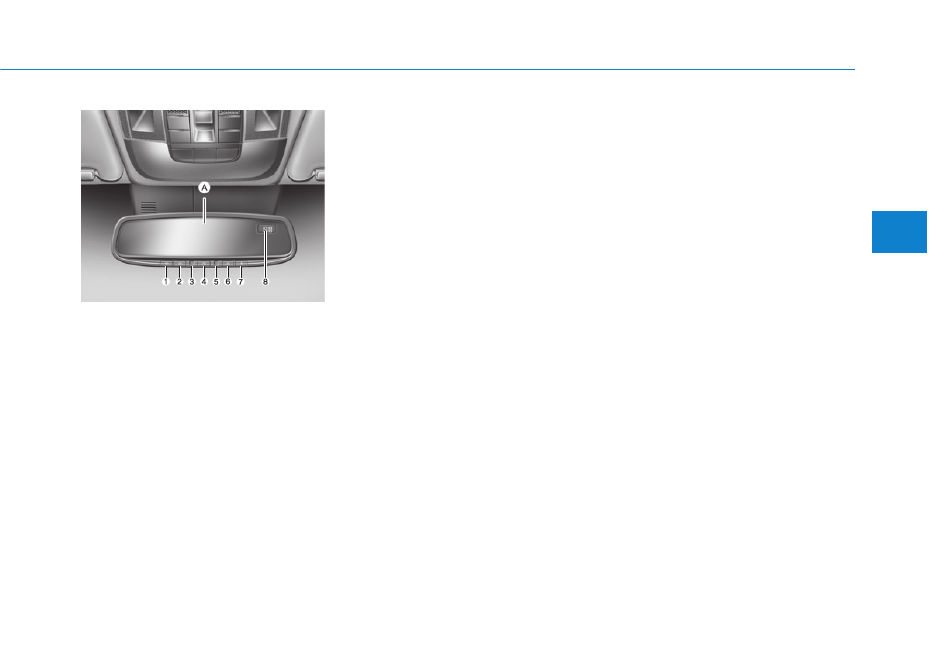

Inside Rearview Mirror ..................................................3-24
Side View Mirrors ...........................................................3-32

Windows ................................................................3-35

Power Windows ...............................................................3-36

Wide Sunroof........................................................3-39

Power sunshade ..............................................................3-39
Tilt Open/Close ................................................................3-40
Slide open/close ..............................................................3-40
Automatic Reversal .........................................................3-41
Resetting the sunroof....................................................3-42
Sunroof Open Warning..................................................3-43

Exterior Features.................................................3-44

Hood ...................................................................................3-44
Non-Powered Liftgate...................................................3-45
Power Liftgate .................................................................3-47
Smart Liftgate ..................................................................3-54
Fuel Filler Door ................................................................3-57
Emergency Fuel Filler Door Release..........................3-59

Instrument Cluster ...............................................3-60

Instrument Cluster Control............................................3-62
Gauges and Meters ........................................................3-62
Warning and Indicator lights ........................................3-68
Cluster Display Messages .............................................3-79

Cluster Display......................................................3-84

Cluster Display Control ..................................................3-84
Cluster Display Modes ...................................................3-85

Trip Computer .......................................................3-88
H

2

O OUT ................................................................3-92

CSD (Cold Shut-Down)...................................................3-93

3

Exterior Lights......................................................3-94

Lighting Control ...............................................................3-94
High Beam Operation .....................................................3-95
Turn Signals and Lane Change Signals .....................3-96
Battery Saver Function .................................................3-97
Headlight Time-out Function.......................................3-97
Daytime Running Light (DRL).......................................3-98
Headlight Leveling Device.............................................3-98
Welcome System .............................................................3-98

Interior Lights.....................................................3-100

Interior Lamp AUTO Cut ..............................................3-100
Front Lamps ...................................................................3-100
Rear Lamp.......................................................................3-101
Luggage Compartment Lamp .....................................3-101
Vanity Mirror Lamp ......................................................3-101
Glove Box Lamp.............................................................3-102
Puddle Lamp...................................................................3-102

High Beam Assist (HBA) ...................................3-103

High Beam Assist settings ..........................................3-103
High Beam Assist operation .......................................3-104
High Beam Assist malfunction and limitations ......3-105

Wipers and Washers..........................................3-107

Front Windshield Wipers.............................................3-107
Front Windshield Washers..........................................3-109
Rear Window Wiper and Washer..............................3-110

Rear View Monitor (RVM)................................3-111
Surround View Monitor (SVM) ........................3-112
Forward/Reverse Parking Distance Warning
(PDW) ..................................................................3-113
Remote Smart Parking Assist (RSPA) .............3-117

Operating condition......................................................3-118
Non-operating condition.............................................3-119
Limitations of Remote Smart Parking Assist .........3-120
How Smart Parking function works .........................3-124
How the remote parking function works ...............3-131
How the Smart Exit function works ........................3-135
How the Remote Moving Forward/Backward
function works...............................................................3-142
Additional instructions (messages)...........................3-147
Turn signal showing vehicle state while the
function in activation ...................................................3-148
Smart key showing vehicle state while the
function in activation ...................................................3-149
Link with other systems..............................................3-150

3

Convenience features of your vehicle

Automatic Climate Control System..................3-151

Automatic Temperature Control Mode ....................3-152
Manual Temperature Control Mode .........................3-152
System Operation .........................................................3-158
System Maintenance....................................................3-160

Windshield Defrosting and Defogging............3-162

Auto Defogging System (Additional Feature with
Automatic Temperature Control System)................3-164
Rear Window Defroster ..............................................3-165

Climate Control Additional Features ...............3-166

Air Conditioning Auto-drying ....................................3-166
Automatic Ventilation...................................................3-167
Sunroof Inside Air Recirculation ...............................3-167

Storage Compartment .......................................3-168

Center Console Storage ..............................................3-168
Glove Box ........................................................................3-168

Interior Features ................................................3-169

Cup Holder ......................................................................3-169
Sunvisor...........................................................................3-170
Power Outlet ..................................................................3-171
AC Inverter......................................................................3-172
USB Charger...................................................................3-173
Wireless Cellular Phone Charging System..............3-174
Clock.................................................................................3-177
Coat Hook .......................................................................3-177
Floor Mat Anchor(s).....................................................3-178
Luggage Net Holder .....................................................3-178
Cargo Security Screen.................................................3-179

Exterior Features...............................................3-181

Roof Side Rails ..............................................................3-181

3

3-4

Convenience features of your vehicle

Smart Key

Your HYUNDAI uses a Smart Key,
which you can use to lock or unlock
the driver and passenger doors or
the rear liftgate.

1. Door Lock
2. Door Unlock
3. Liftgate Unlock (Manual liftgate)

Liftgate Open/Close (Power lift-
gate)

4. Panic
5.Remote start
6.Remote Smart Parking Assist

(Forward/Backward)

Locking your vehicle

To lock your vehicle using the door
handle button or the Smart Key:
1. Make sure all doors, the hood and

the liftgate are closed.

2. Make sure you have the smart key

in your possession.

3. Press either the button on the

door handle or the Door Lock but-
ton (1) on the smart key.

The

chime will sound once and the
hazard warning lights will blink.

4. Make sure the doors are locked by

checking the position of the door
lock button inside the vehicle.

A

AC

CC

CE

ES

SS

SIIN

NG

G  Y

YO

OU

UR

R  V

VE

EH

HIIC

CL

LE

E

OFE048003

OFE048005

Type A

OFE048006N

Type B

3-5

Con

v

enience f

eatur

es of y

our v

ehicle

3

Information

The door handle button will only
operate when the smart key is within
28~40 inches (0.7~1 m) from the out-
side door handle.

Note that you cannot lock your vehi-
cle using the door handle button if
any of the following occur:
• The Smart Key is in the vehicle.
• The POWER button is in ACC or

ON position.

• Any of the doors are open except

for the liftgate.

Unlocking your vehicle

To unlock your vehicle:
1. Make sure you have the smart key

in your possession.

2. Press either the button on the

door handle or the Door Unock
button (2) on the smart key. The
driver's door will unlock and the
hazard warning lights will blink two
times.

Two Press Unlock Feature
The priority for unlocking the driver
door only, or unlocking all the doors
with one press may be adjusted in
the User Settings mode in the
Infotainment system LCD display.
The Two Press Unlock feature, when
enabled, will require the user to
press the door unlock button once for
driver door only and twice for unlock-
ing all the doors within 4 seconds.
Select or Deselect the Two Press
Unlock feature in the User Settings
mode in the Infotainment system
LCD display.

The option can be

found under the following menu:
Vehicle Settings mode

Door/Liftgate

Two Press Unlock

i

Do not leave the Smart Key in
your vehicle with unsupervised
children. Unattended children
could press the POWER button
and may operate power win-
dows or other controls, or even
make the vehicle move, which
could result in serious injury or
death.

WARNING

OFE048004

3-6

Convenience features of your vehicle

The Two Press Unlock feature can
also be enabled or disabled by
pressing the door lock and unlock
buttons simultaneously on the Key
FOB:
Press and hold both the Door Lock
button and the Door Unlock button
simultaneously until the hazard
warning lights blink.
This will enable or disable the Two
Press Unlock feature. Repeat this
procedure to enable/disable the
mode again.

Information

• The door handle buttons will only

operate when the smart key is with-
in 28-40 inches (0.7~1m) from the
outside door handle

• Either the driver or front passenger

door can be opened with the door
handle button when the smart key is
within this range

• If you press the front passenger out-

side door handle with the smart key
in your possession, all the doors will
unlock

Opening the liftgate

Non-power liftgate

To unlock and open the liftgate:
1. Make sure you have the smart key

in your possession.

2. Press either the liftgate handle

release switch on the vehicle or
press and hold the Liftgate Unlock
button on the smart key for more
than one second. The hazard
warning lights will blink two times
and the liftgate latch will unlock.

3. Once the liftgate is opened and

then closed, the liftgate will auto-
matically re-lock after 30 seconds.

Information

• The liftgate handle switch will only

operate when the smart key is with-
in 28 inches (0.7 m) from the liftgate
handle.

• The Liftgate Unlock button (3) will

only unlock the liftgate. It will not
release the latch and open the lift-
gate automatically. If the Liftgate
Unlock button is used, someone
must still press the liftgate handle
switch to open the liftgate.

Power liftgate

To unlock and open the liftgate:
1. Make sure you have the smart key

in your possession.

2. Press either the liftgate handle

release switch on the vehicle or
press and hold the Liftgate Unlock
button on the smart key for more
than one second. The hazard
warning lights will blink two times
and the liftgate latch will open.

3. Once the liftgate is opened and

then closed, the liftgate will auto-
matically re-lock after 30 seconds.

Information

The liftgate handle switch will only
operate when the smart key is within
28 inches (0.7 m) from the liftgate
handle.

i

i

i

3-7

Con

v

enience f

eatur

es of y

our v

ehicle

3

Panic button

Press and hold the Panic button (4)
for more than one second. The horn
sounds and hazard warning lights
blink for about 30 seconds. To cancel
the panic mode, press any button on
the Smart Key.

Start-up

You can start the vehicle without
inserting the key.

For information, refer to the
"POWER button" section in chap-
ter 5.

To prevent damaging the smart
key:
• Keep the smart key in a cool, dry

place to avoid damage or mal-
function. Exposure to moisture
or high temperature may cause
the internal circuit of the smart
key to malfunction which may
not be covered under warranty.

• Avoid dropping or throwing the

smart key.

• Protect the smart key from

extreme temperatures.

Remote start (if equipped)

You can start the vehicle using the
remote start button (6) of the smart
key.
To start the vehicle remotely :
- Lock the doors by pressing the

door lock button (1) within 32 ft (10
m) distance from the vehicle.

- Press the remote start button for

over 2 seconds within 4 seconds
after locking the doors.

Press the remote start button once to
turn off the vehicle.
Air conditioner/heater system main-
tains the status before turning off the
vehicle.
If no further action for operating/driv-
ing the vehicle is taken, the vehicle
will be turned off 10 minutes after
starting the vehicle remotely.

NOTICE

Laws in your country may
restrict the use of remote start.
You should check country reg-
ulations before using this
remote starting system.

It is only possible to start the
vehicle remotely when shifted
to P (Park).

If the hood or the liftgate is
opened, you cannot start the
vehicle remotely.

The Remote start function
works the same as Blue Link
remote start. For further cau-
tion information, refer to the
separately supplied "Blue
Link (Infotainment system)
manual".

CAUTION

3-8

Convenience features of your vehicle

Remote Smart Parking Assist
(RSPA) (if equipped)

Remote Smart Parking Assist helps
the drivers park their vehicle by using
sensors to measure parking spaces
and control the steering wheel, gear
shift and vehicle speed to semi-auto-
matically park the vehicle and pro-
vide instruction on the Infotainment
system screen to help through park-
ing.
The driver can activate Remote
Smart Parking Assist after measur-
ing the parking spaces or using the
smart key.
It is also possible to move the vehicle
forward or backward using the but-
tons (5) on the smart key.
For more details, refer to "Remote
Smart Parking Assist (RSPA)" in this
chapter.

Mechanical key

If the Smart Key does not operate
normally, you can lock or unlock the
driver's door by using the mechanical
key.

To remove the mechanical key from
the smart key FOB, slide the release
lever in the direction of the arrow (1)
and then pull the mechanical key (2)
outward.
To unlock the vehicle using the
mechanical key. insert the mechani-
cal key into the key hole in the driver
door (Refer to "DOOR LOCKS" in
this chapter.)

To reinstall the mechanical key into
the FOB, insert the key in the top of
the key FOB and push inward until a
click sound is heard.

Loss of a smart key

A maximum of two Smart Keys can
be registered to a single vehicle. If
you happen to lose your smart key,
you should immediately take the
vehicle and remaining keys to your
authorized HYUNDAI dealer or tow
the vehicle, if necessary.

OFE048007

3-9

Con

v

enience f

eatur

es of y

our v

ehicle

3

Smart key precautions

The smart key may not work if any of
the following occur:
• The smart key is close to a radio

transmitter such as a radio station
or an airport which can interfere
with normal operation of the trans-
mitter.

• The smart key is near a mobile two

way radio system or a cellular
phone.

• Another vehicle's smart key is being

operated close to your vehicle.

• If your windows are tinted, especial-

ly with metallic window tint, it may
cause frequency interference,
reducing the smart key operating
range.

If the smart key does not work cor-
rectly, open and close the door with
the mechanical key. If you have a
problem with the smart key, contact
an authorized HYUNDAI dealer.

If the smart key is in close proximity
to your mobile phone, the signal
could be blocked by your mobile
phone's normal operational signals.
This is specifically relevant when the
phone is active such as making and
receiving calls, text messaging,
and/or sending/receiving emails.
When possible, avoid keeping the
remote key and your mobile phone in
the same location such as a pants or
jacket pocket in order to avoid inter-
ference between the two devices.

Keep the smart key away from
electromagnetic materials that
blocks electromagnetic waves to
the key surface.

Always have the smart key with
you when leaving the vehicle. If
the smart key is left near the vehi-
cle, the vehicle battery may be dis-
charged.

Information

This device complies with Part 15 of
the FCC rules.

Operation is subject to the following
three conditions:

1. This device may not cause harmful

interference.

2. This device must accept any inter-

ference received, including interfer-
ence that may cause undesired
operation.

3. Changes or

modifications not

expressly approved by the party
responsible for compliance could
void the user's authority to operate
the device.

i

NOTICE

NOTICE

3-10

Convenience features of your vehicle

Battery replacement

If the Smart Key is not working prop-
erly, try replacing the battery with a
new one.

Battery Type: CR2032
To replace the battery:
1. Remove the mechanical key.
2. Use a slim tool to pry open the

rear cover of the smart key.

3. Remove the old battery and insert

the new battery. Make sure the
battery position is correct.

4. Reinstall the rear cover of the

smart key.

If you suspect your smart key might
have sustained some damage, or
you feel your smart key is not work-
ing correctly, contact an authorized
HYUNDAI dealer.

Information

An inappropriately disposed
battery can be harmful to the
environment and human
health. Dispose of the battery
according to your local law(s)
or regulations.

i

OFE048009

OFE048008

THIS PRODUCT CONTAINS A
BUTTON BATTERY.
If swallowed, a lithium button
battery  can cause severe or
fatal injuries within 2 hours.
Keep batteries out of reach of
children. If you think batteries
may have been swallowed or
placed inside any part of the
body, seek immediate medical
attention.

WARNING

3-11

Con

v

enience f

eatur

es of y

our v

ehicle

3

Immobilizer System

The immobilizer system protects
your vehicle from theft. If an improp-
erly coded key (or other device) is
used, the power system is disabled.
When the POWER button is placed
in the ON position, the immobilizer
system indicator should come on
briefly, then go off. If the indicator
starts to blink, the system does not
recognize the coding of the key.
Place the POWER button to the OFF
position, then place the POWER but-
ton to the ON position again.
In some circumstances, the vehicle
may not recognize your smart key if
another smart key device is nearby
or a metal object such as a key chain
is causing interference with the
smart key.
If this occurs, your vehicle may not
start. Remove any metal objects or
additional keys near the smart key
before attempting to start the vehicle
again.

If the system repeatedly does not
recognize the coding of the key, it is
recommended that you contact your
HYUNDAI dealer.
Do not attempt to alter this system or
add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.

The transponder in your key is an
important part of the immobilizer
system. It is designed to give
years of trouble-free service, how-
ever you should avoid exposure to
moisture, static electricity and
rough handling. Immobilizer sys-
tem malfunction could occur.

Information

This device complies with Part 15 of
the FCC rules.

Operation is subject to the following
three conditions:

1. This device may not cause harmful

interference.

2. This device must accept any inter-

ference received, including interfer-
ence that may cause undesired
operation.

3. Changes or

modifications not

expressly approved by the party
responsible for compliance could
void the user's authority to operate
the device.

i

NOTICE

In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a cus-
tomer unique password and
should be kept confidential.

WARNING

3-12

Convenience features of your vehicle

D

DO

OO

OR

R  L

LO

OC

CK

KS

S

Door unlocking from outside
the vehicle

Smart key

Approach unlock system

The outside door handle will slide out
and the doors will unlock when the
driver approaches the vehicle pos-
sessing the smart key.

The driver can activate/deactivate
the "Approach unlock" system on the
Infotainment system screen.
Go to "Vehicle settings

→

Door/

Tailgate

→

Approach unlock".

• When the "Approach unlock" is

activated :
- If you approach (within 40 in.(1

m)) the driver or front passen-
ger's door handle possessing the
smart key, the outside door han-
dles slide out and the doors are
unlocked. In this case, Hazard
Warning Flasher blinks twice and
chime also sounds twice.

- After first approach, the vehicle

tries detecting the smart key
every 5 seconds and if the key is
not detected, the doors will lock
automatically and the handles will
slide in.

• When the "Approach unlock" is

deactivated :
- The handle does not slide out

even when you approach with the
smart key in possession. The
doors are unlocked if you press
the outside handle as the handles
slide out.

• The doors will lock automatically

and the handles will slide in after
30 seconds unless a door is
opened.

• Unlock the door and pull the out-

side handle to open the door.

• Push the door to close.

OFE048002

FE-TAG-13

FE-TAG-10

3-13

Con

v

enience f

eatur

es of y

our v

ehicle

3

• If the door is locked/unlocked

multiple times in rapid succes-
sion with the smart key, door
lock button or door lock switch,
the system may stop operating
temporarily in order to protect
the circuit. Also, the "Approach
unlock" system may not oper-
ate. Try operation after a suffi-
cient time in case the system
does not operate due to multiple
operations.

• "Approach unlock" system is

not operated continuously.
Retry after a certain period of
time when all the doors are
closed.

Mechanical key

1. Push the front side of the door

handle.

2. Pull the rear side of the handle

while holding it.

3. Open the plug by using the

mechanical key.

NOTICE

FE-TAG-8

FE-TAG-7

FE-TAG-3

3-14

Convenience features of your vehicle

4. Put the key in and turn it clock-

wise.

5. Pull the handle.

Excessive force applied on the
door and door handle may result
in damage.

NOTICE

FE-TAG-6

FE-TAG-4

Close the door tightly or door
may reopen.

Make sure the fingers or other
body parts are not caught
between the doors when
opening/closing the doors.

Make sure the fingers or other
body parts are caught inside
the handle while the handle is
pulled. The door may not fully
close if the handle is back to
its normal position due to any
foreign material.

WARNING

3-15

Con

v

enience f

eatur

es of y

our v

ehicle

3

Door locking from outside the
vehicle

Smart key

• To lock the doors, press the button

on the outside door handle while
carrying the smart key with you.
The handle will slide in as it's
locked. In this case, Hazard
Warning Flasher blinks and chime
also sounds once.

Operating Door Locks from
Inside the Vehicle

With the door lock button

• To unlock a door, push the door

lock button (1) to the "Unlock" posi-
tion. The red mark (2) on the door
lock button will be visible.

• To lock a door, push the door lock

button (1) to the "Lock" position. If
the door is locked properly, the red
mark (2) on the door lock button
will not be visible.

• To open a door, pull the door han-

dle (3) outward.

FE-TAG-11

FE-TAG-9/OFE048436L

FE-TAG-12

OFE048011

3-16

Convenience features of your vehicle

• If the inner door handle of either

the driver door or passenger door
is pulled when the door lock button
is in the lock position, the button is
unlocked and the door will open.

• The doors cannot be locked if the

smart key is inside the vehicle and
any of the doors are open.

Information

If a power door lock ever fails to func-
tion while you are in the vehicle try
one or more of the following tech-
niques to exit:

• Operate the door unlock feature

repeatedly (both electronic and
manual) while simultaneously
pulling on the door handle.

• Operate the other door locks and

handles, front and rear.

Information

When the vehicle's battery run out
and you leave the vehicle, make sure
all the doors are locked. You can lock
the driver's door with a key and the
rest of the doors with the lock button
above the door inside handle.

With the central door lock
switch

The driver side and front passenger
side door armrest is equipped with a
central door lock switch. The lock
button is indicated by a (

) symbol.

The unlock button is indicated by a
(

) symbol.

When the lock button (1) is pressed,
all the vehicle doors will lock.
When the unlock button (2) is
pressed, all the vehicle doors will
unlock.
If the smart key is in the vehicle and
any door is open, the doors will not
lock even though the lock button (1)
is pressed.

i

i

Driver's door

Passenger's door

OFE048012N

3-17

Con

v

enience f

eatur

es of y

our v

ehicle

3

The doors should always be
fully closed and locked while
the vehicle is in motion. If the
doors are unlocked, the risk of
being thrown from the vehicle
in a crash is increased.

Do not pull the inner door
handle of the driver's or pas-
senger's door while the vehi-
cle is moving.

WARNING

Do not leave the elderly, chil-
dren or animals unattended in
your vehicle. An enclosed vehi-
cle can become extremely hot,
causing death or serious injury
to the elderly, unattended chil-
dren or animals who cannot
escape from the vehicle.
Children might operate features
of the vehicle that could injure
them, or they could encounter
other harm, possibly from some-
one gaining entry to the vehicle.

WARNING

Always secure your vehicle.
Leaving your vehicle unlocked
increases the potential risk to
you or others from someone
hiding in your vehicle.
To secure your vehicle, while
depressing the brake, move the
shift lever to the P (Park) posi-
tion, engage the parking brake,
and place the POWER button in
the LOCK/OFF position, close
all windows, lock all doors, and
always take the key with you.

WARNING

3-18

Convenience features of your vehicle

Automatic Door Lock and
Unlock Features

Your vehicle is equipped with fea-
tures that will automatically lock or
unlock your vehicle based on set-
tings you select in the Infotainment
system LCD display.

Auto LOCK - Enable on Speed

When this feature is set in the
Infotainment system LCD display, all
the doors will be locked automatical-
ly when the vehicle exceeds 9 mph
(15 kph).

Auto LOCK - Enable on Shift

When this feature is set in the
Infotainment system LCD display, all
the doors will be locked automatical-
ly when the vehicle is shifted out of P
(Park) while the vehicle is ON.

Auto UNLOCK - On shift to P

When this feature is set in the
Infotainment system LCD display, all
the doors will be unlocked automati-
cally when the vehicle is shifted back
into P (Park).

For more information on these
features, refer to the LCD Display
section later in this chapter.

Auto UNLOCK – On vehicle Off

When this feature is set in the
Infotainment system LCD display, all
the doors will be unlocked automati-
cally when the vehicle is off.

Additional Unlock Safety
Feature - Air Bag Deployment

As an additional safety feature, all
doors will be automatically unlocked
when an impact causes the air bags
to deploy.

Opening a door when something
is approaching may cause dam-
age or injury. Be careful when
opening doors and watch for
vehicles, motorcycles, bicycles
or pedestrians approaching the
vehicle in the path of the door.

CAUTION

If you stay in the vehicle for a
long time while the weather is
very hot or cold, there  are risks
of injuries or danger to life. Do
not lock the vehicle from the
outside when someone is in the
vehicle.

WARNING

3-19

Con

v

enience f

eatur

es of y

our v

ehicle

3

Child-Protector Rear Door Locks

The child safety lock is provided to
help prevent children seated in the
rear from accidentally opening the
rear doors. The rear door safety locks
should be used whenever children
are in the vehicle.
The child safety lock is located on
the edge of each rear door. When the
child safety lock is in the lock posi-
tion, the rear door will not open if the
inner door handle is pulled.
To lock the child safety lock, insert a
small flat blade tool (like a screwdriv-
er or similar) (1) into the slot and turn
it to the lock position as shown.

To allow a rear door to be opened
from inside the vehicle, unlock the
child safety lock.

If children accidently open the
rear doors while the vehicle is
in motion, they could fall out of
the vehicle. The rear door safety
locks should always be used
whenever children are in the
vehicle.

WARNING

OFE048013N

3-20

Convenience features of your vehicle

This system helps to protect your
vehicle and valuables. The horn will
sound and the hazard warning lights
will blink continuously if any of the
following occurs:
- A door is opened without using the

smart key.

- The liftgate is opened without

using the smart key.

- The hood is opened.
The alarm continues for 30 seconds,
then the system resets. To turn off
the alarm, unlock the doors with the
smart key.
The Theft Alarm System automati-
cally sets 30 seconds after you lock
the doors and the liftgate. For the
system to activate, you must lock the
doors and the liftgate from outside
the vehicle with the smart key or by
pressing the button on the outside of
the door handles with the smart key
in your possession.
The hazard warning lights will blink
and the chime will sound once to
indicate the system is armed.

Once the security system is set,
opening any door, the liftgate, or the
hood without using the smart key will
cause the alarm to activate.
The Theft Alarm System will not set if
the hood, the liftgate, or any door is
not fully closed. If the system will not
set, check the hood, the liftgate, or
the doors are fully closed.
Do not attempt to alter this system or
add other devices to it.

Information

• Do not lock the doors until all pas-

sengers have left the vehicle. If the
remaining passenger leaves the
vehicle when the system is armed,
the alarm will be activated.

• If the vehicle is not disarmed with the

smart key, open the doors by using
the mechanical key and start the
vehicle (

indicator ON) by

directly pressing the POWER button
with the smart key.

• When the system is disarmed but a

door or liftgate is not opened within
30 seconds, the system will be
rearmed.

i

T

TH

HE

EF

FT

T-

-A

AL

LA

AR

RM

M  S

SY

YS

ST

TE

EM

M

3-21

Con

v

enience f

eatur

es of y

our v

ehicle

3

Motor Driven Power Steering
(MDPS)

The system assists you with steering
the vehicle. If the vehicle is turned off
or if the power steering system
becomes inoperative, you may still
steer the vehicle, but it will require
increased steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized HYUNDAI
dealer.

Information

The following symptoms may occur
during normal vehicle operation:

• The steering effort may be high

immediately after

placing the

POWER button in the ON position.

This happens as the system performs
the MDPS system diagnostics. When
the diagnostics is completed, the
steering wheel will return to its nor-
mal condition.

• When the battery voltage is low, you

might have to put more steering
effort. However, it is a temporary
condition so that it will return to nor-
mal condition after charging the bat-
tery.

• A click noise may be heard from the

MDPS relay after the POWER but-
ton is in the ON or OFF position.

• Motor noise may be heard when the

vehicle is at a stop or at a low driving
speed.

• When you operate the steering wheel

in low temperature, abnormal noise
may occur. If temperature rises, the
noise will disappear. This is a normal
condition.

• When an error is detected from the

MDPS, the assistant function of
steering effort will not be activated in
order to prevent fatal accidents.
Instrument cluster warning lights
may be on or the steering effort may
be high. When the following symp-
toms occur, immediately drive the
vehicle to a safe area and check it.

i

S

ST

TE

EE

ER

RIIN

NG

G  W

WH

HE

EE

EL

L

If the Motor Driven Power
Steering System does not oper-
ate normally, the warning light
(

) will illuminate on the

instrument cluster. You may
steer the vehicle, but it will
require increased steering
efforts. Take your vehicle to an
authorized HYUNDAI dealer and
have the system checked as
soon as possible.

CAUTION

3-22

Convenience features of your vehicle

Tilt Steering / Telescope Steering

Adjust the steering wheel so it points
toward your chest, not toward your
face. Make sure you can see the
instrument cluster warning lights and
gauges. After adjusting, push the
steering wheel both up and down to
be certain it is locked in position.
Always adjust the position of the
steering wheel before driving.

To change the steering wheel angle
and height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the

desired angle (2) and height (3).

3. Pull up the lock-release lever to

lock the steering wheel in place.

Information

After adjustment, sometimes the lock
release lever may not lock the steering
wheel. It is not a malfunction. This
occurs when two gears are not
engaged correctly. In this case, adjust
the steering wheel again and then lock
the steering wheel.

i

While adjusting the steering
wheel height, please do not
push or pull it hard since the fix-
ture can be damaged.

CAUTION

NEVER adjust the steering
wheel while driving. This may
cause loss of vehicle control
resulting in an accident.

WARNING

OFE048014

3-23

Con

v

enience f

eatur

es of y

our v

ehicle

3

Horn

To sound the horn, press the area
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area
is pressed.

Do not strike the horn severely to
operate it, or hit it with your fist.
Do not press on the horn with a
sharp-pointed object.

Heated Steering Wheel
(if equipped)

When the POWER button is in the
ON position or when the vehicle is in
the ready (

) mode, press the

heated steering wheel button to
warm the steering wheel. The indica-
tor on the button will illuminate.
To turn the heated steering wheel off,
press the button again. The indicator
on the button will turn off.
The heated steering wheel will auto-
matically turn off after approximately
30 minutes.

Do not install any cover or acces-
sory on the steering wheel. The
cover or accessory could cause
damage to the heated steering
wheel system.

NOTICE

NOTICE

OFE048015

OFE048016

3-24

Convenience features of your vehicle

M

MIIR

RR

RO

OR

RS

S

Inside Rearview Mirror

Before driving your vehicle, check to
see that your inside rearview mirror
is properly positioned. Adjust the
rearview mirror so that the view
through the rear window is properly
centered.

When cleaning the mirror, use a
paper towel or similar material
dampened with glass cleaner. Do
not spray glass cleaner directly on
the mirror as this may cause the
liquid cleaner to enter the mirror
housing.

Electric chromic mirror (ECM)
with compass and HomeLink

®

system

Your vehicle may be equipped with a
Gentex Automatic-Dimming Mirror
with a Z-Nav™ Electronic Compass
Display and an Integrated HomeLink

®

Wireless Control System.
During nighttime driving, this feature
will automatically detect and reduce
rearview mirror glare while the com-
pass indicates the direction the vehi-
cle is pointed. The HomeLink

®

Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.

NOTICE

Make sure your line of sight is
not obstructed. Do not place
objects in the rear seat, cargo
area, or behind the rear head
restraints which could interfere
with your vision through the
rear window.

WARNING

To prevent serious injury during
an accident or deployment of
the air bag, do not modify the
rearview mirror and do not
install a wide mirror.

WARNING

NEVER adjust the mirror while
driving. This may cause loss of
vehicle control resulting in an
accident.

WARNING

3-25

Con

v

enience f

eatur

es of y

our v

ehicle

3

(1) Channel 1 button
(2) Channel 2 button
(3) Status indicator LED
(4) Channel 3 button
(5) Rear light sensor
(6) Dimming ON/OFF button
(7) Compass control button
(8) Compass display

Automatic-Dimming Night Vision
Safety™ (NVS

®

) Mirror

(if equipped)

The NVS

®

Mirror automatically

reduces glare by monitoring light lev-
els in the front and the rear of the
vehicle. Any object that obstructs
either light sensor will degrade the
automatic dimming control feature.

For more information regarding
NVS

®

mirrors and other applica-

tions, please refer to the Gentex
website:
www.gentex.com

The auto-dimming function can be
controlled by pressing the ON/OFF
button:

1. Pressing the button turns the auto-

dimming function OFF which is
indicated by the green Status
Indicator LED turning off.

2. Pressing the button again turns

the auto-dimming function ON
which is indicated by the green
Status Indicator LED turning on.

The mirror defaults to the ON posi-
tion each time the vehicle is started.

Z-Nav™ Compass Display

The NVS™ Mirror in your vehicle is
also equipped with a Z-Nav™
Compass that shows the vehicle
Compass heading in the Display
Window using the 8 basic cardinal
headings (N, NE, E, SE, etc.).

OFE048018N

3-26

Convenience features of your vehicle

Compass function
The Compass can be turned ON and
OFF and will remember the last state
when the ignition is cycled. To turn
the display feature ON/OFF:
1. Press and release the

button to

turn the display feature OFF.

2. Press and release the

button

again to turn the display back ON.

Additional options can be set with
press and hold sequences of the but-
ton and are detailed below.

There is a difference between mag-
netic north and true north. To com-
pensate for this difference you will
need to adjust the Zone setting
based on where you live.

B520C05NF















Content      ..     3      4      5      6     ..
