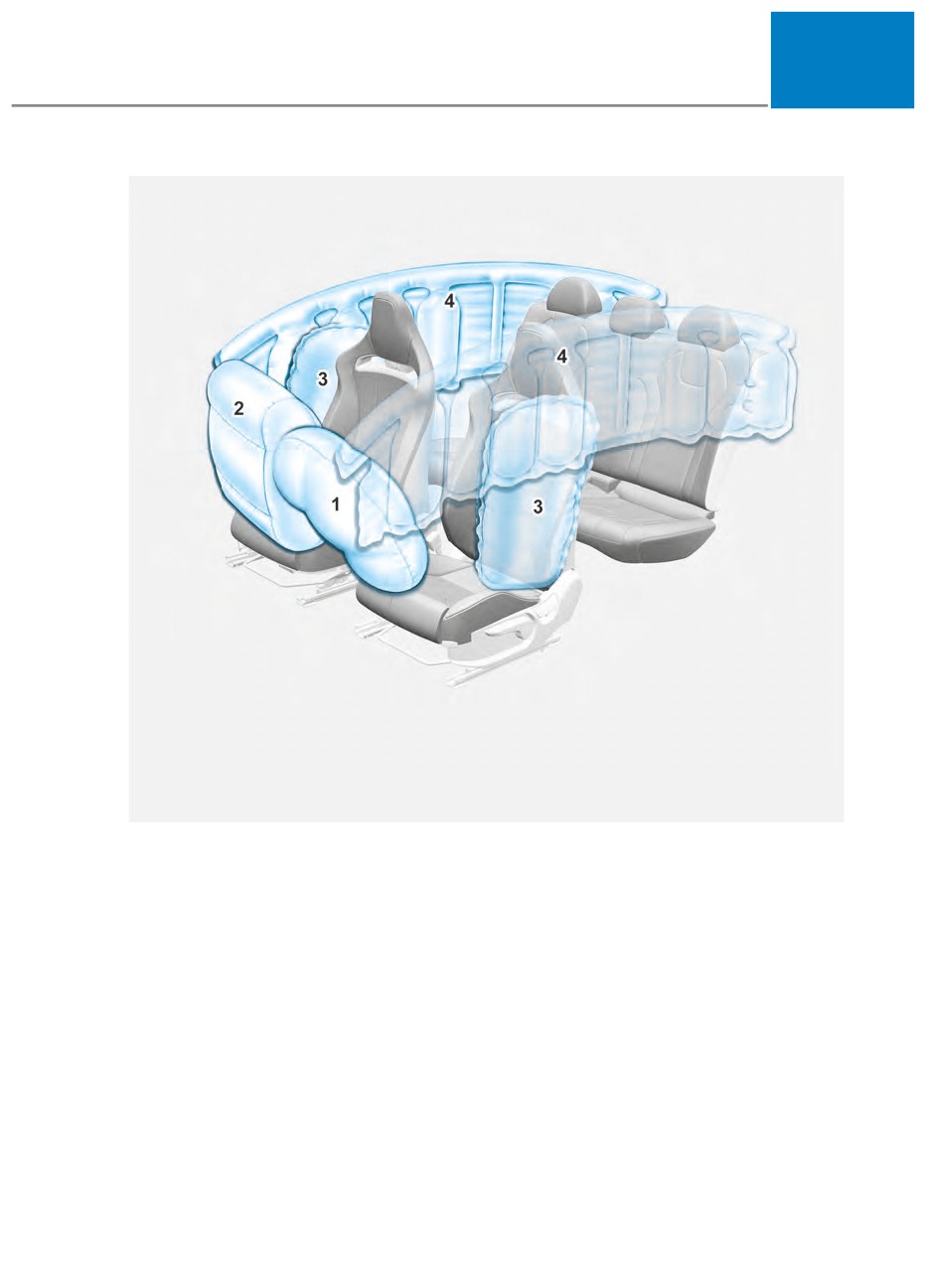

AIR BAG - ADVANCED SUPPLEMENTAL RESTRAINT SYSTEM
The actual air bags in the vehicle may differ from the illustration.
OCN7N031060N
1. Driver’s front air bag
2. Passenger’s front air bag
3. Side air bag
4. Curtain air bag
3-31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System
This vehicle is equipped with an Advanced Supplemental Air Bag System for the
driver’s seat and front passenger’s seats.
The front air bags are designed to supplement the three-point seat belts. For these air
bags to provide protection, the seat belts must be worn at all times when driving.
You can be severely injured or killed in an accident if you are not wearing a seat belt.
Air bags are designed to supplement seat belts, but do not replace them. Also, air bags
are not designed to deploy in every collision. In some accidents, the seat belts are the
only restraint protecting you.
WARNING
AIR BAG SAFETY PRECAUTIONS
ALWAYS use seat belts and child restraints - every trip, every time, everyone! Even
with air bags, you can be seriously injured or killed in a collision if you are improperly
belted or not wearing your seat belt when the air bag inflates.
NEVER place a child in any child restraint or booster seat in the front passenger seat.
An inflating air bag could forcefully strike the infant or child causing serious or fatal
injuries.
ABC - Always Buckle Children under age 13 in the back seat. It is the safest place
for children of any age to ride. If a child age 13 or older must be seated in the front
seat, he or she must be properly belted and the seat should be moved as far back as
possible.

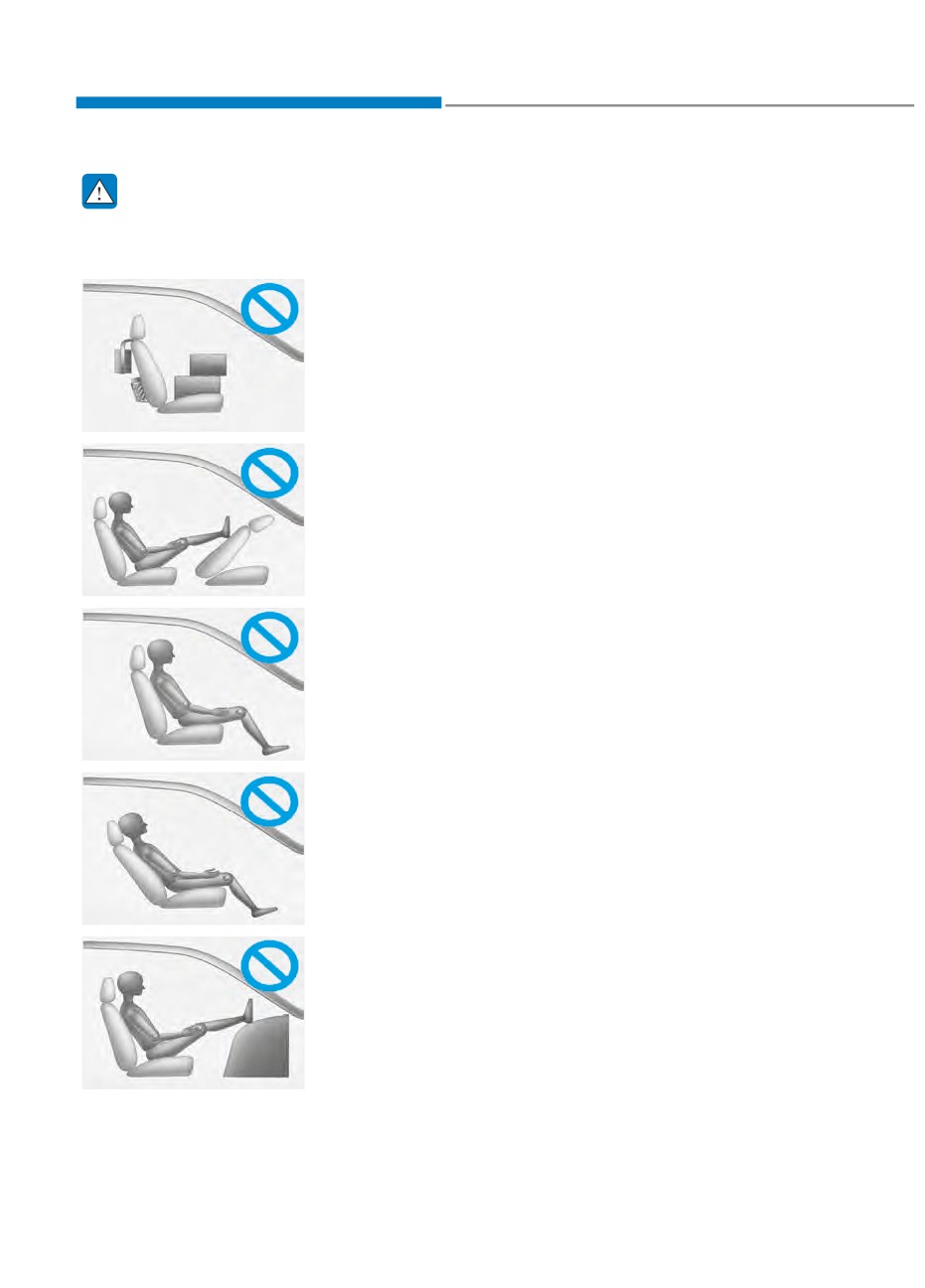

All occupants should sit upright with the seatback in an upright position, centered
on the seat cushion with their seat belt on, legs comfortably extended and their
feet on the floor until the vehicle is parked and is turned off. If an occupant is out of
position during an accident, the rapidly deploying air bag may forcefully contact the
occupant causing serious or fatal injuries.
You and your passengers should never sit or lean unnecessarily close to the air bags
or lean against the door or center console.
Move your seat as far back as possible from front air bags, while still maintaining
control of the vehicle. The U.S. National Highway Traffic Safety Administration
(NHTSA) recommends that drivers allow at least 10 inches (25 cm) between the
center of the steering wheel and the chest.
3-32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03
Where Are the Air Bags?
Driver’s front air bag
Driver’s and passenger’s front air
bags
Your vehicle is equipped with an
Advanced Supplemental Restraint
System (SRS) and lap/shoulder belts at
both the driver and passenger seating
positions.
The SRS consists of air bags which are
located in the center of the steering
wheel, in the driver’s side lower crash
OCN7N031036
pad below the steering wheel column
Passenger’s front air bag
and the passenger’s side front panel pad
above the glove box.
The air bags are labeled with the letters
“AIR BAG” embossed on the pad covers.
OCN7030038
The purpose of the SRS is to provide the
vehicle’s driver and front passengers with
additional protection than that offered
by the seat belt system alone. The SRS
uses sensors to gather information about
the driver’s and front passenger’s seat
belt usage and impact severity. The seat
belt buckle sensors determine if the
driver and front passenger’s seat belts
are fastened. These sensors provide the
ability to control the SRS deployment
based on whether or not the seat belts
are fastened, and how severe the impact
is. The advanced SRS offers the ability to
control the air bag inflation within two
levels. A first stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts. According to the impact
severity, and seat belt usage, the SRS
Control Module (SRSCM) controls the
air bag inflation. Failure to properly
wear seat belts can increase the risk or
severity of injury in an accident.
3-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

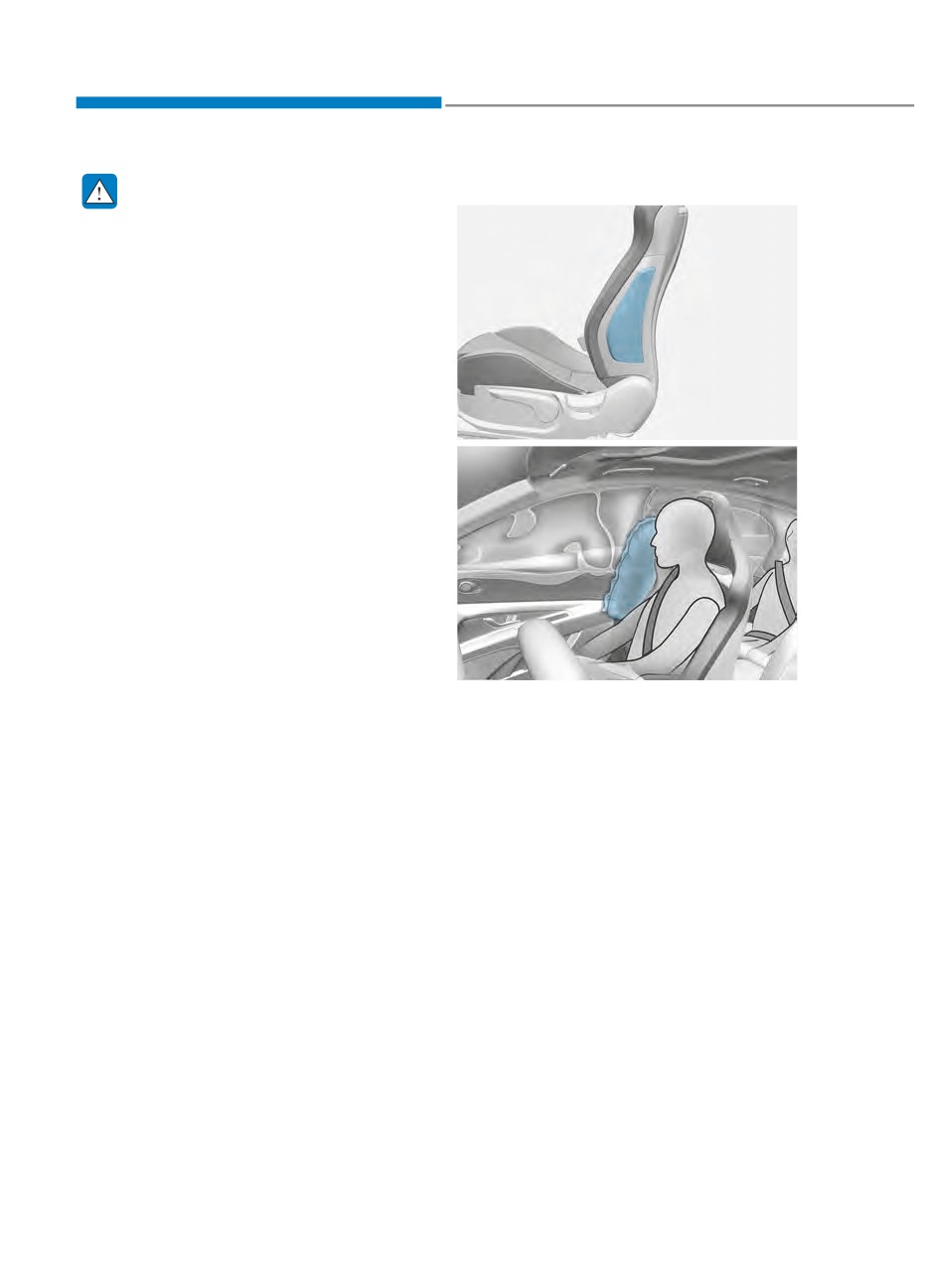

Side air bags
WARNING
Front seat
To reduce the risk of serious injury or
death from inflating front air bags, take
the following precautions:
Seat belts must be worn at all times
to help keep occupants positioned
properly.
Move your seat as far back as
possible from front air bags, while
still maintaining control of the
vehicle.
Never lean against the door or center
OCN7N031041N
console.
Do not allow the front passenger
to place their feet or legs on the
dashboard.
No objects (such as crash pad cover,
cellular phone holder, cup holder,
air fresheners or stickers) should
be placed over or near the air bag
modules on the steering wheel,
instrument panel, windshield glass,
and the front passenger’s panel
OCN7N031042N
above the glove box. Such objects
could cause harm if the vehicle is in a
Your vehicle is equipped with a side air
crash severe enough to cause the air
bag in each front seat. The purpose of
bags to deploy.
the air bag is to provide the vehicle’s
driver and the front passenger with
Do not attach any objects on the
additional protection than that offered by
front windshield and inside mirror.
the seat belt alone.
The side air bags are designed to deploy
only during certain side impact collisions,
depending on the crash severity. The
side and curtain air bags on both sides
of the vehicle may deploy if a rollover or
possible rollover is detected. For vehicles
equipped with a rollover sensor the side
air bags and pre-tensioners on both sides
of the vehicle may deploy if a rollover or
possible rollover is detected. However,
the side air bags are not designed to
deploy in all side impact or rollover
situations.
3-34

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03
Curtain air bags
WARNING
To reduce the risk of serious injury or
death from an inflating side air bag,
take the following precautions:
Seat belts must be worn at all times
to help keep occupants positioned
properly.
Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.
OCN7N031044N
Hold the steering wheel at the 9
o’clock and 3 o’clock positions, to
minimize the risk of injuries to your
hands and arms.
Do not use any accessory seat
covers. This could reduce or prevent
the effectiveness of the system.
Do not place any objects over the
air bag or between the air bag and
yourself. Also, do not attach any
objects around the area the air bag
OCN7N031043N
inflates such as the door, side door
glass, front and rear pillar.
Curtain air bags are located along both
sides of the roof rails above the front and
Do not place any objects between
rear doors.
the door and the seat. They may
become dangerous projectiles if the
They are designed to help protect the
side air bag inflates.
heads of the front seat occupants and
the rear outboard seat occupants in
Do not install any accessories on the
certain side impact collisions.
side or near the side air bags.
The curtain air bags are designed to
Do not put any objects between the
deploy during certain side impact
side airbag label and seat cushion. It
collisions, depending on the crash
could cause harm if the vehicle is in a
severity.
crash severe enough to cause the air
bags to deploy.
The side and curtain air bags on both
sides of the vehicle may deploy if a
Do not cause impact to the doors
rollover or possible rollover is detected.
when the Engine Start/ Stop button
is in the ON position as this may
The curtain air bags are not designed
cause the side air bags to inflate.
to deploy in all side impact or rollover
situations.
If the seat or seat cover is damaged,
have the vehicle checked and
repaired by an authorized HYUNDAI
dealer.
3-35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System
How Does the Air Bag System
WARNING
Operate?
To reduce the risk of serious injury or
death from an inflating curtain air bag,
take the following precautions:
All seat occupants must wear
seat belts at all times to help keep
occupants positioned properly.
Properly secure child restraints as far
away from the door as possible.
Do not hang or place any objects
over the air bag. Also, do not attach
any objects around the area the air
bag inflates such as the door, side
OCN7N031141
door glass, front and rear pillar, roof
The SRS consists of the following
side rail.
components:
Do not hang other objects except
(1) Driver’s front air bag module
clothes, especially hard or breakable
(2) Passenger’s front air bag module
objects. In an accident, it may cause
vehicle damage or personal injury.
(3) Side air bag modules
Do not allow passengers to lean their
(4) Curtain air bag modules
heads or bodies onto doors, put their
(5) Retractor pre-tensioner assemblies
arms on the doors, stretch their arms
(6) Air bag warning light
out of the window, or place objects
between the doors and seats.
(7) SRS control module (SRSCM)
Do not open or repair the side curtain
(8) Front impact sensors
air bags.
(9) Side impact sensors (acceleration)
(10) Side impact sensors (pressure)
(11) Occupant classification system
(12) Driver’s and front passenger’s seat
belt buckle sensors
The SRSCM (Supplemental Restraint
System Control Module) continually
monitors all SRS components while
the Engine Start/Stop button is in the
ON position or approximately within
3 minutes after the ignition is off to
determine if a crash impact is severe
enough to require air bag deployment or
pre-tensioner seat belt deployment.
3-36

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03
SRS warning light
The front air bags help protect the driver
and front passenger by responding to
frontal impacts in which seat belts alone
cannot provide adequate restraint. When
The SRS (Supplement Restraint System)
needed, the side air bags help provide
air bag warning light on the instrument
protection in the event of a side impact
panel displays the air bag symbol
or rollover by supporting the side upper
depicted in the illustration. The system
body area.
checks the air bag electrical system for
malfunctions. The light indicates that
Air bags are activated (able to inflate
there is a potential malfunction with your
if necessary) when the Engine Start/
air bag system, which could include your
Stop button is in the ON position or
side and curtain air bags used for rollover
approximately within 3 minutes after
protection.
ignition off.
Air bags inflate in the event of certain
frontal or side collisions to help
WARNING
protect the occupants from serious
If your SRS malfunctions, the air bag
physical injury.
may not inflate properly during an
There is no single speed at which the
accident increasing the risk of serious
air bags will inflate. Generally, air bags
injury or death.
are designed to inflate based upon the
If any of the following conditions occur,
severity of a collision and its direction.
your SRS is malfunctioning:
These two factors determine whether
the sensors produce an electronic
The light does not turn on for
deployment/inflation signal.
approximately three to six seconds
when the Engine Start/Stop button is
The front air bags will completely
in the ON position.
inflate and deflate in an instant. It is
virtually impossible for you to see the
The light stays on after illuminating
air bags inflate during an accident. It is
for approximately three to six
much more likely that you will simply
seconds.
see the deflated air bags hanging out
The light comes on while the vehicle
of their storage compartments after
is in motion.
the collision.
The light blinks when the engine is

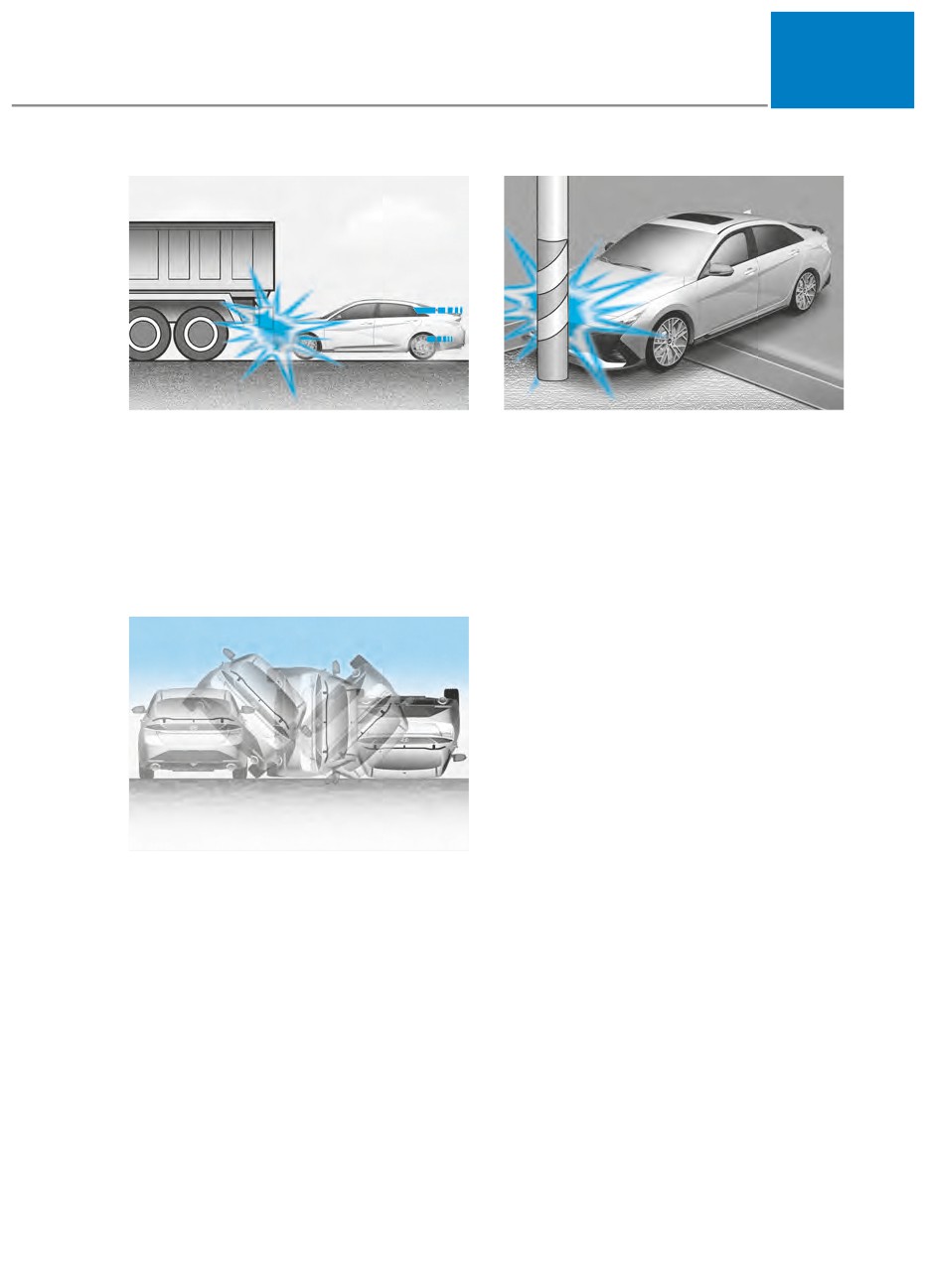

In addition to inflating in certain side
running.
collisions, vehicles equipped with a
Have an authorized HYUNDAI dealer
rollover sensor, side and curtain air
inspect the SRS as soon as possible if
bags will inflate if the sensing system
any of these conditions occur.
detects a rollover.
When a rollover is detected, side and
curtain air bags will remain inflated
longer to help provide protection
from ejection, especially when used in
conjunction with the seat belts.
3-37

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System
• To help provide protection, the air
WARNING
bags must inflate rapidly. The speed
of air bag inflation is a consequence
To reduce the risk of serious injury or
of extremely short time in which
death from an inflating air bag, take the
to inflate the air bag between the
following precautions:
occupant and the vehicle structures
NEVER place a child restraint in the
before the occupant impacts those
front passenger seat.
structures. This speed of inflation
Always properly restrain children
reduces the risk of serious or life-
under age 13 in the rear seats of the
threatening injuries and is thus a
vehicle.
necessary part of air bag design.
Adjust the front passenger’s and
However, the rapid air bag inflation
driver’s seats as far to the rear as
can also cause injuries which can
possible while allowing you to
include facial abrasions, bruises and
maintain full control of the vehicle.
broken bones because the inflation
speed also causes the air bags to
Hold the steering wheel with
expand with a great deal of force.
hands at the 9 o’clock and 3 o’clock
positions.
• There are even circumstances under
which contact with the air bag can
NEVER place anything or anyone
between the air bag and the seat
cause fatal injuries, especially if the
occupant is positioned excessively
occupant.
close to the air bag.
Do not allow the front passenger
You can take steps to help reduce the
to place their feet or legs on the
dashboard.
risk of being injured by an inflating air
bag. The greatest risk is sitting too close
to the air bag. An air bag needs about 10
inches (25 cm) of space to inflate. NHTSA
recommends that drivers allow at least
10 inches (25 cm) between the center of
the steering wheel and the chest.
3-38

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03
Driver’s front air bag (1)
Driver’s front air bag (3)
ODN8039077L
ODN8039079L

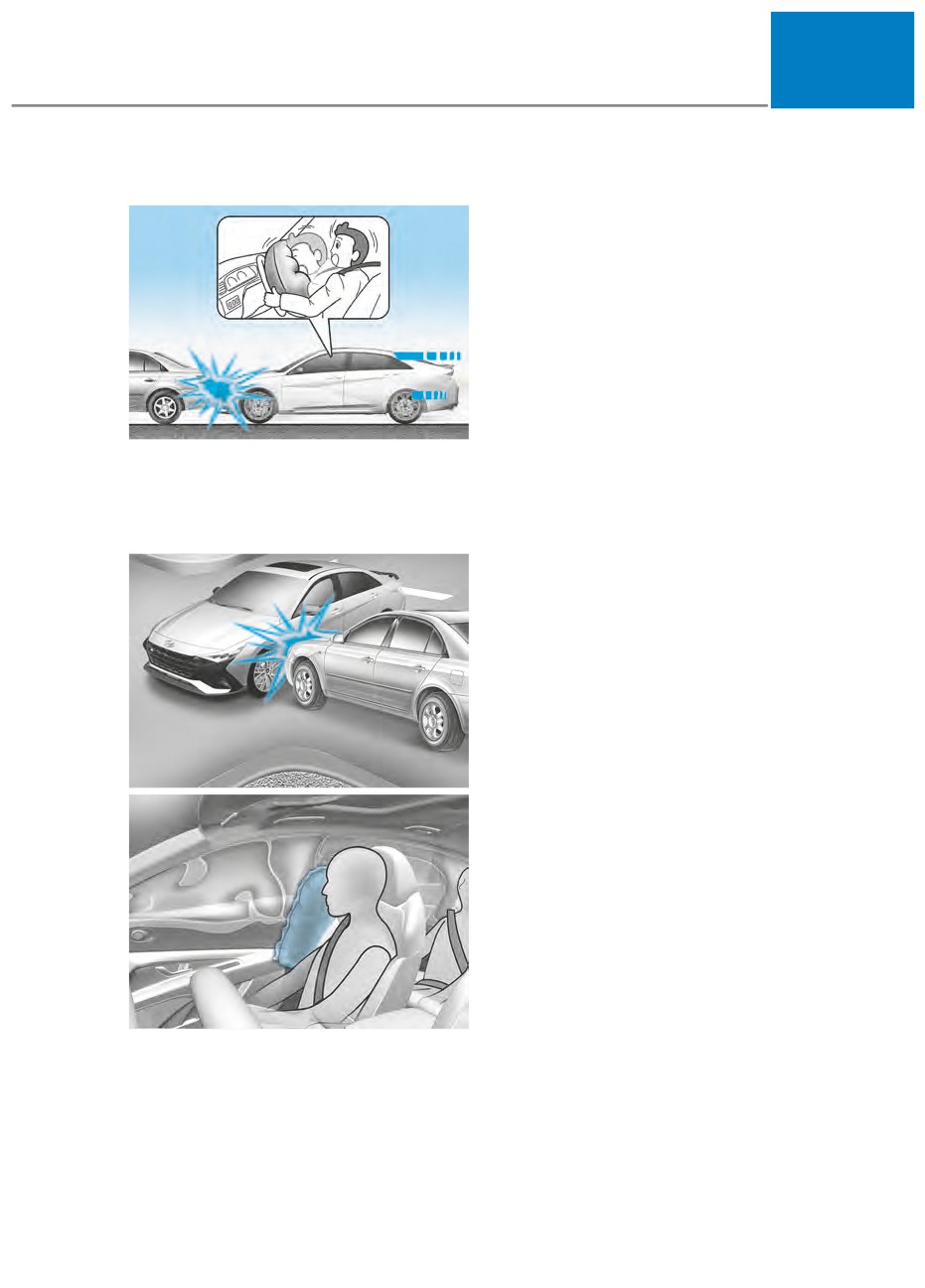

When the SRSCM detects a sufficiently
Passenger’s front air bag
severe impact to the front of the vehicle,
it will automatically deploy the front air
bags.
Driver’s front air bag (2)
ODN8039080L
After complete inflation, the air bag
immediately starts deflating, enabling
the driver to maintain forward visibility
and the ability to steer or operate other
ODN8039078L
controls.
Upon deployment, tear seams molded
directly into the pad covers will separate
WARNING
under pressure from the expansion of the
air bags. Further opening of the covers
To prevent objects from becoming
allows full inflation of the air bags.
dangerous projectiles when the
passenger’s air bag inflates:
A fully inflated air bag, in combination
with a properly worn seat belt, slows the
Do not install or place any objects
driver or the front passenger forward
(drink holder, CD holder, stickers,
motion, reducing the risk of head and
etc.) on the front passenger’s panel
chest injury.
above the glove box where the
passenger’s air bag is located.
Do not install a container of liquid
air freshener near the instrument
cluster or on the instrument panel
surface.
3-39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System
What to Expect After an Air Bag
Noise and smoke from inflating air
Inflates
bag
After a frontal or side air bag inflates, it
When the air bags inflate, they make a
will deflate very quickly. Air bag inflation
loud noise and may produce smoke and
will not prevent the driver from seeing
powder in the air inside of the vehicle.
out of the windshield or being able
This is normal and is a result of the
to steer. Curtain air bags may remain
ignition of the air bag inflator. After the
partially inflated for some time after they
air bag inflates, you may feel substantial
deploy.
discomfort in breathing because of the
contact of your chest with both the seat
belt and the air bag, as well as from
WARNING
breathing the smoke and powder. The
powder may aggravate asthma for some
After an air bag inflates, take the
people. If you experience breathing
following precautions:
problems after an air bag deployment,
Open your windows and doors as
seek medical attention immediately.
soon as possible after impact to
Though the smoke and powder are
reduce prolonged exposure to the
nontoxic, they may cause irritation to
smoke and powder released by the
the skin, eyes, nose, throat, etc. If this is
inflating air bag.
the case, wash and rinse with cold water
Do not touch the air bag storage
immediately and seek medical attention
area’s internal components
if the symptoms persist.
immediately after an air bag has
inflated. The parts that come into
contact with an inflating air bag may
be very hot.
Always wash exposed skin areas
thoroughly with cold water and mild
soap.
Always have an authorized
HYUNDAI dealer replace the air bag
immediately after deployment. Air
bags are designed to be used only
once.
3-40

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03
Occupant Classification System
Main components of the Occupant
(OCS)
Classification System
• A detection device located within the
front passenger seat cushion.
• Electronic system to help determine
whether the passenger air bag
systems should be activated or
deactivated.
• An indicator light located on the
instrument panel which illuminates
the words “PASSENGER AIR BAG OFF”
indicating the front passenger air bag
system is deactivated.

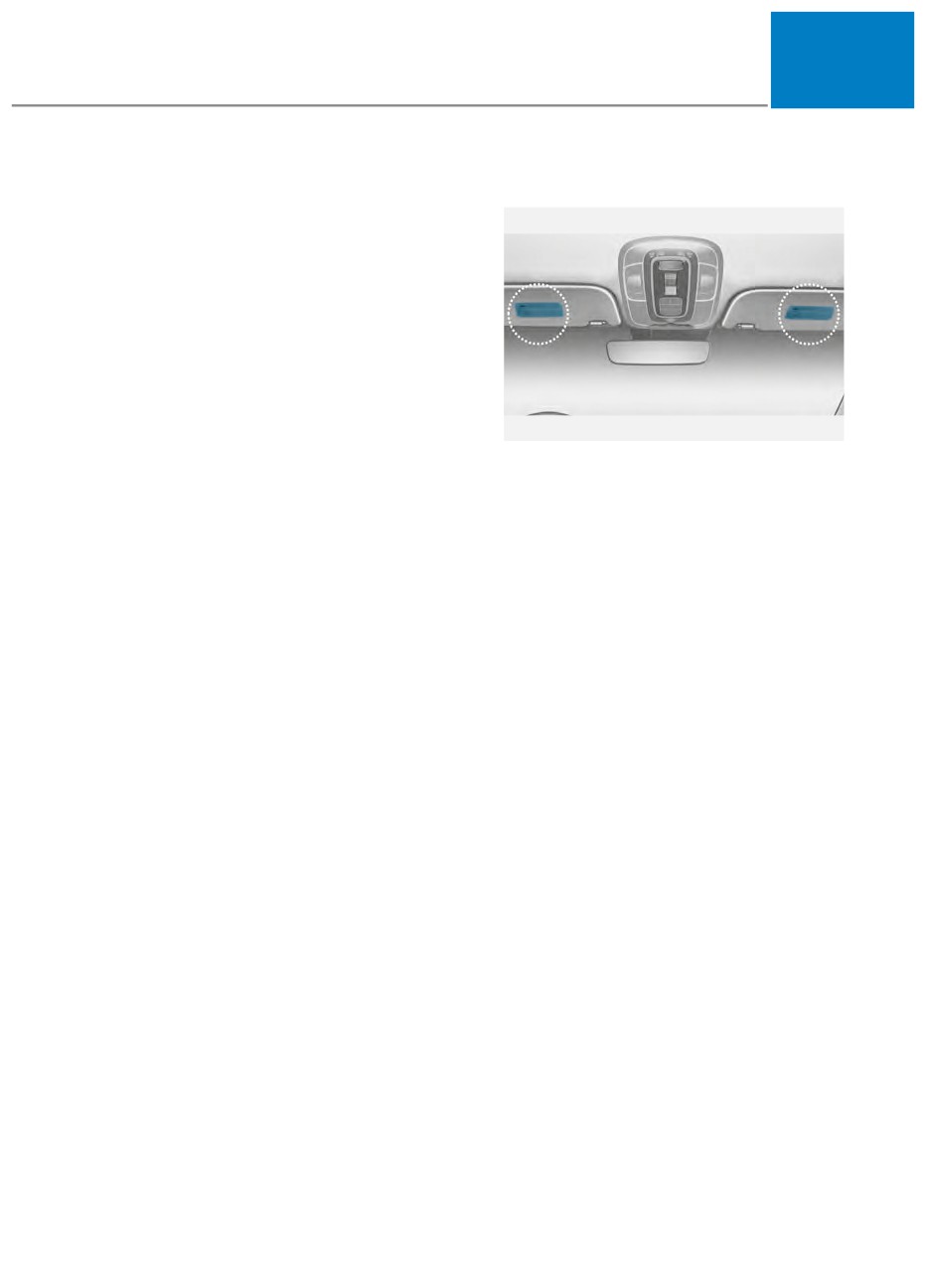

OCN7N031139N
• The instrument panel air bag indicator
light is interconnected with the OCS.
The OCS is designed to help detect
the presence of a properly-seated
front passenger and determine if the
passenger’s front air bag should be
enabled (may inflate) or not.
The purpose is to help reduce the risk
of injury or death from an inflating air
bag to certain front passenger seat
occupants, such as children, by requiring
OCN7030070N
the air bag to be automatically turned
Your vehicle is equipped with an
OFF.
Occupant Classification System (OCS) in
For example, if a child restraint of the
the front passenger’s seat.
type specified in the regulations is on the
seat, the occupant classification sensor
can detect it and cause the air bag to
turn OFF.
3-41

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System
Front passenger seat adult occupants
The OCS may not function properly if the
who are properly seated and wearing the
passenger takes actions which can affect
seat belt properly, should not cause the
the classification system. These include:
passenger air bag to be automatically
Failing to sit in an upright position.
turned OFF. For small adults it may be
Leaning against the door or center
turned OFF, however, if the occupant
console.
does not sit in the seat properly (for
example, by not sitting upright, by sitting
Sitting towards the sides of the front
on the edge of the seat, or by otherwise
of the seat.
being out of position), this could cause
Putting their legs on the dashboard or
the sensor to turn the air bag OFF.
resting them on other locations which

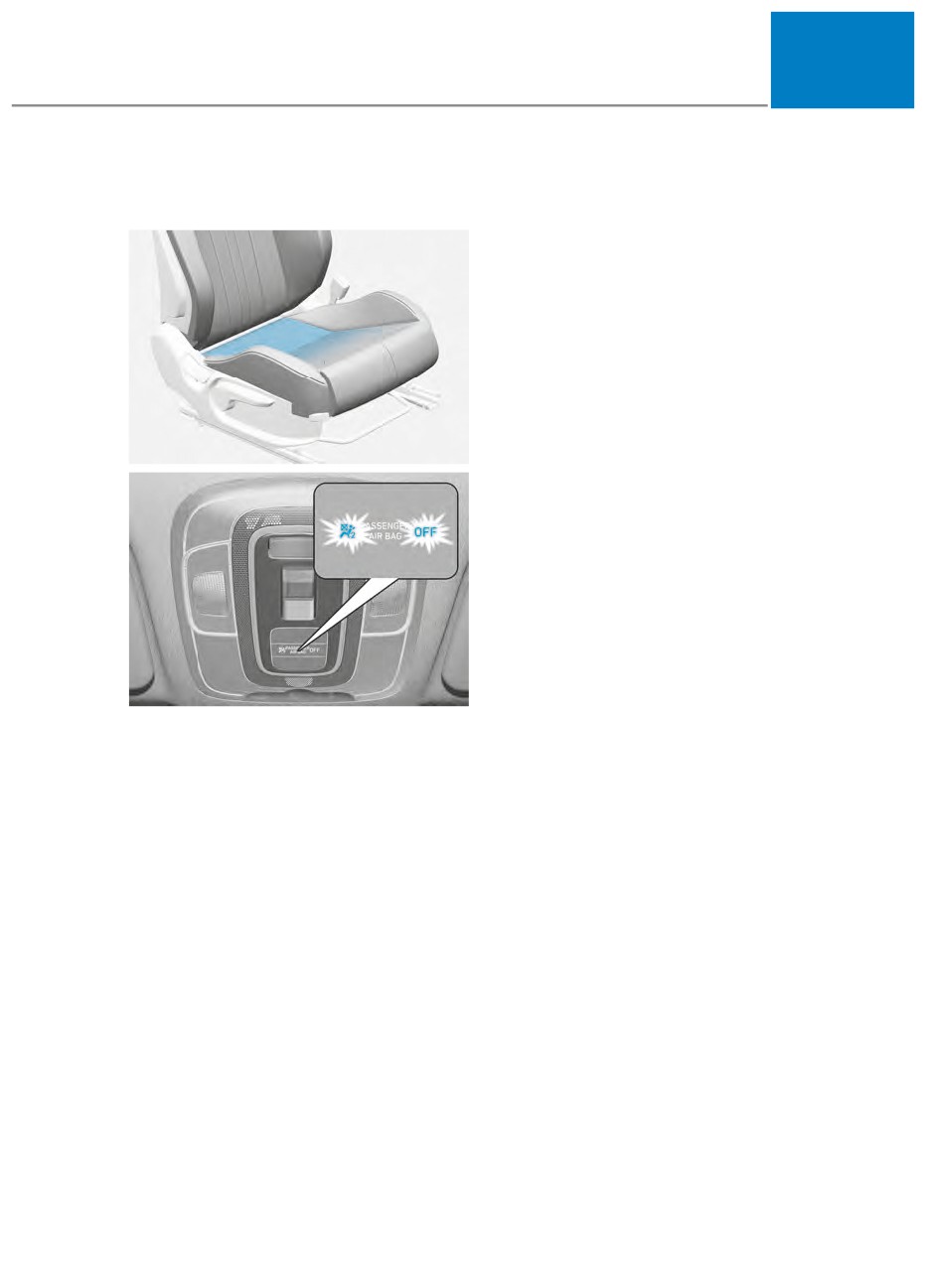

You will find the “PASSENGER AIR BAG
reduce the passenger weight on the
OFF” indicator on the overhead console.
front seat.
This system detects the conditions 1-4
Wearing the seat belt improperly.
in the following table and activates or
Reclining the seatback.
deactivates the front passenger air bag
based on these conditions.
Wearing a thick cloth like ski wear or
hip protection wear.
Always be sure that you and all vehicle
occupants are seated properly and
Putting an additional thick cushion on
wearing the seat belt properly for the
the seat.
most effective protection by the air bag
Putting electrical devices (for
and the seat belt.
example, notebook, satellite radio) on
Never install a Child Restraint System in
the seat with inverter charging.
the front passenger’s seat. If you should
install a CRS (Child Restraint System)
inevitably, use a forward-facing CRS with
3-point ALR safety seat belt and adjust
the front passenger’s seat as far to the
rear as possible. If the PASSENGER AIR
BAG “OFF” indicator is OFF after a CRS
(Child Restraint System) is equipped,
the front passenger’s airbag is operating
so you should install the CRS in the rear
seats of the vehicle immediately.
3-42

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03
Condition and operation in the front passenger Occupant Classification System
Indicator/Warning light
Devices
Condition detected by the
“PASSENGER
SRS warning
Front passenger
occupant classification system
AIR BAG OFF”
light
air bag
indicator light
1. Adult *1
Off
Off
Activated
2. Infant *2 or child restraint
system with 12 months old
On
Off
Deactivated
*3 *4
3. Unoccupied
On
Off
Deactivated
4. Malfunction in the system
Off
On
Activated
*1 : The system judges a person of adult size as an adult. When a smaller adult sits in the
front passenger seat, the system may recognize him/her as a child depending on his/her
physique and posture.
*2 : Do not allow children to ride in the front passenger seat. When a larger child who has
outgrown a child restraint system sits in the front passenger seat, the system may
recognize him/her as an adult depending upon his/her physique or sitting position.
*3 : Never install a child restraint system on the front passenger seat.
*4 : The PASSENGER AIR BAG “OFF” indicator may turn on or off when a child above 12
months to 12 years old (with or without child restraint system) sits in the front passenger
seat. This is a normal condition.
3-43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System
WARNING

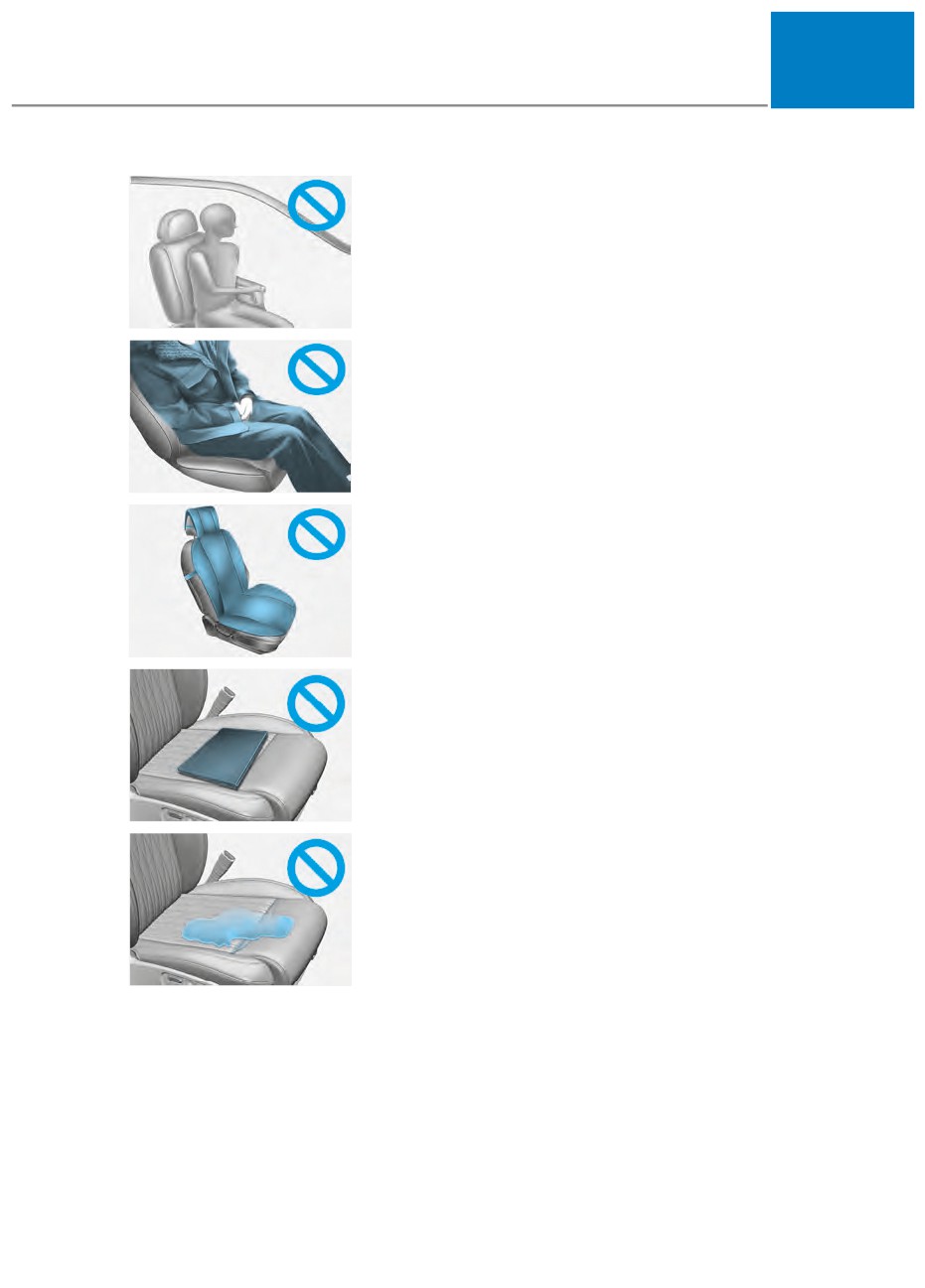

Riding in an improper position or placing weight on the front passenger’s seat when
it is unoccupied by a passenger adversely affects the OCS. To reduce the risk of
serious injury or death:
NEVER put a heavy load in the front seat or seatback
pocket, or hang any items on the front passenger
seat.
OVQ036013NB
NEVER place your feet on the front passenger
seatback.
OLMB033100
NEVER sit with your hips shifted towards the front of
the seat.
OLMB033101
NEVER ride with the seatback reclined when the
vehicle is moving.
OLMB033103
NEVER place your feet or legs on the dashboard.
OLMB033102
3-44

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03
NEVER lean on the door or center console or sit on
one side of the front passenger seat.
OLMB033104
Do not sit on the passenger seat wearing heavily
padded clothes such as ski wear and hip protector.
ODH035900K
Do not use car seat accessories such as thick blankets
and cushions which cover up the car seat surface.
ODH035901K
Do not place electronic devices such as laptops, DVD
player, or conductive materials such as water bottles
on the passenger seat.
Do not use electronic devices such as laptops and
satellite radios which use inverter chargers.
OHI038161
If large amount of liquid has been spilled on the
passenger seat, the air bag warning light may
illuminate or malfunction.
Therefore, make sure the seat has been completely
dried before driving the vehicle.
OHI038162
Do not place sharp objects on the front passenger seat. These may damage the
occupant detection system, if they puncture the seat cushion.
Do not place any items under the front passenger seat.
When changing or replacing the seat or seat cover, use original items only.
The OCS has been developed based on using original HYUNDAI car seats only.
Altering or changing the authentic parts may result in system malfunction and
increase risk of injury when in collision. Any of the above could interfere with the
proper operation of the OCS sensor thereby increasing the risk of an injury in an
accident.
3-45

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System
WARNING
NEVER allow an adult passenger to ride
in the front passenger seat when the
“PASSENGER AIR BAG OFF” indicator
is illuminated. During a collision, the
air bag will not inflate if the indicator
is illuminated. Have your passenger
reposition themselves in the seat. If the
“PASSENGER AIR BAG OFF” indicator
remains illuminated after the passenger
OHI038118
repositions themselves properly
and the vehicle is restarted, have
Proper seated position for OCS
the passenger move to the rear seat
If the “PASSENGER AIR BAG OFF”
because the air bag will not inflate.
indicator is on when an adult is seated
in the front passenger seat, place the
NOTICE
Engine Start/Stop button in the OFF
position and ask the passenger to sit
The “PASSENGER AIR BAG OFF”
properly (sitting upright with the seat
indicator generally illuminates for
back in an upright position, centered
approximately 4 seconds after the
on the seat cushion with their seat belt
Engine Start/Stop button is in the ON
on, legs comfortably extended and their
position or after the engine is started.
feet on the floor). Restart the engine and
However, if the Engine Start/Stop
have the person remain in that position.
button is turned to the ON position
This will allow the system to detect the
within 3 minutes after ignition OFF,
person and to enable the passenger air
the indicator does not illuminate. If
bag. If the “PASSENGER AIR BAG OFF”
the front passenger seat is occupied,
indicator is still on, ask the passenger to
the OCS will then classify the front
move to the rear seat.
passenger after several more seconds.
3-46

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03
Do Not Install a Child Restraint in the
Why Didn’t My Air Bag Go Off in
Front Passenger’s Seat
a Collision?
Air bags are not designed to inflate in
every collision. There are certain types
of accidents in which the air bag would
not be expected to provide additional
protection. These include rear impacts,
second or third collisions in multiple
impact accidents, as well as low speed
impacts. Damage to the vehicle indicates
a collision energy absorption, and is not
an indicator of whether or not an air bag
should have inflated.
OHI039193N
Even though your vehicle is equipped
WARNING
with the OCS, never install a child
restraint in the front passenger’s seat.
To reduce the risk of an air bag
An inflating air bag can forcefully strike a
deploying unexpectedly and causing
child or child restraint resulting in serious
serious injury or death:
or fatal injury.
Do not hit or allow any objects to
impact the locations where air bags
or sensors are installed.
WARNING
Do not perform maintenance on or
NEVER place a rear-facing or front-
around the air bag sensors. If the
facing child restraint in the front
location or angle of the sensors is
passenger’s seat of the vehicle.
altered, the air bags may deploy
An inflating frontal air bag could
when they should not or may not
forcefully strike a child resulting in
deploy when they should.
serious injury or death.
Do not install bumper guards or
Always properly restrain children in
replace the bumper with a non-
an appropriate child restraint in the
genuine HYUNDAI parts. This may
rear seat of the vehicle.
adversely affect the collision and air
bag deployment performance.
Press the Engine Start/Stop button
to the OFF or ACC position, when the
vehicle is being towed to prevent
inadvertent air bag deployment.
Have all air bag repairs conducted by
an authorized HYUNDAI dealer.
3-47

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System

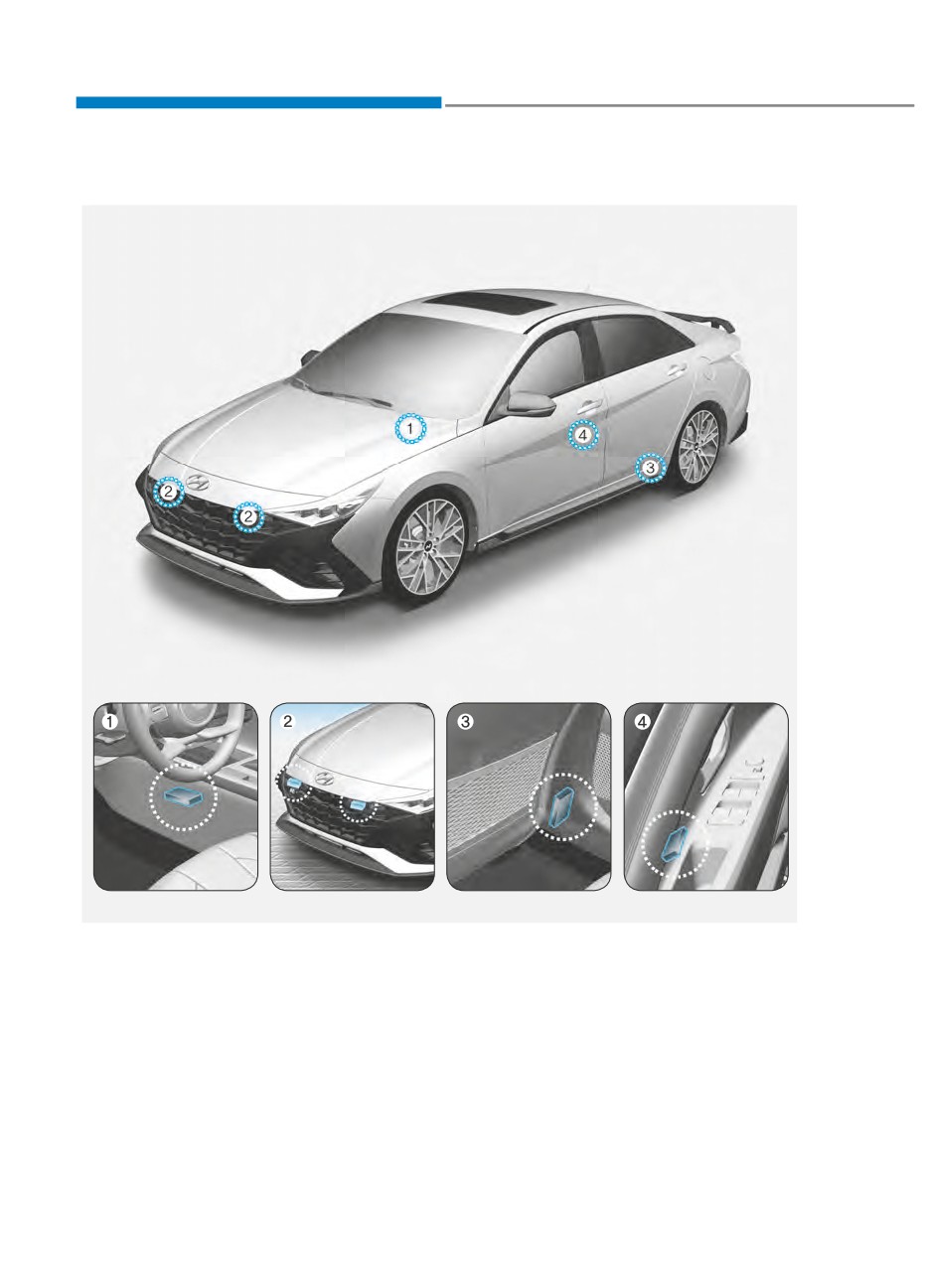

Air bag collision sensors
OCN7N031045N/OCN7030046/OCN7N031047N/OCN7030048/OCN7N031062N
1. SRS control module / Rollover sensor
2. Front impact sensor
3. Side impact sensor (Acceleration) (B-PILLAR)
4. Side impact sensor (Pressure) (FR DOOR)
3-48

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03
Air bag inflation conditions
Side and curtain air bags
Side and curtain air bags are designed to
inflate when an impact is detected
by side collision sensors depending on
the severity, speed or angles of impact
resulting from a side impact collision.
Although the driver’s and front
passenger’s air bags are designed to
inflate in frontal collisions, they also may
inflate in other types of collisions if the
front impact sensors detect a sufficient
OCN7N031050L
impact. Side and curtain air bags are
Front air bags
designed to inflate in side impact
collisions, but they may inflate in other
Front air bags are designed to inflate
collisions if the side impact sensors
in a frontal collision depending on the
detect a sufficient impact.
severity of impact of the front collision.
Also, the side and curtain air bags are
designed to inflate when a rollover
is detected by a rollover sensor. (if
equipped with rollover sensor)
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully
on unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
OCN7N031049N
OCN7N031042
3-49

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System
Air bag non-inflation conditions
OCN7N031144N
OCN7N031051L

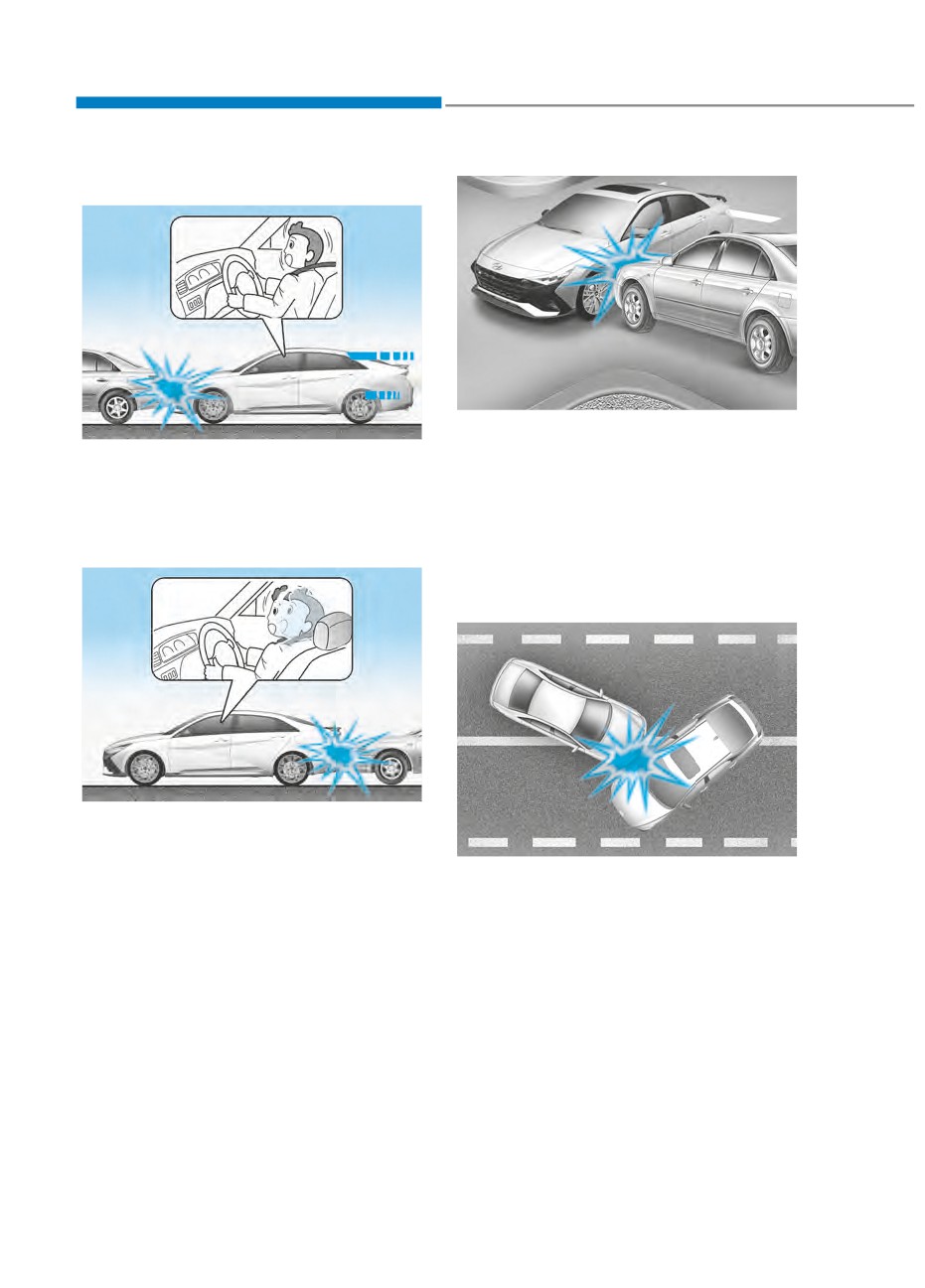

Front air bags may not inflate in side
impact collisions, because occupants
In certain low-speed collisions the air
move in the direction of the collision,
bags may not deploy. The air bags are
and thus in side impacts, front air bag
designed not to deploy in such cases
deployment would not provide additional
because they may not provide benefits
occupant protection.
beyond the protection of the seat belts.
However, side and curtain air bags may
inflate depending on the severity of
impact.
OCN7N031052L
Front air bags are not designed to inflate
in rear collisions, because occupants
OCN7N031137N
are moved backward by the force of the
impact. In this case, inflated air bags
In an angled collision, the force of impact
would not provide any additional benefit.
may direct the occupants in a direction
where the air bags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any air bags.
3-50

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03
OCN7N031054L
OCN7N031055
Just before impact, drivers often brake
Air bags may not inflate if the vehicle
heavily. Such heavy braking lowers the
collides with objects such as utility poles
front portion of the vehicle causing it
or trees, where the point of impact is
to “ride” under a vehicle with a higher
concentrated and the collision energy is
ground clearance. Air bags may not
absorbed by the vehicle structure.
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.
OCN7N031140N
Front air bags may not inflate in
rollover accidents because front air bag
deployment would not provide additional
occupant protection.
However, the side and curtain air bags
may inflate in a rollover situation, when it
is detected by the rollover sensor.
3-51

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats & Safety System
SRS Care
WARNING
The SRS is virtually maintenance-free
To reduce the risk of serious injury or
and there are no parts you can safely
death take the following precautions:
service by yourself. If the SRS air bag
Do not attempt to modify or
warning light does not illuminate when
disconnect the SRS components or
the Engine Start/Stop button is in the
wiring, including the addition of any
ON position, or continuously remains on,
kind of badges to the pad covers or
have your vehicle immediately inspected
modifications to the body structure.
by an authorized HYUNDAI dealer.
Do not place objects over or near
Any work on the SRS system, such as
the air bag modules on the steering
removing, installing, repairing, or any
wheel, instrument panel, and the
work on the steering wheel, the front
front passenger’s panel above the
passenger’s panel, front seats and roof
glove box.
rails must be performed by an authorized
HYUNDAI dealer. Improper handling of
Clean the air bag pad covers with
the SRS system may result in serious
a soft cloth moistened with plain
personal injury.
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.
Always have inflated air bags be
replaced by an authorized HYUNDAI
dealer.
If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
Consult an authorized HYUNDAI
dealer for the necessary information.
Failure to follow these precautions
could increase the risk of personal
injury.
3-52

-------------------------------------------------------------------------------------------------------------------------------------------------------------

03
Additional Safety Precautions
Air Bag Warning Labels
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
OCN7N031135N
of serious injury in a crash.
Air bag warning labels, required by the
Do not modify the front seats.
U.S. National Highway Traffic Safety
Modification of the front seats could
Administration (NHTSA), are attached
interfere with the operation of the
to alert the driver and passengers of
supplemental restraint system sensing
potential risks of the air bag system. Be
components or side air bags.
sure to read all of the information about
the air bags that are installed on your
Do not place items under the front
vehicle in this Owners Manual.
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON or START
position may cause the air bags to
inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 800-633-
5151.
Adding equipment to or modifying
your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
3-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Instrument Cluster
Instrument Cluster
4-4
Instrument Cluster Control
4-5
Instrument panel illumination
4-5
Gauges and Meters
4-5
Speedometer
4-5
Tachometer
4-6
Engine Coolant Temperature Gauge
4-6
Fuel Gauge
4-7
Outside Temperature Gauge
4-8
Odometer
4-8
Distance to empty
4-9
Fuel economy (Normal mode)
4-9
CUSTOM mode settings
4-9
Transmission Shift Indicator
4-10
Warning and Indicator Lights
4-11
Air Bag Warning Light
4-11
4
Seat Belt Warning Light
4-11
Parking Brake & Brake Fluid Warning Light
4-11
Anti-lock Brake System (ABS) warning light
4-12
Electronic Brake Force Distribution System Warning Light
4-12
Malfunction Indicator Lamp (MIL)
4-13
Charging System Warning Light
4-14
Engine Oil Pressure Warning Light
4-14
Low Fuel Level Warning Light
4-15
Master Warning Light
4-15
Low Tire Pressure Warning Light
4-16
Electronic Stability Control (ESC) Indicator Light
4-16
Electronic Stability Control (ESC) OFF Indicator Light
4-17
Forward safety warning light
4-17
Immobilizer Indicator Light (with smart key)
4-17
Turn Signal Indicator Light
4-18
Exterior Light Warning Light
4-18
LED headlight warning light
4-18
High Beam Indicator Light
4-18
Light ON Indicator Light
4-18
Low Beam Indicator Light
4-19
High Beam Assist indicator light
4-19
Forward safety warning light
4-19
Lane Keep Assist Indicator Light
4-19
Cruise Indicator Light
4-19
SPORT Mode Indicator Light
4-19
ECO Mode Indicator Light
4-20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

N Mode Indicator Light
4-20
CUSTOM Mode Indicator Light
4-20
REV (Rev Matching) Indicator Light
4-20
Icy Road Warning Light
4-20
LCD Display Messages
4-21
Key not in vehicle (for smart key system)
4-21
Key not detected (for smart key system)
4-21
Press START button with key (for smart key system)
4-21
Press START button again (for smart key system)
4-21
Low Key Battery (for smart key system)
4-21
Shift to P (for smart key system and dual clutch transmission)
4-21
Press brake pedal to start engine (for smart key system and dual clutch
transmission)
4-21
Press clutch pedal to start engine (for smart key system and manual
transmission)
4-21
Press START button again (for smart key system)
4-21
4
Check BRAKE SWITCH fuse (for smart key system and dual clutch
transmission)
4-22
Shift to P or N to start engine (for smart key system and dual clutch
transmission)
4-22
Battery discharging due to external electrical devices
4-22
Door, Hood, Trunk open indicator
4-22
Sunroof open indicator
4-22
Lights mode
4-23
Wiper mode
4-23
Low pressure
4-23
Heated Steering Wheel turned off
4-23
Low washer fluid
4-23
Low fuel
4-24
Engine Overheated
4-24
Check headlight (High)
4-24
Check headlight (Low)
4-24
Check turn signal
4-24
Check brake light
4-24
Check daytime running light
4-24
Check high mounted brake light
4-24
Check headlight LED
4-24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Instrument Cluster
LCD Display
4-25
LCD Display Control
4-25
View Modes
4-26
Driving Assist mode
4-27
Sport view
4-27
Trip computer mode
4-29
Turn By Turn (TBT) mode
4-29
Master warning mode
4-30
User Settings Mode
4-31
Trip Computer
4-37
Trip modes
4-37
Digital speedometer
4-38
Vehicle Settings (infotainment system)
4-39
Setting Your Vehicle
4-39
4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster
INSTRUMENT CLUSTER
Normal mode (Type A)
N mode (Type B)
The actual cluster in the vehicle may differ from the illustration.
For more details, refer to the “Gauges and Meters” in this chapter.
OOSN041001N/OCN7N041130N
1. Tachometer
4. Fuel gauge
2. Speedometer
5. Shift light
3. Engine coolant temperature gauge
4-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04
Instrument Cluster Control
Gauges and Meters
Instrument panel illumination
Speedometer
Normal mode
MPH, km/h
OUS4041035L
OCN7N041131N
When the vehicle’s parking lights or
N mode
headlamps are on, press the illumination
MPH
control switch to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
switch, the interior switch illumination
intensity also adjusted.
You can adjust the brightness of the
instrument panel illumination form the
User Settings Mode on the LCD display
when the ignition switch is on (‘Lights →
OCN7N041132N
Illumination’). When the vehicle’s parking
lights or headlamps are on, interior
The speedometer indicates the speed of
switch illumination intensity and mood
the vehicle and is calibrated in miles per
lamps are also adjusted.
hour (MPH) and/or kilometers per hour
(km/h).
If your vehicle is equipped with
additional navigation, please refer
to the infotainment system manual
separately supplied.
WARNING
Never adjust the instrument cluster
while driving. This could result in loss
of control and lead to an accident that
may cause death, serious injury, or
vehicle damage.
• The brightness of the instrument
panel illumination is displayed.
• If the brightness reaches to the
maximum or minimum level, a chime
will sound.
4-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Cluster
Tachometer
Engine Coolant Temperature Gauge
Normal mode
Normal mode
OCN7040007
OCN7040009
N mode
N mode
OCN7N041133N
OCN7N041134N
The tachometer indicates the
This gauge indicates the temperature
approximate number of engine
of the engine coolant when the Engine
revolutions per minute (RPM).
Start/Stop button is in the ON position.
Use the tachometer to select the correct
shift points and to prevent lugging and/
NOTICE
or over-revving the engine.
If the gauge pointer moves beyond
the normal range area toward the “H”
NOTICE
position, it indicates overheating that
may damage the engine.
Do not operate the engine within the
tachometer’s RED ZONE. This may
Do not continue driving with an
cause severe engine damage.
overheated engine. If your vehicle
overheats, refer to “If the Engine
Overheats” in chapter 8.
WARNING
Never remove the radiator cap when
the engine is hot. The engine coolant is
under pressure and could cause severe
burns. Wait until the engine is cool
before adding coolant to the reservoir.
4-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

04
Fuel Gauge
Information
Normal mode
The fuel tank capacity is given in
chapter 2.
The fuel gauge is supplemented by
a low fuel warning light, which will
illuminate when the fuel tank is nearly
empty.
On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
warning light may come on earlier than
usual due to the movement of fuel in
OOSN041034N
the tank.
N mode
WARNING
Running out of fuel can expose vehicle
occupants to danger.
You must stop and obtain additional
fuel as soon as possible after the
warning light comes on or when the
gauge indicator comes close to the “0
or E(Empty)” level.
OOSN041021N
NOTICE
This gauge indicates the approximate
Avoid driving with an extremely low
amount of fuel remaining in the fuel tank.
fuel level. Running out of fuel could
cause the engine to misfire damaging
the catalytic converter.
4-7

















Content      ..     1      2      3      4      ..
